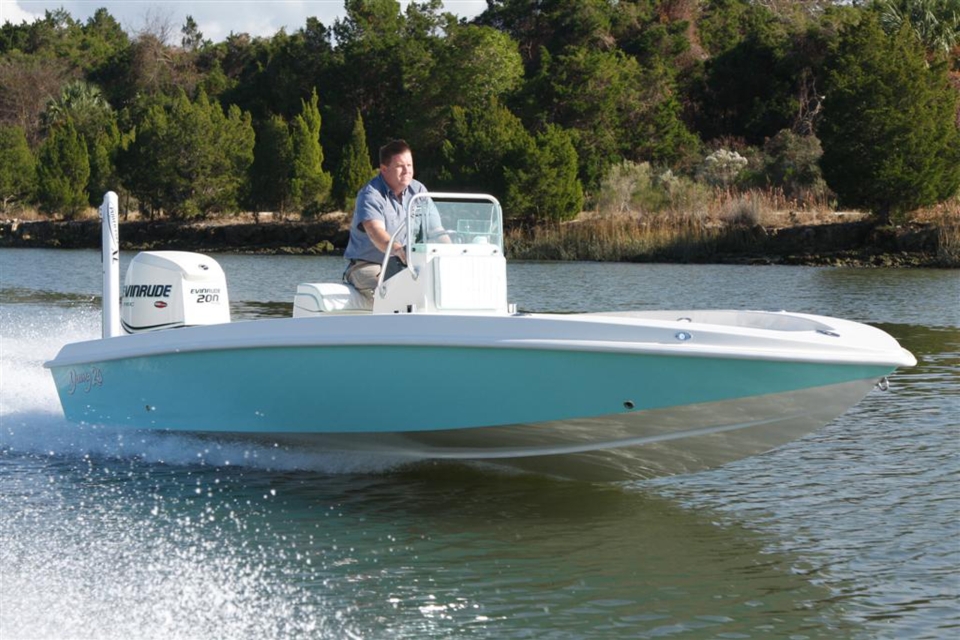

Designed for the serious and professional shallow-water angler, the Young 20 Bay navigates at high speeds over rough open water to get to the fish. The graceful curvature of the Reverse Sheer Line™ provides a functional, safe layout that delivers a smooth, dry, and stable ride.

  • Starting Price $109,700
  • Length (at centerline) 20'1"
  • Beam 8'
  • Draft (loaded) 10"
  • Deadrise (at transom) 12°
  • Deadrise (at bow entry) 30°
  • Weight (w/o engine) 1,250 lbs.
  • Standard Fuel Capacity 50 Gallons
  • Recommended HP Range 150-250 HP
  • Gunwale Width 13.5"
  • Cockpit Depth (freeboard at aft cockpit) 18"
  • Cockpit Depth (freeboard at fwd cockpit) 20"
  • Cockpit Size 8'4" x 8'1"
Download Features & Options Pricing
  • Custom single-color hull, all composite, 100% hand laid construction, fully self-bailing
  • Five ss “pull-up” cleats (1 bow, 2 midship, 2 stern) & 2 recessed passenger handrails (1″ SS)
  • 1/2″ ss bow and transom lifting eyes & Armstrong Dive Ladder (3-step removable)
  • Hull is bonded to deck/liner with structural adhesive & thru bolted every 6″
  • All thru hulls are titanium and ss and have composite ball valves
  • All compartments are plumbed overboard (no compartments drain into bilge)
  • All hatch openings have deep gutters with rubber gaskets for quietness and dryness
  • All empty chambers under cockpit floor are foam filled (closed cell)
  • Suzuki 200hp (digital throttle) (white or black)
  • Hydraulic tilt steering with Edson SS steering wheel (with fingertip grip)
  • Hydraulic jack plate (6″ with turn signal style switch & indicator gauge)
  • MinnKota Terrova (24V, 80lb, 54″, manual deploy), 2ea Gr. 27 batteries & 2 bank charger
  • 8ft Power-Pole Blade (transom mounted) (white or black)
  • Trim Tabs (9×12″, includes indicator switch)
  • 50-gal fuel tank with “Racor” fuel filter/water separator
  • Two Group 27 cranking/house batteries with heavy duty holding trays, on board battery charger for cranking/house batteries and Blue Sea battery switch
  • Dual bilge pumps with automatic float switches
  • Two 15 gal baitwells with intake filters, removable screens and composite ball valves
  • All wiring is marine tinned, and all connections have epoxy coated heat shrink connectors
  • Composite center console with console rod holders (holds 6 rods) & folding console door (removable, lockable)
  • Ritchie flush mounted compass with backlight
  • Console windshield (3/8″ acrylic with tray) and anodized console grab rail (fits over windshield)
  • SIMRAD Electronics Package (includes 1ea NSS 9″ MFD, SS60 600W thru hull transducer, and 2-1 Active Imaging transducer)
  • All navigation lights are LED
  • Lighted console switch panel with reset breakers
  • Fiberglass leaning post with pull-out tray tackle station (includes helm seat & removable backrest)
  • 42qt removable Frigid Rigid cooler with seat & backrest cushion
  • Six LED cockpit courtesy lights mounted on each side of console under deck cap
  • Four ss flush mount rod holders (mounted on deck cap)
  • Under gunwale rod racks (holds 8 rods)
  • Custom integrated fish ruler
  • Raw water washdown (with ss outlet, coil hose, and quick disconnect)
  • 37-gal release well / live well
  • Heavy duty polymer anchor holder with recess/divider for rope and chain (mounted inside locker)
Download Features & Options Pricing
  • Anchor Locker
  • Cooler/Seat with Backrest
  • Dry Storage
  • Leaning Post
  • Console
  • Blige Access
  • Release Well
  • Baitwell
Download Features & Options Pricing

Key Features
and Highlights

Download Features & Options Pricing

Design

Reverse sheer for higher cockpit sides and added stiffness. Features a stand-up lean post and expanded cockpit layout.

Construction

All-composite modified-V hull with molded non-skid finish. Three-piece, self-bailing design built for versatility.

Water Capability

Designed for shallow flats and bays, maintaining high-speed performance and comfort in choppy water.

Download Features & Options Pricing

Additional Options & Upgrades

Engine Upgrades *The following are upgrades from the standard Suzuki 200hp (digital throttle) (white or black)
  • Suzuki 250hp 4-stroke (Digital throttle)
  • Mercury 200hp Pro XS (Mechanical)
  • Mercury 250hp Pro XS (Mechanical)
  • Yamaha 200hp SHO (Mechanical)
  • Yamaha 250hp SHO (Mechanical)
Trolling Motor Upgrades & Options *The standard trolling motor is the MinnKota Terrova 24V, 80lb, 54" shaft, Manual Deploy
  • Upgrade to MinnKota iPilot NEW Terrova Quest (brushless, 24V, 90lb, 60″, Manual Deploy)
  • Upgrade to MinnKota RT iPilot Instinct (brushless, 24V, 90lb, 60″, Auto Deploy)
  • Upgrade to Power-Pole MOVE (brushless, 24V, 78lb, 52″ shaft, Manual Deploy)
  • Upgrade to SIMRAD RECON (24V, 54″ shaft)
  • Upgrade to Garmin Force Kraken (24V, 48″ shaft)
Trailer
  • Aluminum Dual Axle Trailer (includes all ss hardware, ss hubs, spare tire assembly, step-on fenders custom fit “driver-on” bunks, and ss cad disc brakes)
  • Aluminum Wheels
  • Removable or Swing-Away Tongue
Electronics Package *The standard electronics package is the SIMRAD 1ea NSS 9" MFD, SS60 600W thru hull transducer, and 2-1 active imaging transducer
Marine Stereo Package (Includes Fusion head unit, 2ea JL Audio 7.7" speakers and all wiring and installation)
  • Upgrade – two additional JL Audio 7.7″ speakers
  • Upgrade – JL Audio 400/4 amp
  • Upgrade – to sub package: one JL Audio 10″ subwoofer with audio amplifier
SIMRAD Electronics Package Additions
  • Upgrade to SS75 thru hull CHIRP transducer
  • Upgrade to NSS 12″ MFD
  • SIMRAD WM-4 Sirius-XM Satellite Weather Module and Antenna
  • SIMRAD VHF RS40 with 4ft antenna
GARMIN Electronics Package Options
  • Upgrade to GARMIN Electronics Package (Includes 1ea 10″ 8610xsv MFD, B60 600W thru hull transducer, Side and Downscan transducer. Includes all wiring and installation)
  • Upgrade to B75 thru hull CHIRP transducer
  • Upgrad to 12″ 8612xsv MFD
  • GARMIN GXM-54 Sirius-XM Satellite Weather Module and Antenna
  • GARMIN VHF 215 with 4ft antenna
Aluminum Fabrication
  • Anodized poling platform with non-slip steps and two welded rod holders
  • Additional rod holder welded to poling platform frame (pair)
  • Cup holder welded to tower frame (pair)
  • Knife/plier/cup holder combo welded to tower frame (pair)
  • Removable casting platform (includes flush ss base and turnbuckle)
  • Powder Coating Package (choice of color)
  • Removable casting seat (cushioned stool, Defender flush mount, turnbuckle, backing plate)
  • Defender flush mount only (includes flush base, removable eye, and backing plate)
Anchoring
  • Upgrade standard single 8ft Power Pole Blade to dual Power Pole 8ft (with one pump or dual pumps)
  • Upgrade to single 10ft Power Pole
  • Upgrade to dual 10ft Blades
  • Dual Power Pole Bracket (mount to side of jack plate)
Fishing & Rigging
  • Tackle Station (includes 4 Plano trays, sliding drawer and pull out cutting board)
  • Additional SS Rod Holders (flush mounted on deck cap) – $300 (pair)
  • Rod Holder/Cup Holder Combos – $500 (pair)
  • Gunnel cup holders – $200 (pair)
Upholstery & Seating
  • Removable Pedestal Seat (choice of captain style or bicycle style) (includes flush mount ss base, adjustable cylinder, and matching upholstery)
  • Bow Cushion (removable)
  • Aft cushion seat with backrest
Covers & Enclosures
  • Custom Full Boat Cover (choice of color)
  • Extended Sides (full boat cover)
  • Cockpit Bimini Top (choice of color, includes boot)
  • Console Cover (choice of color, covers entire composite helm)
  • Lean Post Cover (choice of color, covers console, backrest, tower)
  • Combo Cover (choice of color, covers console, cooler, and leaning post)
  • Life Jacket Storage
Lighting & Plumbing
  • Underwater Lights LED – Pair
  • Upgrade Underwater Lights to Spectrum
  • Upgrade Cockpit Lights to Spectrum
  • Spreader Lights (high intensity, LED)
  • Lumitec Razor Light Bar (low profile, curved 18″)
  • Recirculating Live Well Pump
  • Clear Acrylic Release Well Lid or Bait Well Lid (with etched logo)
  • Custom front live well (10 gal capacity)
Deck & Utility
  • Helm Pad (Sea Dek)
  • 12V Accessory Outlet Mounted/Wired Inside Console
  • Upgrade Batteries to AGM
  • Forward Step (includes hatch with storage)
Download Features & Options Pricing

Just Delivered

Young 20 Bay
May 2019
FWC #154
May 2025
Young 20 Bay - May 2019

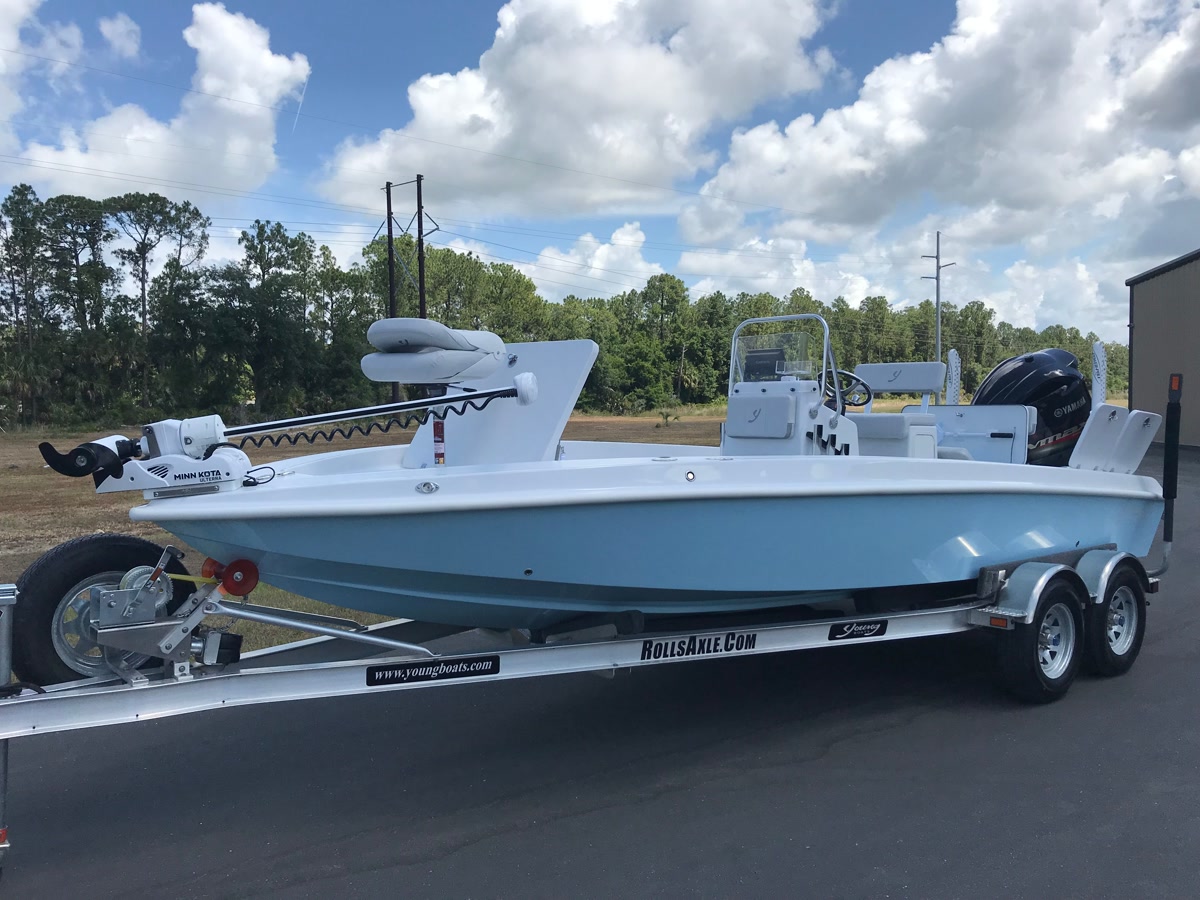

Front hatches open

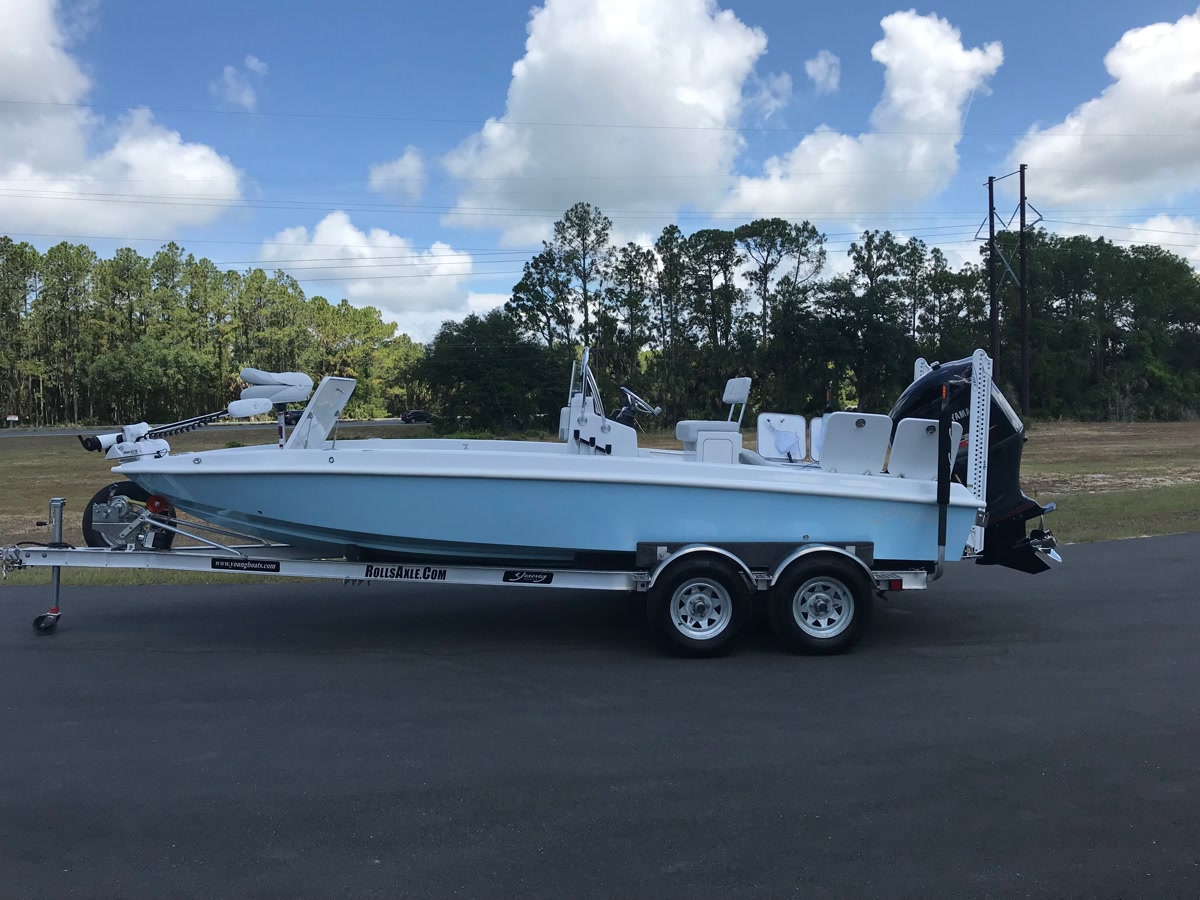

Side profile

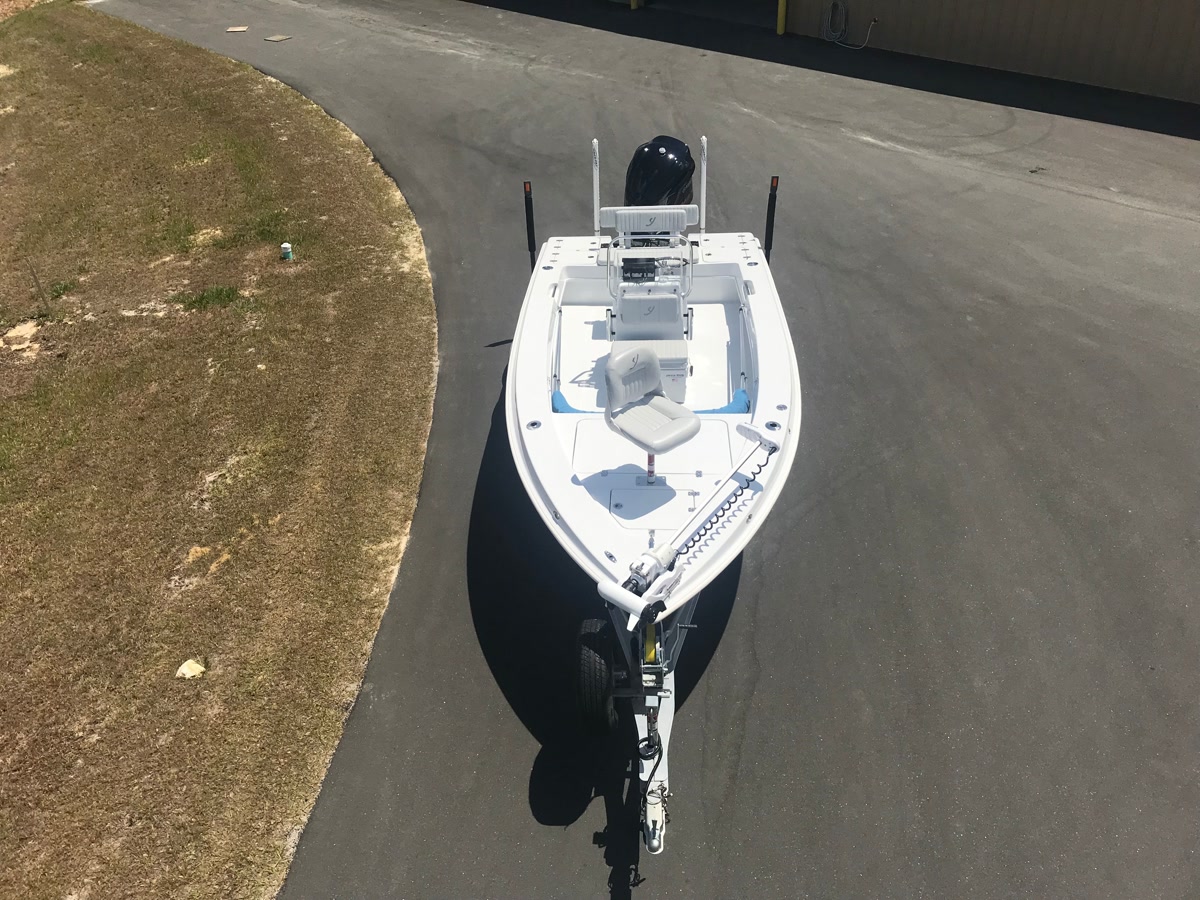

Bow aerial

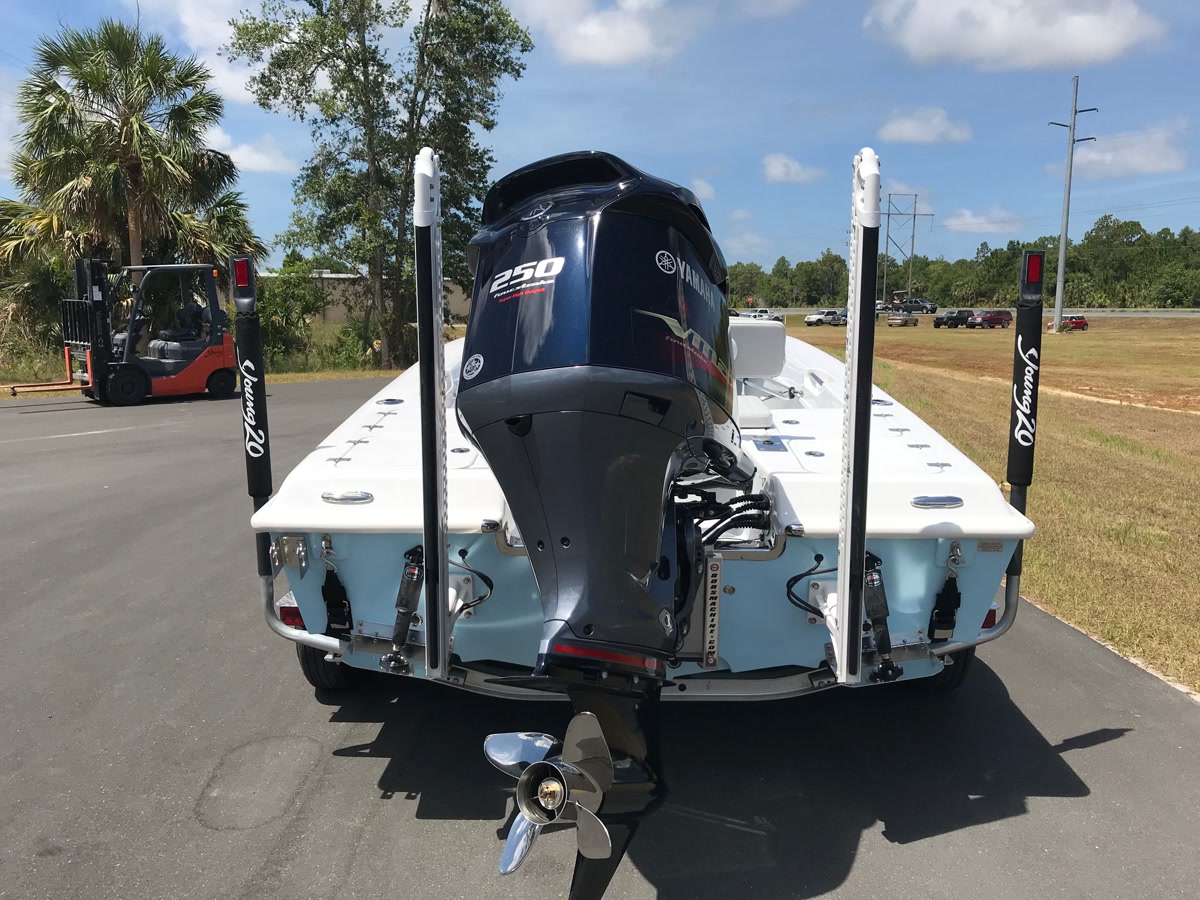

Transom

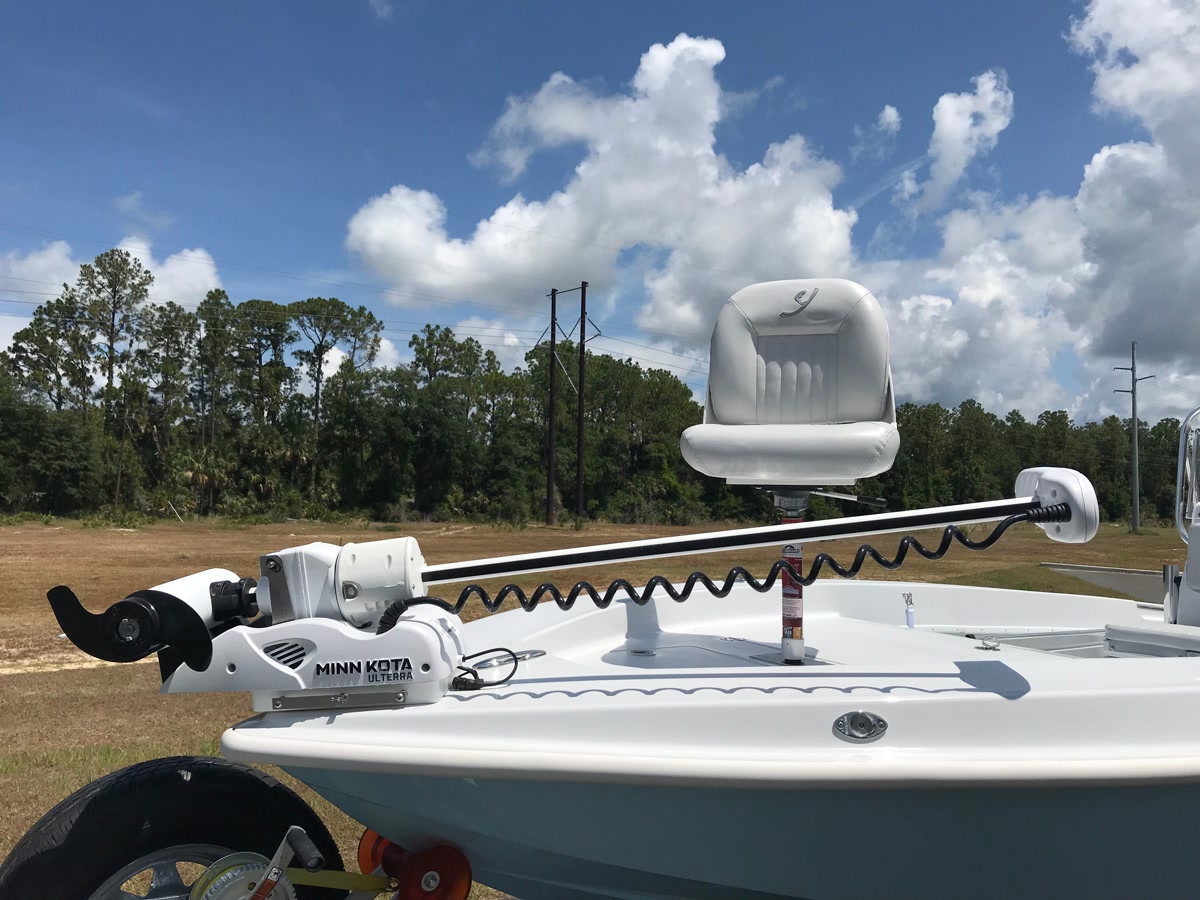

Trolling motor

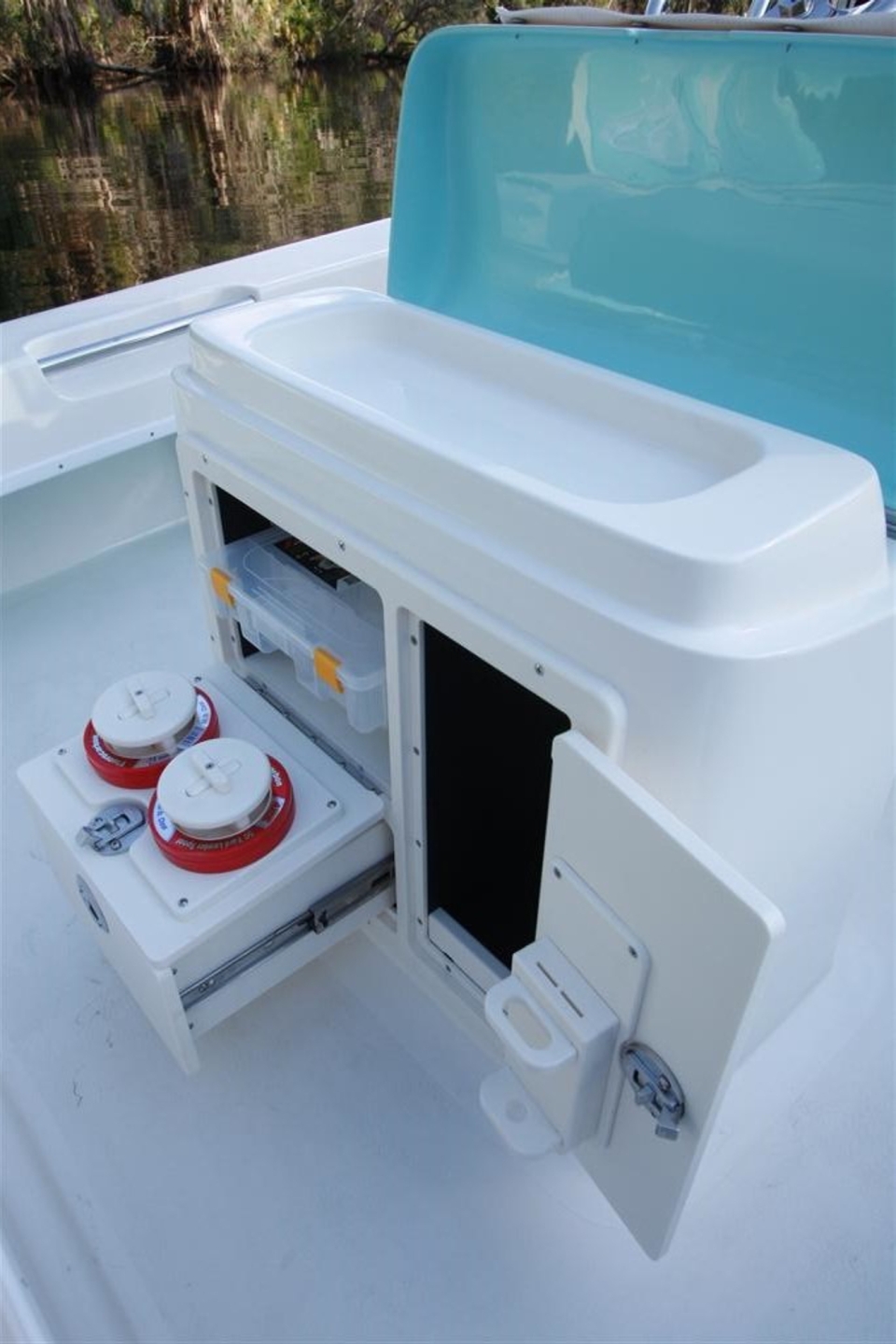

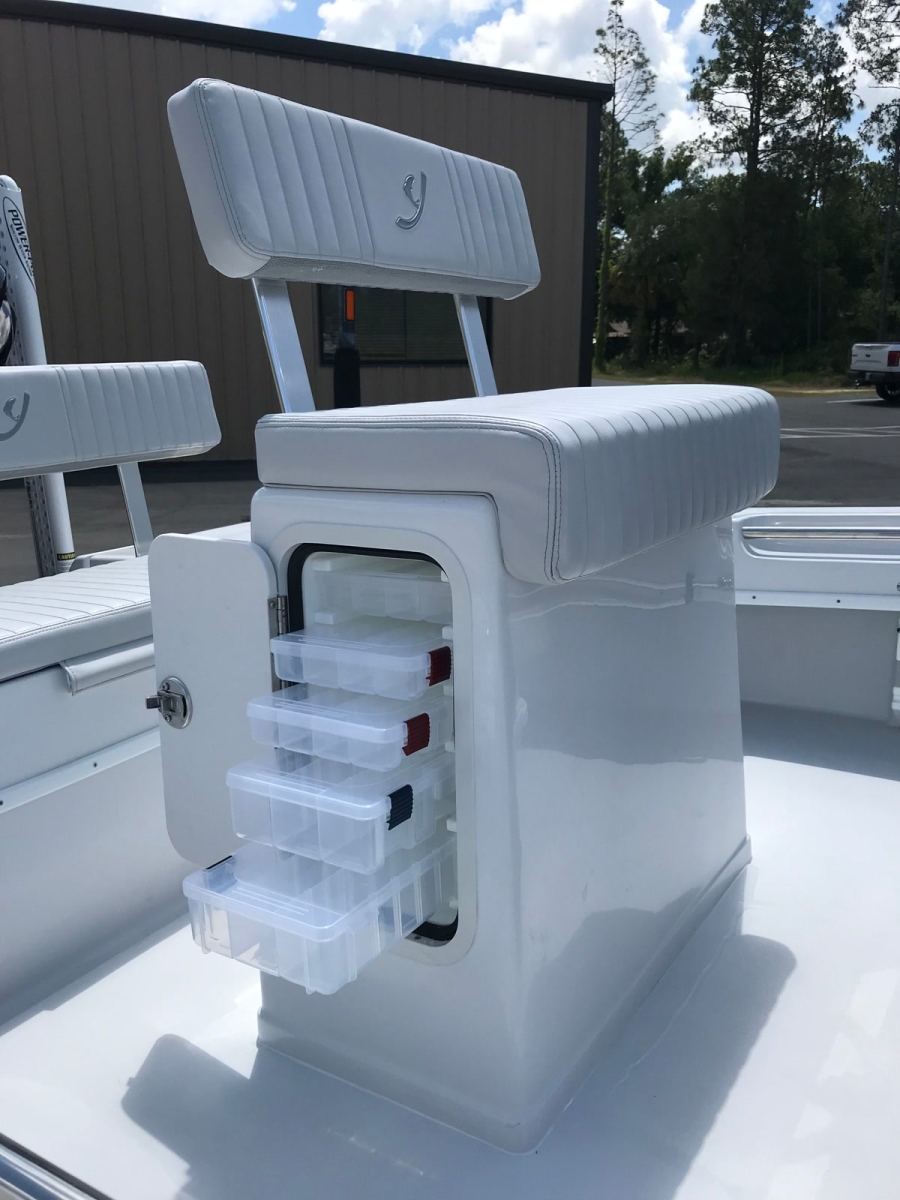

Tackle storage

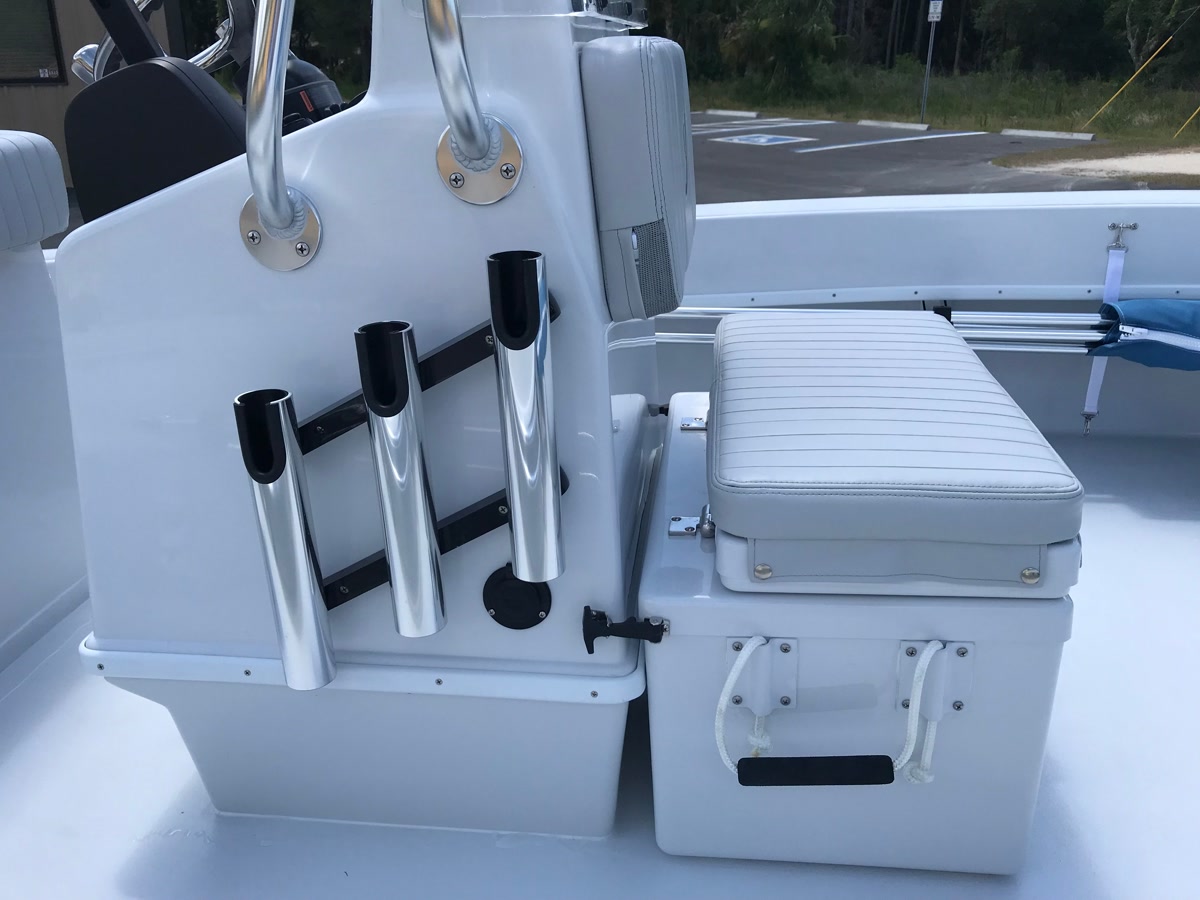

Side console

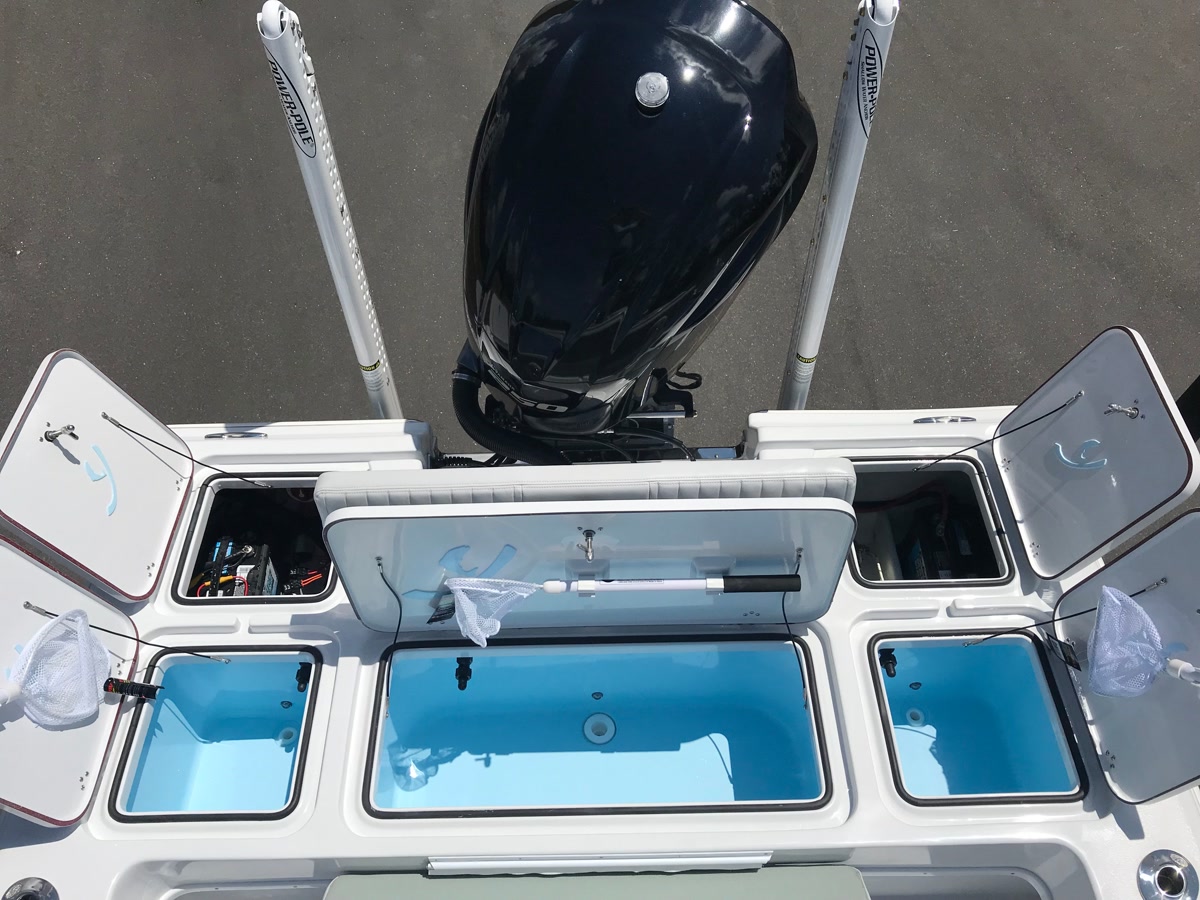

Rear storage

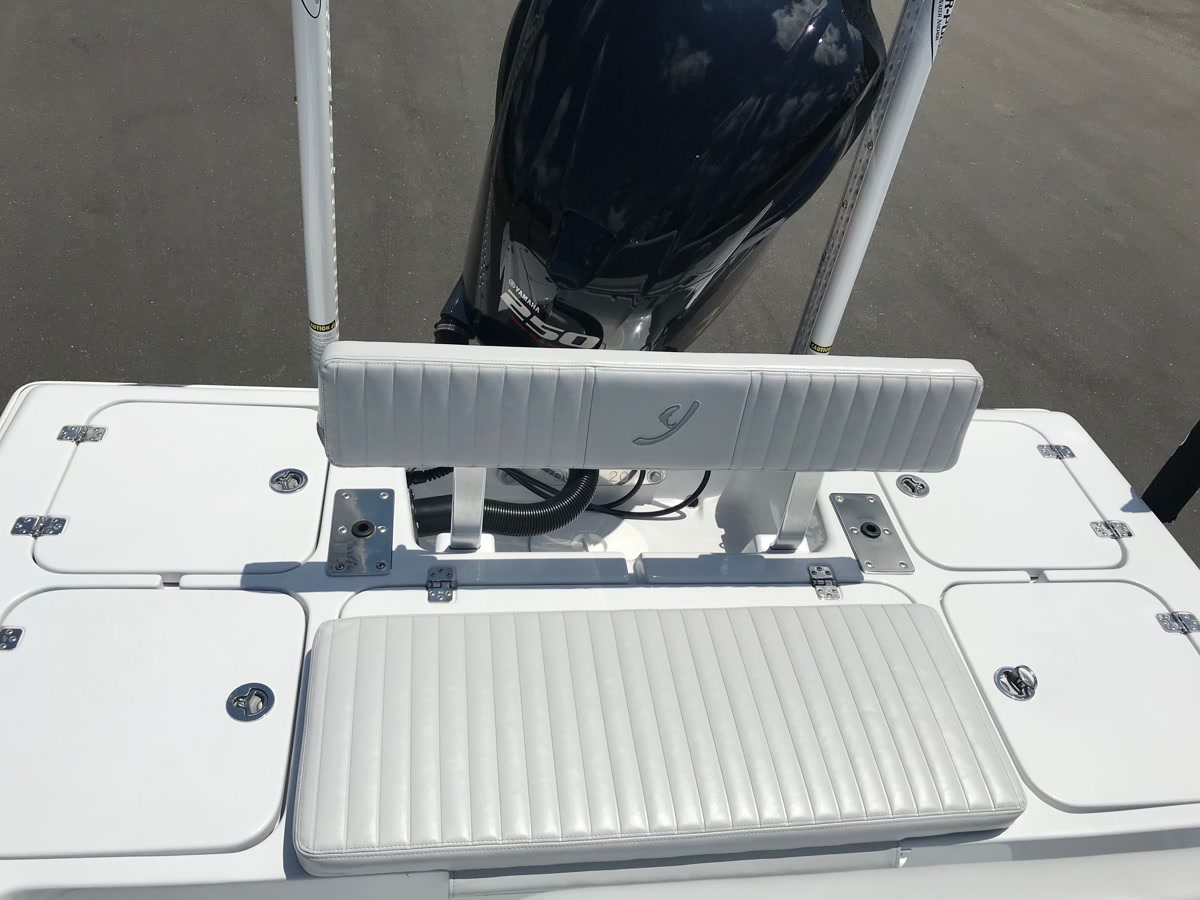

Rear seating

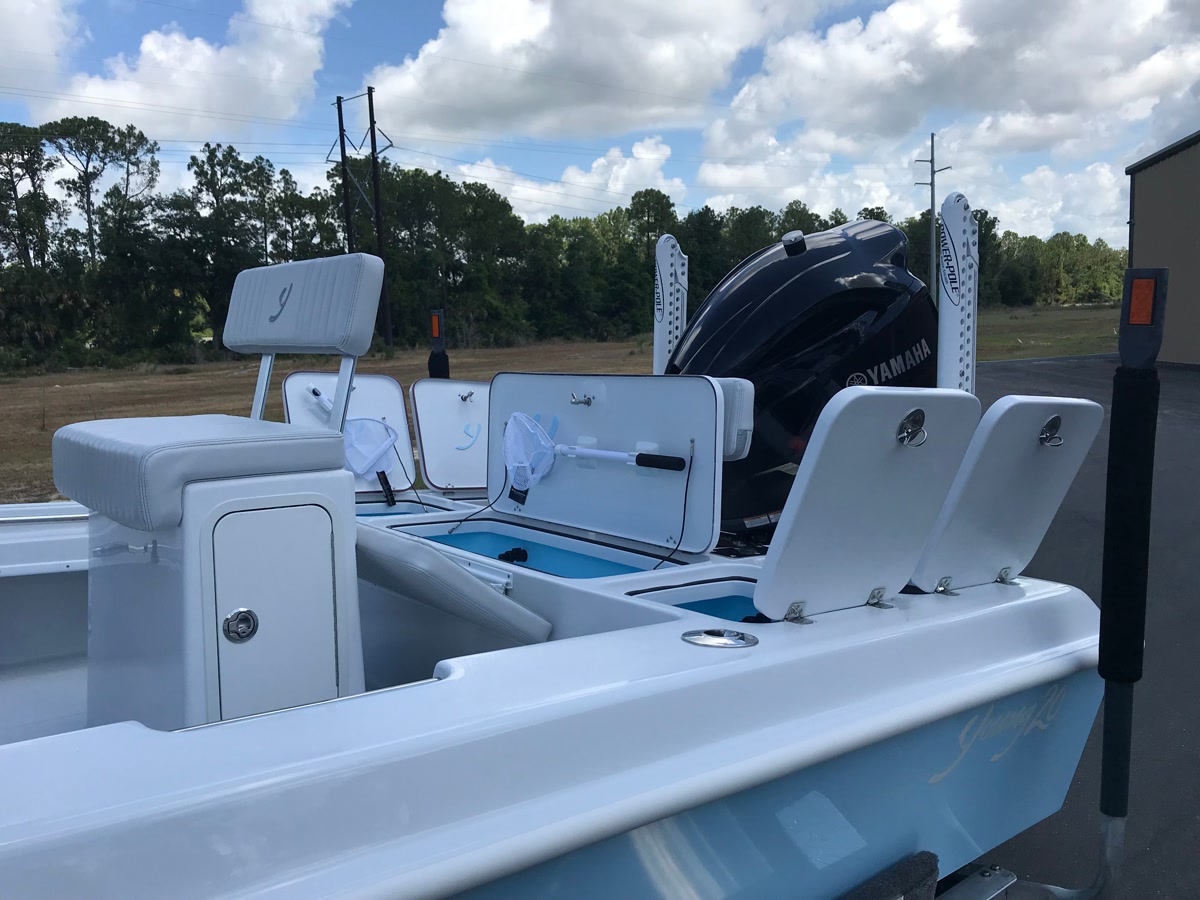

Rear hatches open

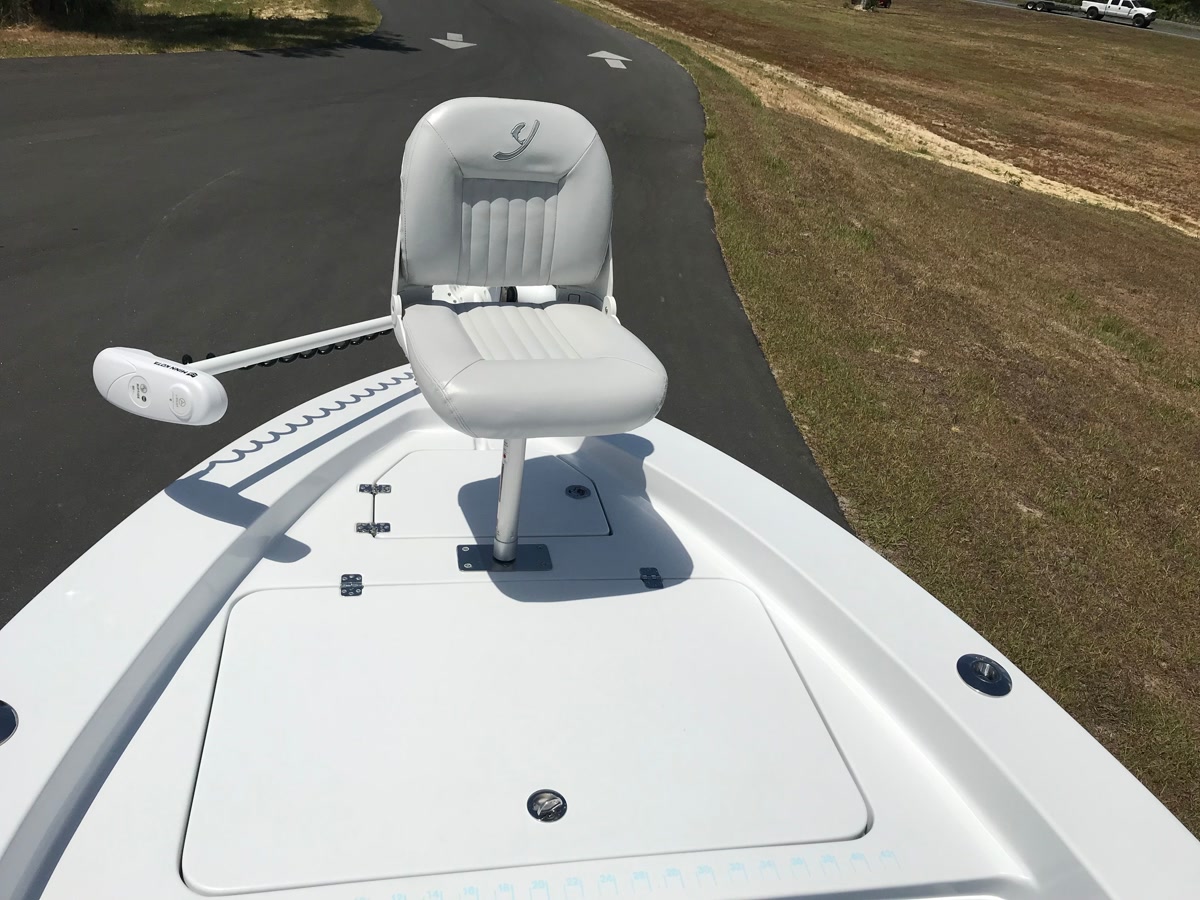

Front deck

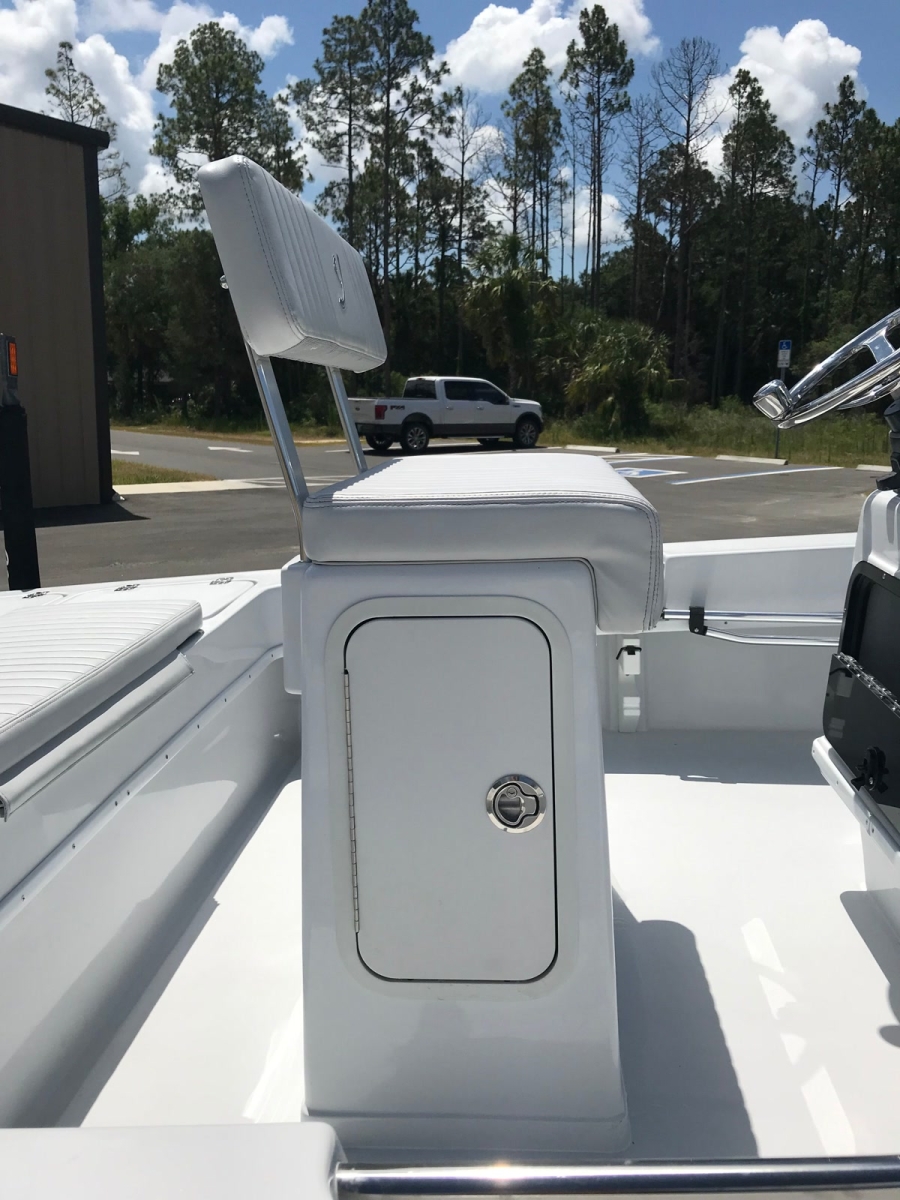

Leaning post

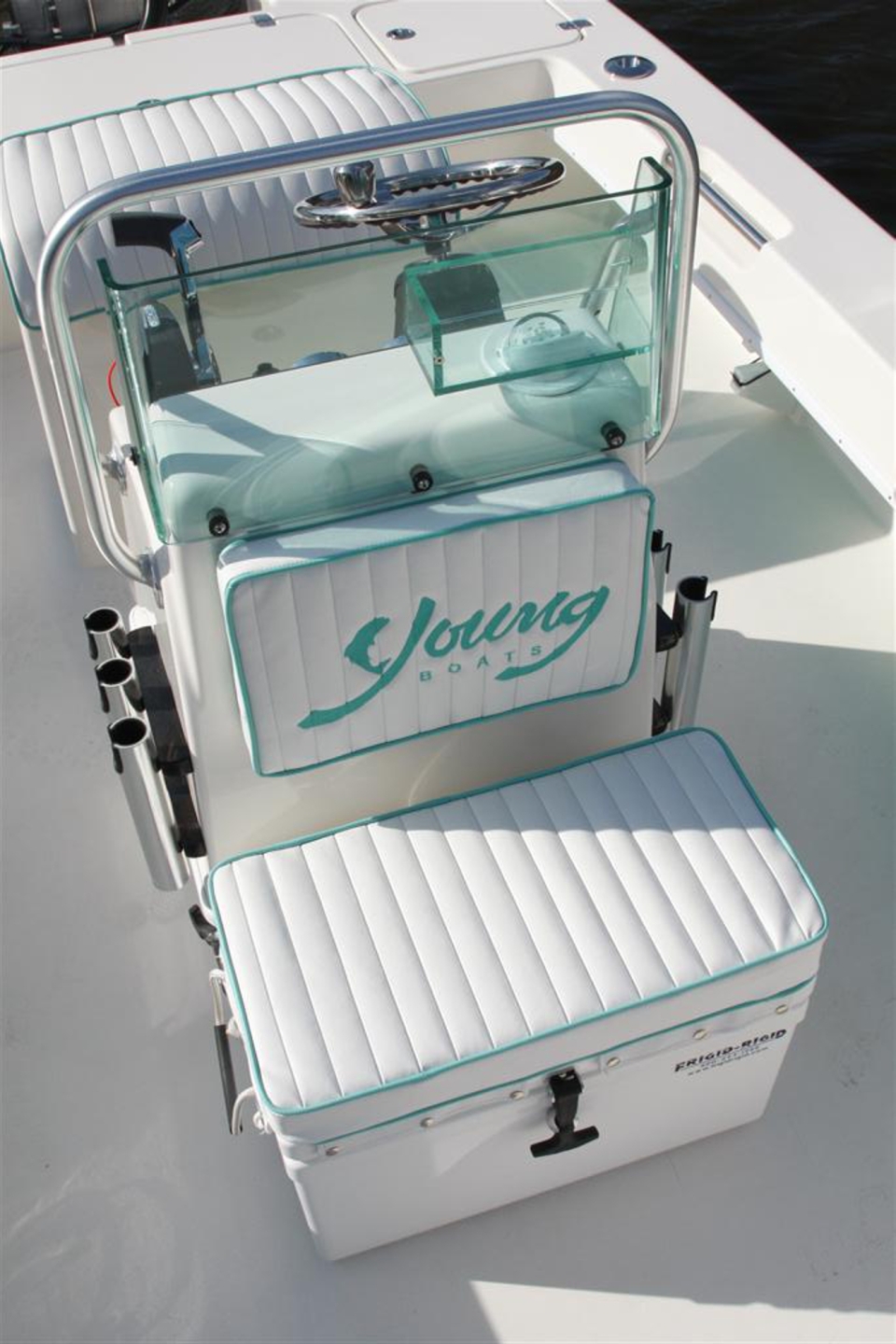

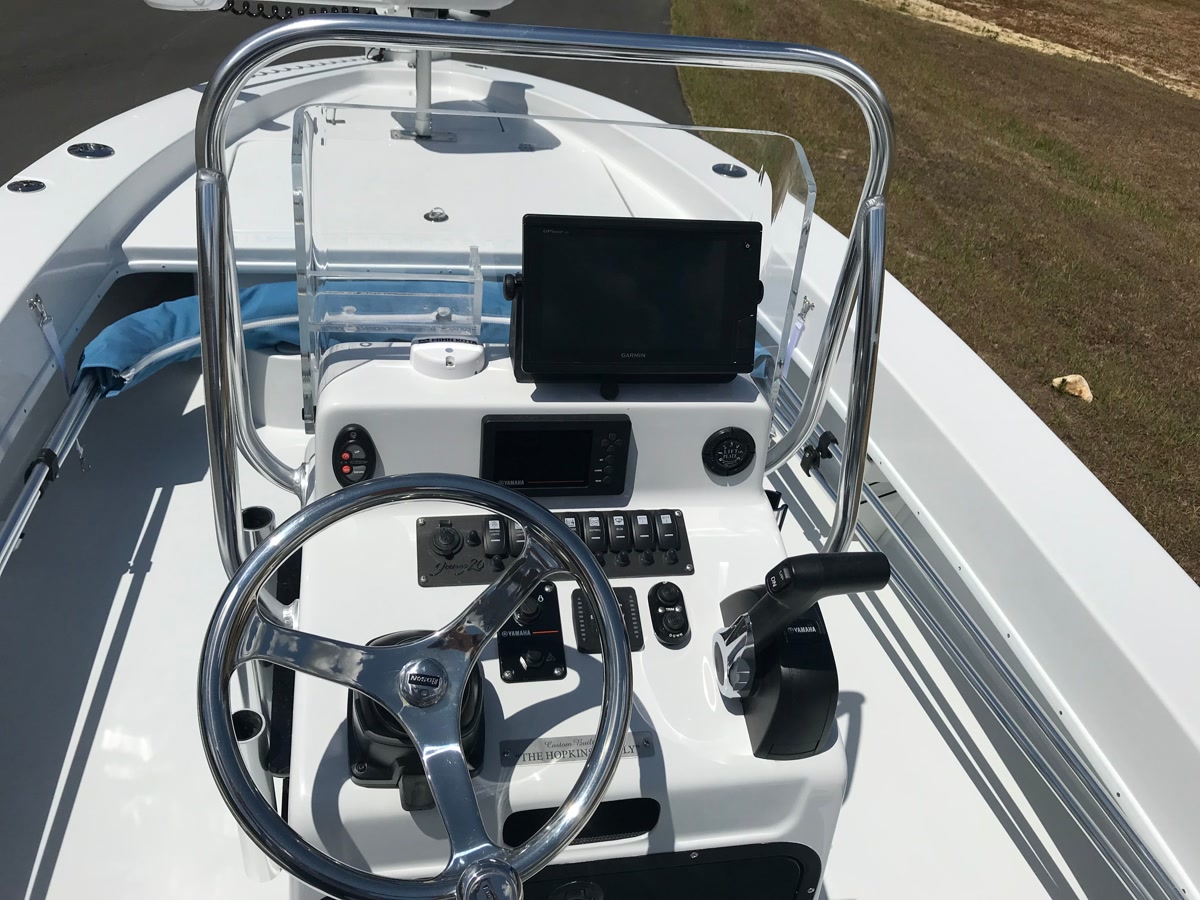

Console

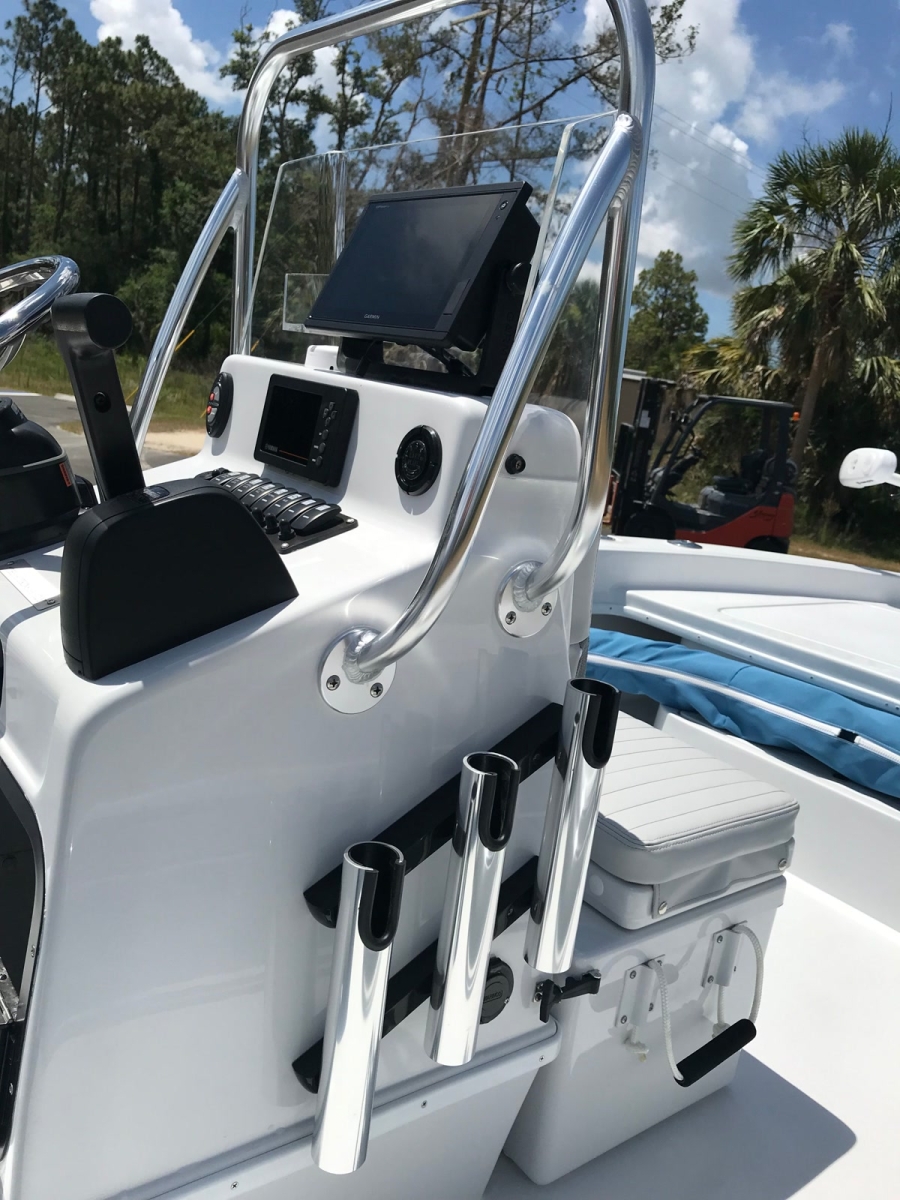

Console rod holders

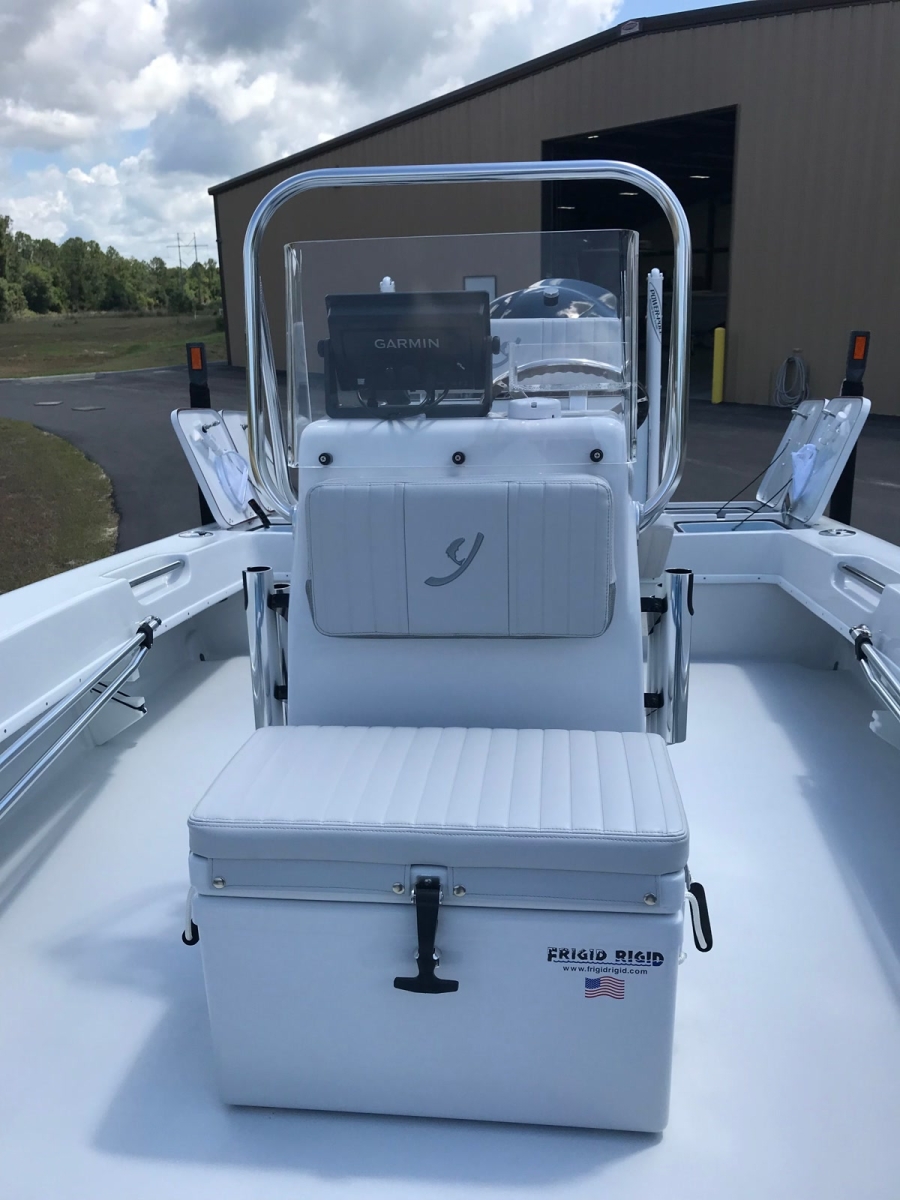

Console cooler

FWC #154 - May 2025

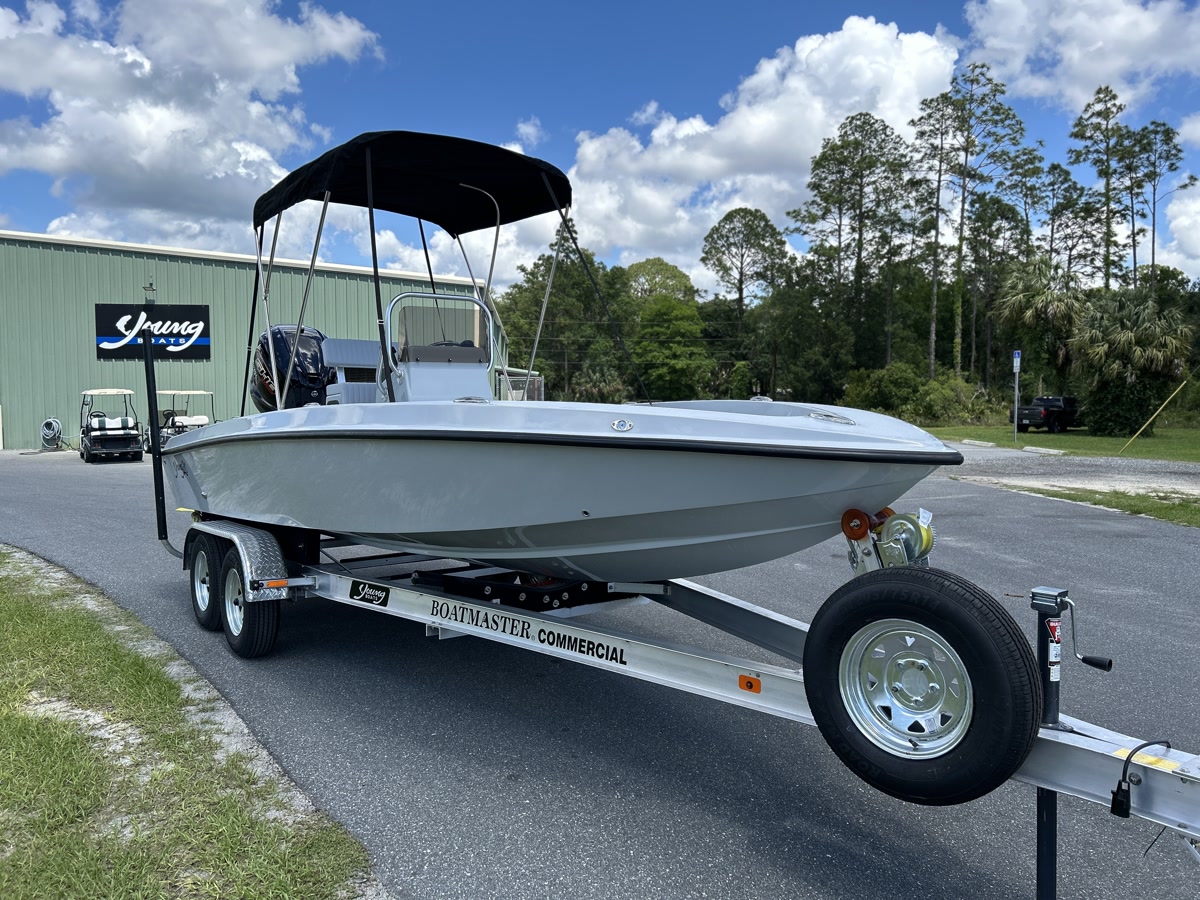

Starboard profile

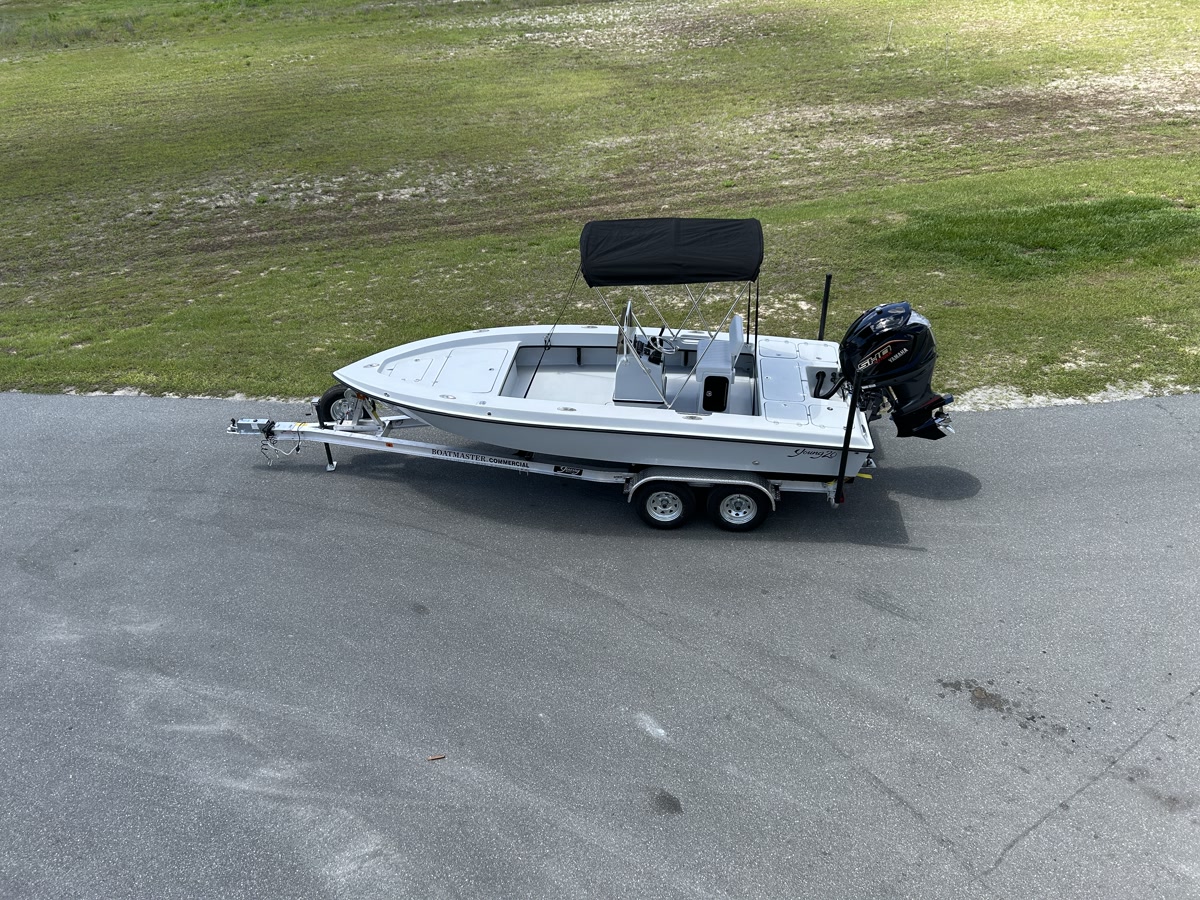

Side aerial with bimini

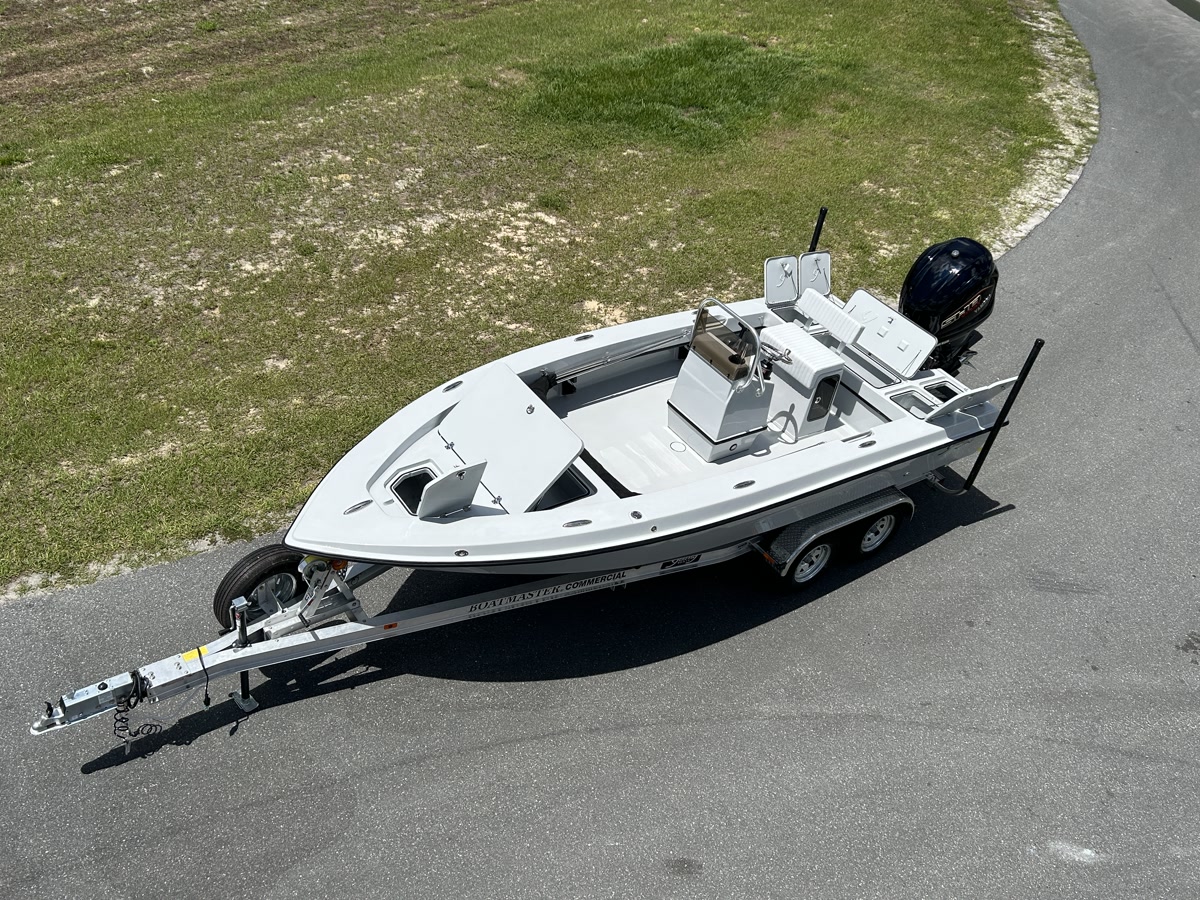

Port aerial

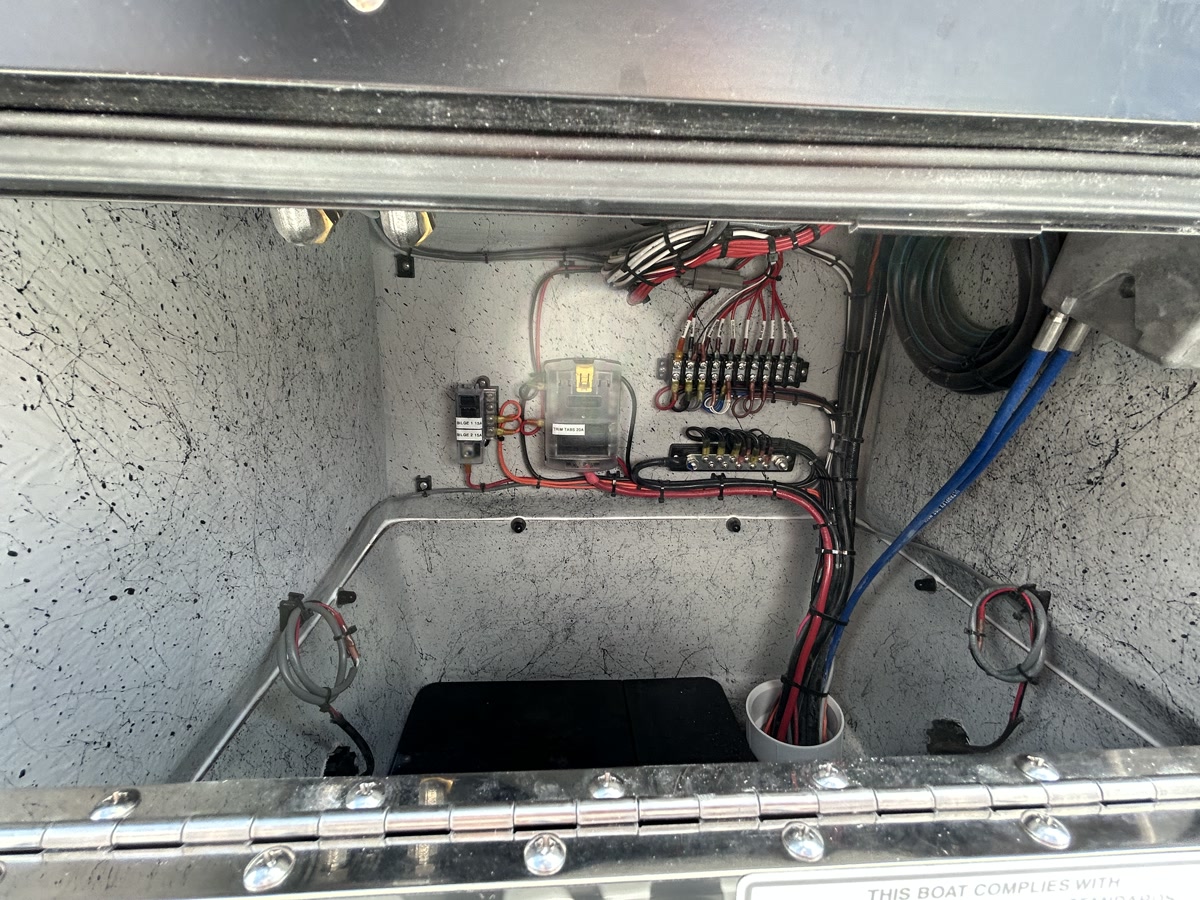

Console rigging

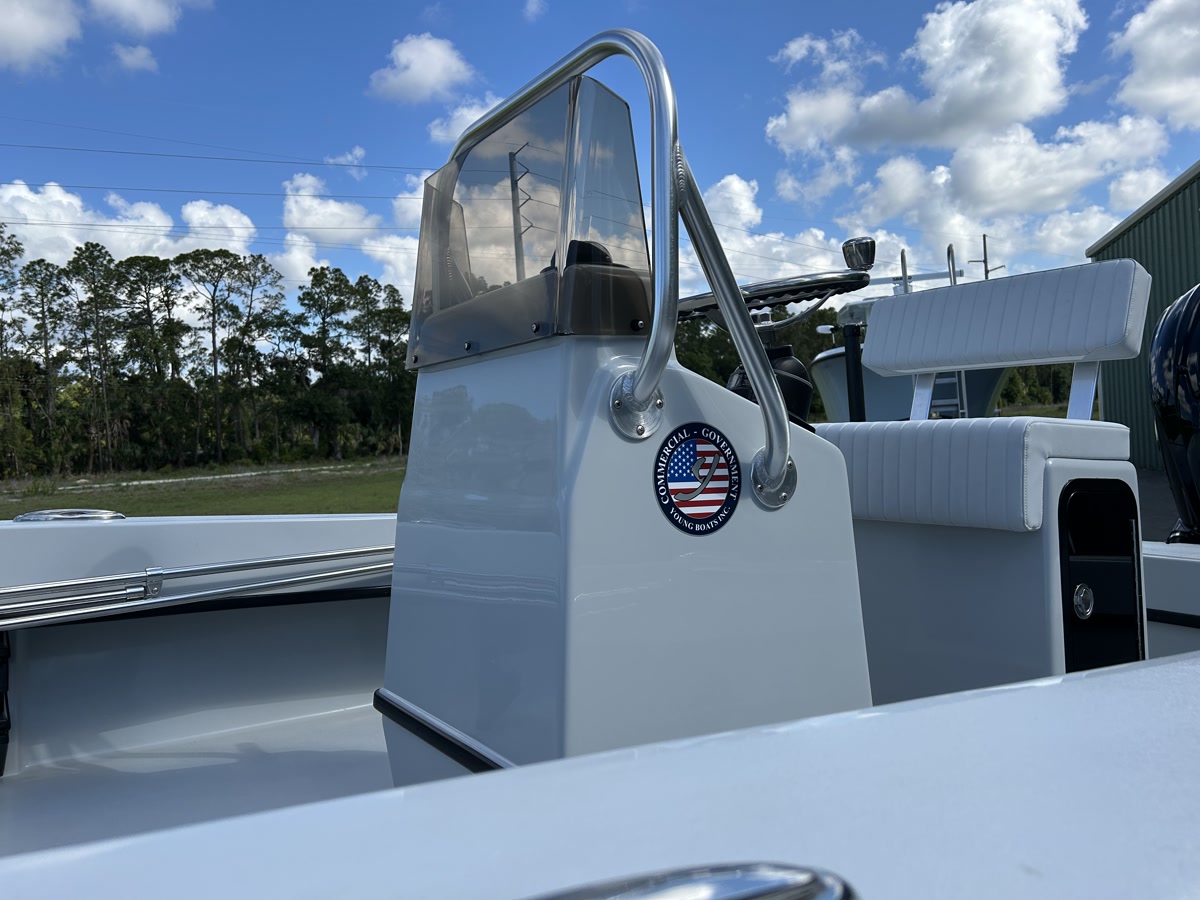

Side of console

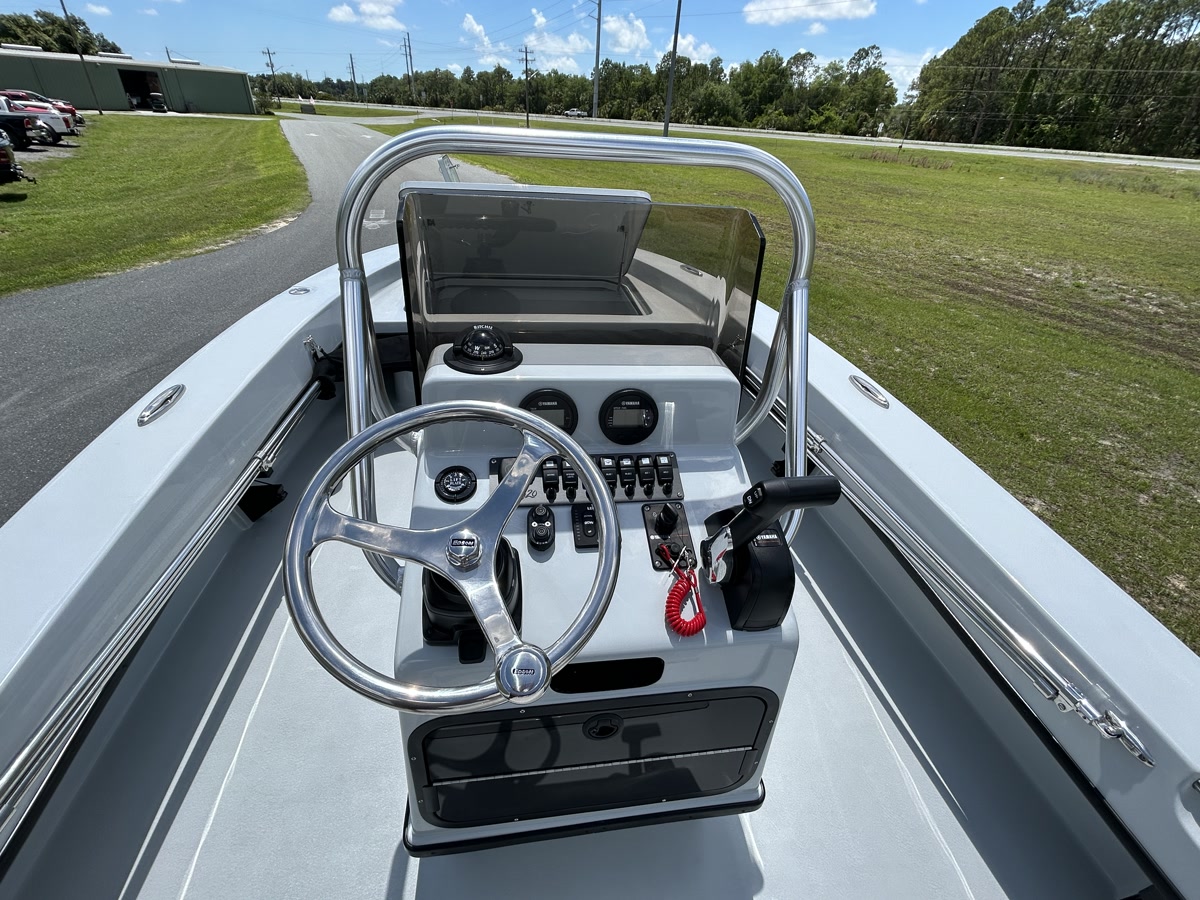

Cockpit

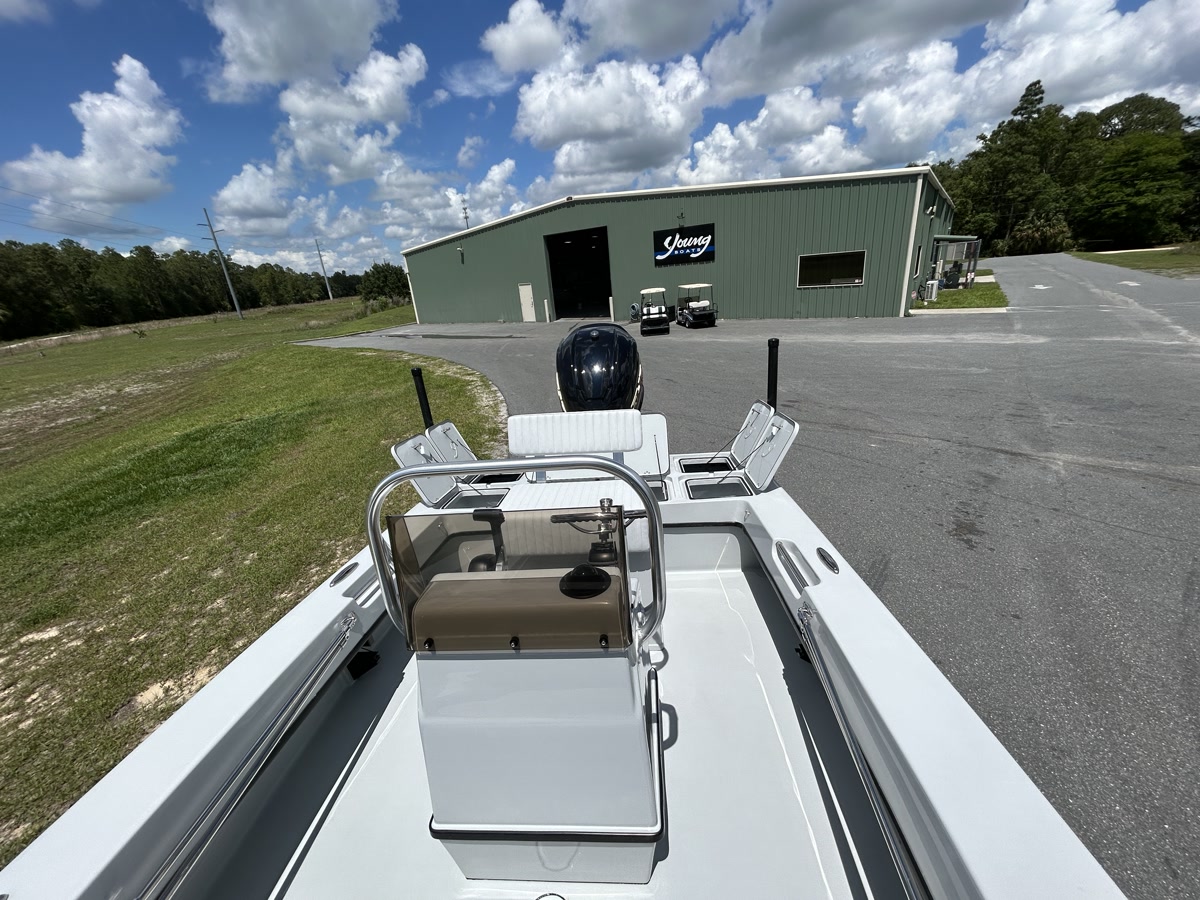

Cockpit facing aft

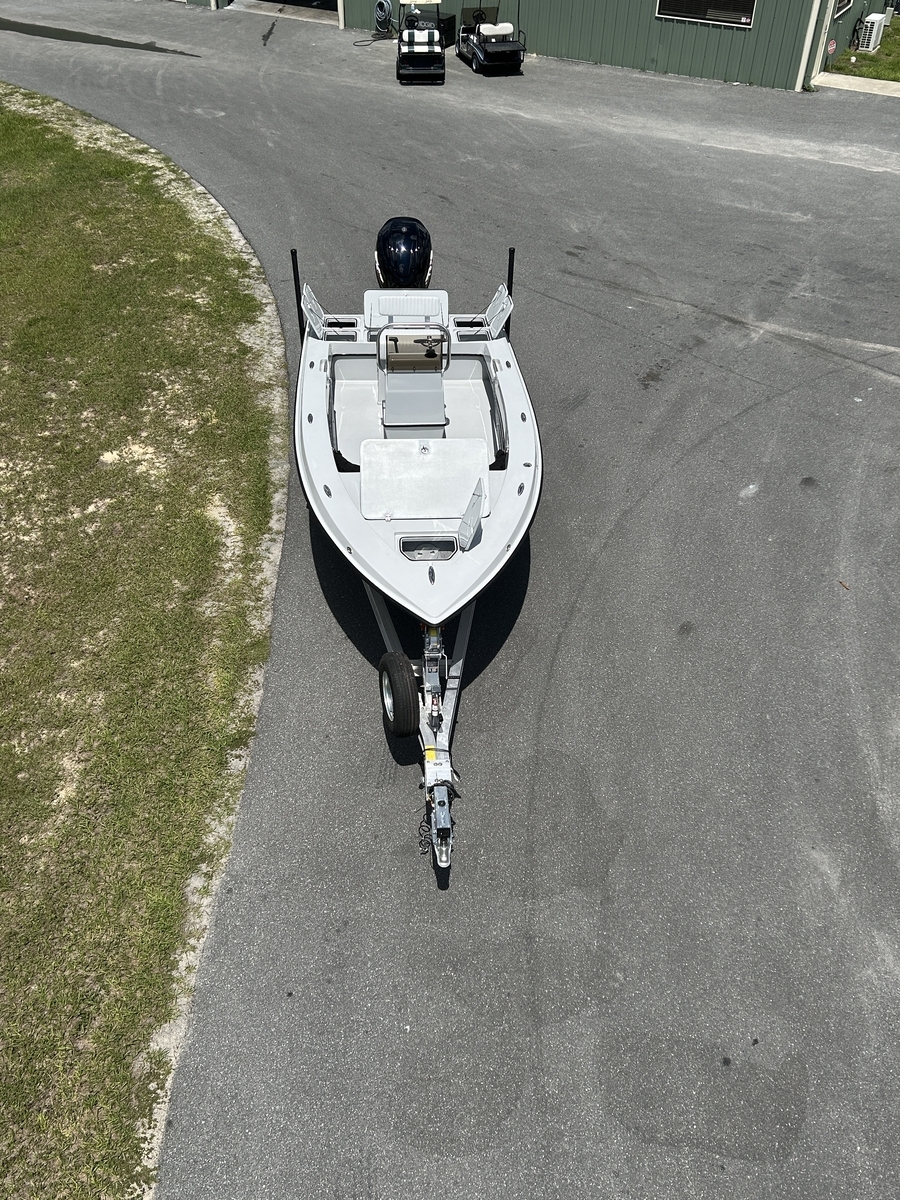

bow-aerial

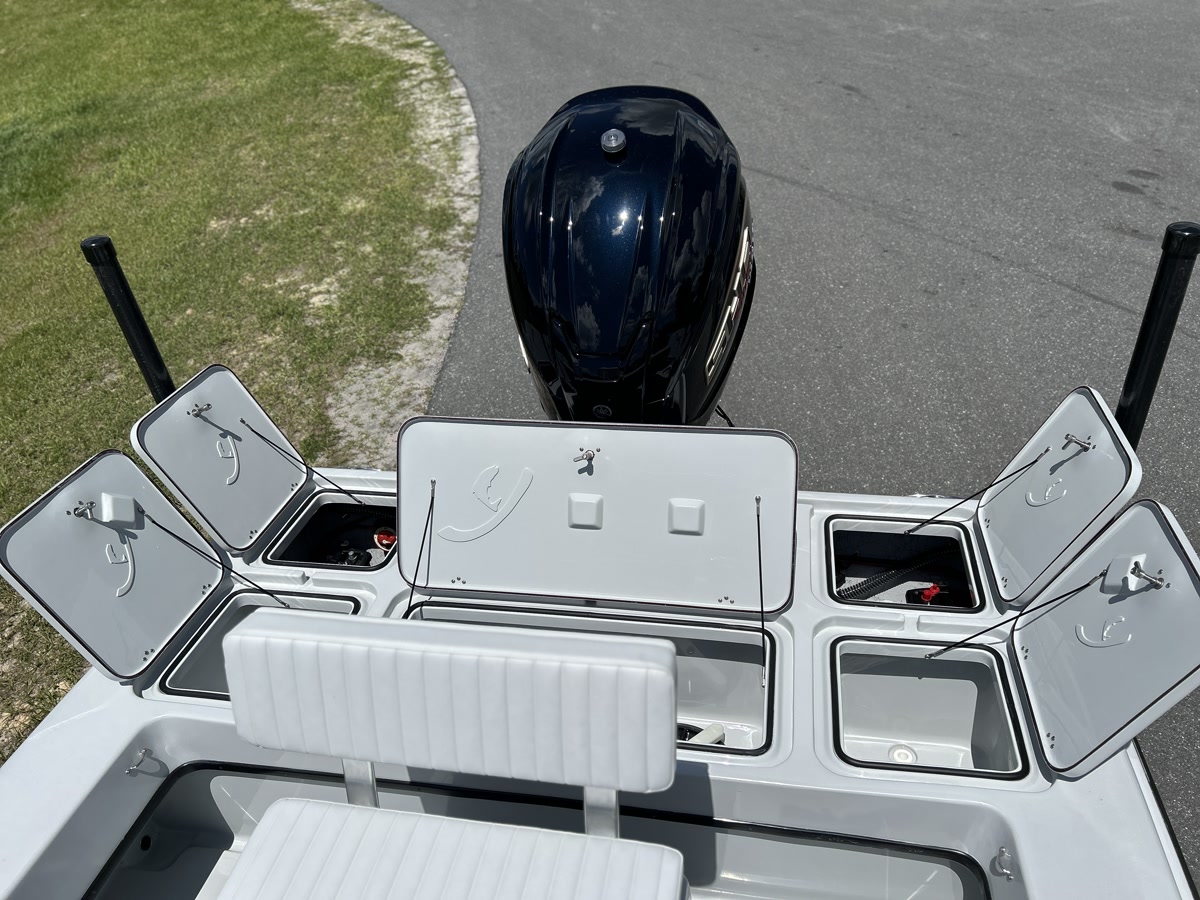

Rear hatches open

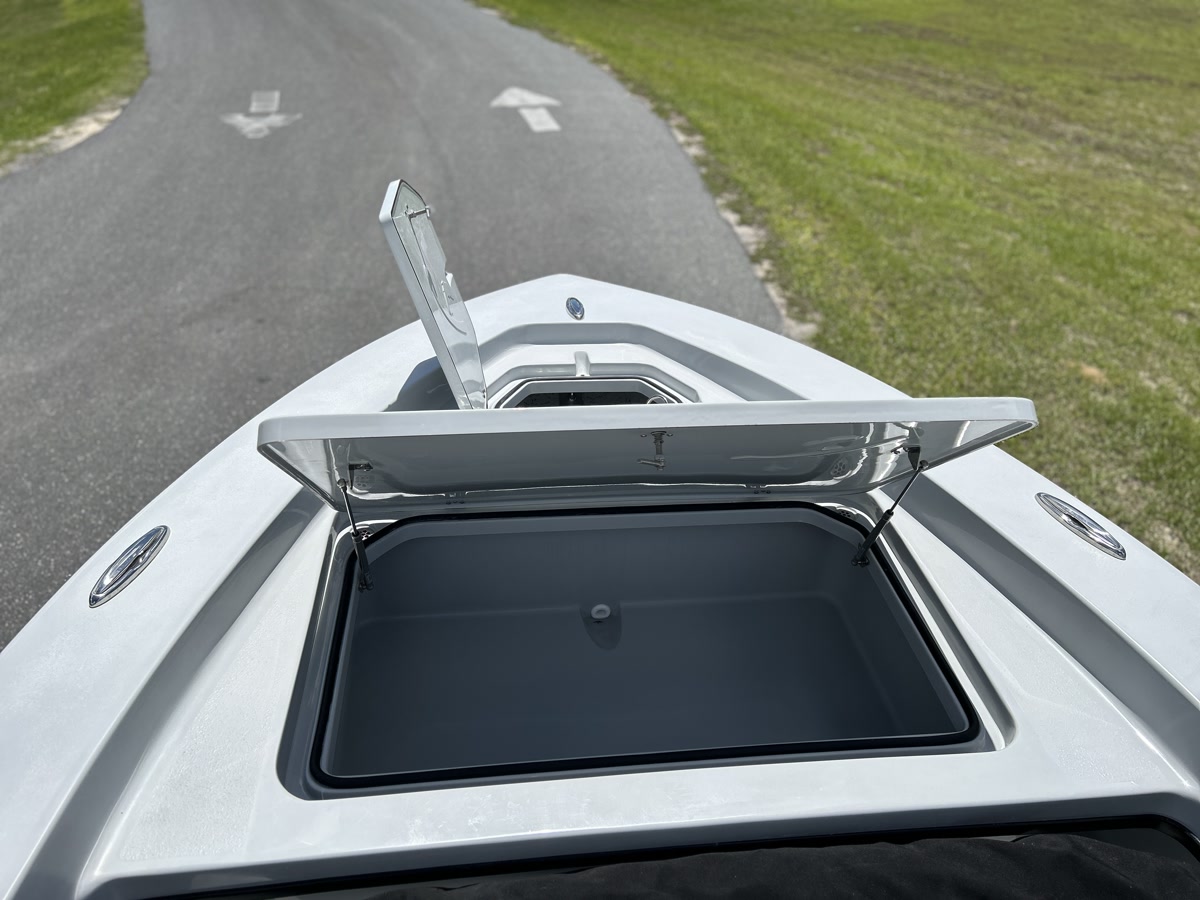

Front storage

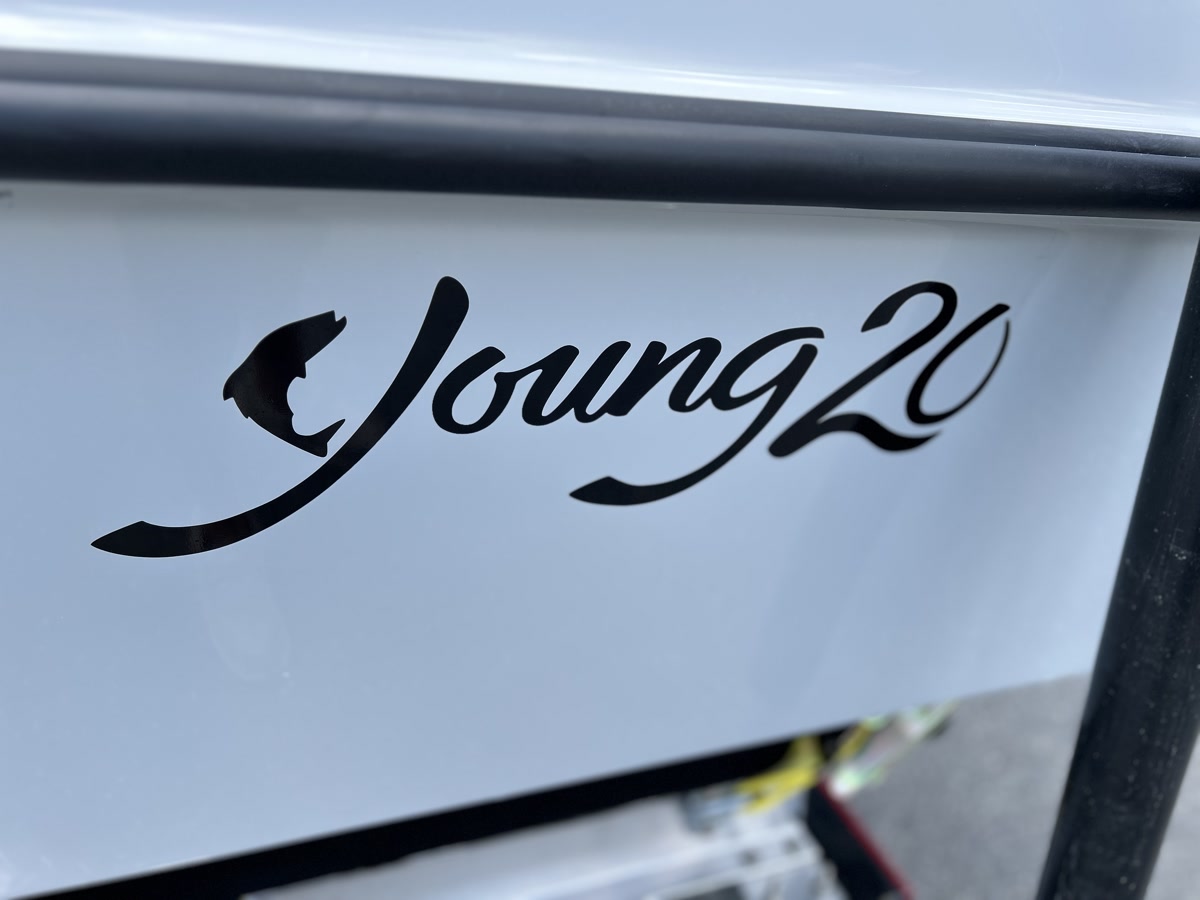

Hullside logo

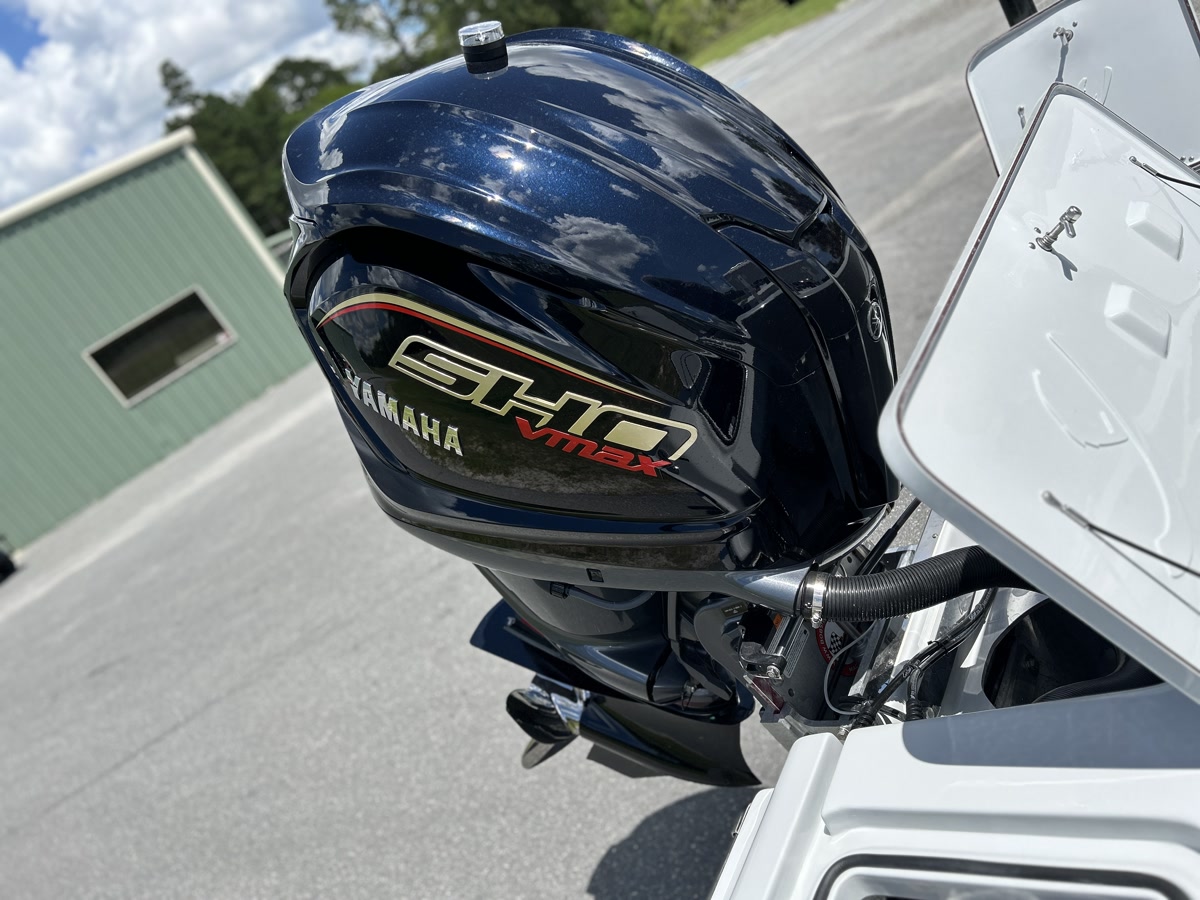

Engine

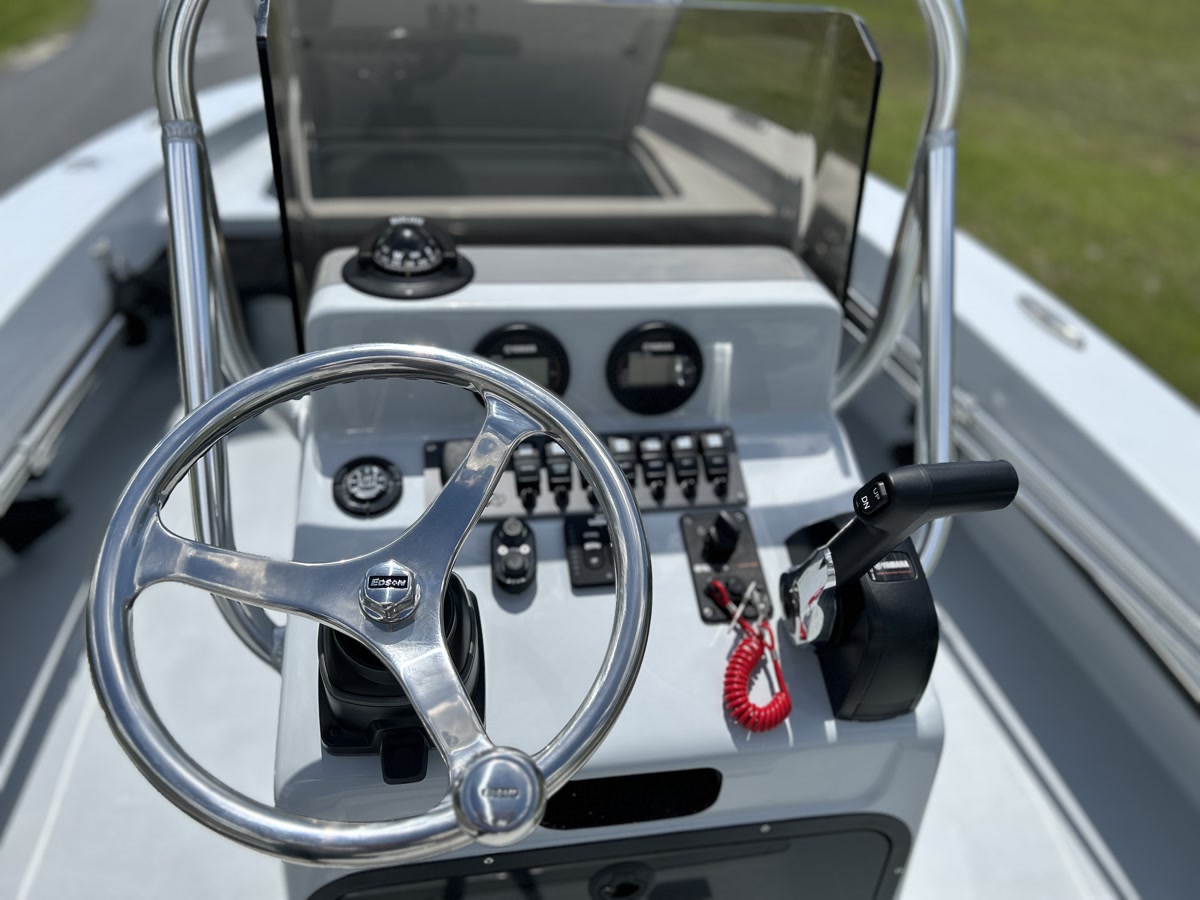

Console

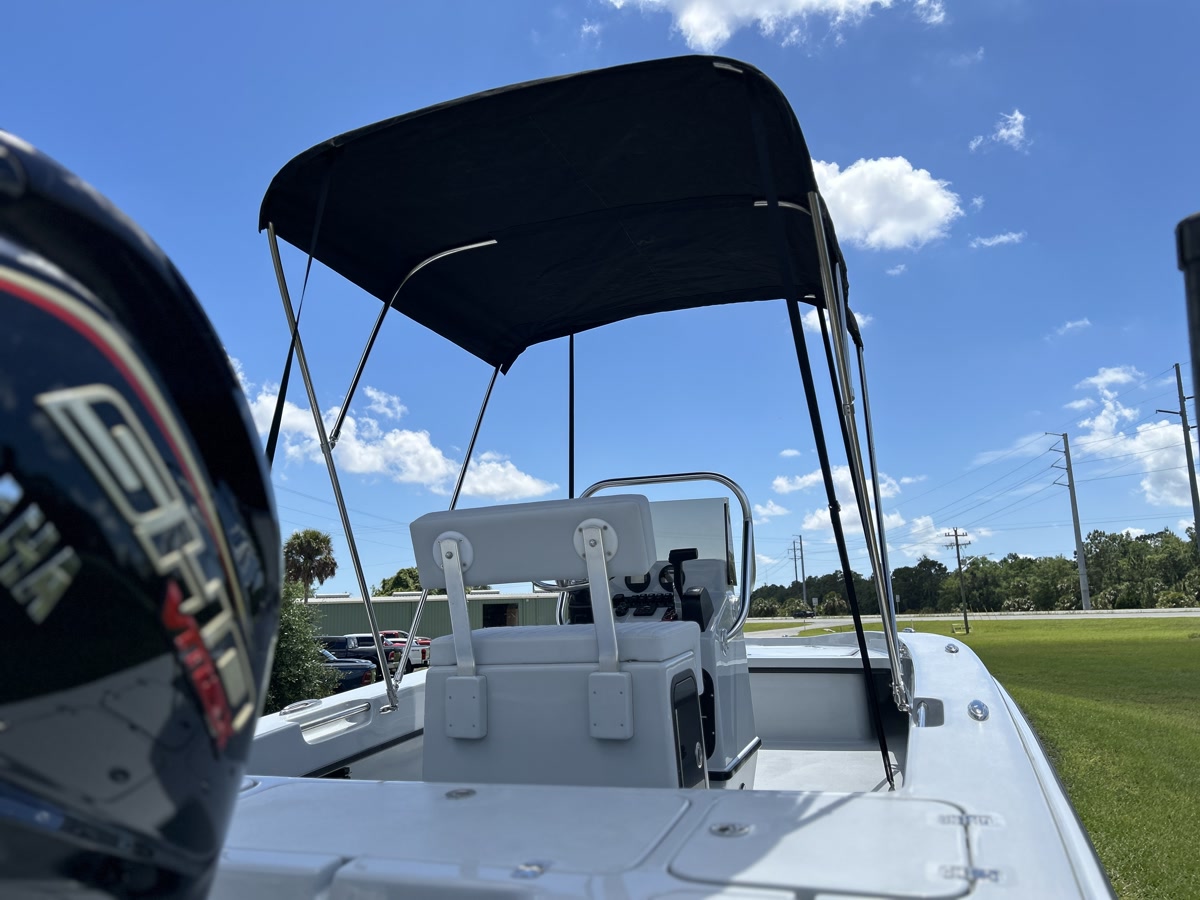

Bimini aft view

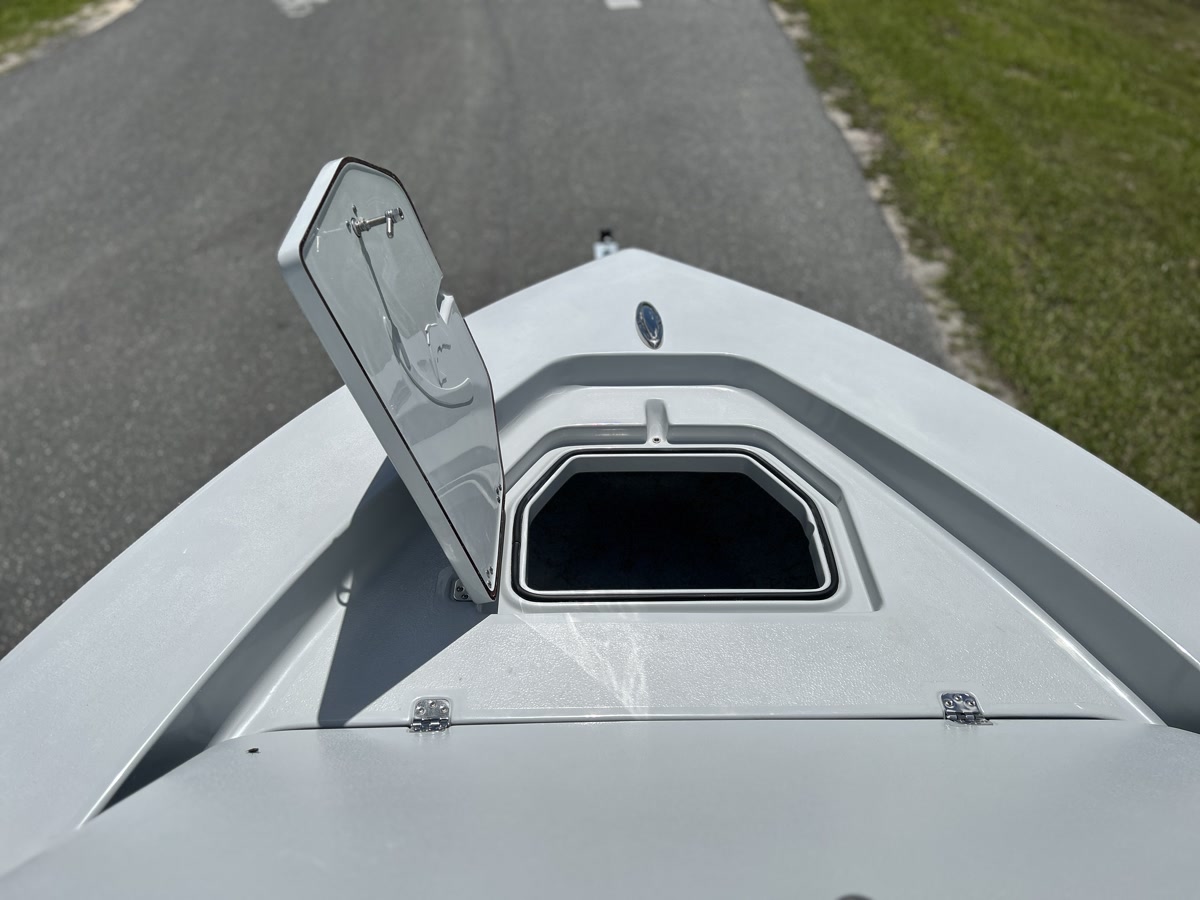

Anchor locker
