The GulfShore 24 HighSide builds upon the proven design of the GulfShore 24, featuring higher gunnels and a wider beam for enhanced offshore capabilities while maintaining the shallow draft that allows it to access the same skinny waters as its smaller counterpart.

  • Starting Price $165,700
  • Length (at centerline) 24'7"
  • Beam 9'
  • Draft (loaded) 13"
  • Deadrise (at transom) 15°
  • Deadrise (at bow entry) 45°
  • Weight (w/o engine) 3,500 lbs.
  • Standard Fuel Capacity 80 Gallons
  • Recommended HP Range 300-400 HP
  • Gunwale Width 11"
  • Cockpit Depth (freeboard at aft cockpit) 21"
  • Cockpit Depth (freeboard at fwd cockpit) 22"
  • Cockpit Size 8'1" x12'2"
Download Features & Options Pricing
  • Custom single-color hull, all composite, fully self-bailing
  • Five ss “pull-up” cleats (1 bow, 2 stern, 2 cockpit) & 5/8″ ss bow and transom lifting eyes
  • SS threaded garboard drain
  • All thru-hulls are titanium and ss and have composite ball valves
  • All compartments are plumbed overboard (no compartments drain into bilge)
  • All hatch opening have deep gutters with rubber gaskets for quietness and dryness
  • All empty chambers under cockpit floor are foam filled (closed cell)
  • Sea Dek under gunwale pads
  • Suzuki 300hp (digital throttle) (color: white or black)
  • Hydraulic tilt steering (with bend restrictor fittings on all hydraulic hoses)
  • Porta Hydraulic Transom Bracket with turn signal style jack plate switch
  • MinnKota Terrova 72″ 36V, 112lb with three Group 27 batteries and 3-bank charger
  • 10ft Power-Pole Blade (transom mounted) (color: white or black)
  • Trim Tabs (12×12″, includes indicator switch)
  • 80 gal fuel tank with “Racor” fuel filter/water separator
  • Two Group 27 cranking batteries with heavy duty holding trays and Blue Sea battery switch
  • Additional on board battery charger (to charge cranking/house batteries)
  • Two 1500gph bilge pumps with automatic float switches
  • Two live well pumps (1100gph) with intake filter, removable screen & composite ball valves
  • All wiring is marine tinned, and all connections are made with epoxy coated heat shrink connectors
  • Elevated composite console with leaning post on composite raised pod
  • Elevated helm on powder coated aluminum frame and 4 welded rod holders
  • SS knobbed steering wheel (with fingertip grip)

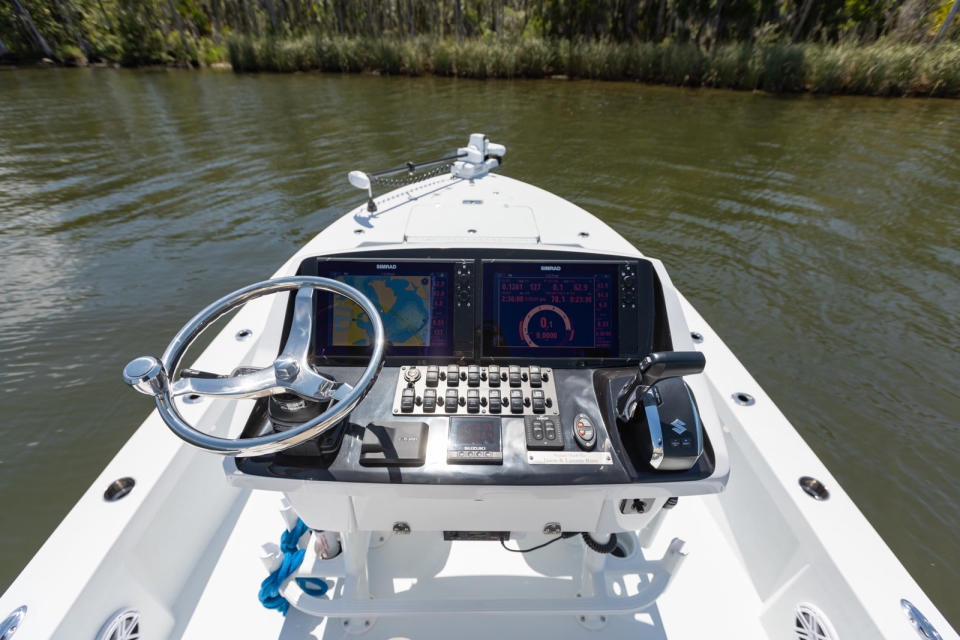

  • SIMRAD electronics package (includes: 2ea NSS 12″ MFDs, SS75 600W thru hull CHIRP transducer, and 2-1 active imaging transducer)
  • SIMRAD RS-20 VHF with 4ft antenna
  • All navigation lights are LED
  • Flip-bolster helm seat with powder coated lean post and 6 welded rod holders
  • Dual drawer polymer cabinet under lean post
  • Six ss flush mount rod holders (mounted on deck cap)
  • Under gunwale rod racks (holds 4 rods)
  • Custom integrated fish ruler

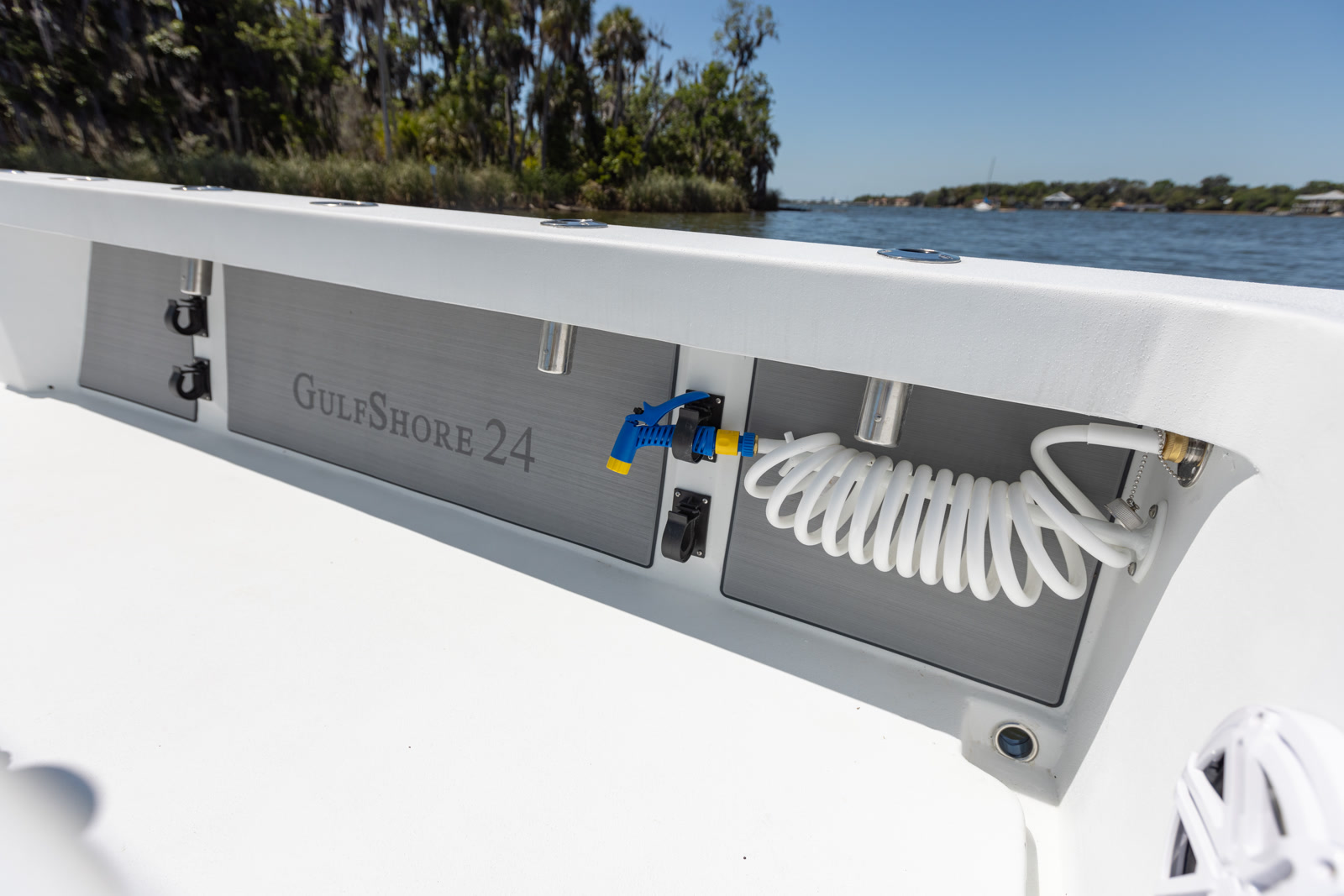

  • Raw water washdown (with ss outlet, coil hose, and quick disconnect)
  • Two 30-gal bait wells
Download Features & Options Pricing
  • Anchor Locker
  • Storage
  • Rigging
  • Insulated Fish Box
  • Cooler
  • Bilge Access
  • Release Well

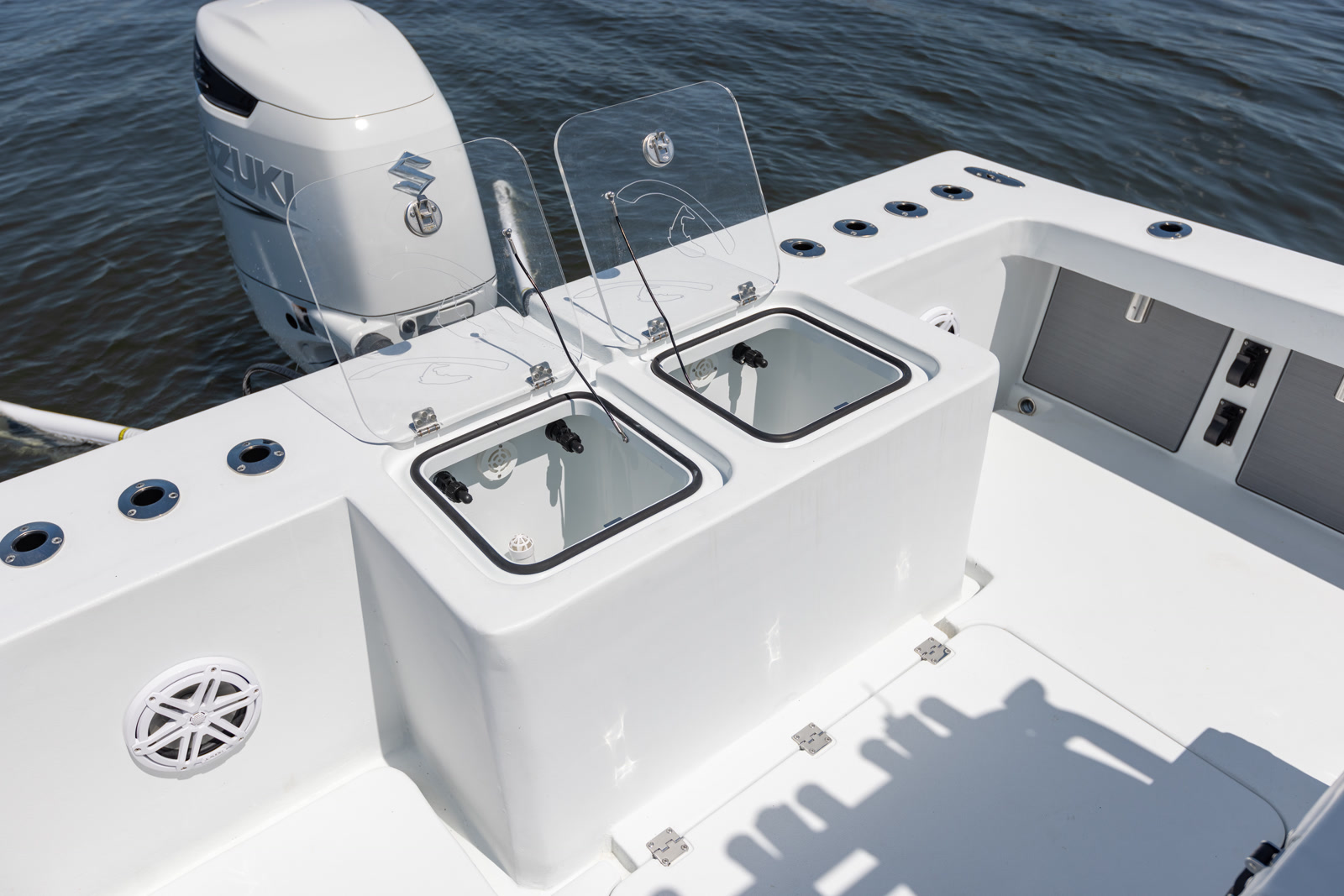

  • Baitwell
  • Trolling Motor Batteries
  • Fwd. Face Llebroc
  • Frigid Rigid-w/cushions
  • Pitchwell
Download Features & Options Pricing

Key Features
and Highlights

Download Features & Options Pricing Download Brochure

Design

Wider beam and higher gunnels provide excellent stability and comfort in rough conditions. Spacious 24’ platform suited for all types of fishing.

Construction

All-composite modified-V hull with sprayed-on non-skid finish. Built for durability and full customization. Self-bailing.

Water Capability

Runs shallow inshore waters but also handles bay and near-shore conditions with ease. Wider beam improves stability and reduces draft.

Download Features & Options Pricing Download Brochure

Additional Options & Upgrades

Engine Upgrades *The following are upgrades from the standard Suzuki 300hp (digital throttle) (white or black)
  • Upgrade to Suzuki 350hp 4.4L V6
  • Upgrade to Mercury 300hp 4.6L V8 (AMS)
  • Upgrade to Mercury 350hp 5.7L V10 (AMS)
  • Upgrade to Mercury 425hp 5.7L V10 (AMS)
    *choice of color: Cold Fusion White, Pearl Fusion White, Warm Fusion White, or Black
  • Upgrade to Yamaha 300 4-Stroke 4.2L V6
  • Upgrade to Yamaha 350 4-Stroke 4.3L V6
  • Upgrade to Yamaha XTO 450 5.6L V8
    *choice of color: white or traditional grey
  • Upgrade to Optimus Electric Steering
  • Upgrade trim tabs to Lenco Pro Control Auto System
  • Upgrade trim tabs to Seakeeper Ride System (450)
  • Porta Bracket height indicator
Trolling Motor Upgrades & Options *The standard trolling motor is the MinnKota Terrova (36V, 112lb, 72" shaft)
  • Upgrade to MinnKota iPilot NEW Terrova QUEST (brushless, 36V, 115lb, 72″, Manual Deploy)
  • Upgrade to MinnKota iPilot NEW INSTINCT (brushless, 36V, 115lb, 72″, Auto Deploy)
  • Upgrade to 87″ MinnKota
  • Upgrade to Power-Pole MOVE (brushless, 36V 100lb, 72″ shaft, Manual Deploy)
  • Upgrade to SIMRAD RECON (36V, 72″ shaft, Manual Deploy)
  • Upgrade to GARMIN Force Kraken (36V, 72″ shaft, Manual Deploy)
Trailer
  • Aluminum Dual Axle Trailer (includes all ss hardware, ss hubs, spare tire assembly, step-on fenders custom fit “driver-on” bunks, and ss cad disc brakes)
  • Aluminum Wheels
Electronics Package *The standard electronics package is the SIMRAD 2ea NSS 12" MFDs, SS75 600W thru hull CHIRP transducer, 2-1 active imaging transducer, and RS-20 VHF with 4ft Antenna
Marine Stereo Package (Includes Fusion head unit, 2ea JL Audio 7.7" speakers and all wiring and installation)
  • Upgrade – two additional JL Audio 7.7″ speakers
  • Upgrade – two additional JL Audio 8.8″ speakers
  • Upgrade – two JL Audio 8″ subs with composite recess and one JL Audio Amplifier
  • Upgrade -two JL Audio 10″ subwoofers with composite recess and one JL Audio Amplifier
  • Fiberglass recess for speakers and subs (each)
SIMRAD Electronics Package Additions
  • Upgrade to 1kW thru hull CHIRP transducer
  • SIMRAD WM-4 Sirius-XM Satellite Weather Module and Antenna
  • SIMRAD Autopilot (without display)
  • SIMRAD Halo 20+ Radar (includes all wiring and installation)
  • Upgrade VHF to SIMRAD RS40
GARMIN Electronics Package Options
  • Upgrade to GARMIN Electronics Package #1 (Includes two 12″ 8612 MFDs, B75 600W thru hull CHIRP transducer, Side and Downscan transducer, and 115 VHF with 4ft antenna. Includes all wiring and installation)
  • Upgrade to 1kW thru hull CHIRP transducer
  • GARMIN GXM-54 Sirius-XM Satellite Weather Module and Antenna
  • GARMIN Autopilot (without display)
  • GARMIN GMR XHD 18″ Radar (includes all wiring and installation)
  • GARMIN upgrade radar to Fantom
  • Upgrade VHF to GARMIN 215 VHF
Aluminum Fabrication
  • Additional rod holder welded to tower frame (pair)
  • Additional cup holder welded to tower frame (pair)
  • Knife/plier/cup holder combo welded to tower frame (pair)
  • Removable buggy top (aluminum frame with Sunbrella soft top, includes 4 threaded knobs)
  • Removable casting seat (cushioned stool, Defender flush mount, turnbuckle, backing plate)
  • Removable casting platform (with flush stainless steel base and turnbuckle)
Anchoring
  • Upgrade standard single 10ft Power Pole Blade to dual 10ft Power Pole Blades (one pump or two pumps)
  • Dual Power Pole Brackets (mount to side of Porta Bracket)
  • Sea Claw anchor package (12lb Sea Claw, 15′ chain, and 300′ rope)
Fishing & Rigging
  • Tackle Station (includes 4 Plano trays, sliding drawer and pull out cutting board)
  • Additional SS Rod Holders (flush mounted on deck cap) – $300 (pair)
  • Rod Holder/Cup Holder Combos – $500 (pair)
  • Additional gunnel cup holders – $200 (pair)
  • EPIRB (ACR V5 Cat II, with bracket)
Upholstery & Seating
  • Frigid Rigid Cooler with Backrest
  • Bench Seat with Removable Backrest (includes dry storage and removable bench cushion)

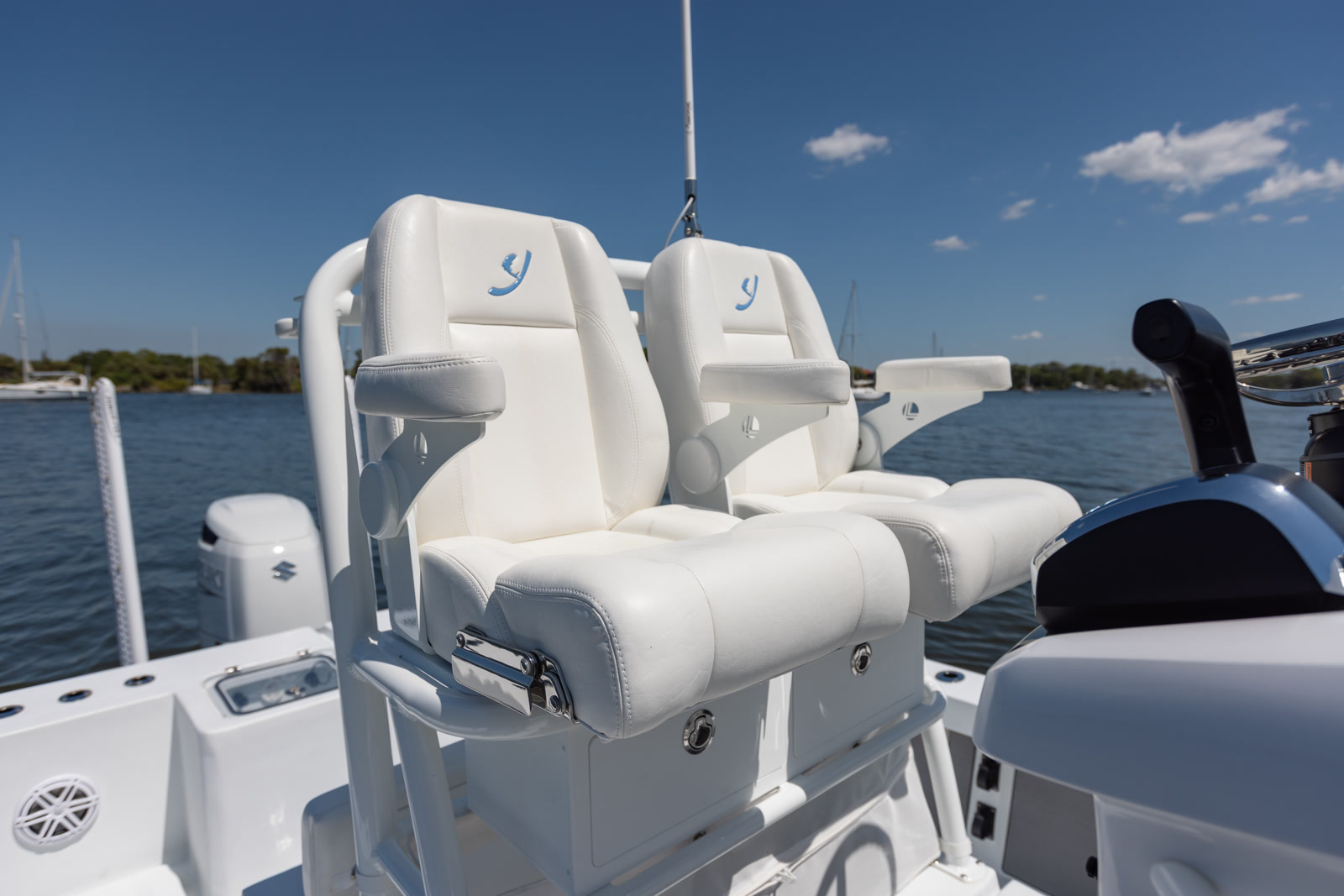

  • Composite seat pod with two Llebroc seats (each with two armrests), two cup holders, and dual drawer polymer tackle storage
  • Removable Pedestal Seat (choice of captain style or bicycle style) (includes flush mount ss base, adjustable cylinder, and matching upholstery)
Covers & Enclosures
  • Custom Full Boat Cover (choice of color)
  • Extended Sides (full boat cover)
  • Cockpit Bimini Top (choice of color, includes boot)
  • Helm Bimini Top (choice of color, includes boot)
  • Small Console Cover (choice of color, covers console)
  • Lean Post Cover (choice of color)
  • Combo Cover (choice of color, covers console and lean post)
  • Life Jacket Storage
Lighting & Plumbing
  • Underwater Lights LED – Pair
  • Upgrade Underwater Lights to Spectrum
  • Cockpit Lights LED (set of 4)
  • Upgrade Cockpit Lights to Spectrum
  • Spreader Lights (high intensity, LED) – $500ea
  • Lumitec Razor Light Bar (low profile, curved 18″)
  • Recirculating Live Well Pump
  • Freshwater Washdown (15 gallon capacity) with “Y” Valve for raw water supply
  • Clear Acrylic Release Well Lid or Bait Well Lid (with etched logo)
Deck & Utility
  • Pull-Out Ladder (3-step)
  • Armstrong Dive Ladder (3-step removable)
  • Dive Platform (fiberglass composite with fold down 3-step ladder)
  • Helm Pad (Sea Dek)
  • 12V Accessory Outlet Mounted/Wired Inside Console
  • Upgrade Batteries to AGM – $270ea
  • Additional On-Board Battery Charger (to charge cranking/house batteries)
  • Forward Step (includes insulated cooler and hatch)
  • Forward Corner Steps (or aft)
  • Additional Midship Cleats (pair)
Download Features & Options Pricing Download Brochure

Just Delivered

Center Pod Elevated Helm
September 2024
Center Pod Elevated Helm
May 2024
Center Pod Elevated Helm - September 2024

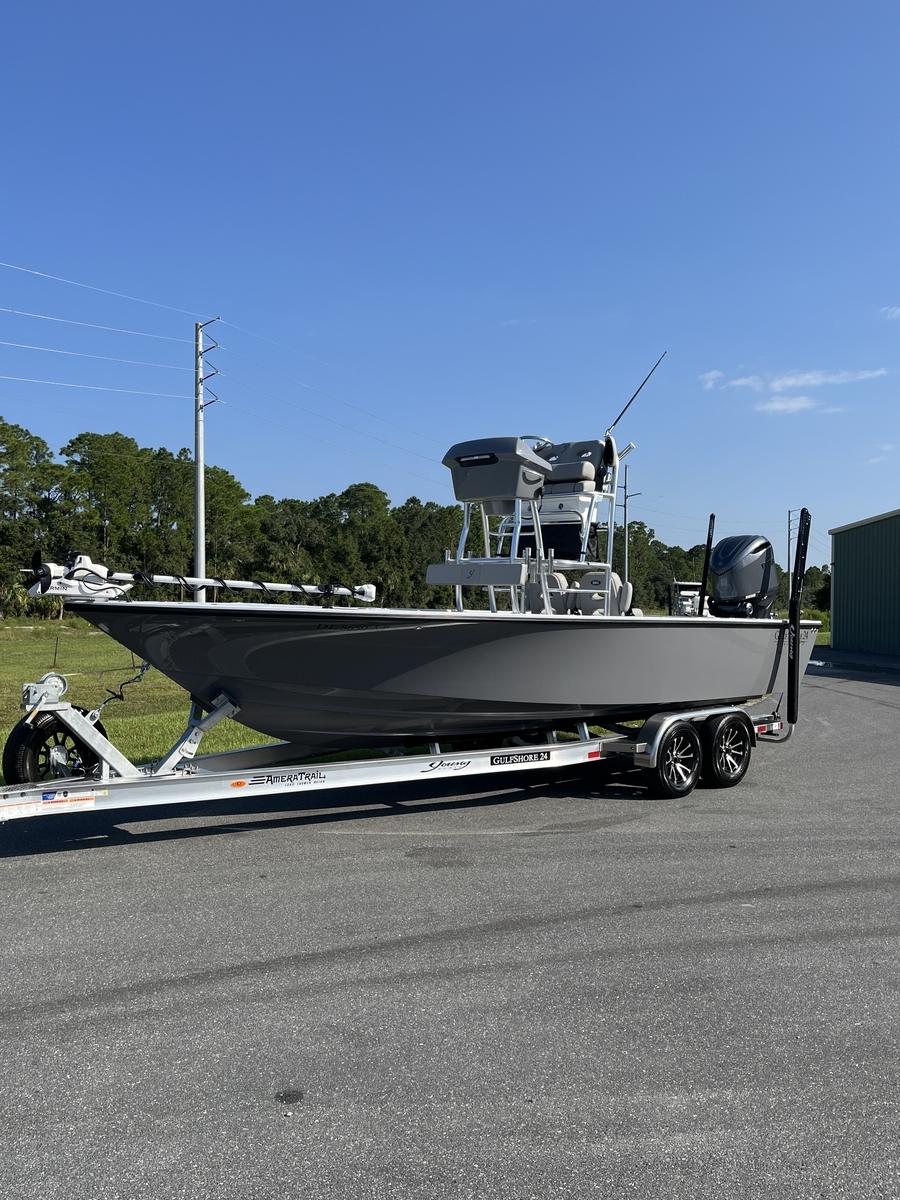

Profile

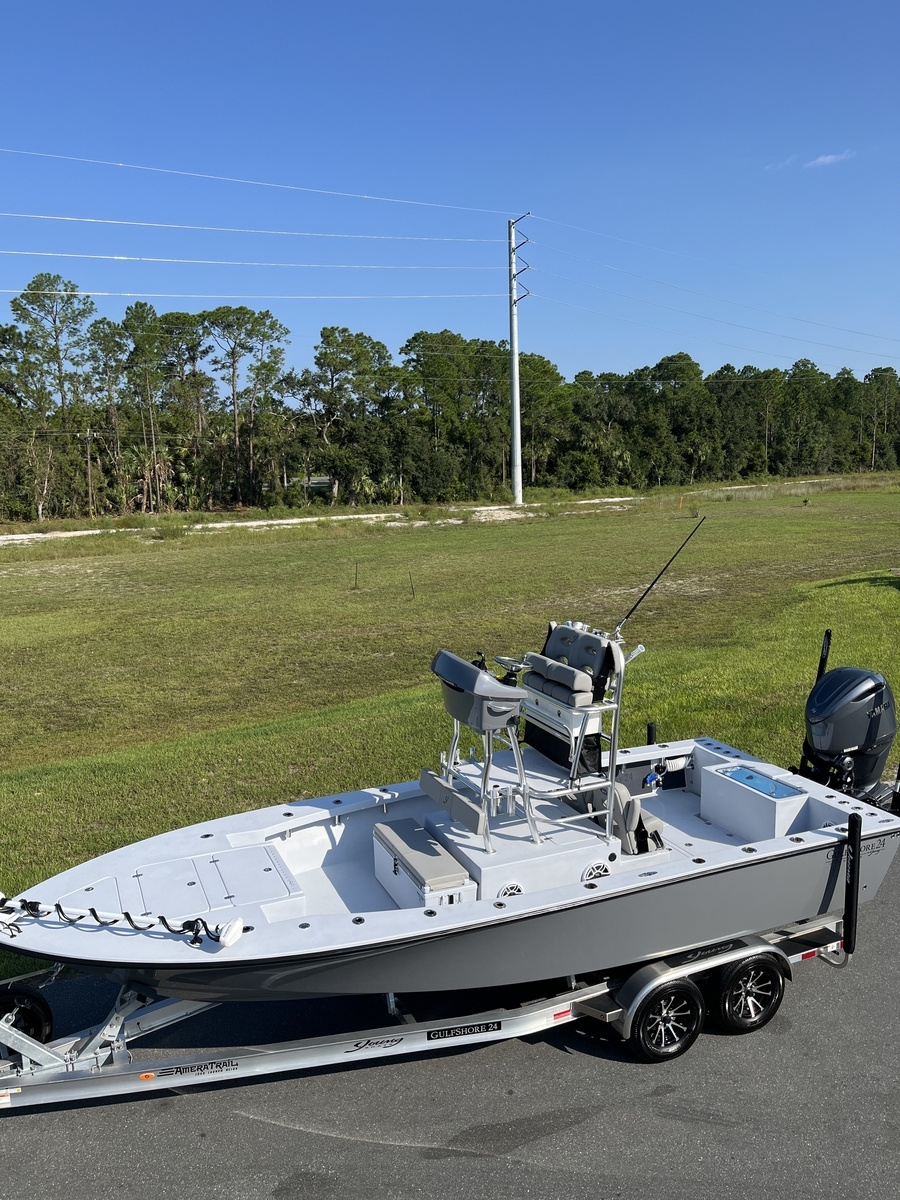

Side aerial

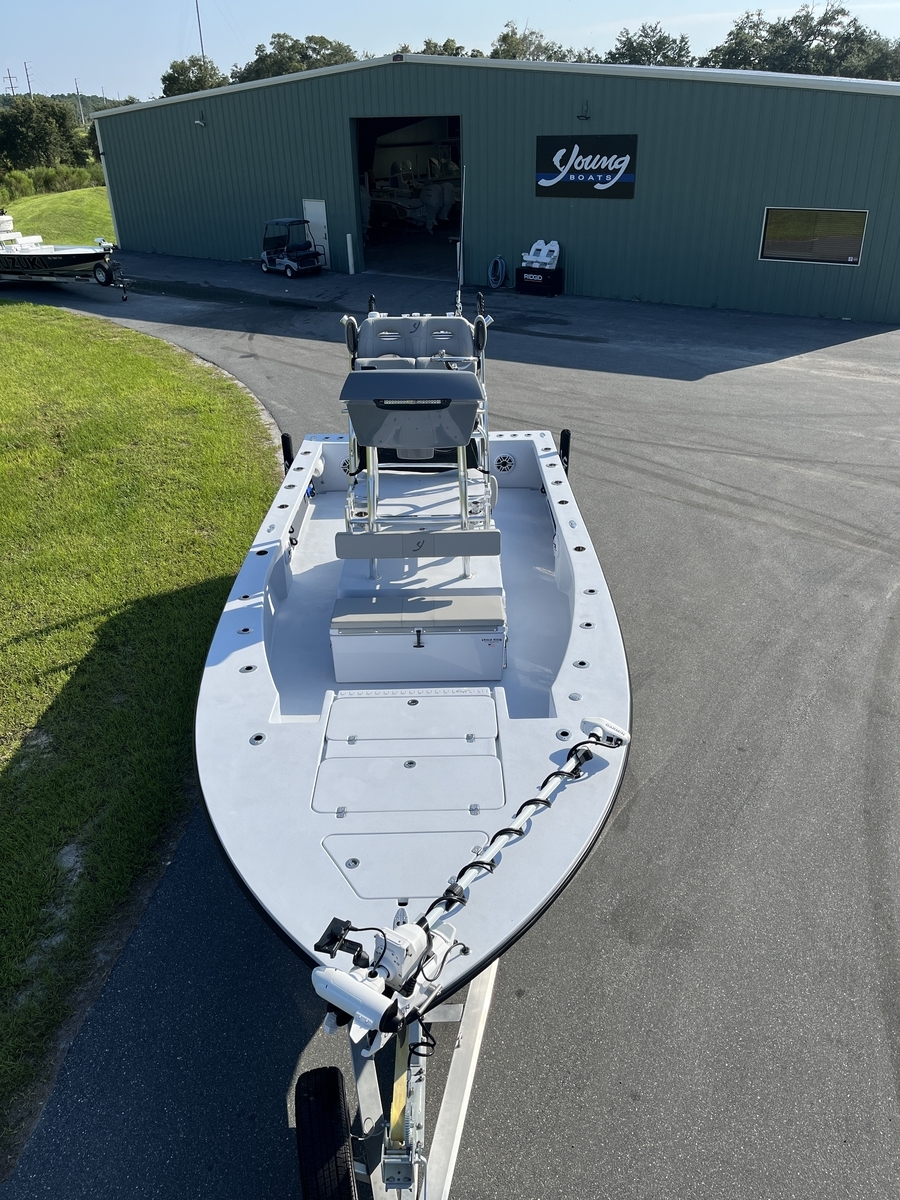

Bow aerial

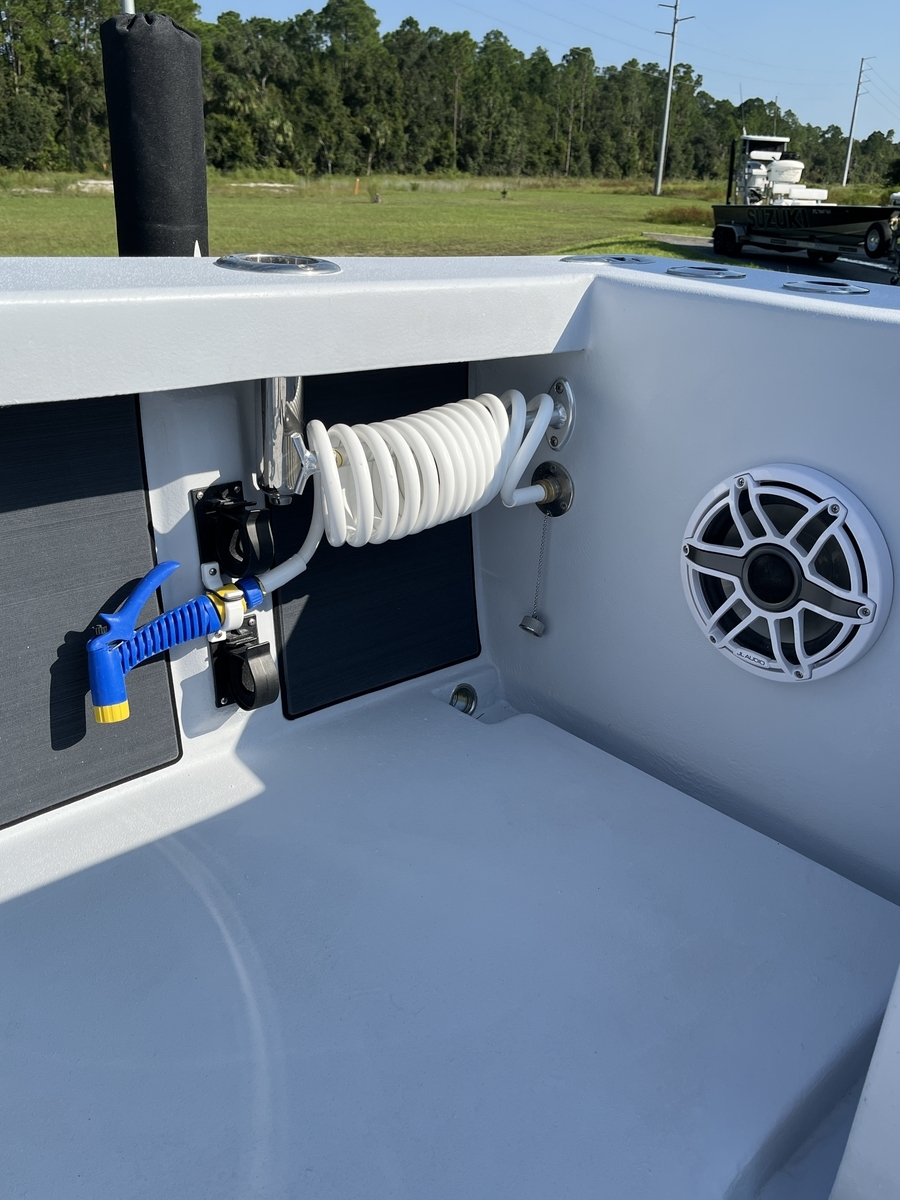

Washdown

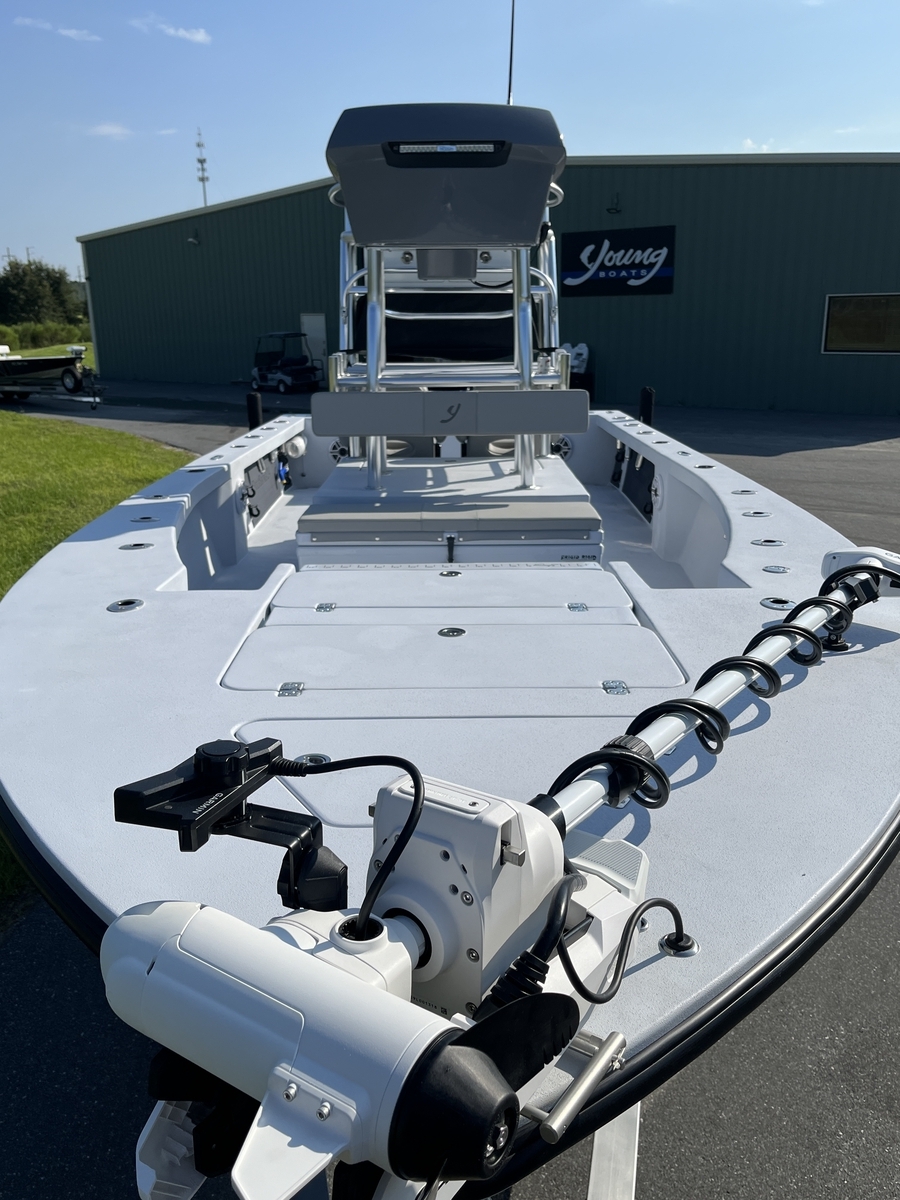

Trolling motor

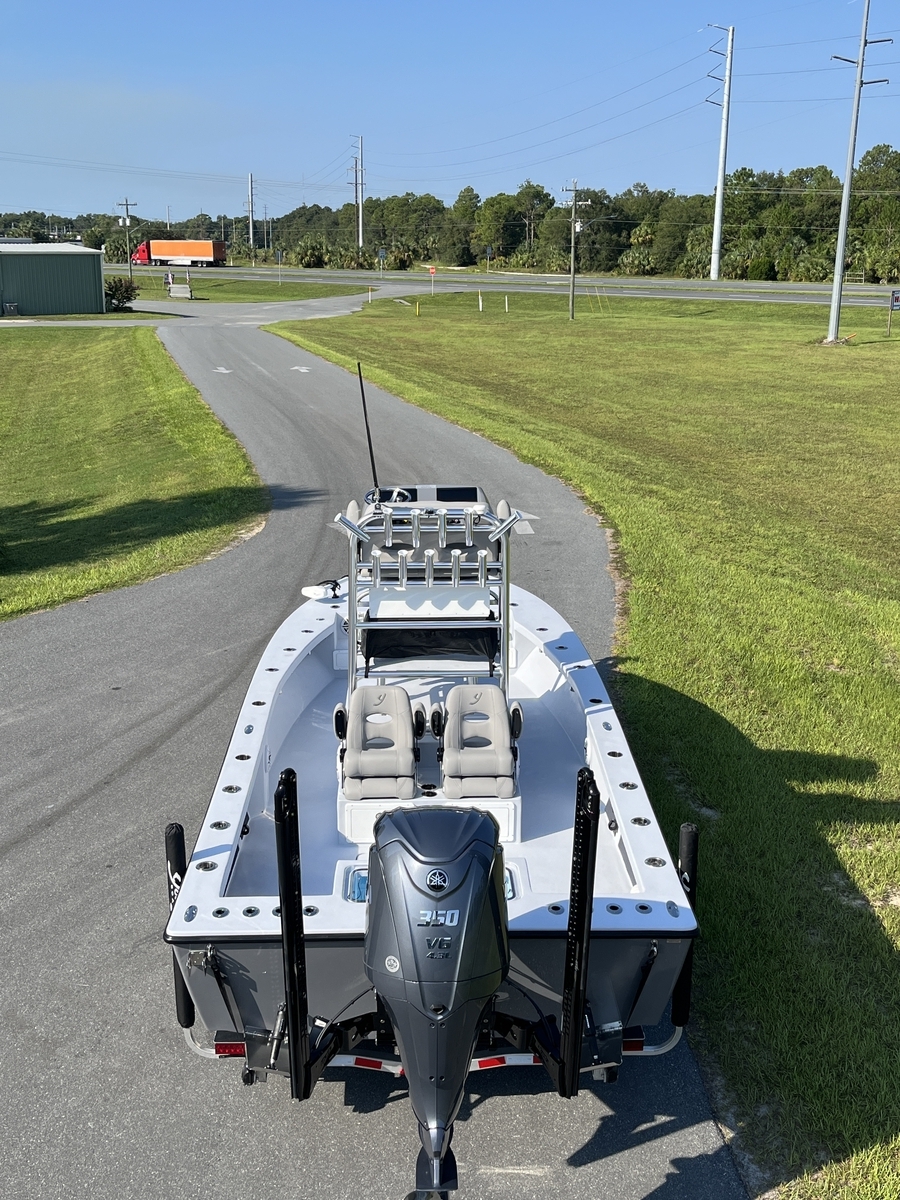

Transom aerial

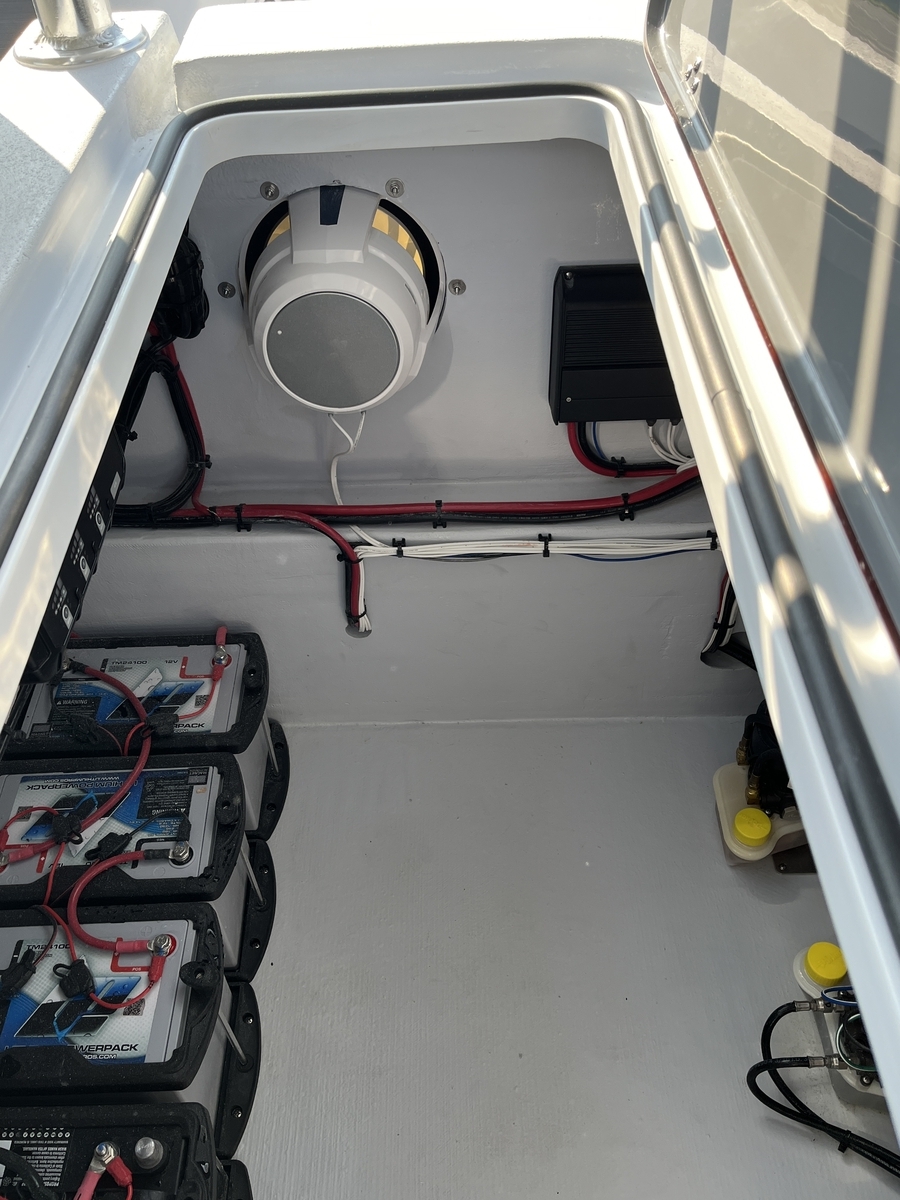

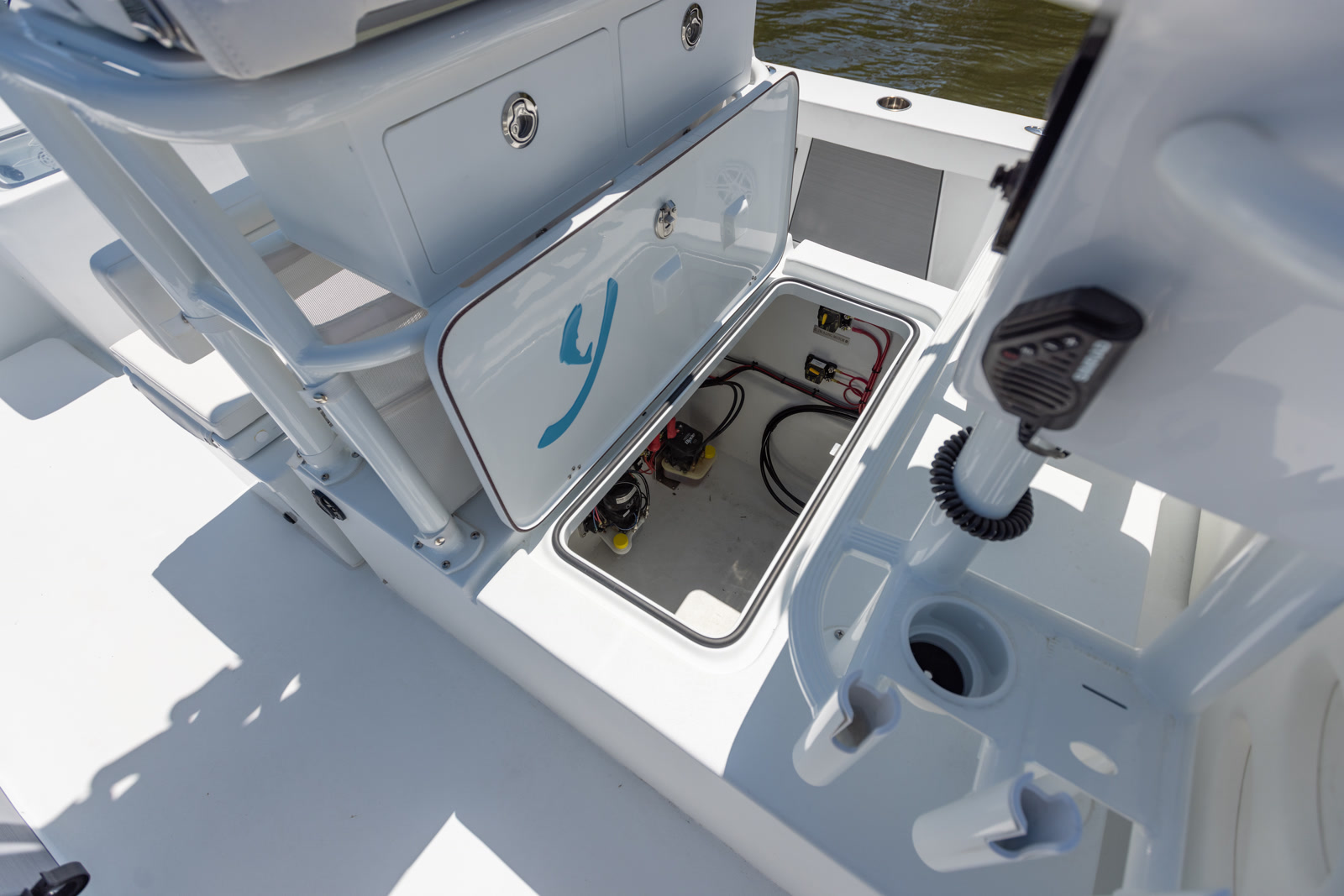

Rigging compartment

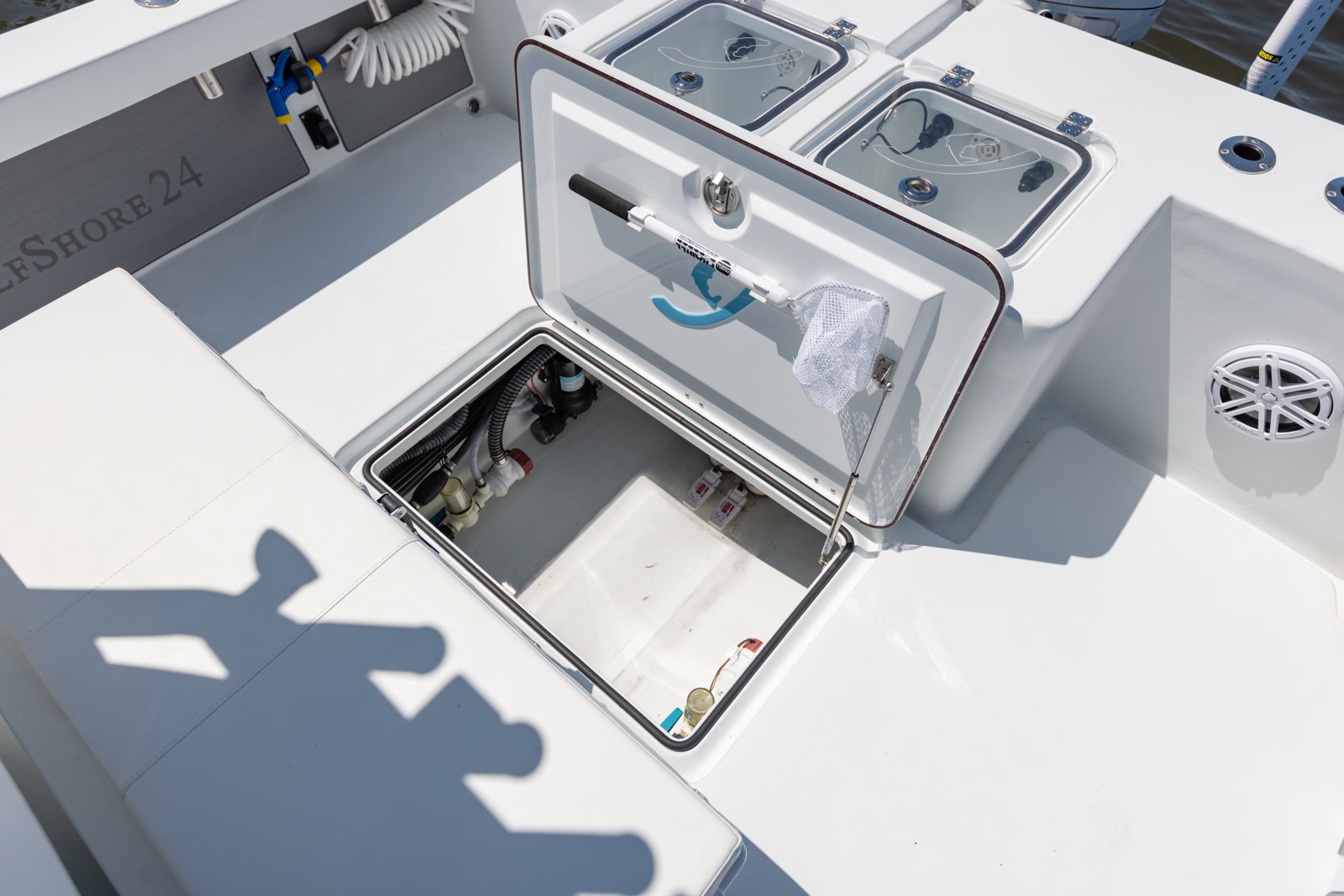

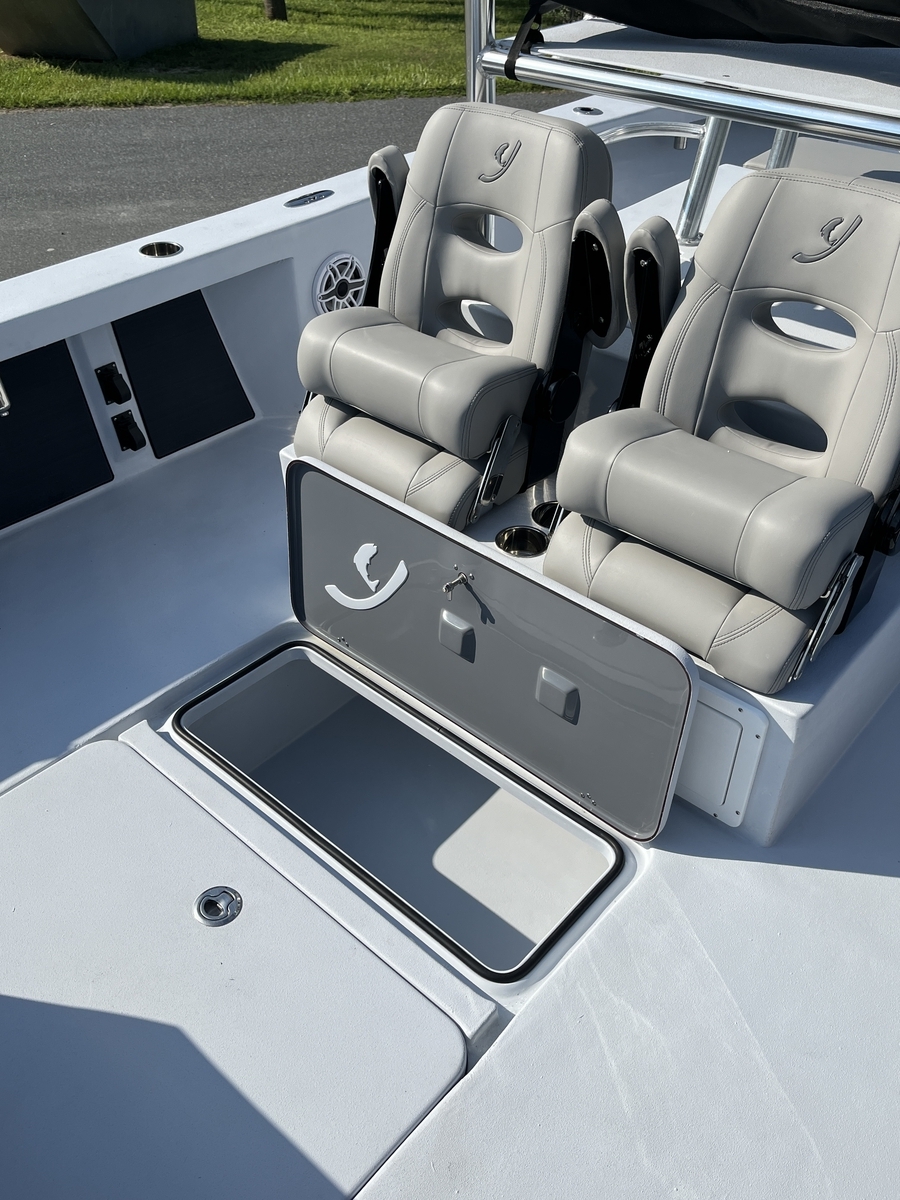

Rear fishbox

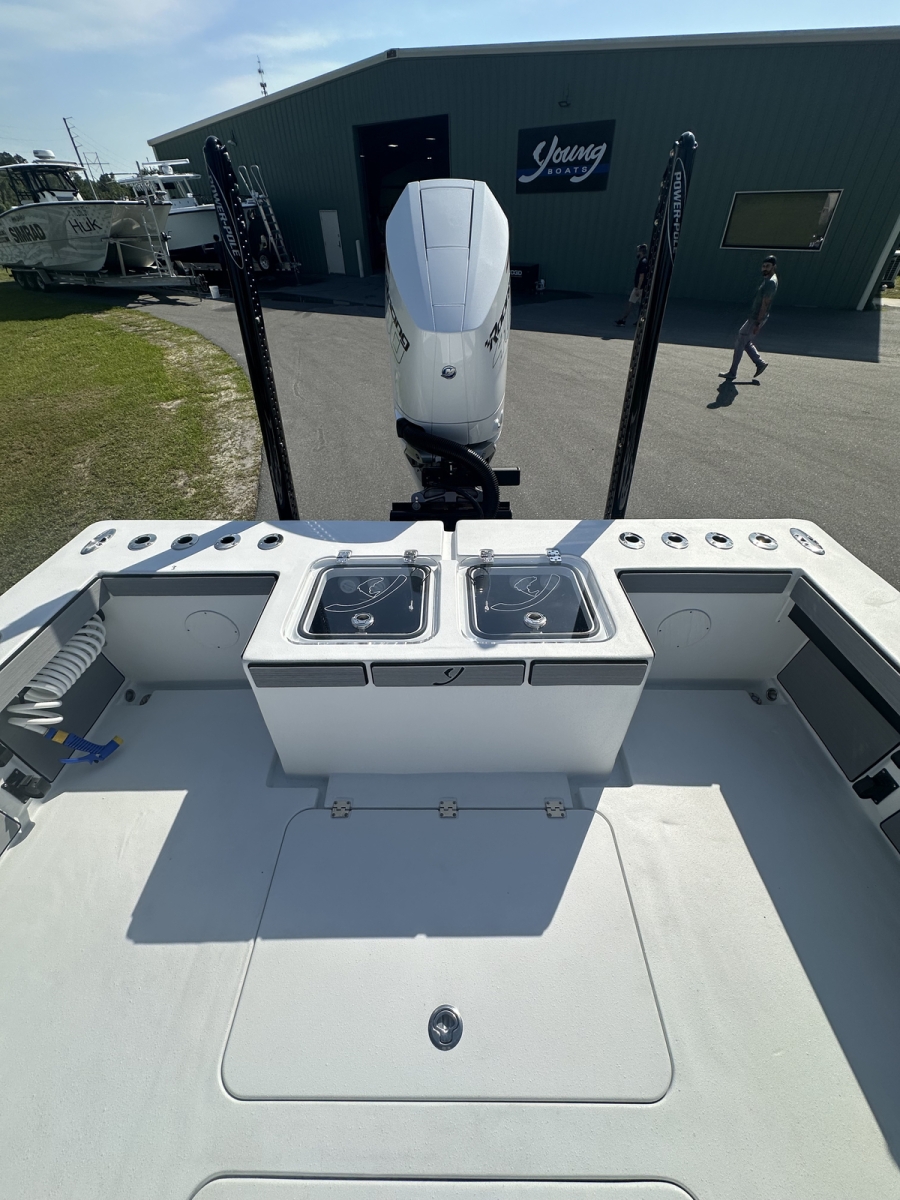

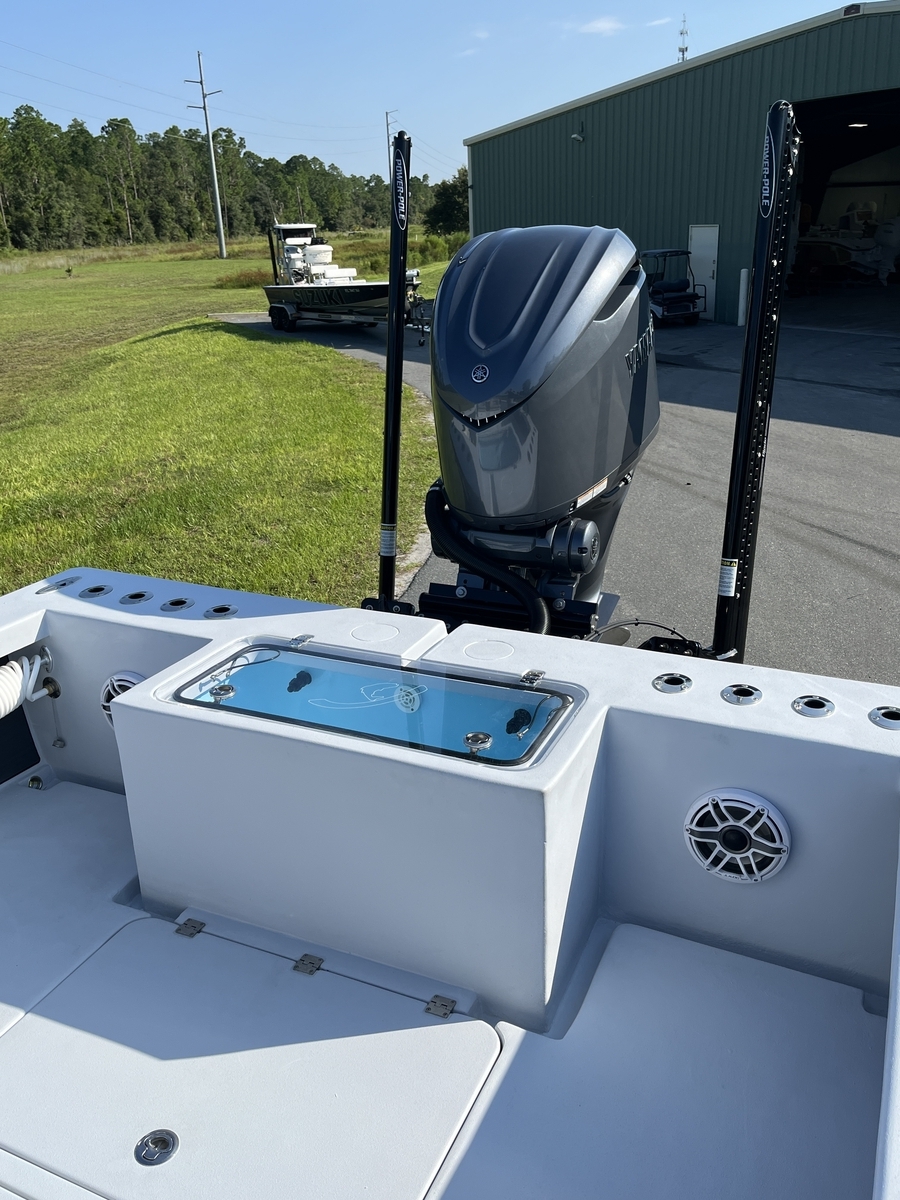

Rear deck

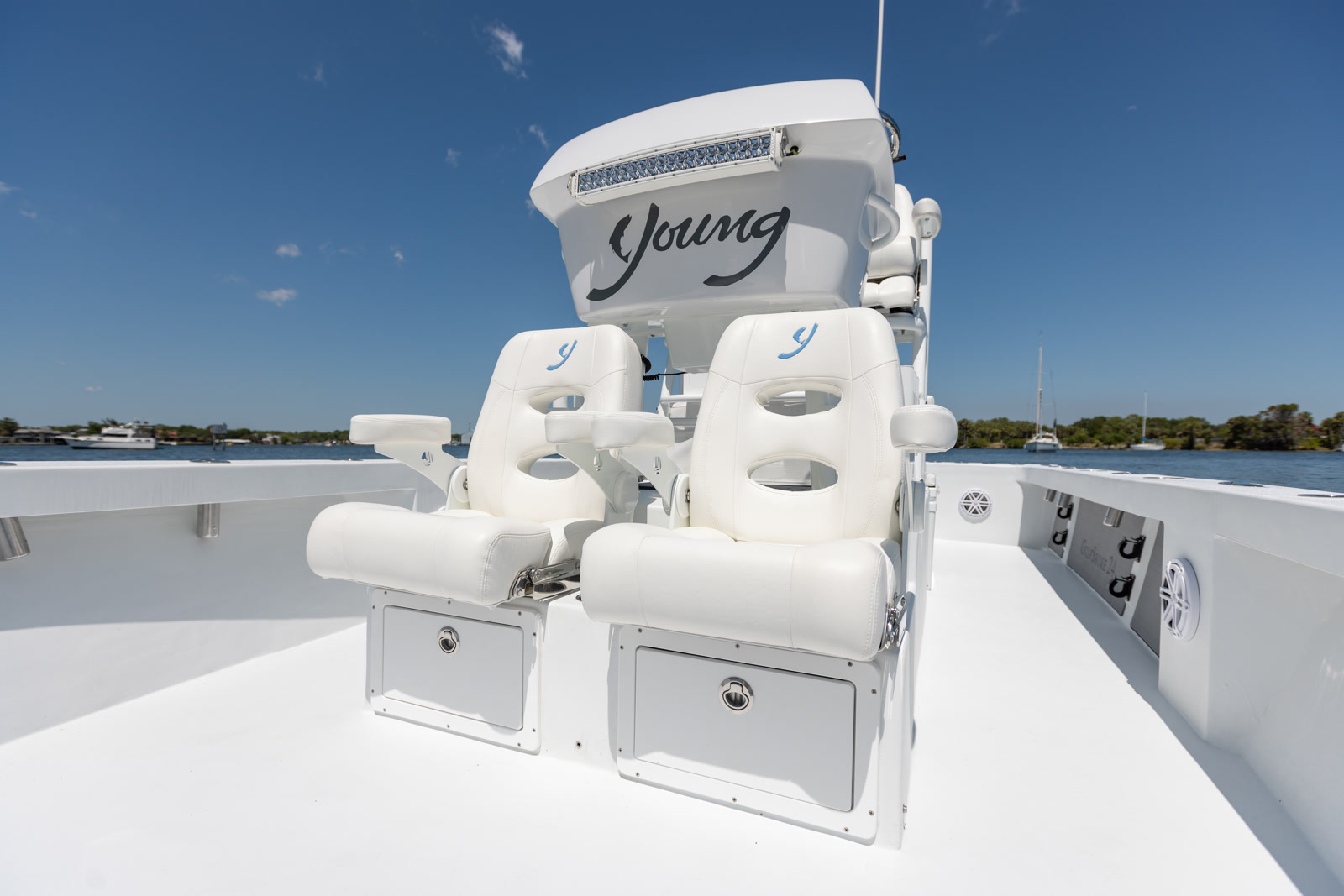

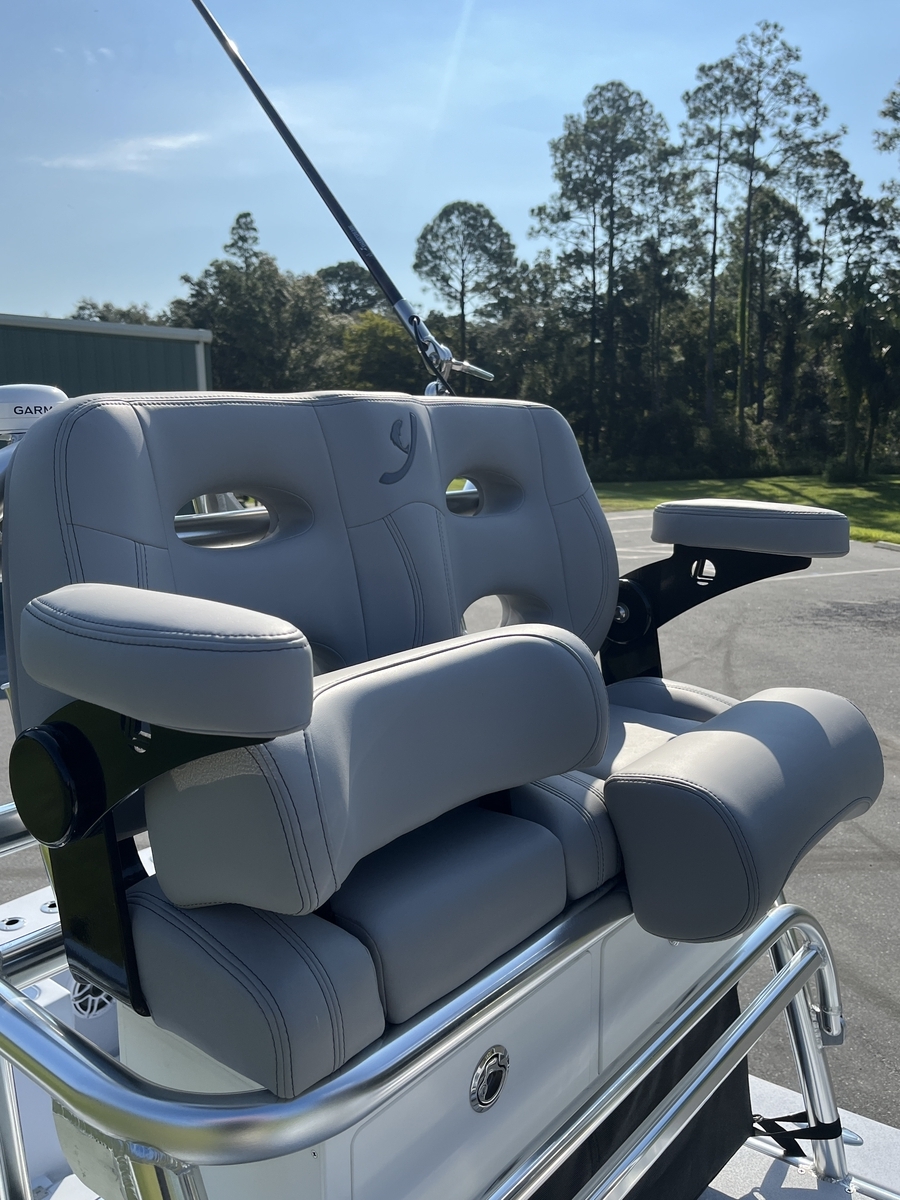

Helm seat

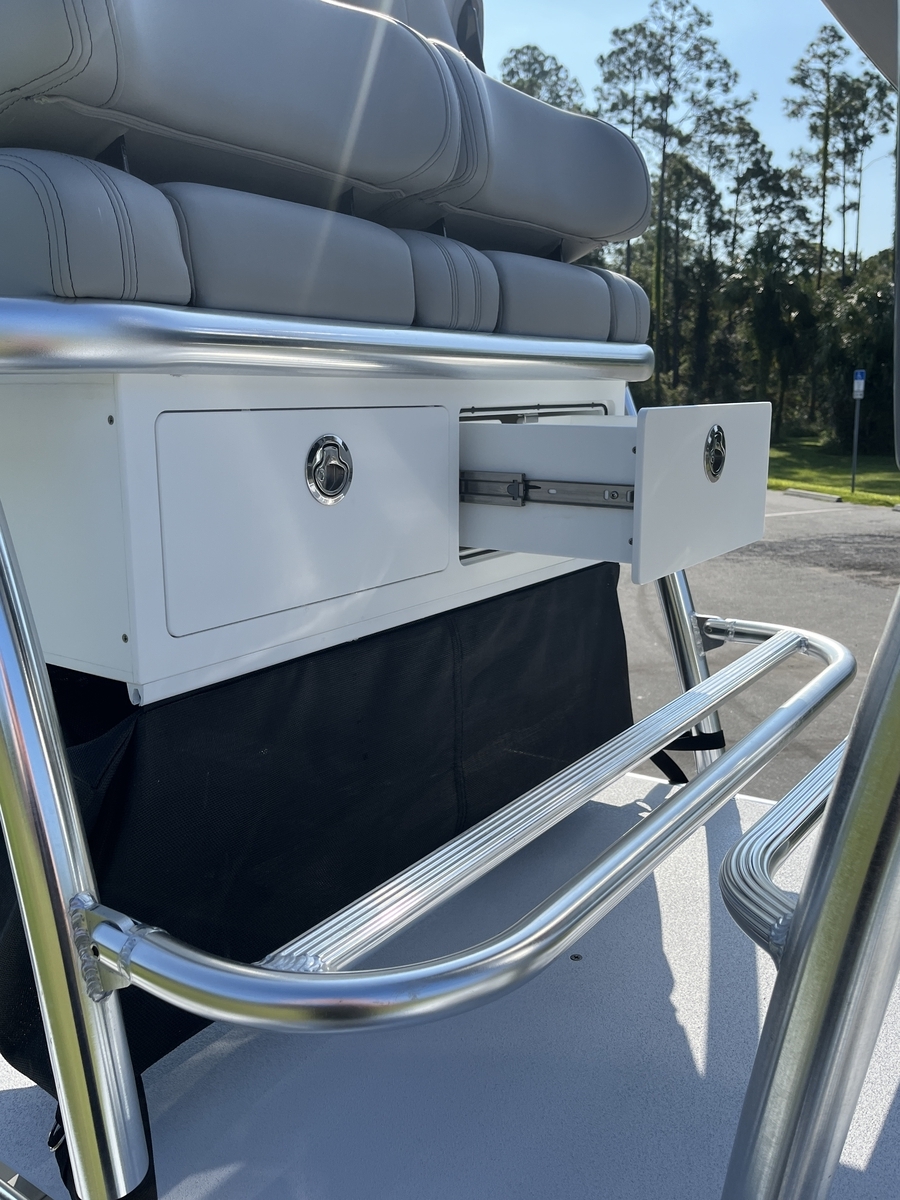

Helm seat storage

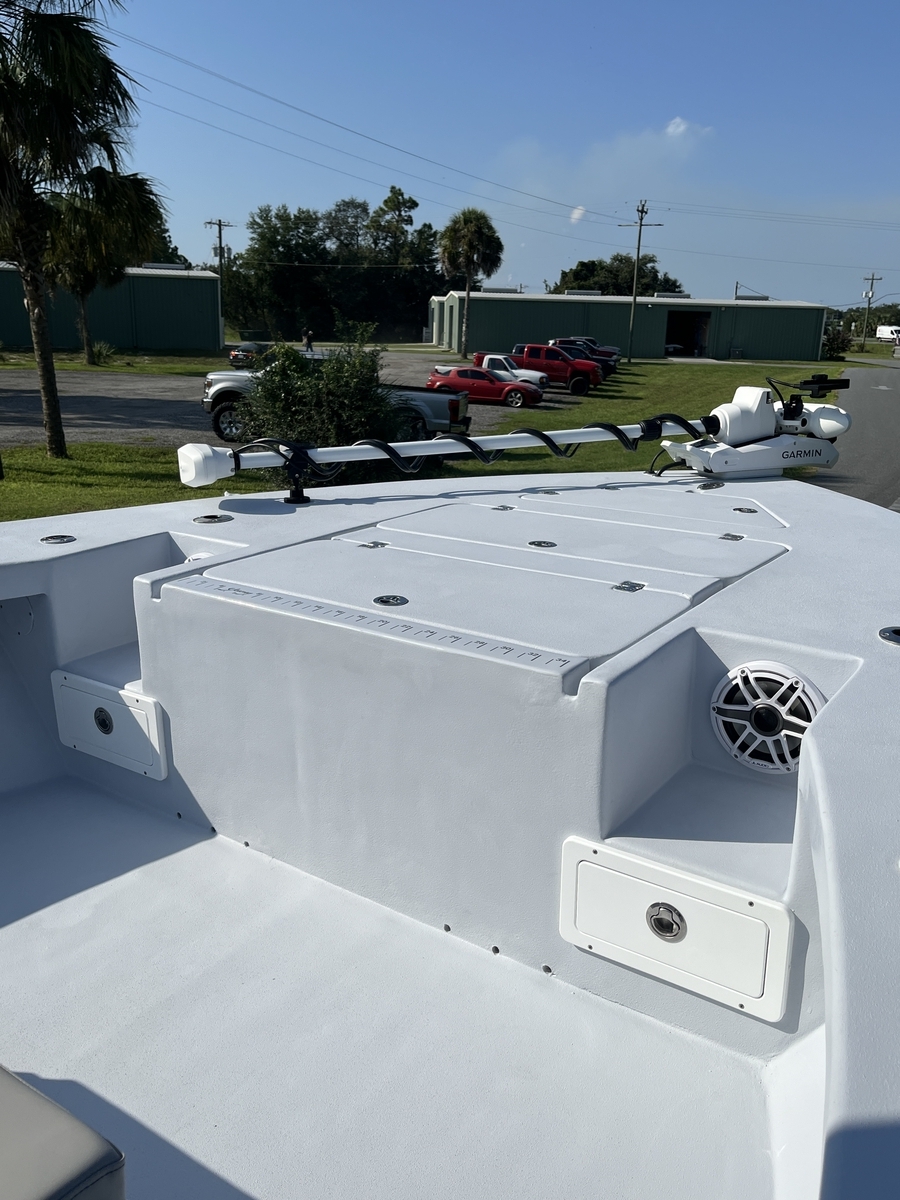

Front steps

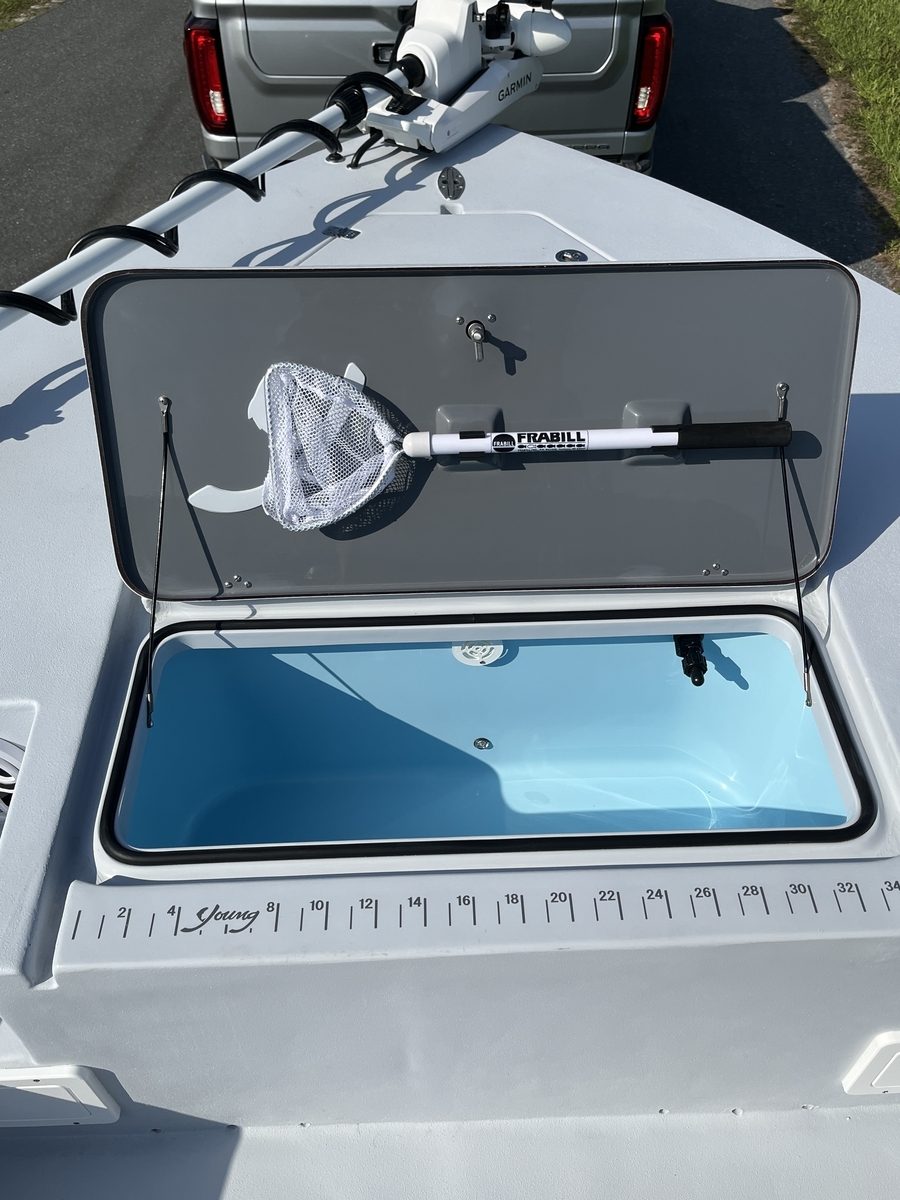

Front livewell

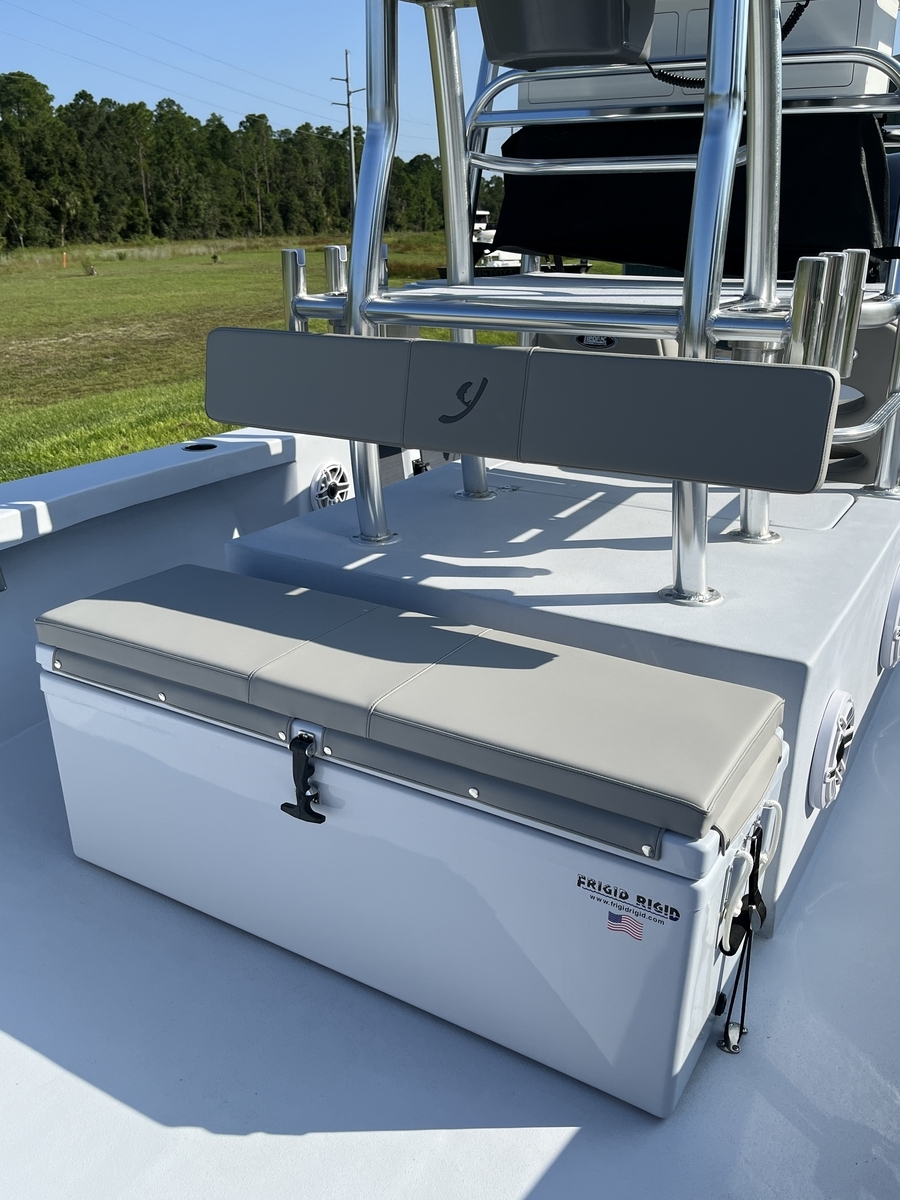

Cooler seat

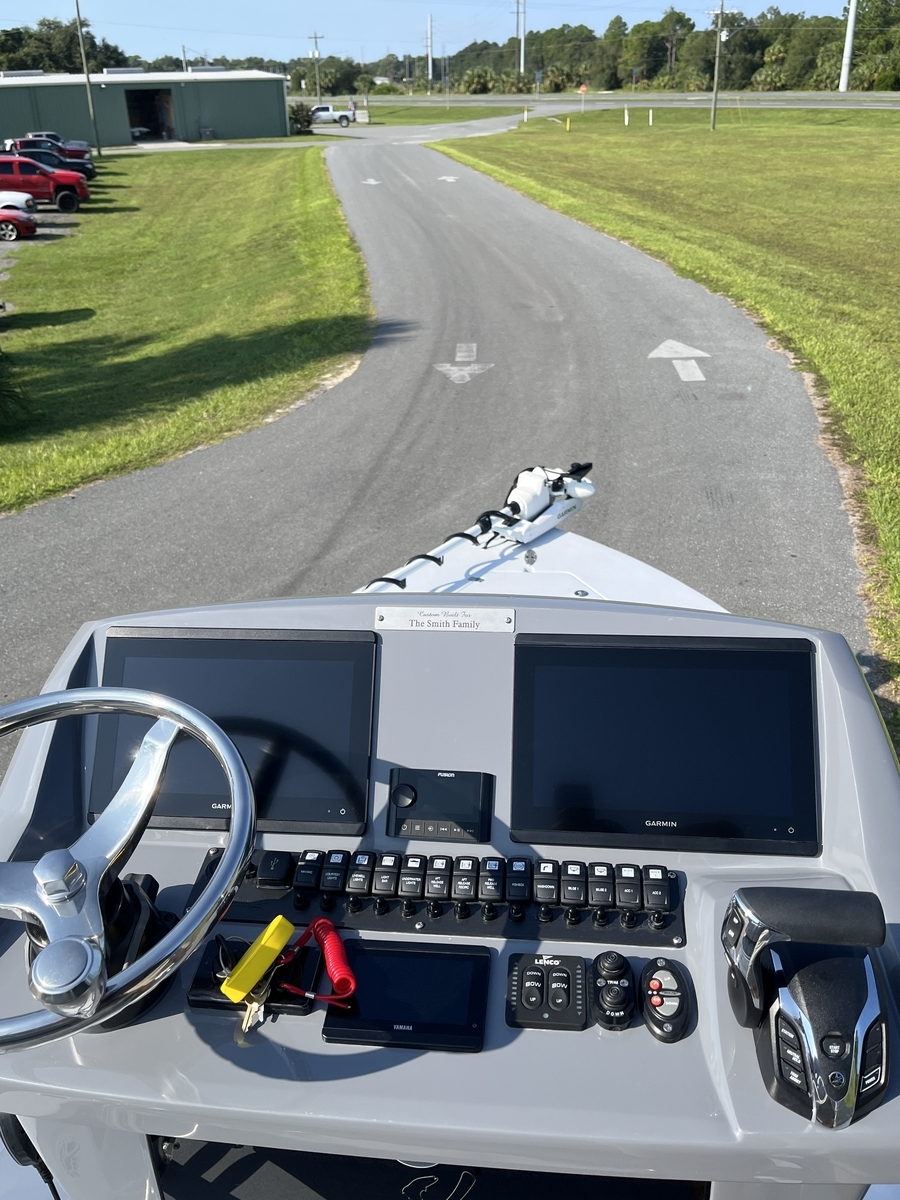

Console

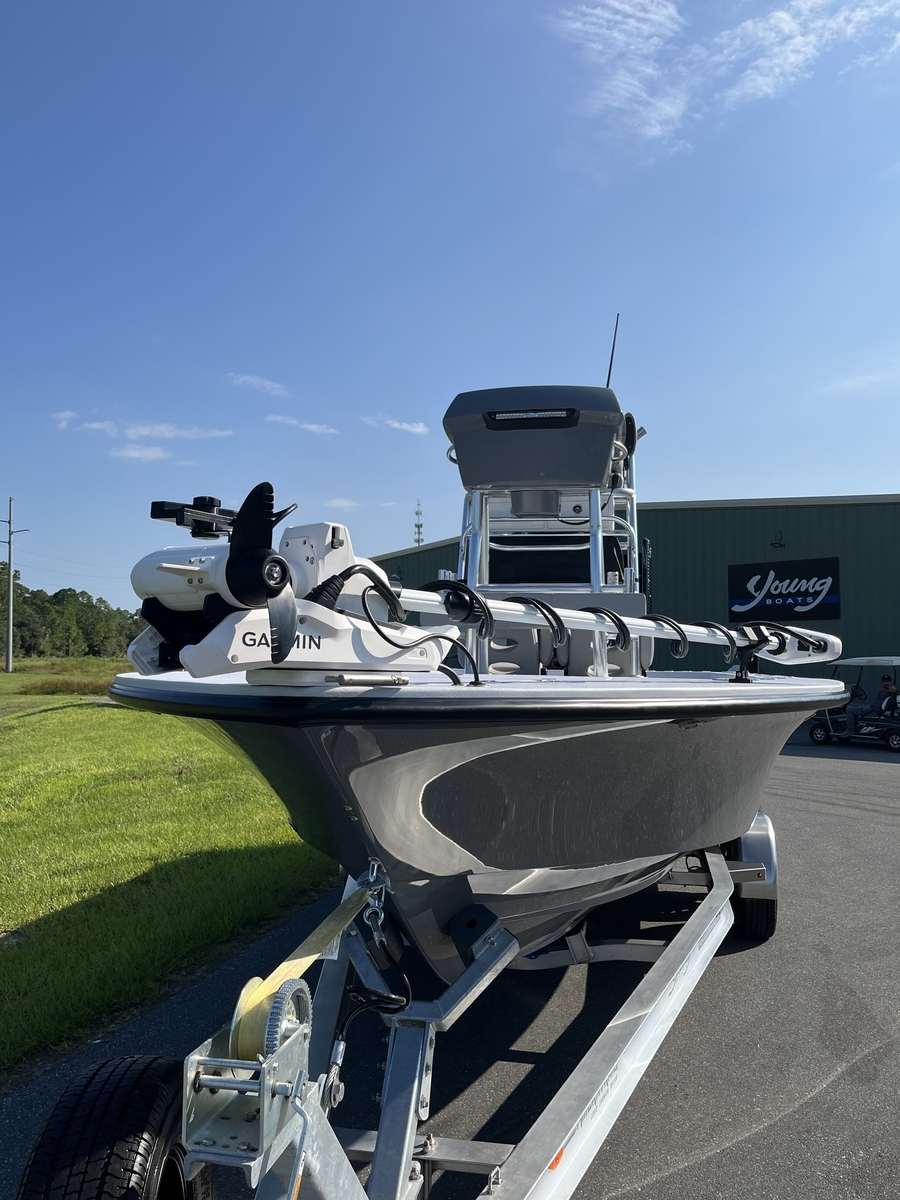

Bow

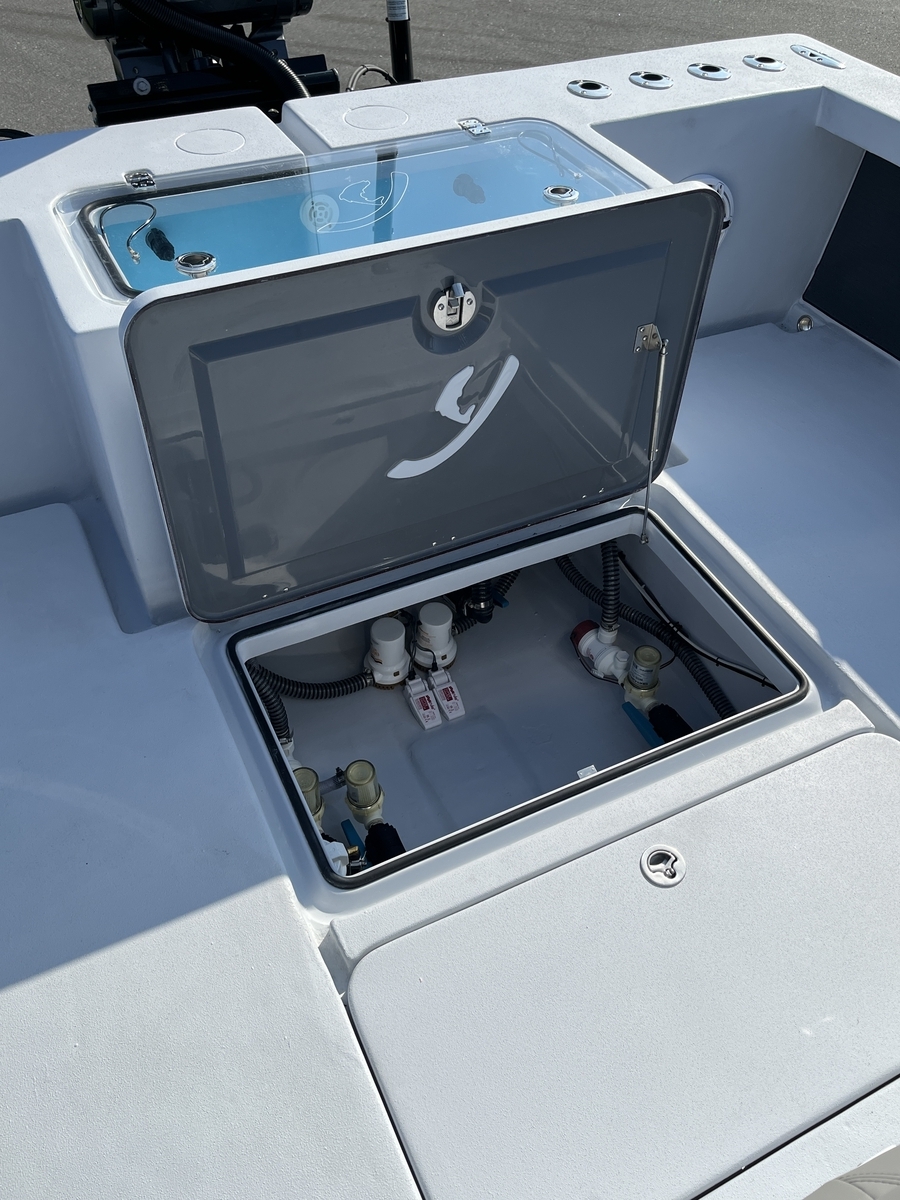

Bilge access

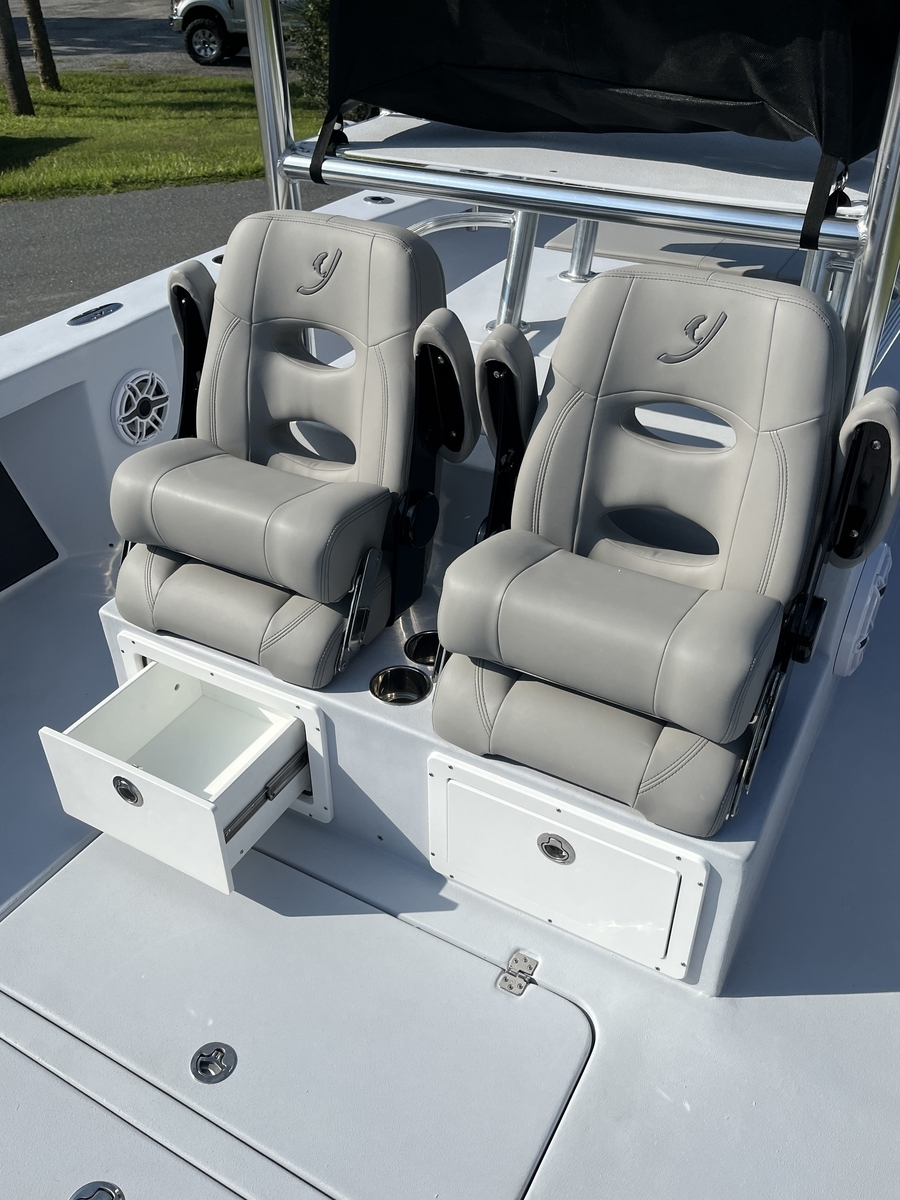

Aft storage

Center Pod Elevated Helm - May 2024

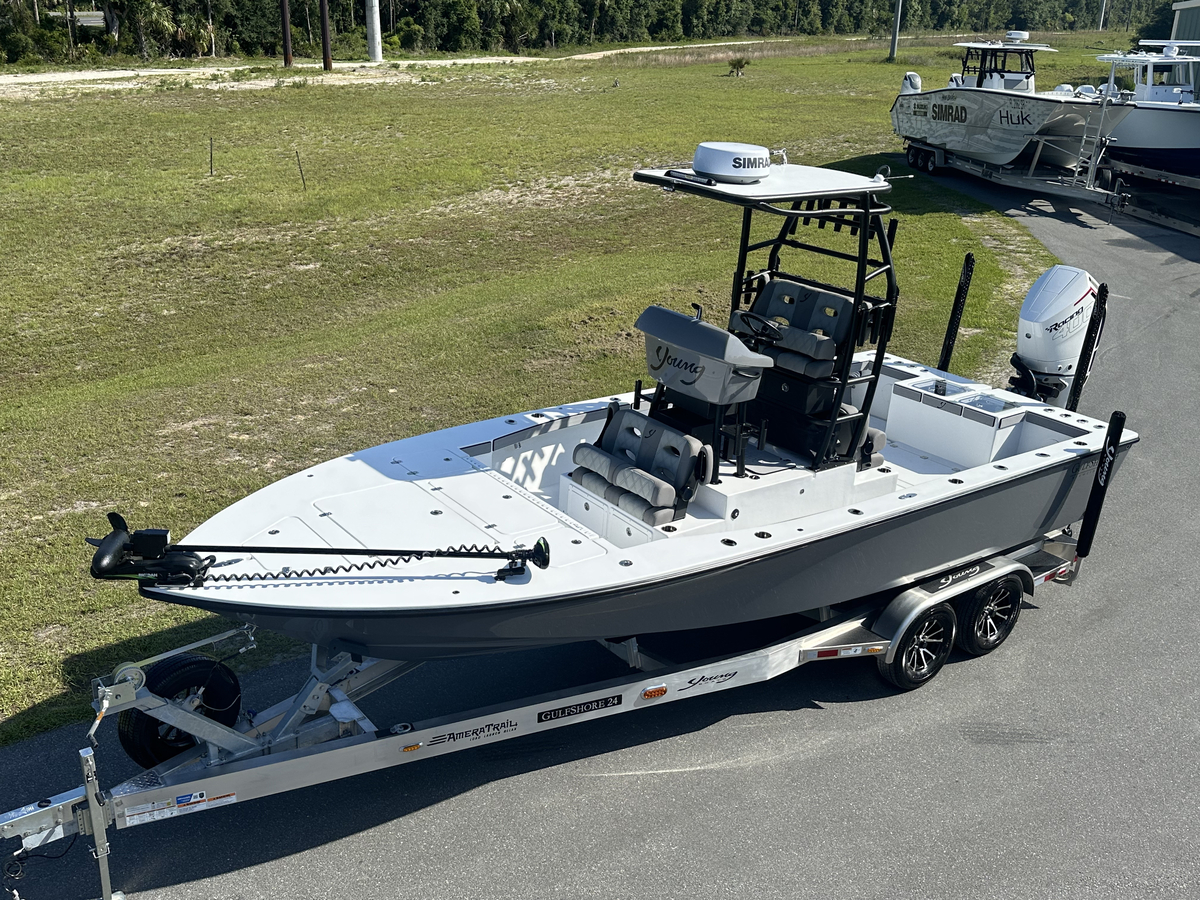

Front aerial

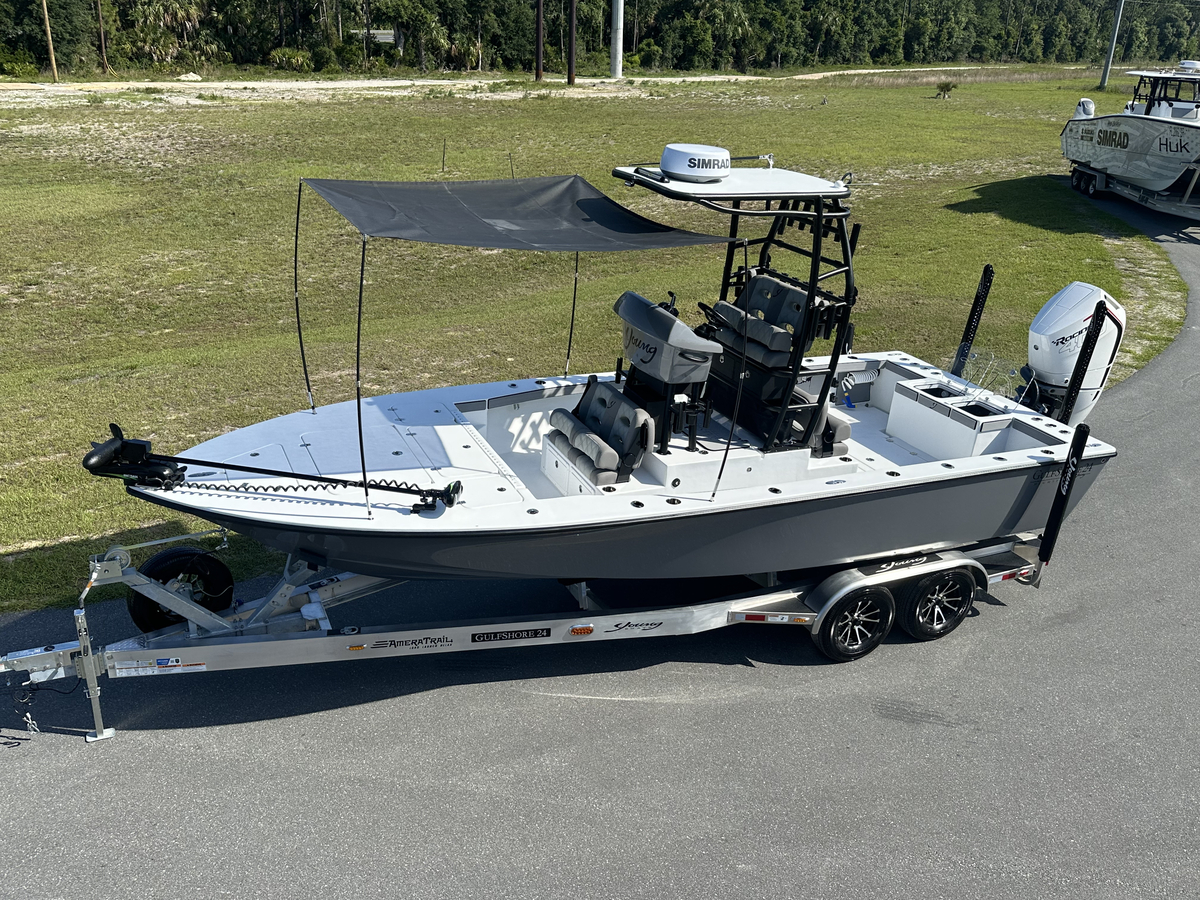

Shade aerial

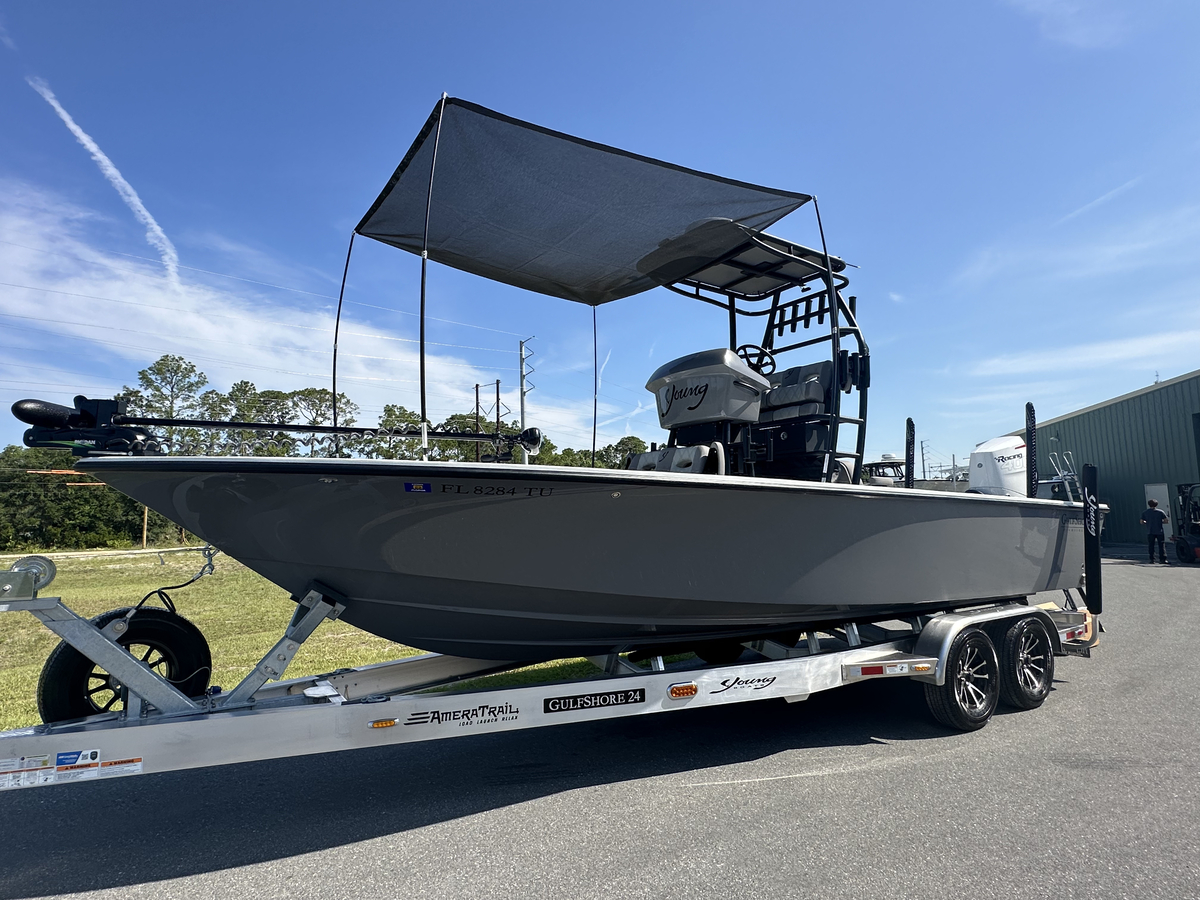

Front shade

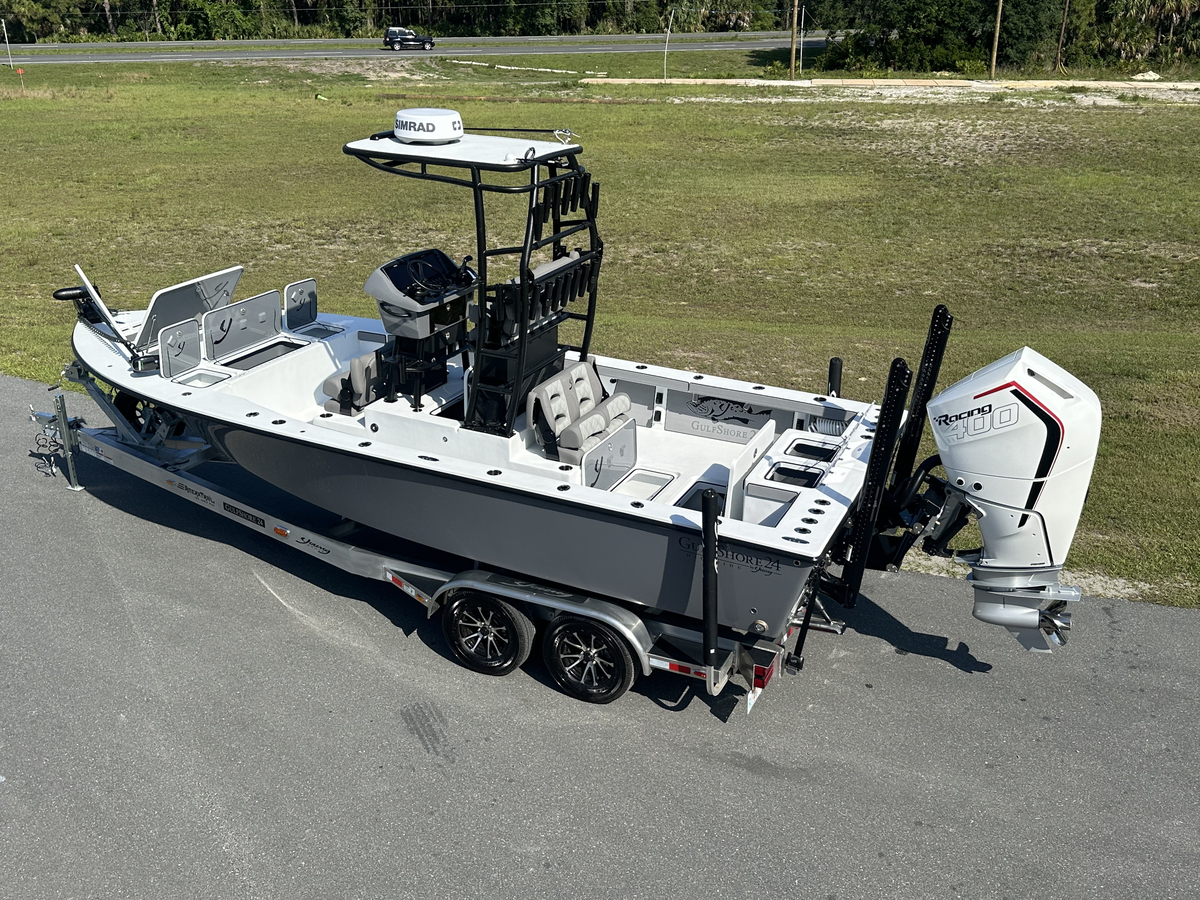

04_Aft aerial

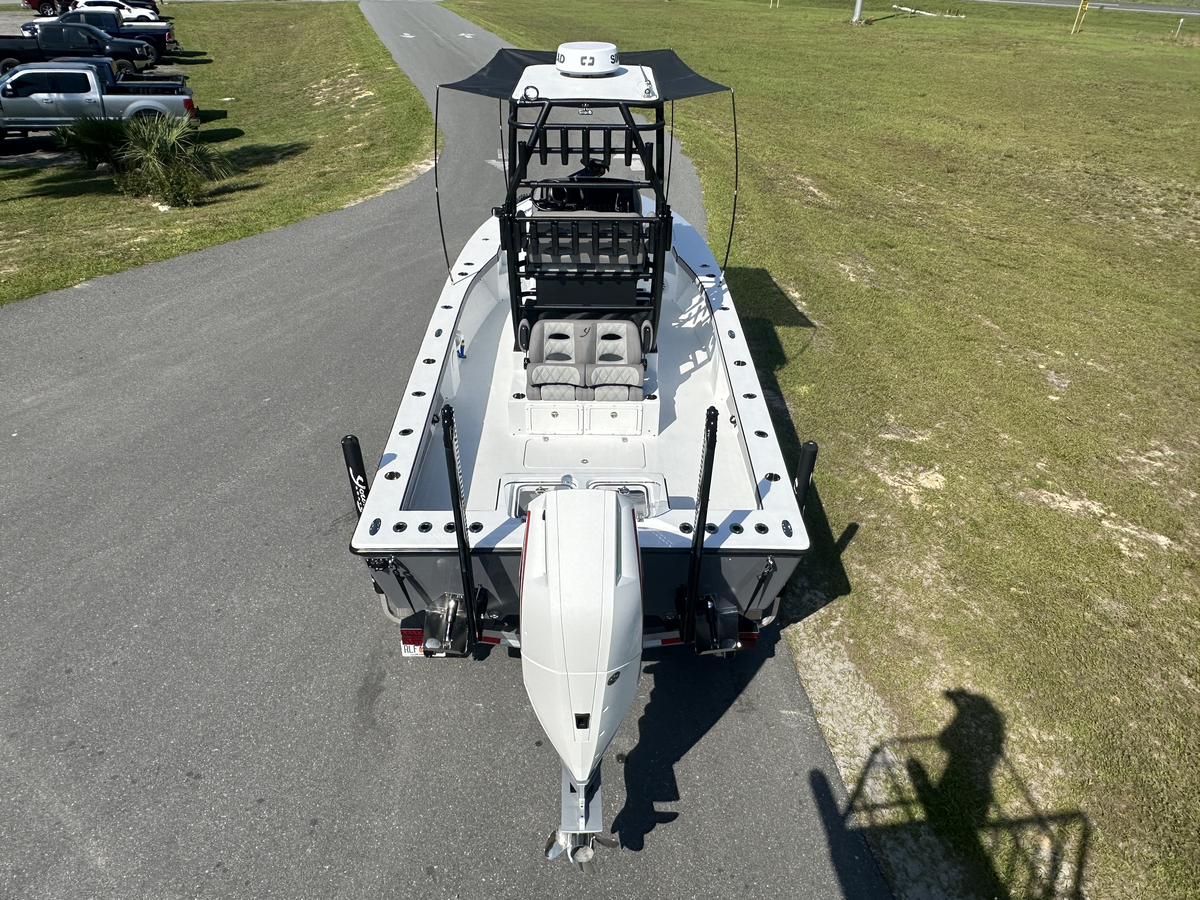

05_Transom aerial

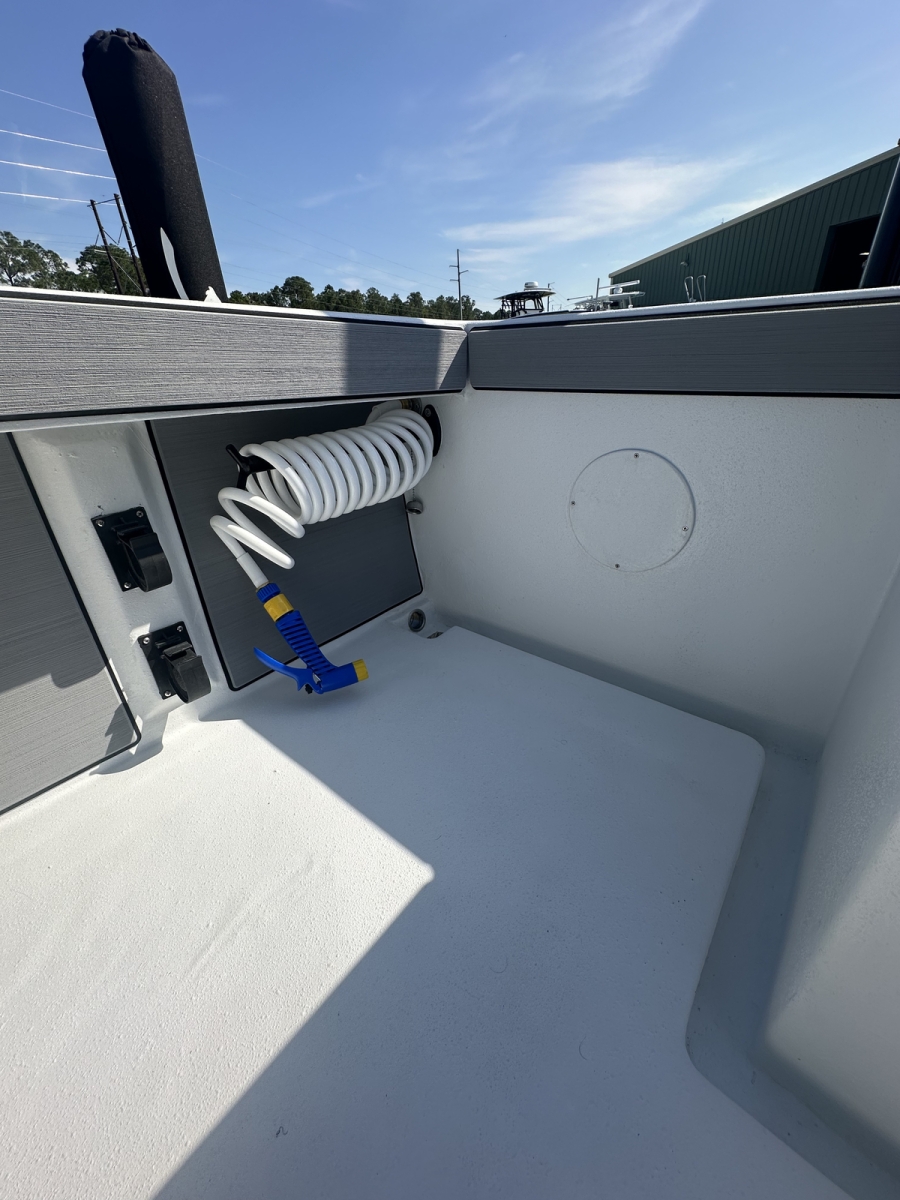

Washdown

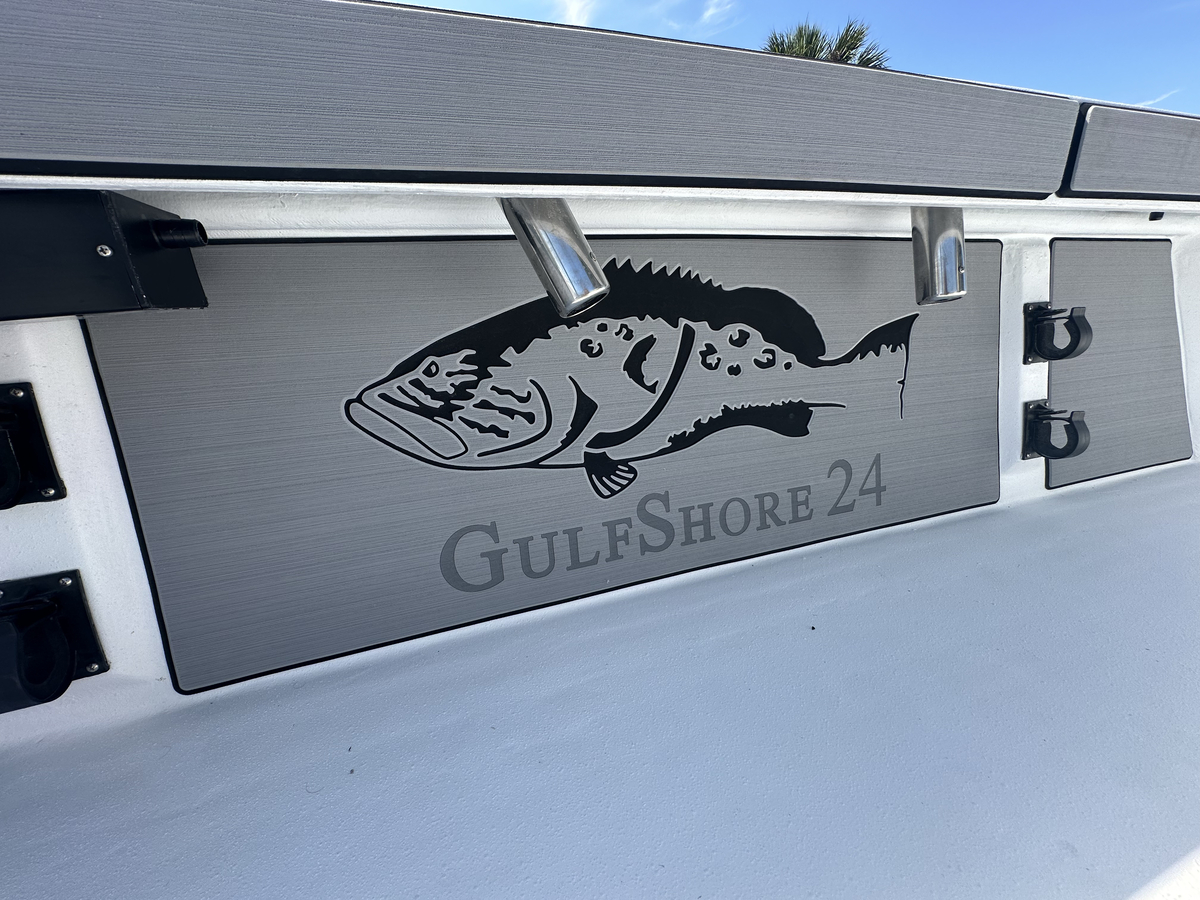

Under gunnel sea dek

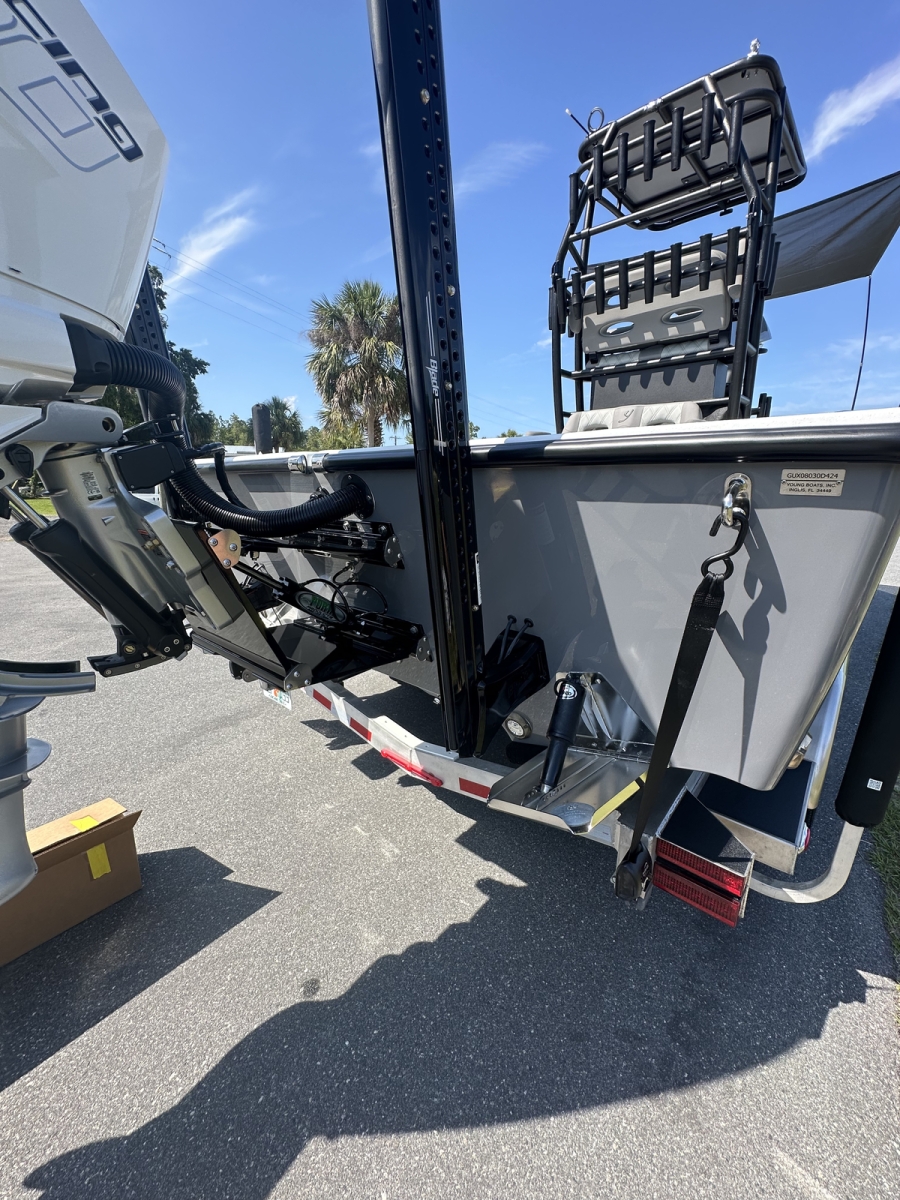

Transom

Rear deck

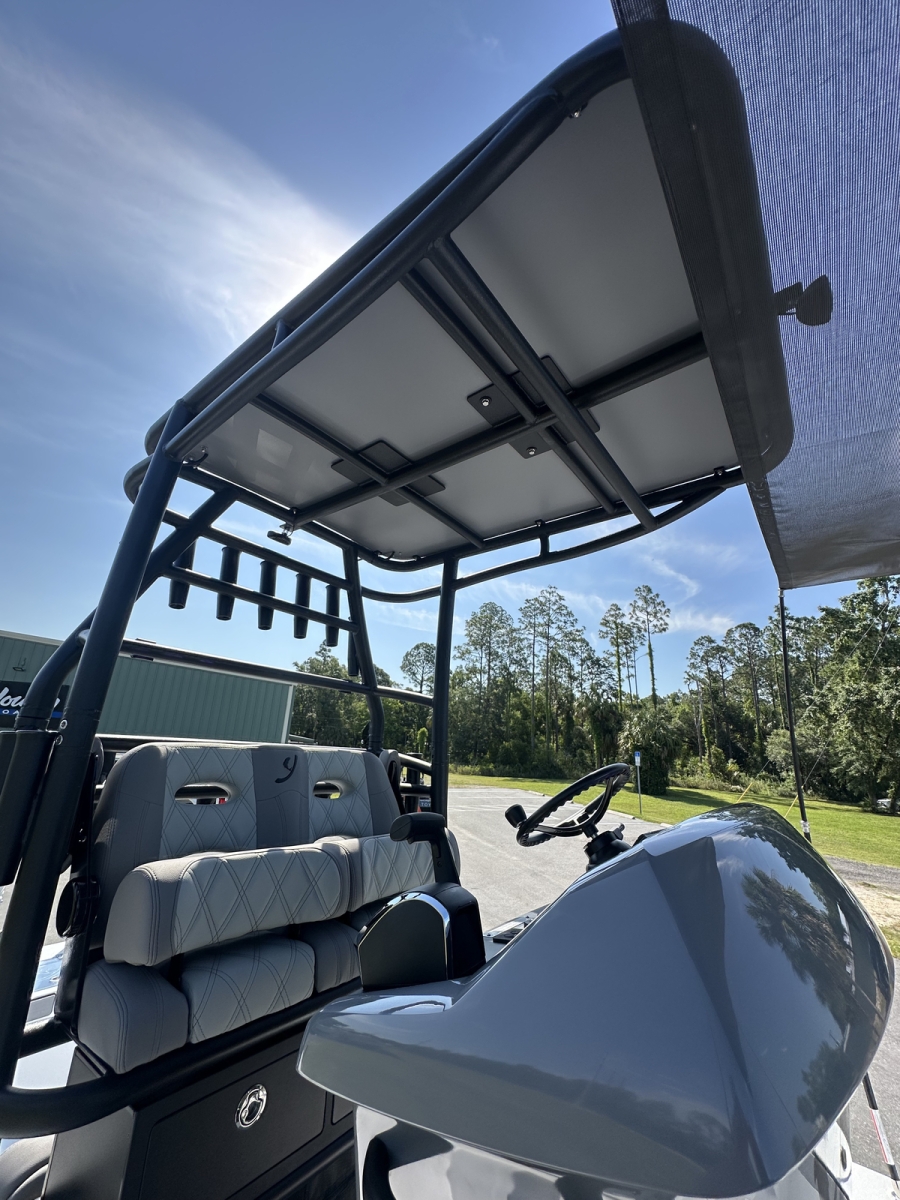

Hardtop

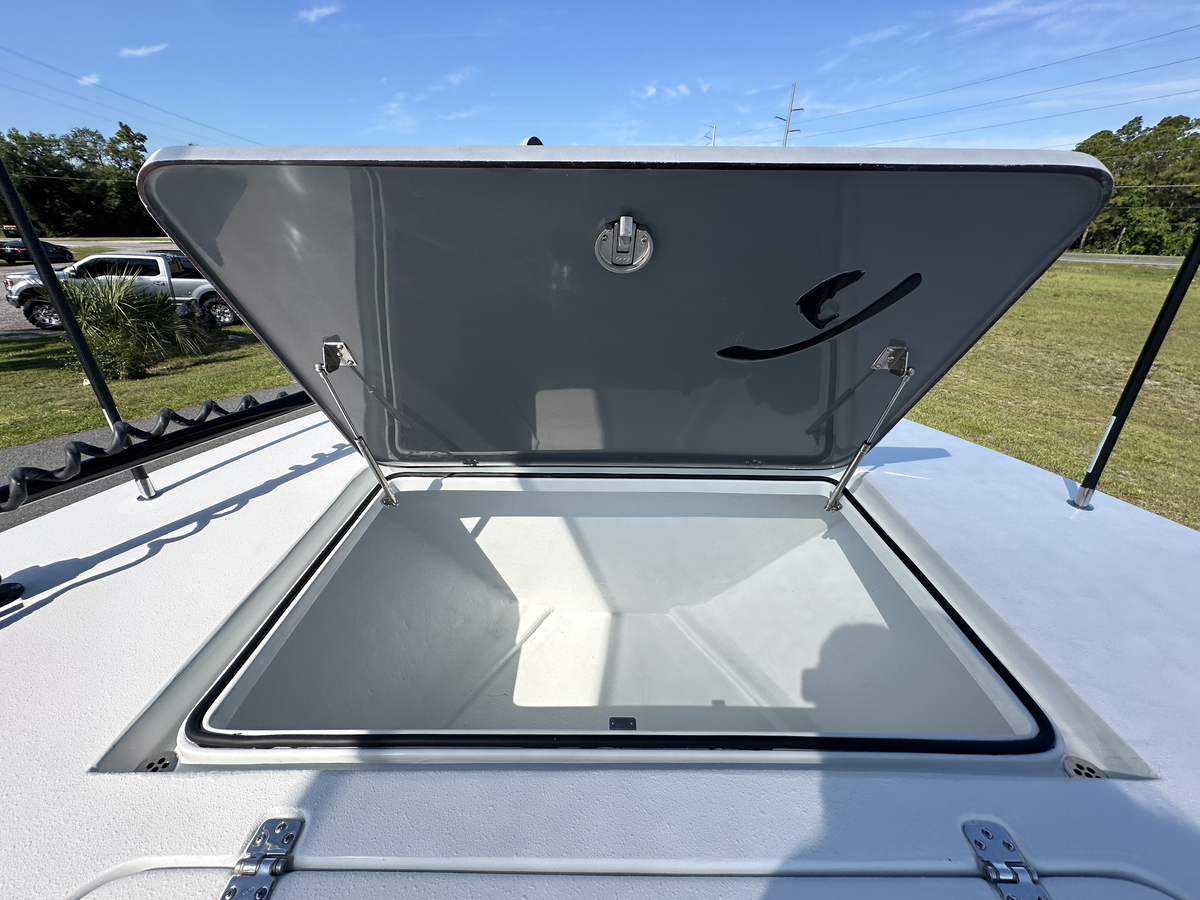

Front storage

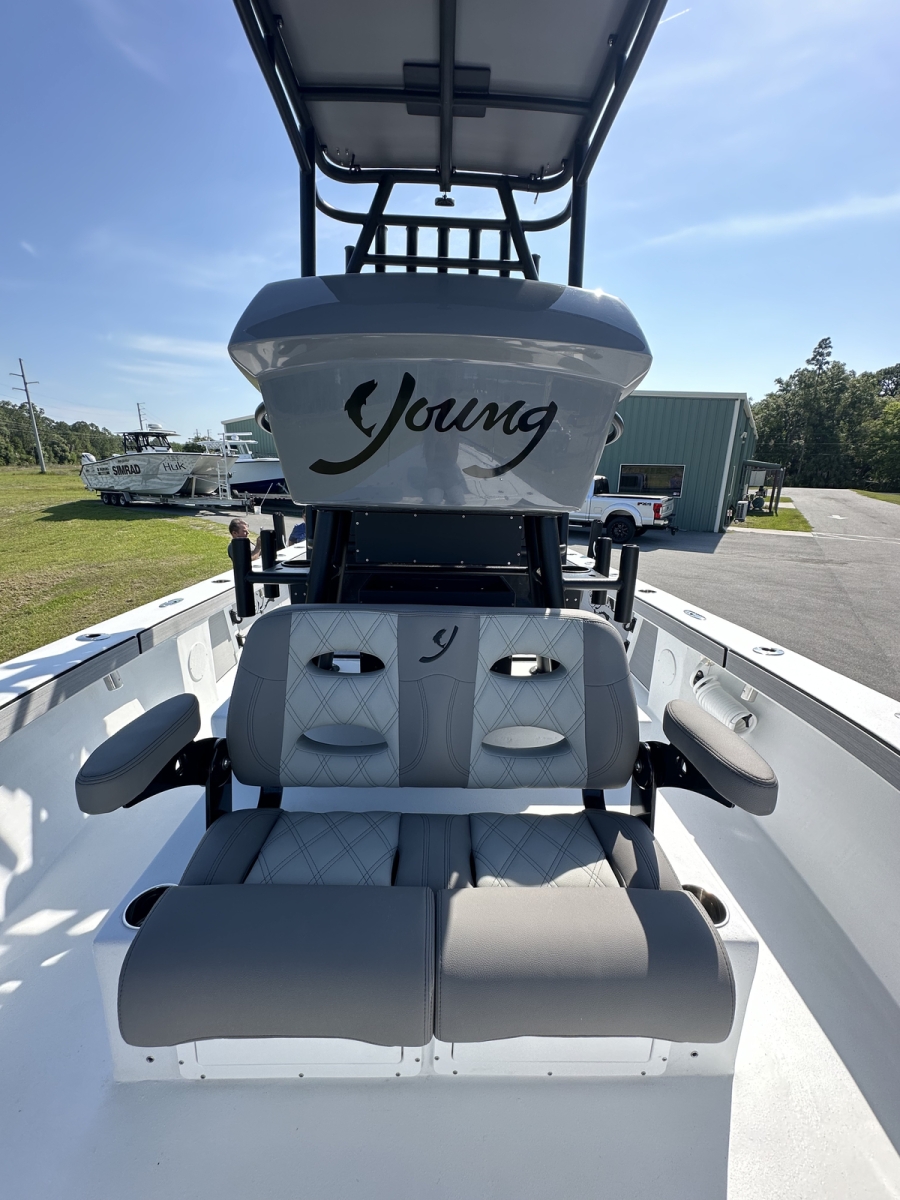

Front seating

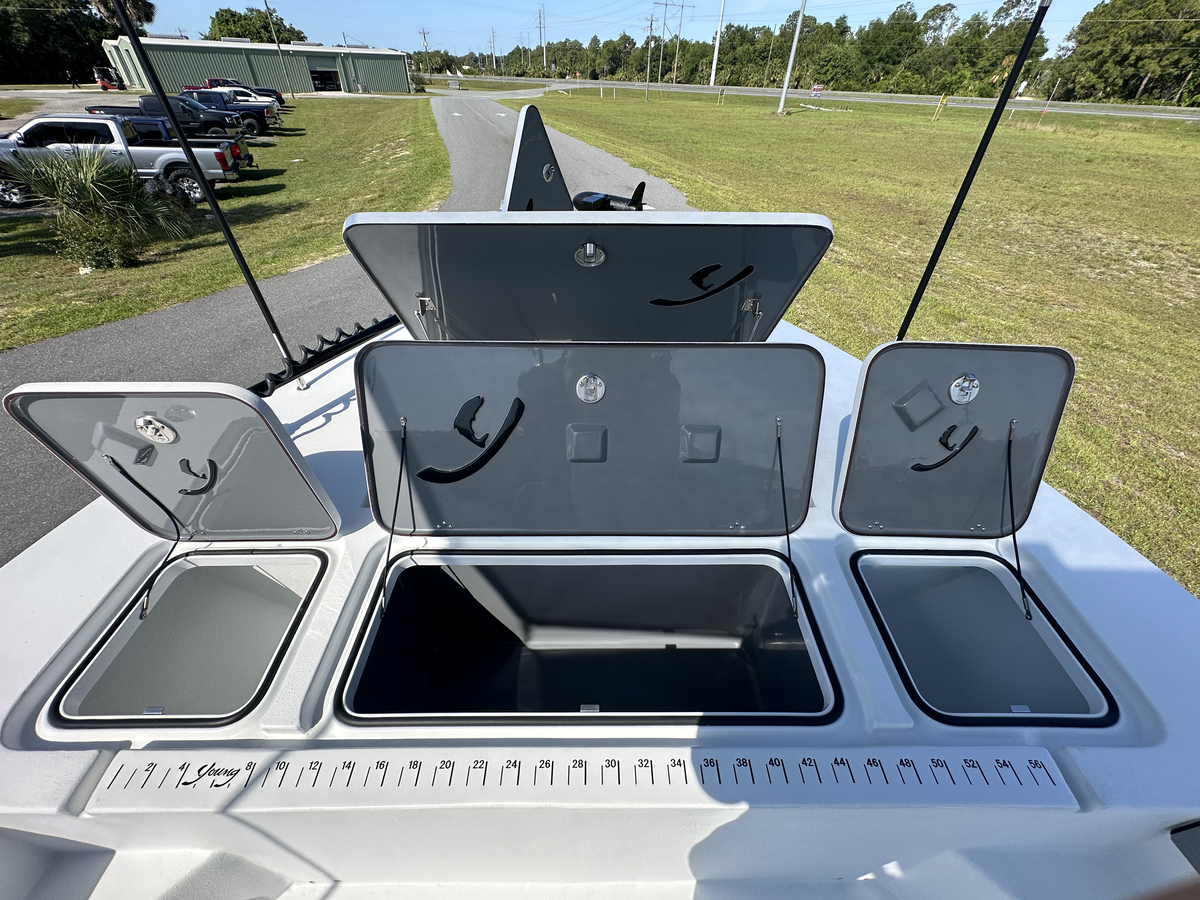

Front fishbox and storage

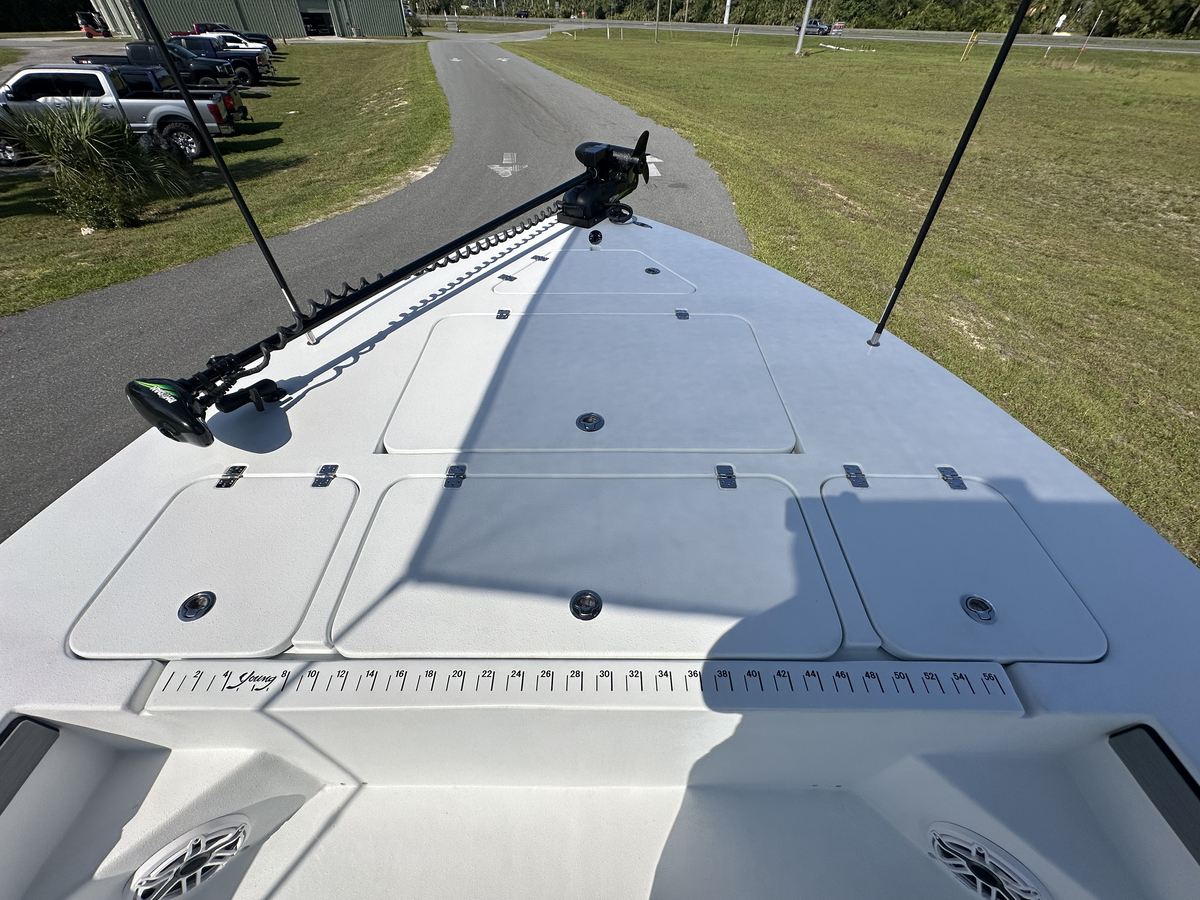

Front deck

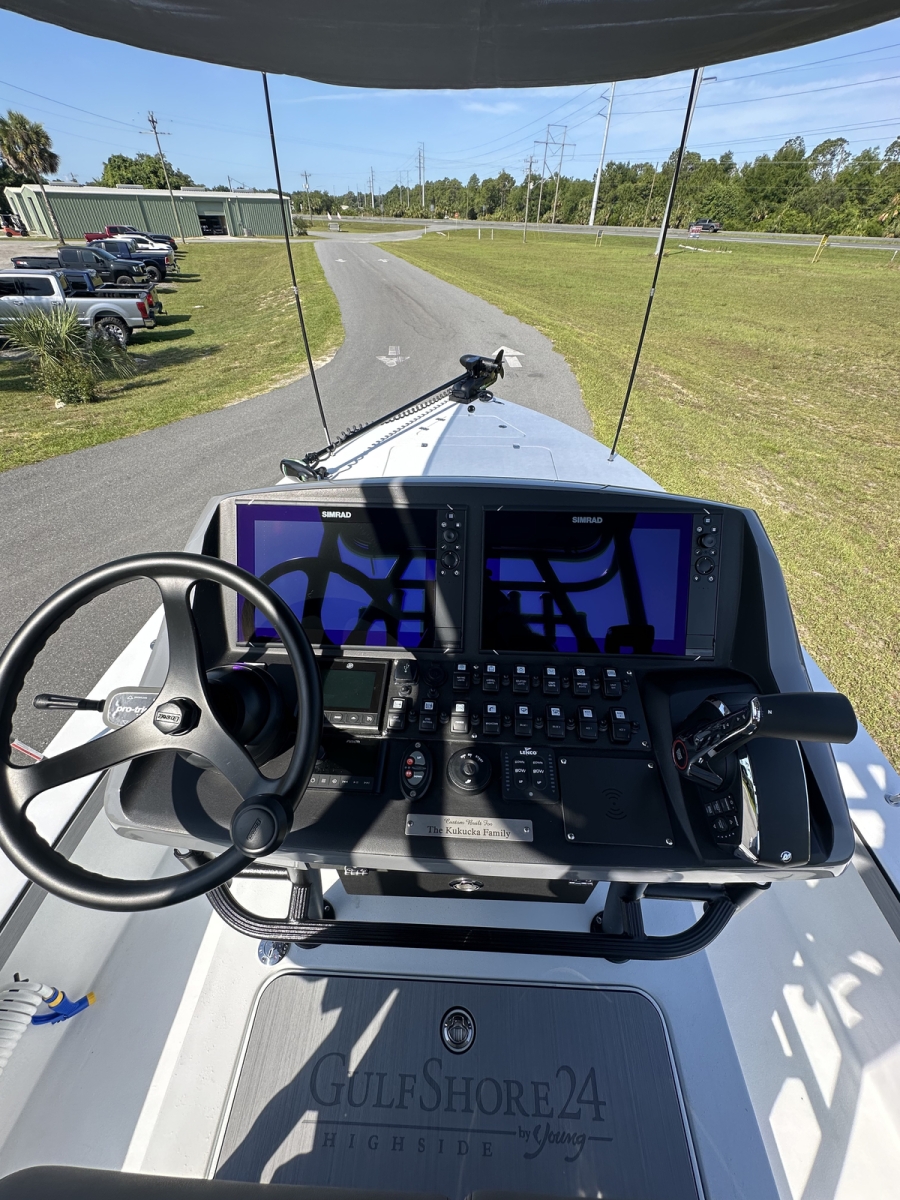

Console

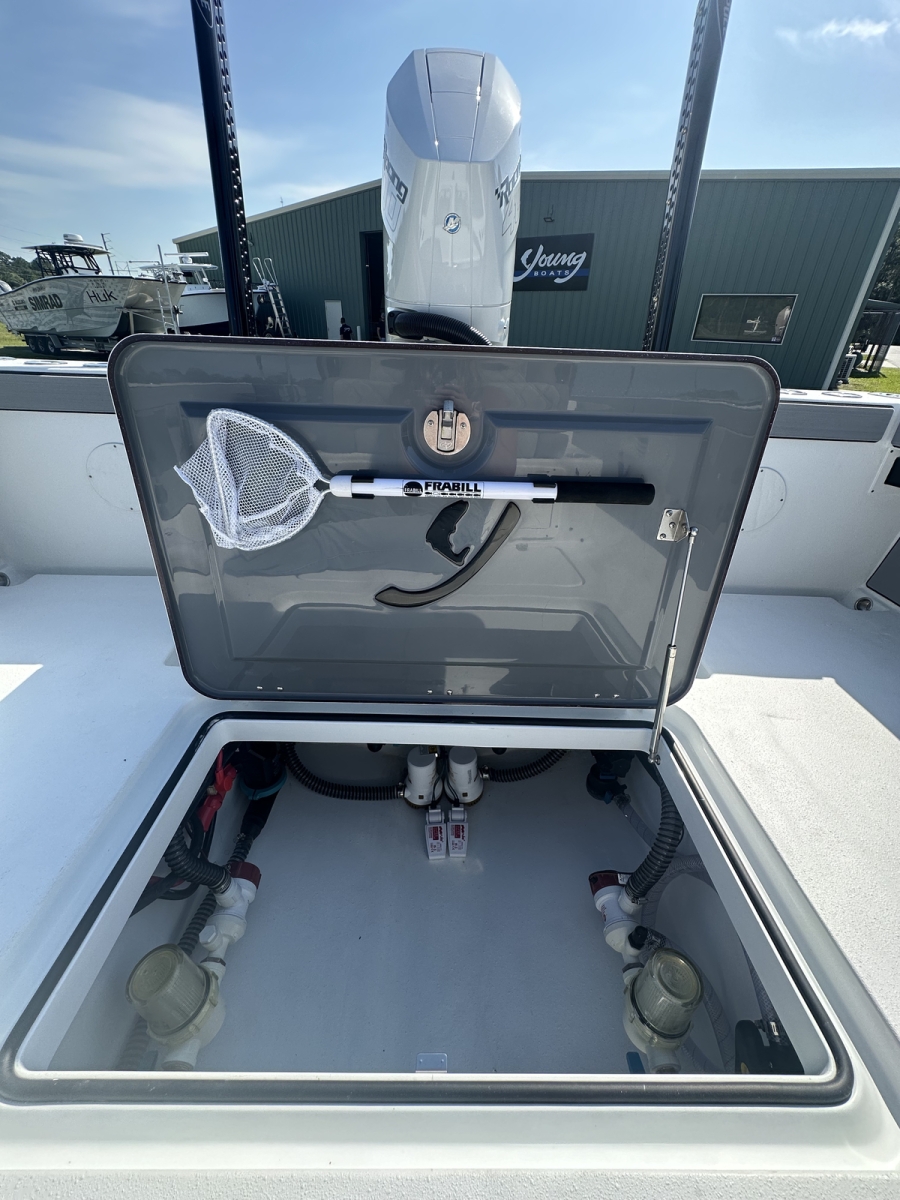

Bilge

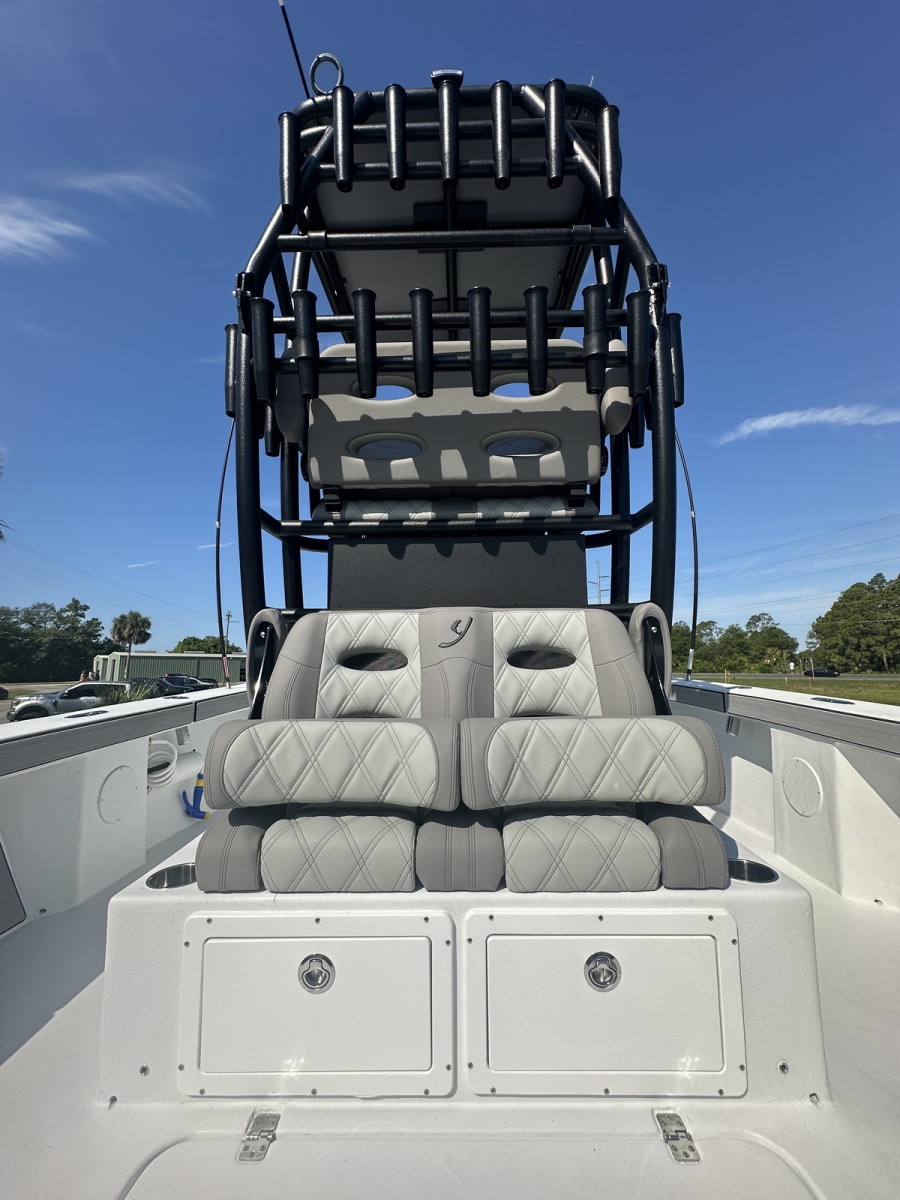

Aft seating

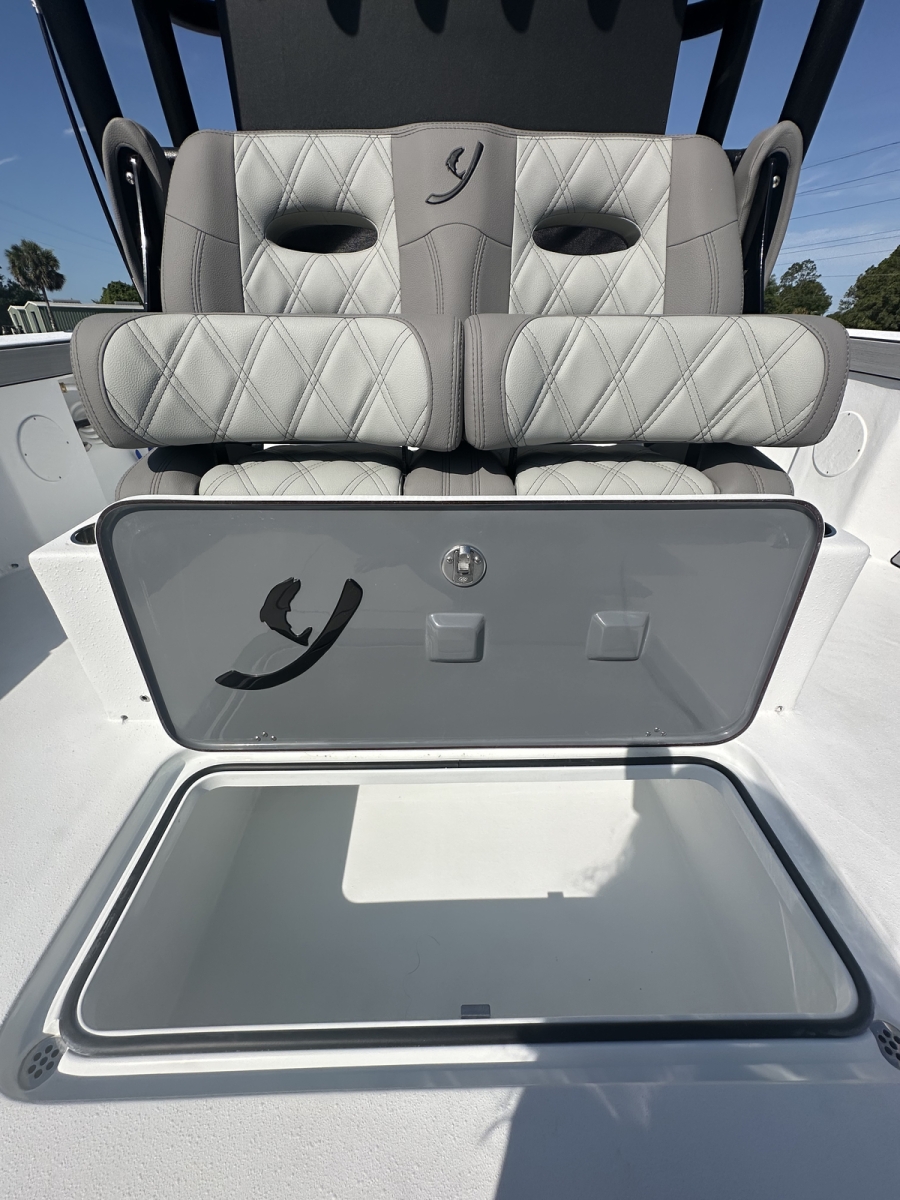

Aft fishbox

Which one is right for you?

Assess the benefits of each collection to find the one that’s best for you.

Compare Now

Building Boats — and a Family of Satisfied Owners.

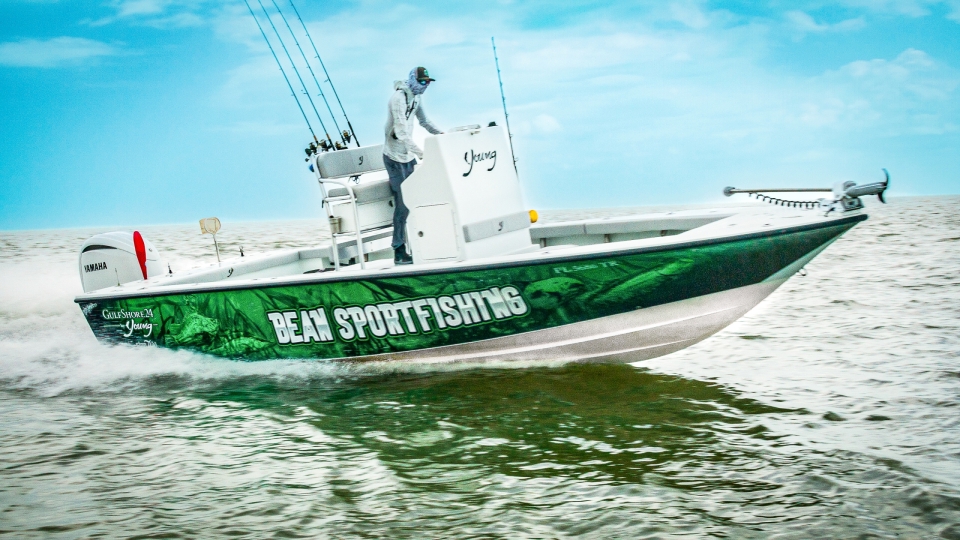

Gulfshore 24 HighSide effortlessly navigates one of the most versatile fisheries in the world, running shallow with ease for catching bait and heading offshore when the bite is out front. No matter the conditions, this boat gives me the confidence to fish anywhere, from the flats to the deep blue.”
