The GulfShore 24 is the ultimate Guide boat—built for captains or serious anglers who demand versatility, reliability, and performance. Designed to excel both inshore and offshore, its advanced optional tunnel hull allows for an ultra-shallow running draft of less than 12 inches while maintaining a smooth, stable ride in heavy chop.

  • Starting Price $147,700
  • Length (at centerline) 24'1"
  • Beam 8'6"
  • Draft (loaded) 11"
  • Deadrise (at transom) 14°
  • Deadrise (at bow entry) 40°
  • Weight (w/o engine) 1,650 lbs.
  • Standard Fuel Capacity 60 Gallons
  • Recommended HP Range 200-350 HP
  • Gunwale Width 11"
  • Cockpit Depth (freeboard at aft cockpit) 16"
  • Cockpit Depth (freeboard at fwd cockpit) 17"
  • Cockpit Size 7'3" x10'
Download Features & Options Pricing
  • Custom single-color hull, all composite, fully self-bailing; tunnel or non-tunnel
  • Five ss “pull-up” cleats (1 bow, 2 stern, 2 cockpit) & 1/2″ ss bow and transom lifting eyes
  • SS threaded garboard drains
  • Armstrong removable watertight hatch for bilge access
  • All thru-hulls are titanium and ss and have composite ball valves
  • All compartments are plumbed overboard (no compartments drain into bilge)
  • All hatch opening have deep gutters with rubber gaskets for quietness and dryness
  • All empty chambers under cockpit floor are foam filled (closed cell)
  • Sea Dek under gunwale pads
  • Suzuki 300hp (digital throttle) (white or black)
  • Hydraulic tilt steering (with bend restrictor fittings on all hydraulic hoses)

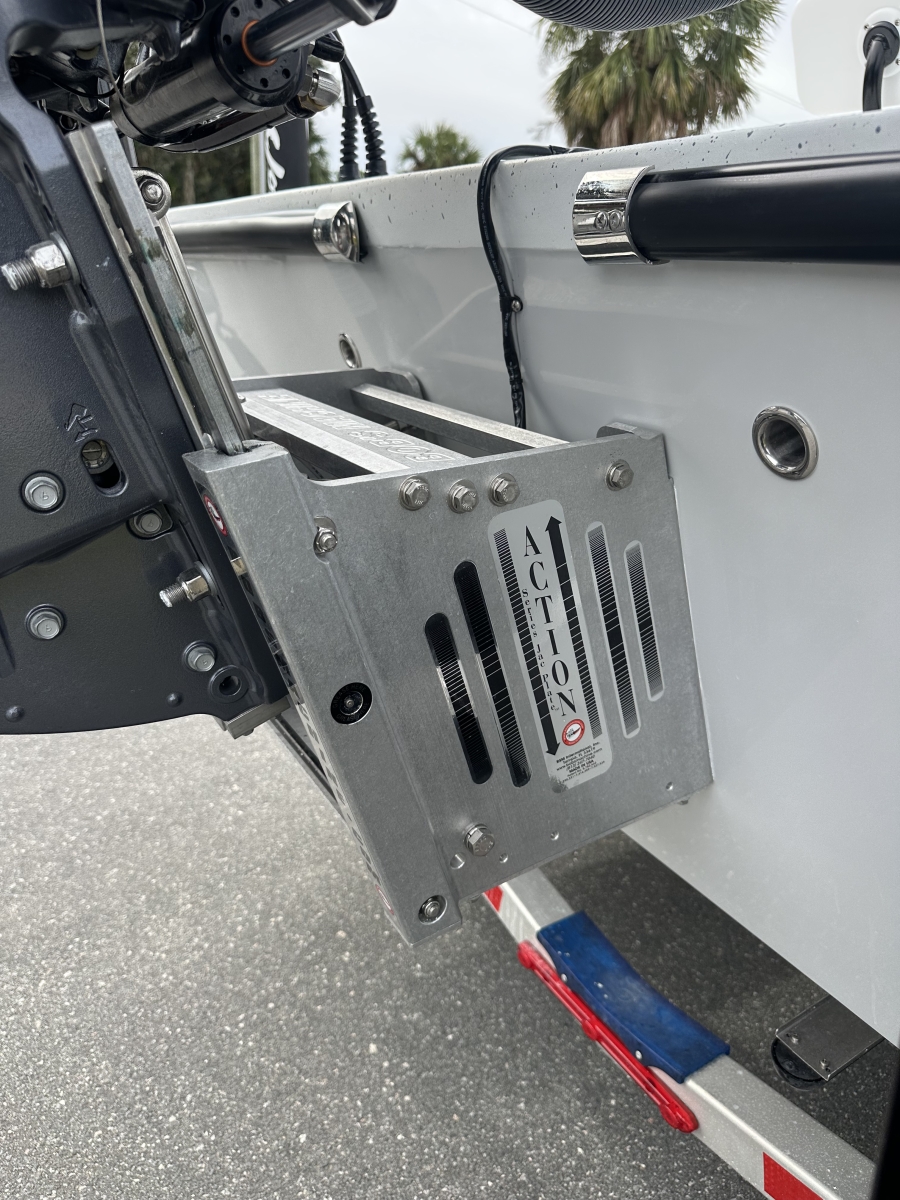

  • Hydraulic jackplate (6″ with console switch)
  • MinnKota Terrova 72″ 36V, 112lb with three Group 27 batteries and 3-bank charger
  • 10ft Power-Pole Blade (transom mounted) (white or black)
  • Trim Tabs (12×12″, includes indicator switch)
  • 60 gal fuel tank with “Racor” fuel filter/water separator
  • Two Group 27 cranking batteries with heavy duty holding trays and Blue Sea battery switch
  • Additional on board battery charger (to charge cranking/house batteries)
  • Two 1500gph bilge pumps with automatic float switches
  • Two live well pumps (1100gph) with intake filter, removable screen & composite ball valve
  • All wiring is marine tinned, and all connections are made with epoxy coated heat shrink connectors
  • Elevated composite console with aluminum half tower
  • Elevated helm on powder coated aluminum frame and 4 welded rod holders
  • SS knobbed steering wheel (with fingertip grip)
  • SIMRAD electronics package (includes: 1ea NSS 12″ MFD, SS60 600W thru hull transducer, and 2-1 active imaging transducer)
  • SIMRAD RS-20 VHF with 4ft antenna
  • All navigation lights are LED
  • Flip-bolster helm seat with powder coated lean post and 6 welded rod holders
  • Removable 65qt cooler with removable backrest on tower stand, matching seat cushion
  • Dual drawer polymer cabinet under lean post
  • Six ss flush mount rod holders (mounted on deck cap)
  • Under gunwale rod racks (holds 8 rods)
  • Custom integrated fish ruler
  • 40 gal release well and 20 gal bait well
Download Features & Options Pricing
  • Anchor Locker
  • Storage
  • Rigging
  • Insulated Fish Box
  • Cooler/Seating
  • Bilge Access
  • Release Well
  • Baitwell
Download Features & Options Pricing

Key Features
and Highlights

Download Features & Options Pricing Download Brochure

Design

Proven inshore and near-shore performer with generous deck space; available in tunnel or non-tunnel configurations.

Construction

All-composite modified-V hull with sprayed-on non-skid finish. Self-bailing and fully customizable for anglers or family setups.

Water Capability

Balances stability, comfort, and efficiency. Large enough to handle near-shore chop yet still able to fish shallow.

Download Features & Options Pricing Download Brochure

Additional Options & Upgrades

Engine Upgrades *The following are upgrades from the standard Suzuki 300hp (digital throttle) (white or black)
  • Upgrade to Suzuki 350hp 4.4L V6
  • Upgrade to Mercury 300hp 4.6L V8 (AMS)
  • Upgrade to Mercury 350hp 5.7L V10 (AMS)
    *choice of color: Cold Fusion White, Pearl Fusion White, Warm Fusion White, or Black
  • Upgrade to Yamaha 300 4-Stroke 4.2L V6
  • Upgrade to Yamaha 350 4-Stroke 4.3L V6
    *choice of color: white or traditional grey
  • Upgrade to Optimus Electric Steering
  • Upgrade trim tabs to Lenco Pro Control Auto System
  • Upgrade trim tabs to Seakeeper Ride System (450)
  • Upgrade to Porta Bracket
  • Porta Bracket height indicator
Trolling Motor Upgrades & Options *The standard trolling motor is the MinnKota Terrova (36V, 112lb, 72" shaft)
  • Upgrade to MinnKota iPilot Terrova QUEST (brushless, 36V, 115lb, 72″, Manual Deploy)
  • Upgrade to MinnKota iPilot INSTINCT (brushless, 36V, 115lb, 72″, Auto Deploy)
  • Upgrade to 87″ MinnKota
  • Upgrade to Power-Pole MOVE (brushless, 36V 100lb, 72″ shaft, Manual Deploy)
  • Upgrade to SIMRAD RECON (36V, 72″ shaft, Manual Deploy)
  • Upgrade to GARMIN Force Kraken (36V, 72″ shaft, Manual Deploy)
Trailer
  • Aluminum Dual Axle Trailer (includes all ss hardware, ss hubs, spare tire assembly, step-on fenders custom fit “driver-on” bunks, and ss cad disc brakes)
  • Aluminum Wheels
Electronics Package *The standard electronics package is the SIMRAD 1ea NSS 12" MFD, SS60 600W thru hull transducer, 2-1 active imaging transducer, and RS-20 VHF with 4ft Antenna
Marine Stereo Package (Includes Fusion head unit, 2ea JL Audio 7.7" speakers and all wiring and installation)
  • Upgrade – two additional JL Audio 7.7″ speakers
  • Upgrade – two additional JL Audio 8.8″ speakers
  • Upgrade – two JL Audio 8″ subs with composite recess and one JL Audio Amplifier
  • Upgrade -two JL Audio 10″ subwoofers with composite recess and one JL Audio Amplifier
  • Fiberglass recess for speakers and subs (each)
SIMRAD Electronics Package Additions
  • Upgrade to 1ea NSS 16 MFD
  • Upgrade to dual NSS 12 MFDs
  • Upgrade to SS75 thru hull CHIRP transducer
  • SIMRAD WM-4 Sirius-XM Satellite Weather Module and Antenna
  • SIMRAD Halo 20+ Radar (includes all wiring and installation)
GARMIN Electronics Package Options
  • Upgrade to GARMIN Electronics Package #1 (Includes 1ea 12″ 1243xsv MFD, B60 600W thru hull transducer, Side and Downscan transducer, and 115 VHF with 4ft antenna. Includes all wiring and installation)
  • Upgrade to 1ea 8616xsv MFD
  • Upgrade to dual 8612 MFDs
  • Upgrade to B75 thru hull CHIRP transducer
  • GARMIN GXM-54 Sirius-XM Satellite Weather Module and Antenna
  • GARMIN GMR XHD 18″ Radar (includes all wiring & installation)
  • GARMIN upgrade radar to Fantom
Aluminum Fabrication
  • Additional rod holder welded to tower frame (pair)
  • Additional cup holder welded to tower frame (pair)
  • Knife/plier/cup holder combo welded to tower frame (pair)
  • Fixed mount buggy top (aluminum frame with Sunbrella soft top)
  • Removable casting seat (cushioned stool, Defender flush mount, turnbuckle, backing plate)
  • Removable casting platform (with flush stainless steel base and turnbuckle)
Anchoring
  • Upgrade standard single 10ft Power Pole Blade to dual 10ft Power Pole Blades (one pump or two pumps)
  • Dual Power Pole Brackets (mount to side of jack plate)
  • Sea Claw anchor package (8lb Sea Claw, 15′ chain, and 300′ rope)
Fishing & Rigging
  • Tackle Station (includes 4 Plano trays, sliding drawer and pull out cutting board)
  • Additional SS Rod Holders (flush mounted on deck cap) – $300 (pair)
  • Rod Holder/Cup Holder Combos – $500 (pair)
  • Additional gunnel cup holders – $200 (pair)
  • EPIRB (ACR V5 Cat II, with bracket)
Upholstery & Seating
  • Bench Seat with Removable Backrest (includes dry storage and removable bench cushion)
  • Composite seat pod with one deluxe bench seat (includes 2 armrests) and dual polymer tackle cabinets
  • Removable Pedestal Seat (choice of captain style or bicycle style) (includes flush mount ss base, adjustable cylinder, and matching upholstery)
Covers & Enclosures
  • Custom Full Boat Cover (choice of color)
  • Extended Sides (full boat cover)
  • Cockpit Bimini Top (choice of color, includes boot)
  • Helm Bimini Top (choice of color, includes boot)
  • Small Console Cover (choice of color, covers console)
  • Lean Post Cover (choice of color)
  • Combo Cover (choice of color, covers console and lean post)
  • Life Jacket Storage
Lighting & Plumbing
  • Underwater Lights LED – Pair
  • Upgrade Underwater Lights to Spectrum
  • Cockpit Lights LED (set of 6)
  • Upgrade Cockpit Lights to Spectrum
  • Spreader Lights (high intensity, LED) – $500ea
  • Lumitec Razor Light Bar (low profile, curved 18″)
  • Recirculating Live Well Pump
  • Clear Acrylic Release Well Lid or Bait Well Lid (with etched logo)
Deck & Utility
  • Pull-Out Ladder (3-step)
  • Armstrong Dive Ladder (3-step removable)
  • Dive Platform (fiberglass composite with fold down 3-step ladder)
  • Helm Pad (Sea Dek)
  • 12V Accessory Outlet Mounted/Wired Inside Console
  • Upgrade fuel tank to 80 gal
  • Upgrade Batteries to AGM – $270ea
  • Forward Step (includes insulated cooler and hatch)
  • Forward Corner Steps (or aft)
  • Additional Midship Cleats (pair)
Download Features & Options Pricing Download Brochure

Just Delivered

Center Elevated Helm
September 2022

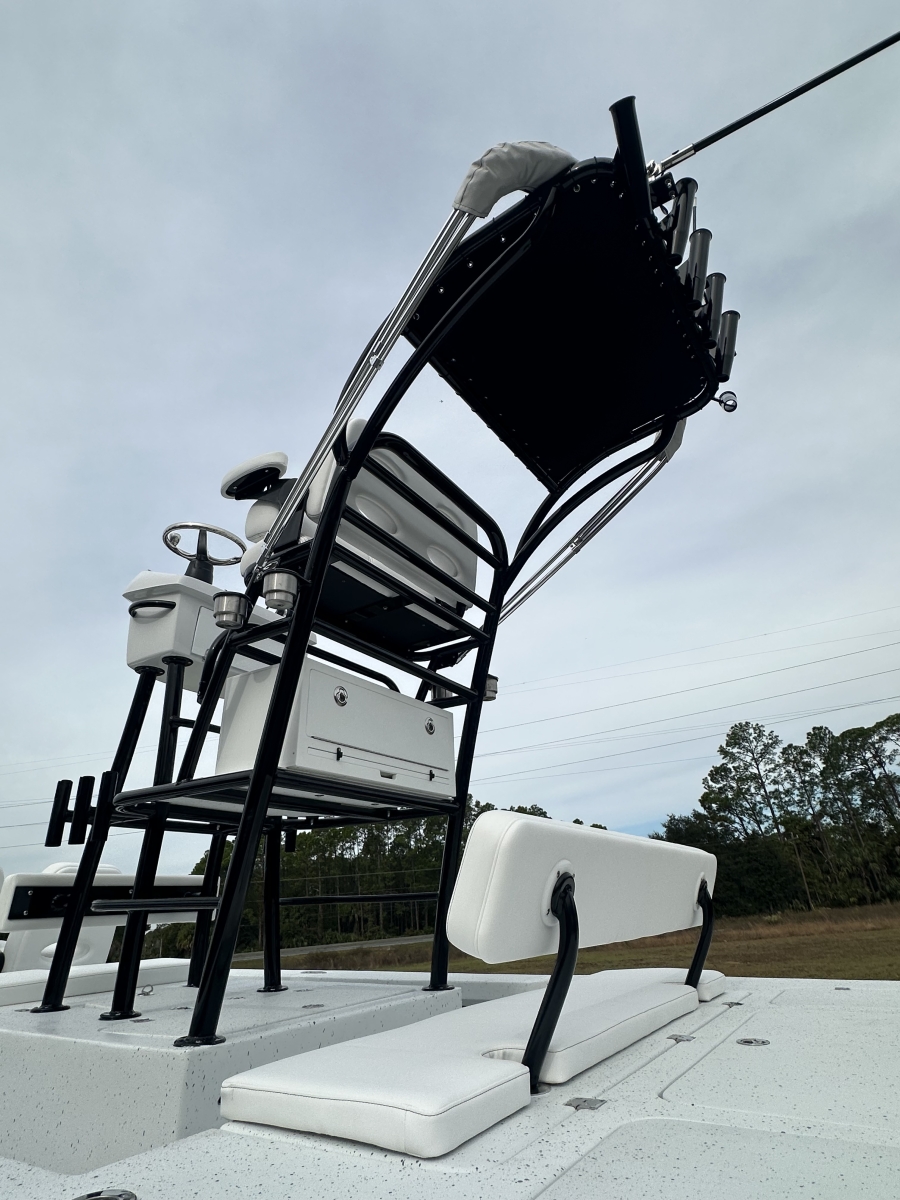

Rear Elevated Helm
October 2021
Captains Elevated Rear Helm
February 2024
Center Elevated Helm - September 2022

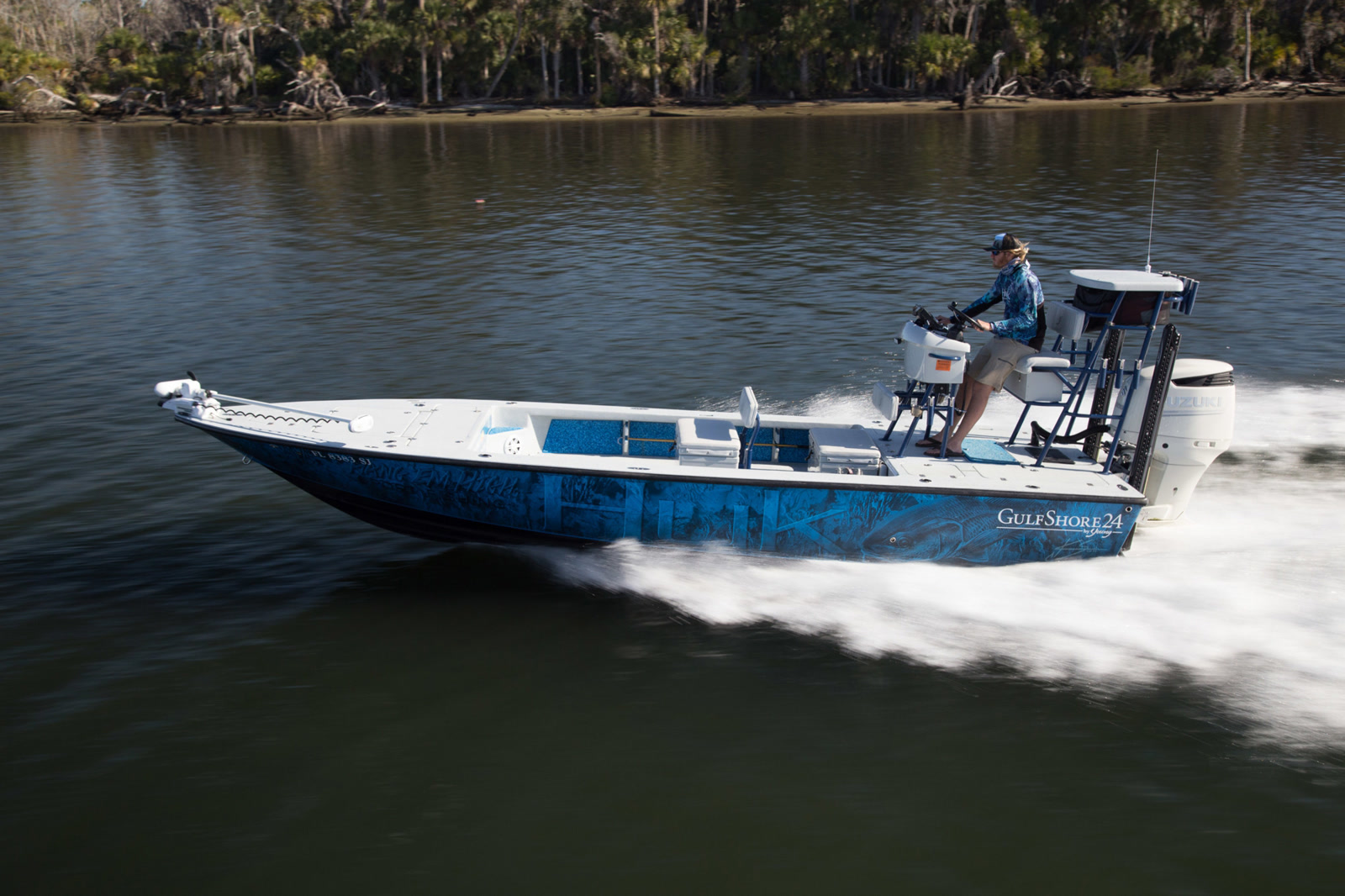

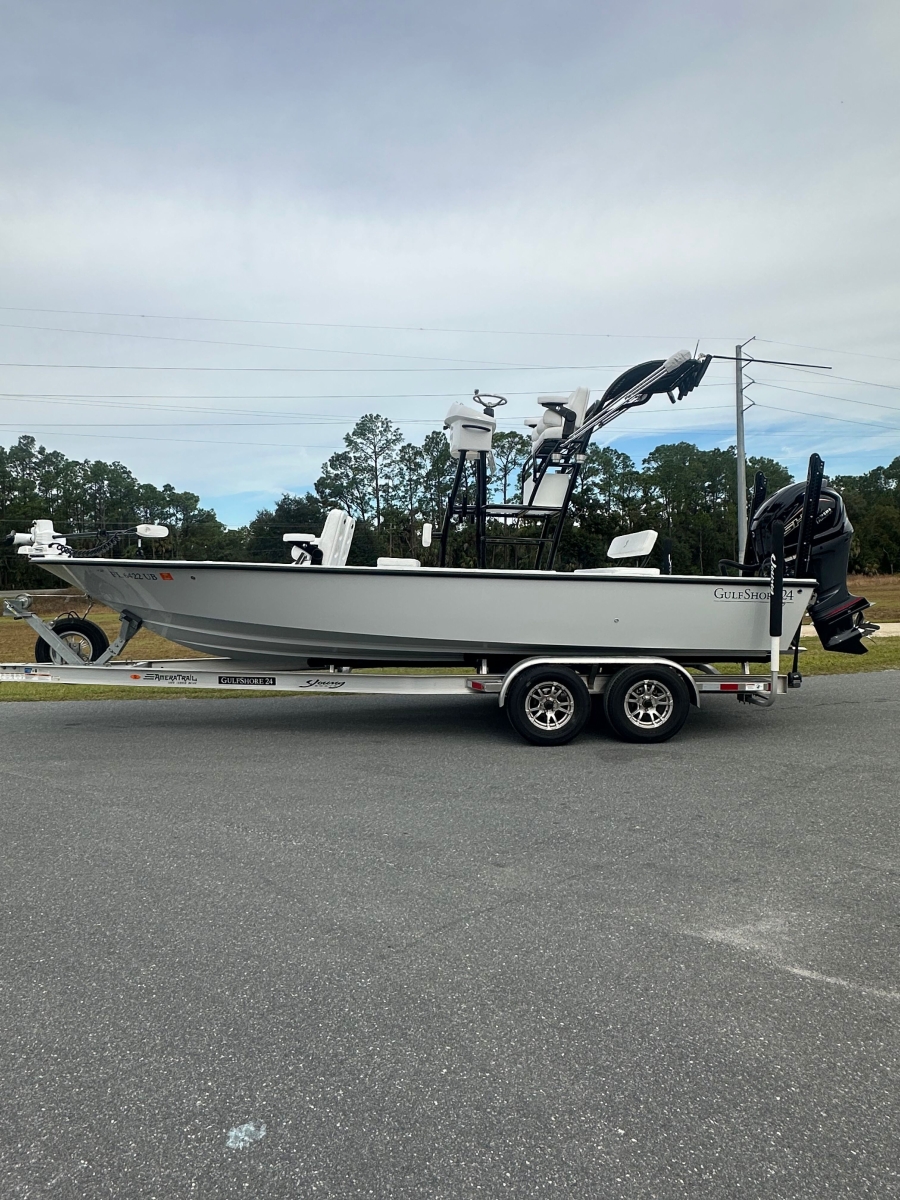

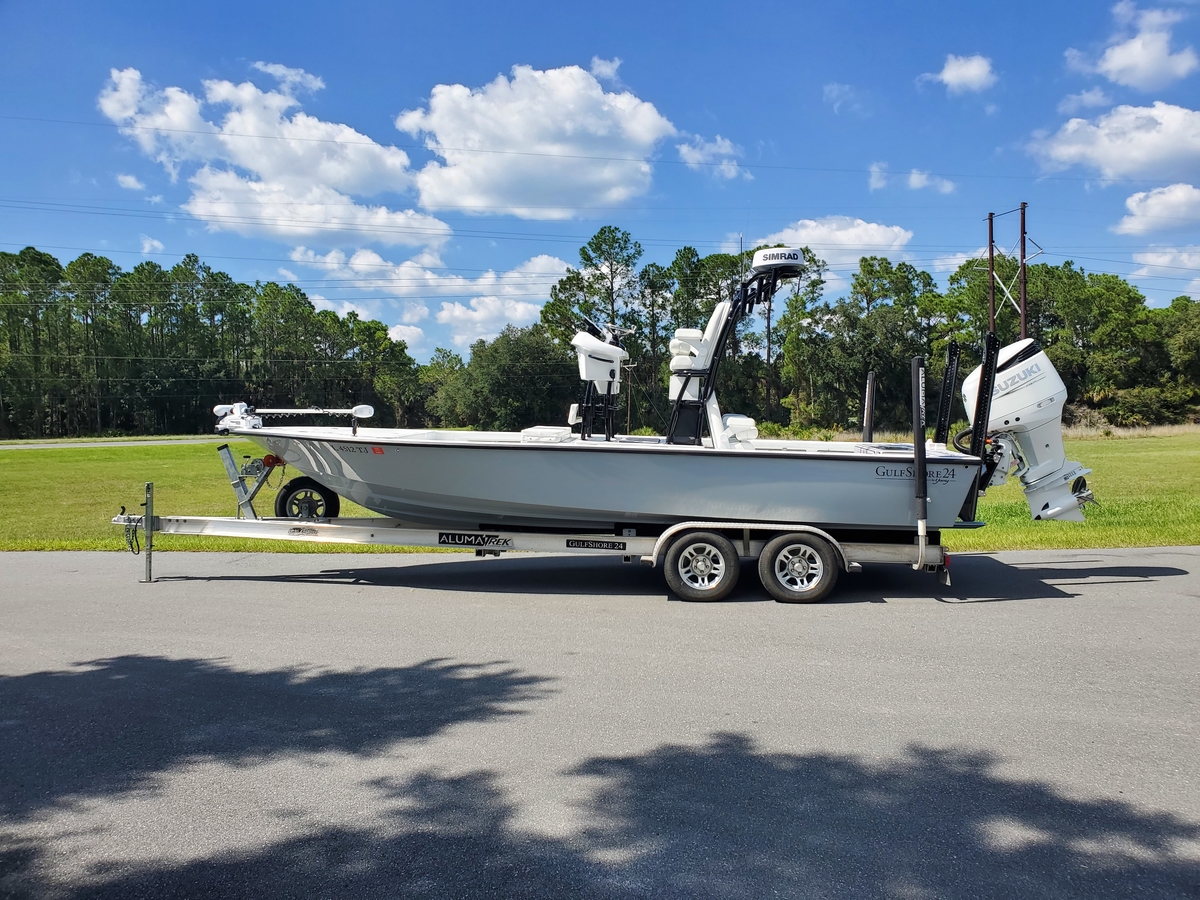

Sideview

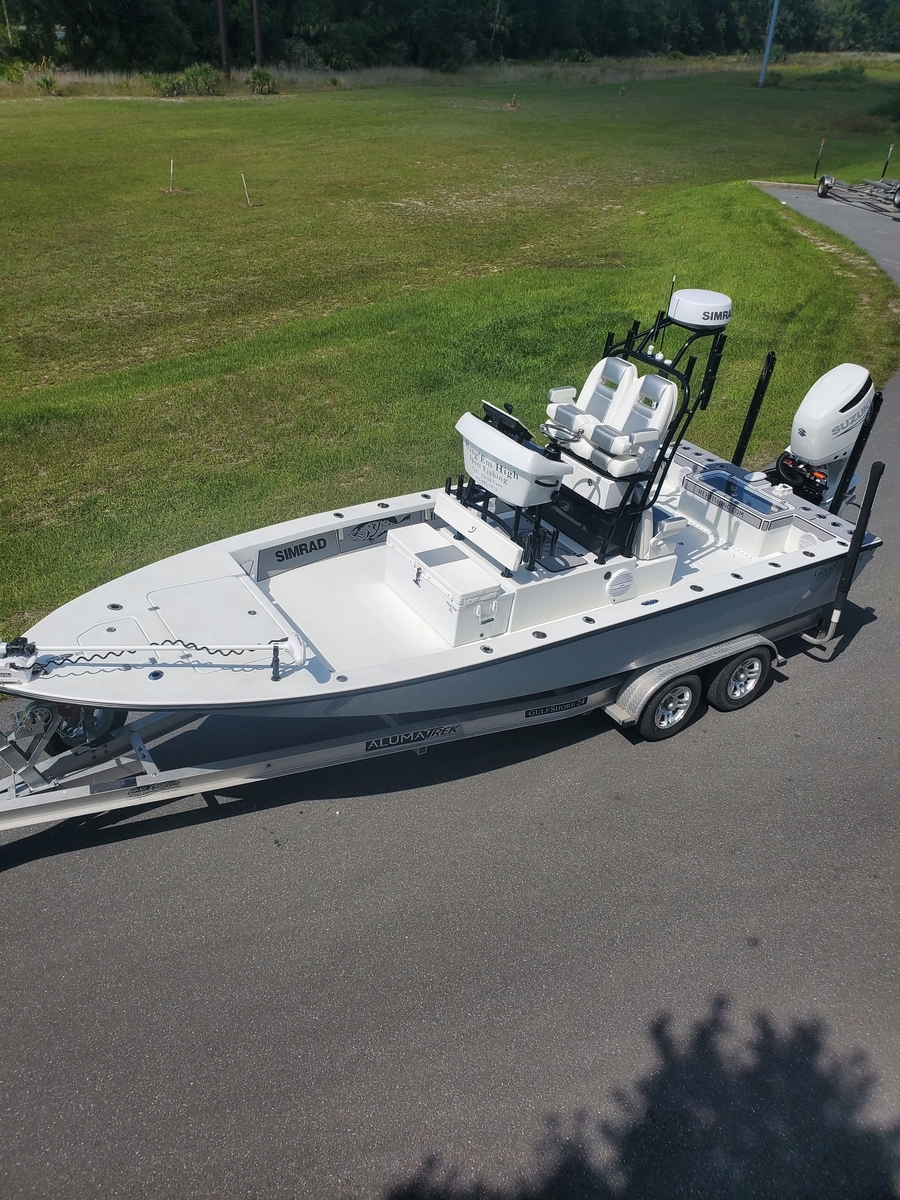

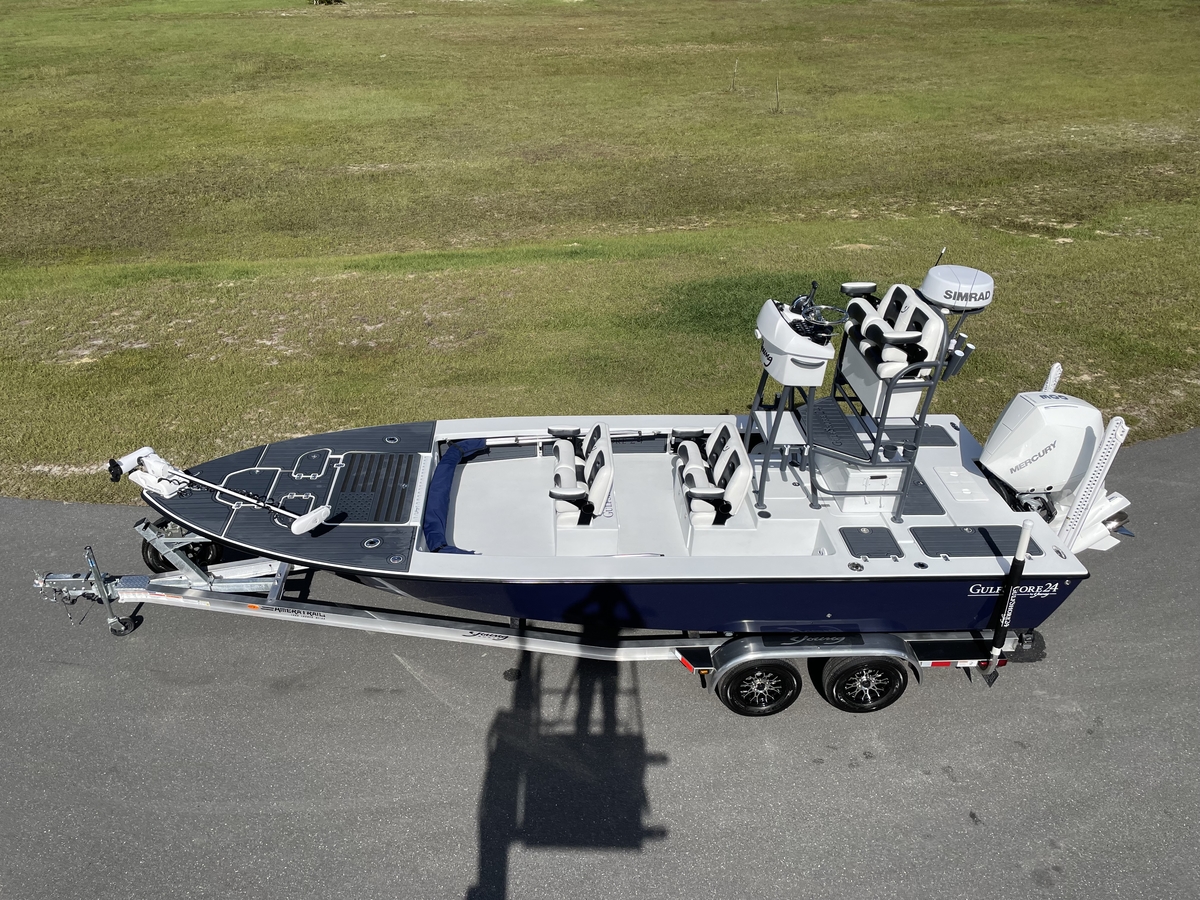

Side Aerial

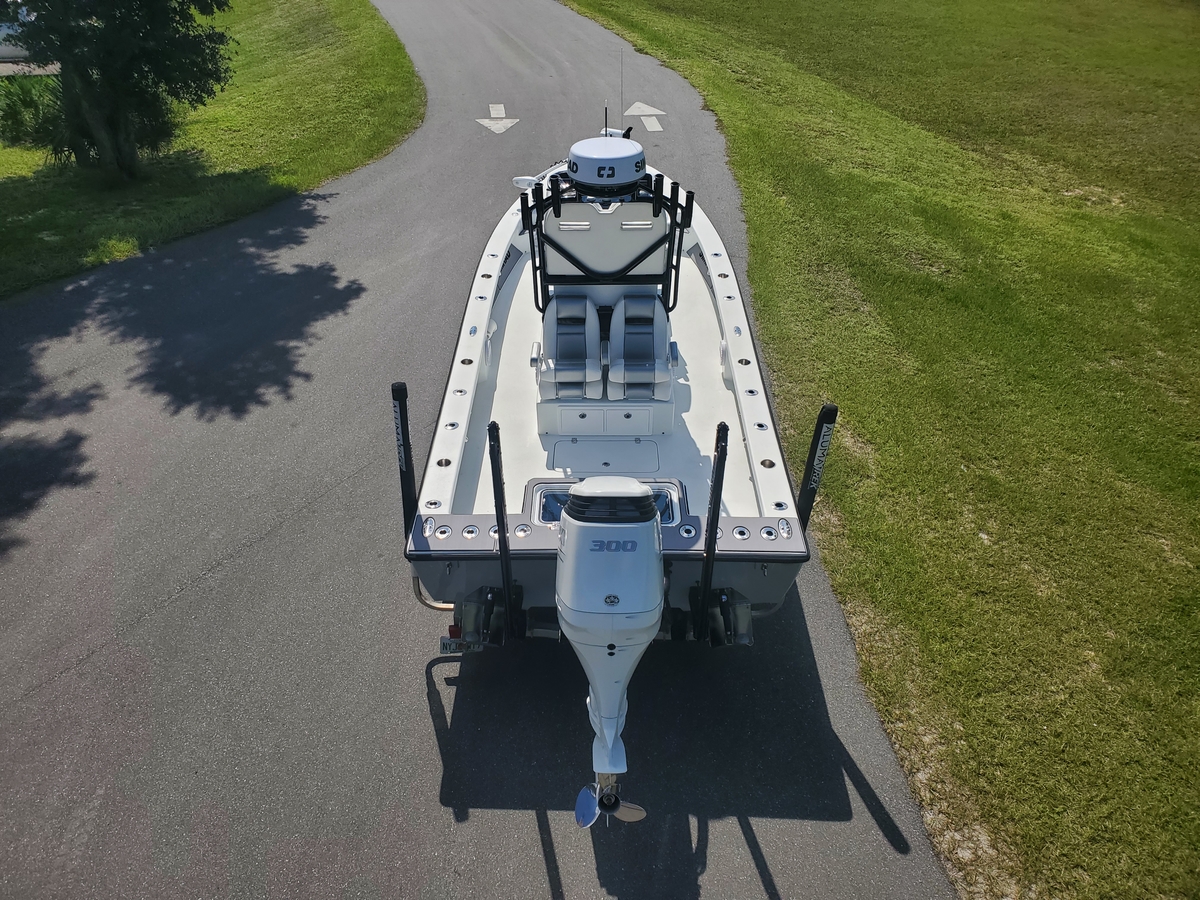

Rear Aerial

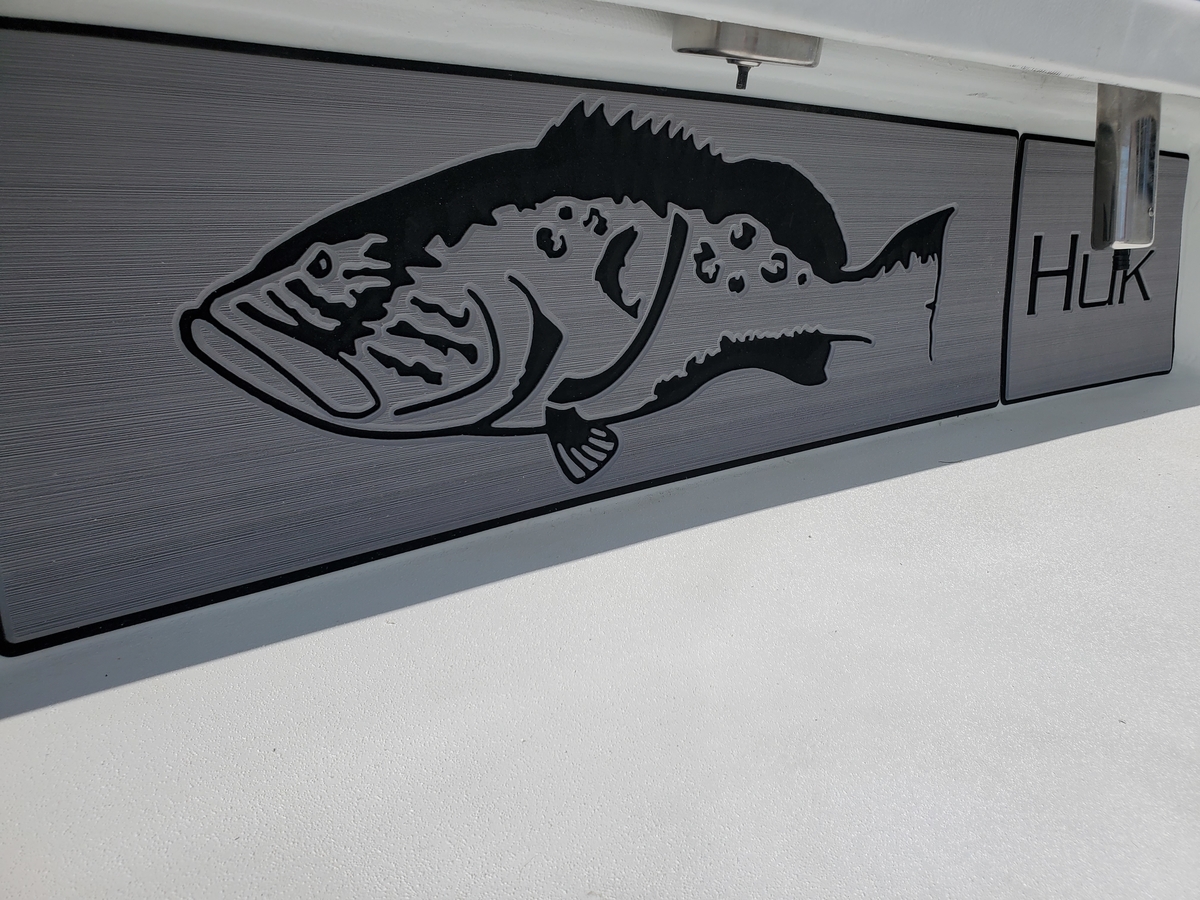

Undergunnel Seadek

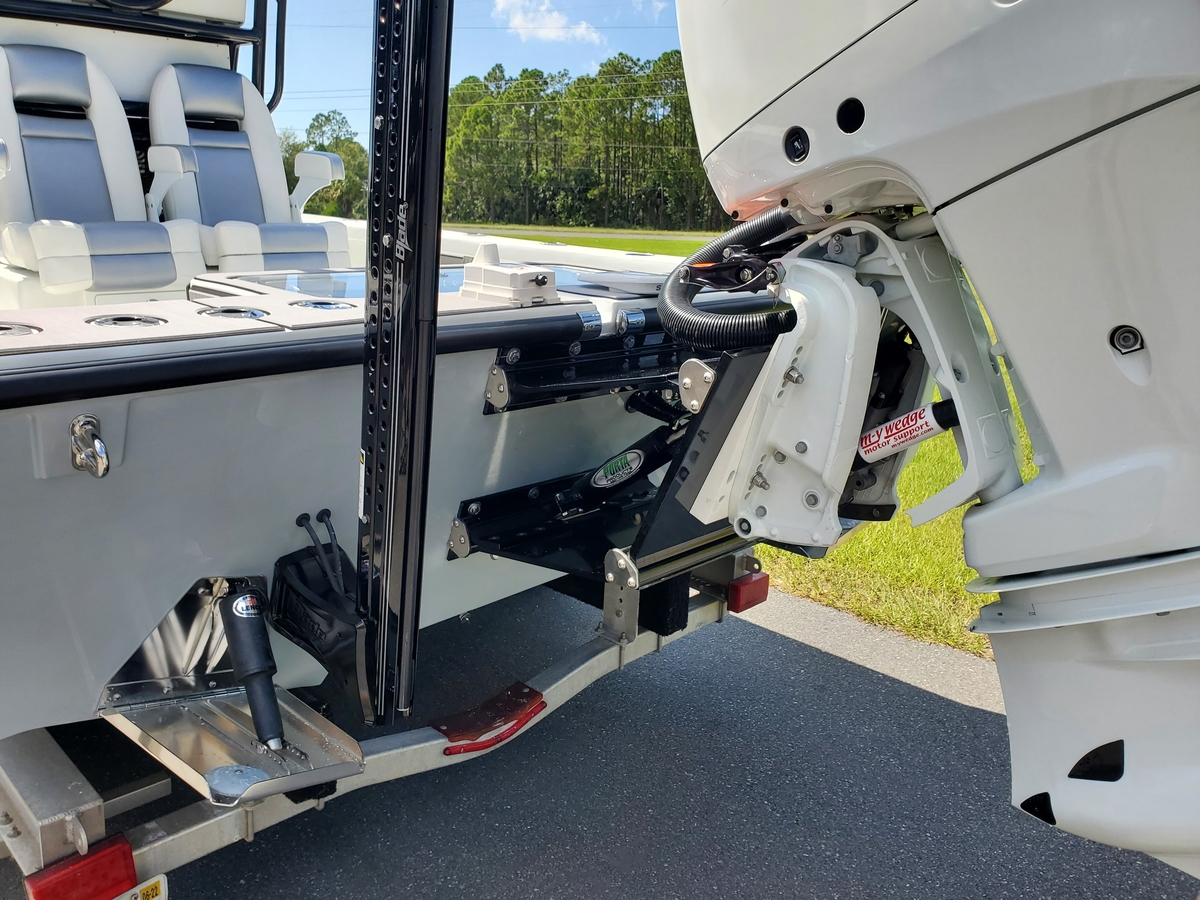

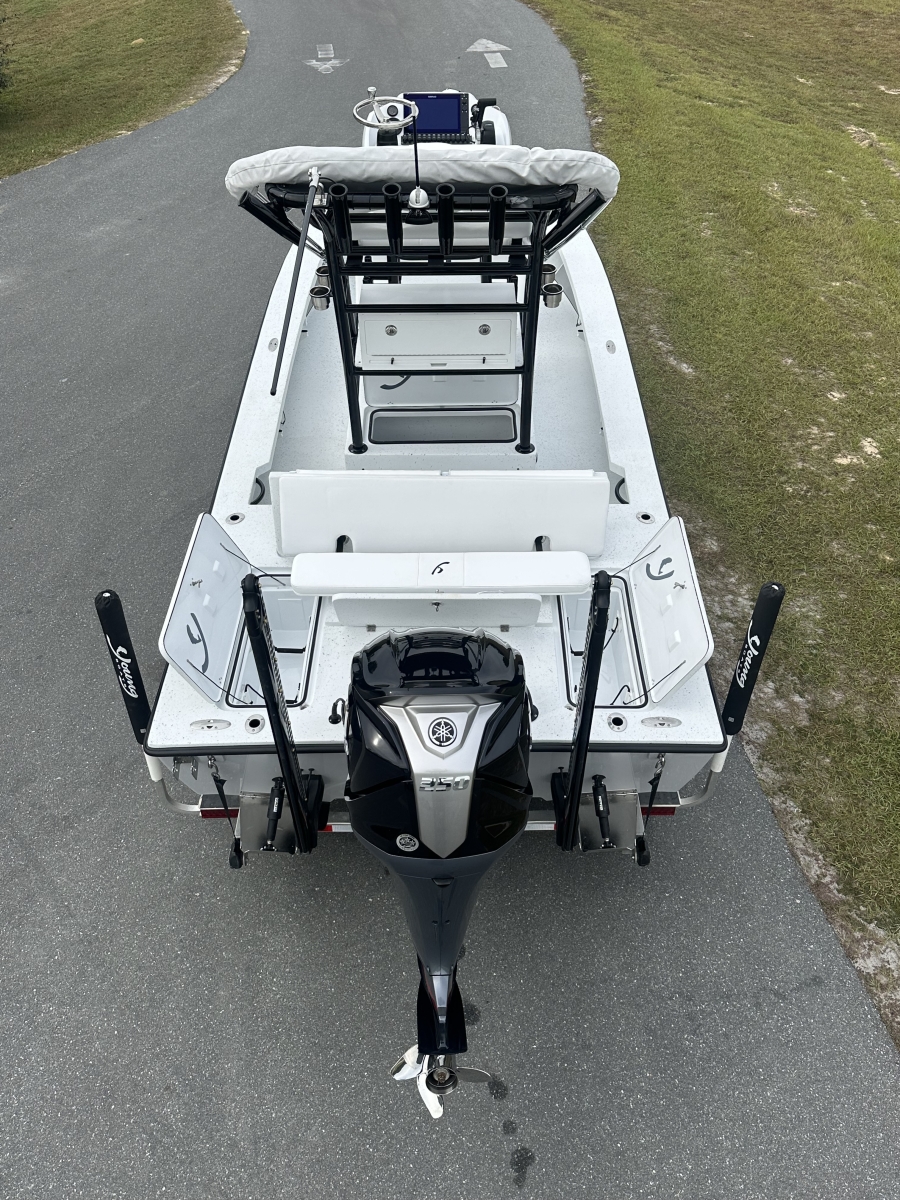

Transom View

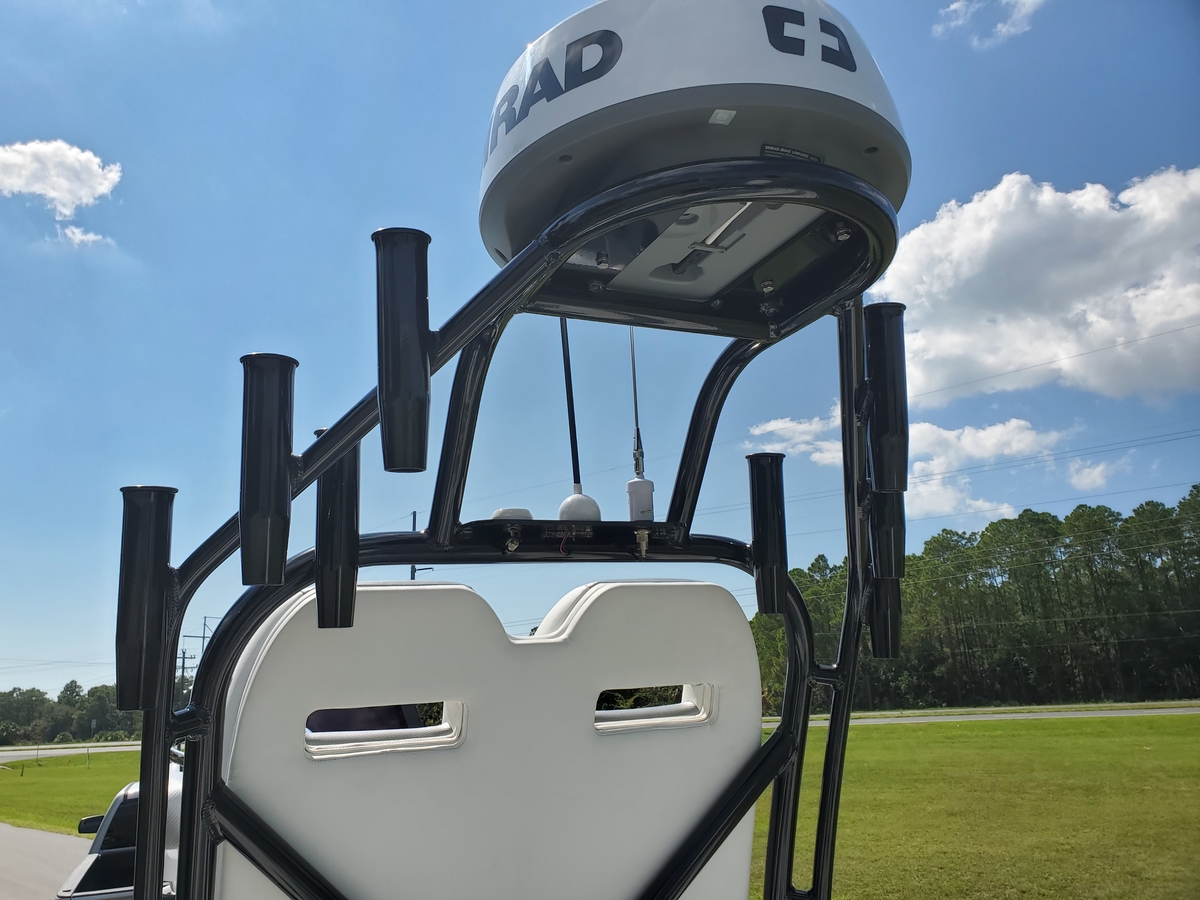

Rearview Radar Arch

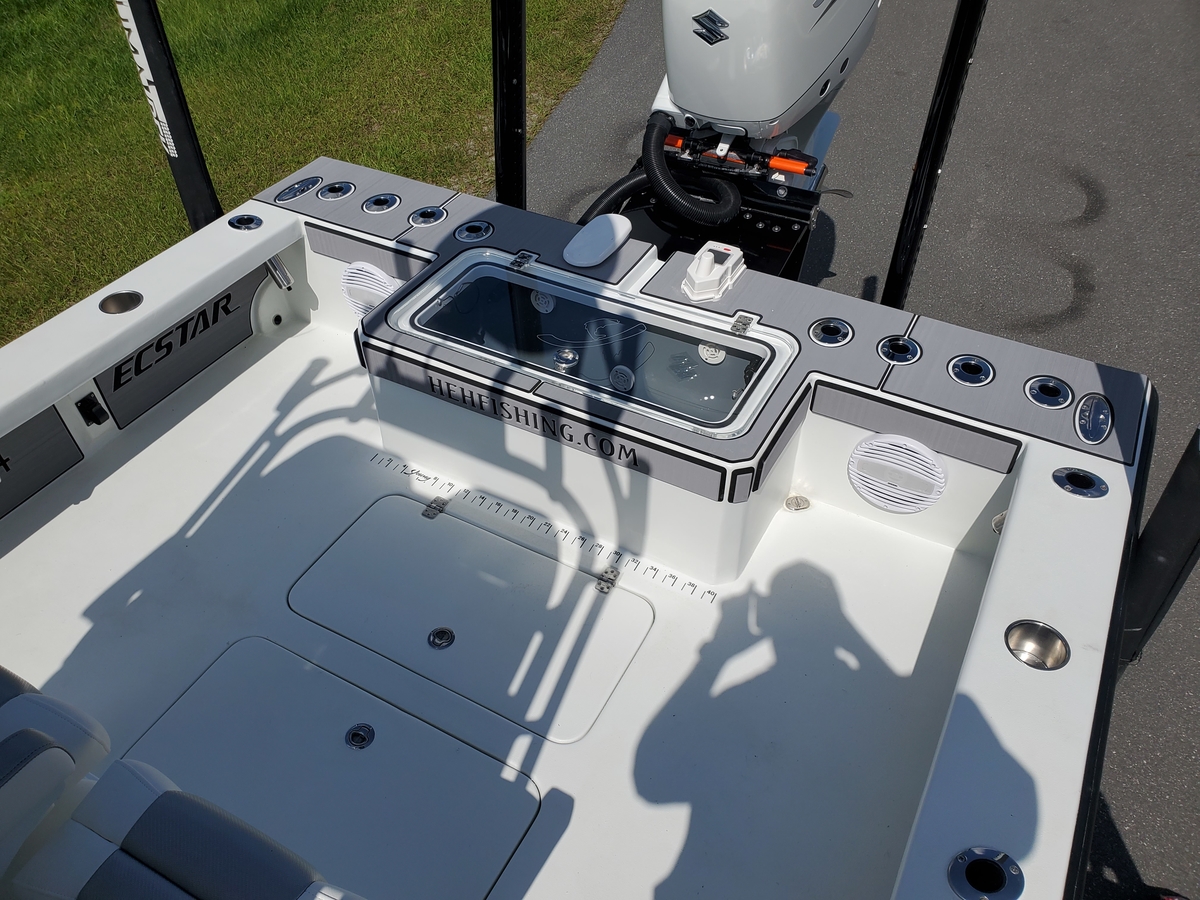

Rear Releasewell

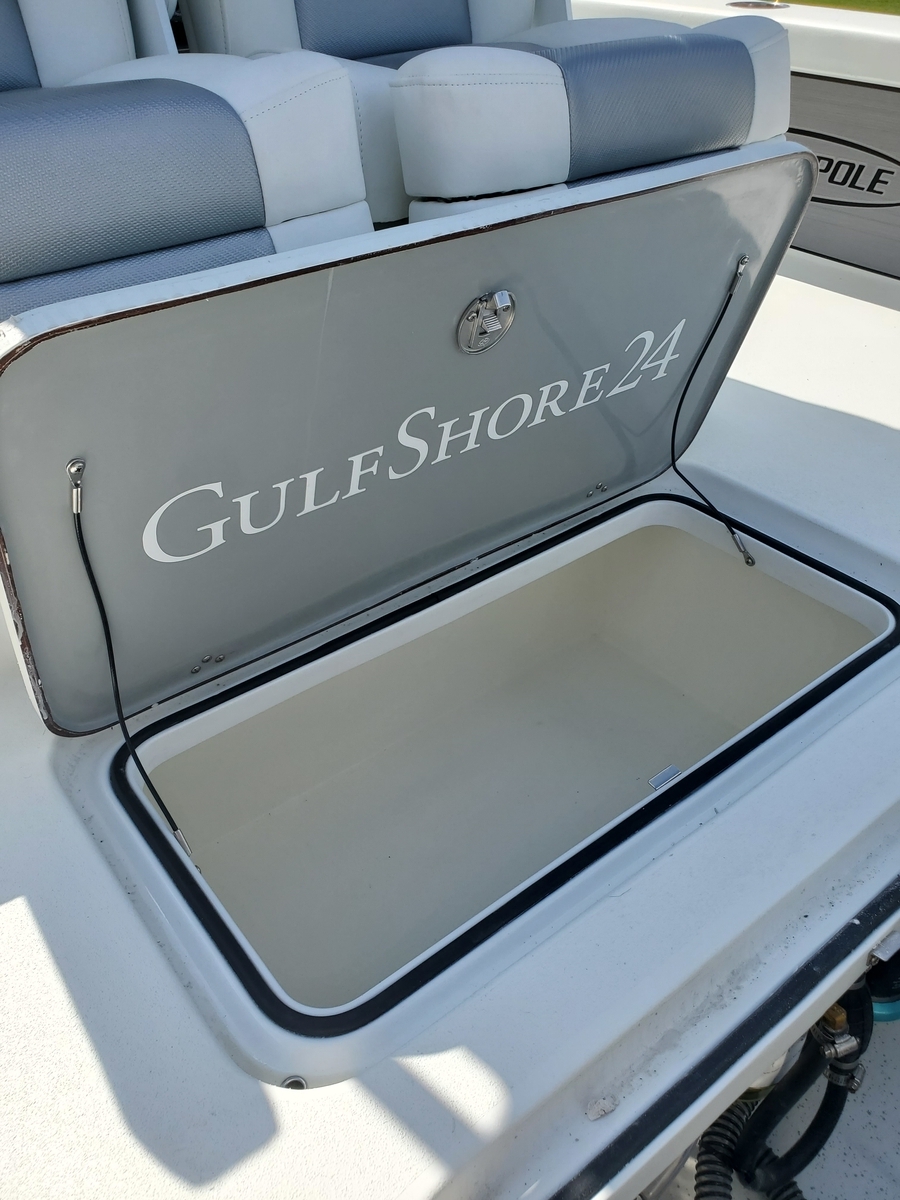

Rear Floor Fishbox

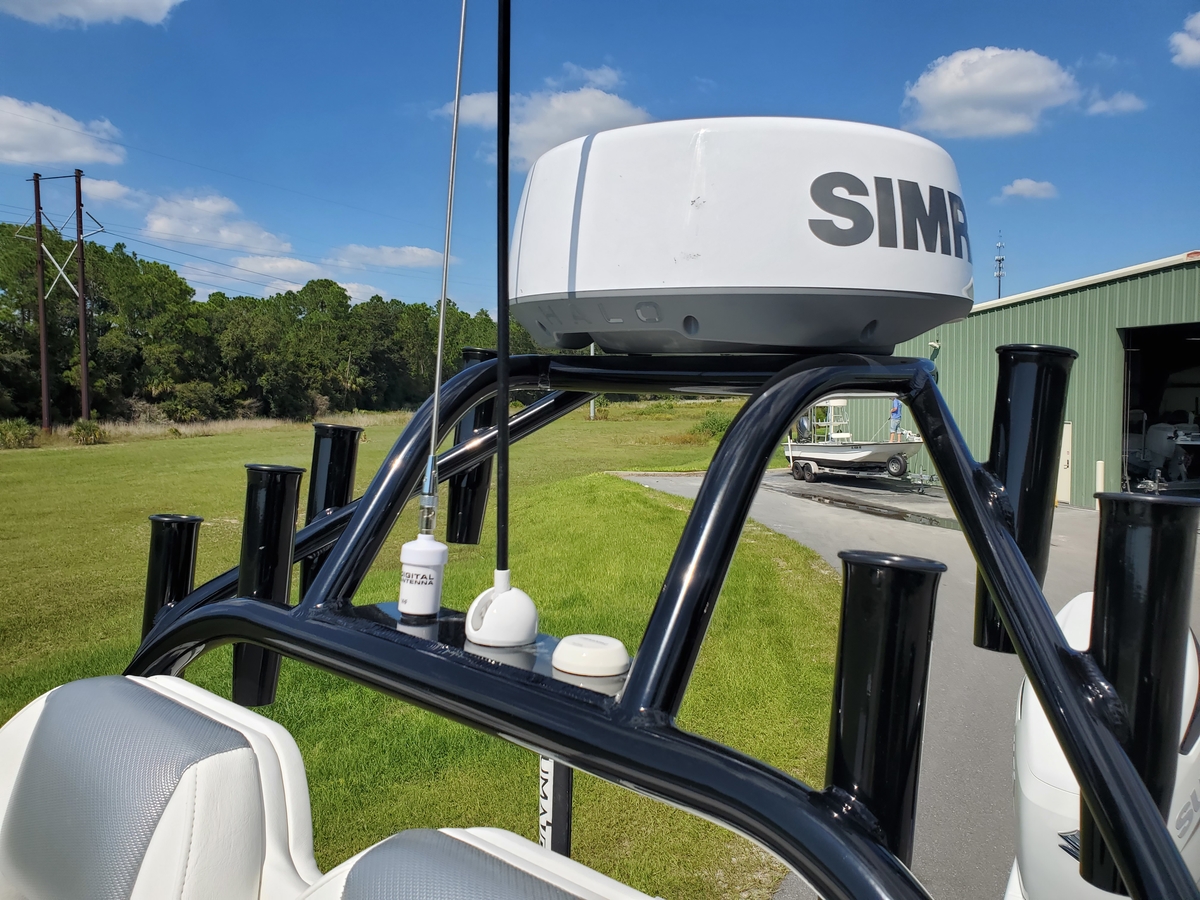

Radar Arch

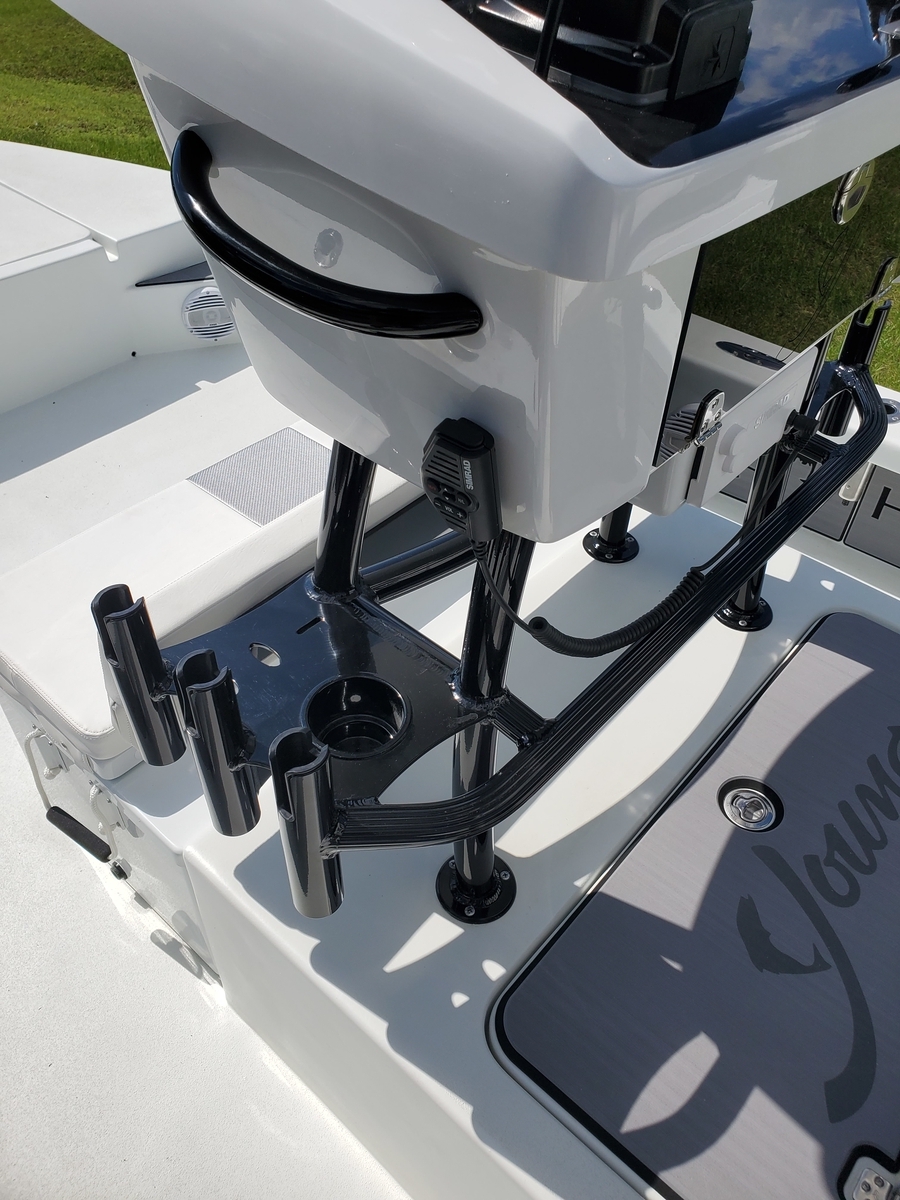

Helmstand Knife Plier Combo

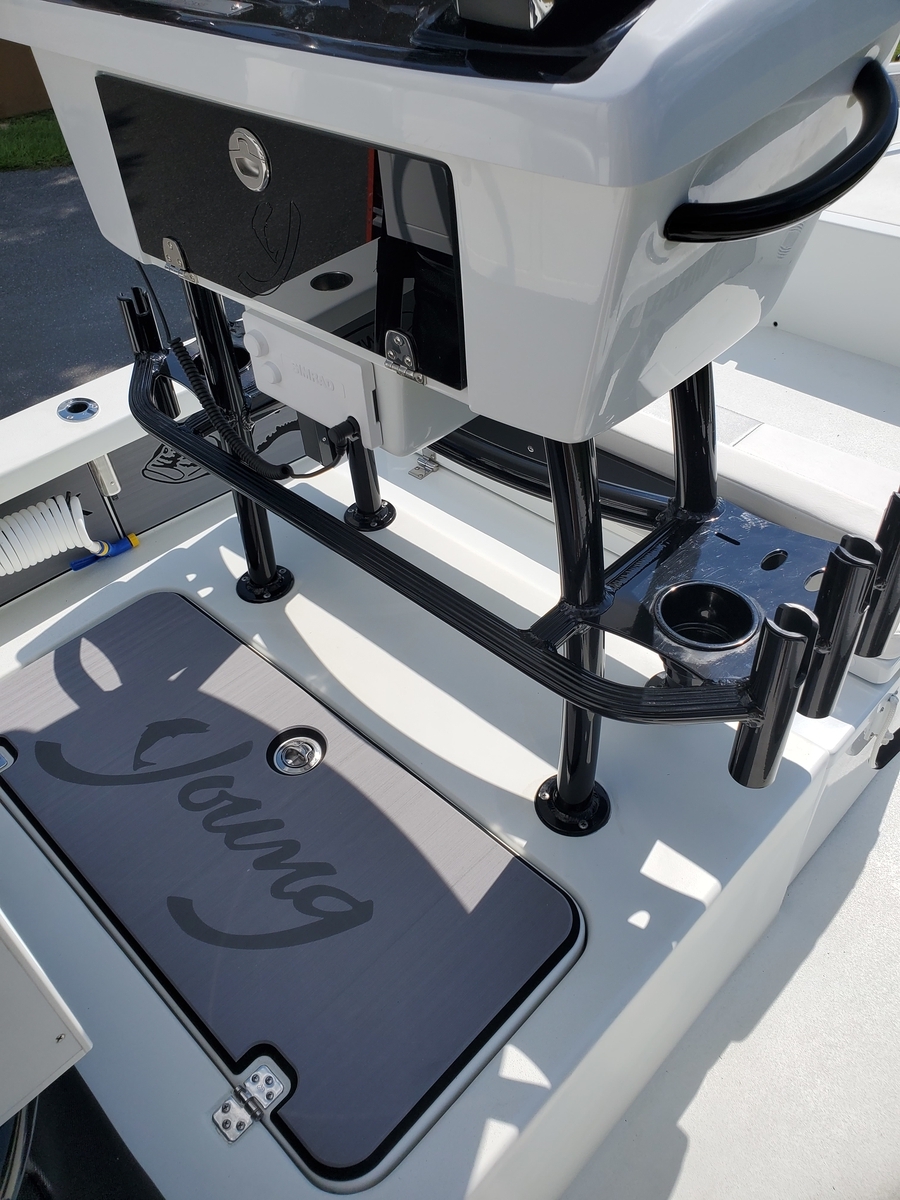

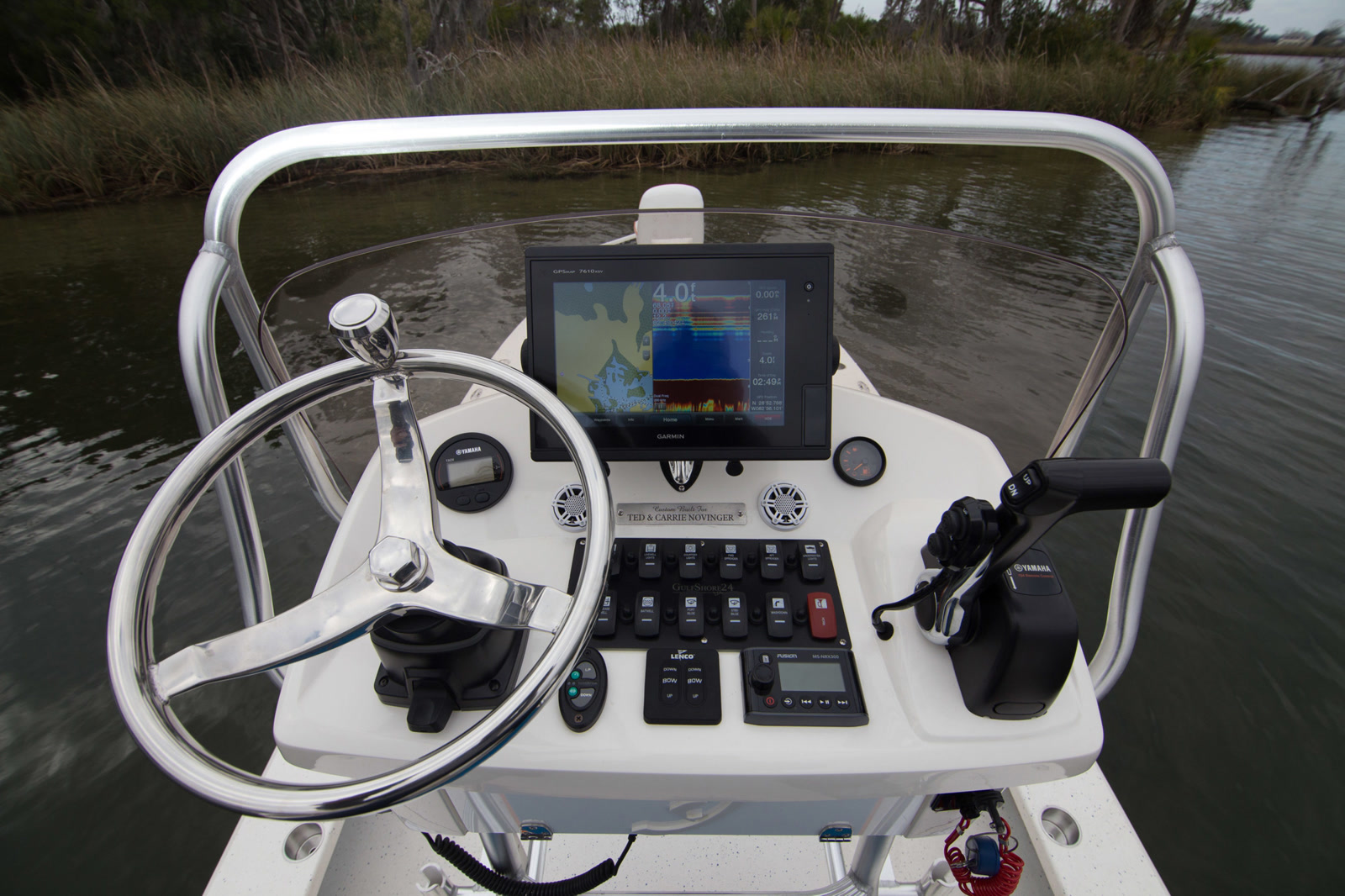

Helm Stand

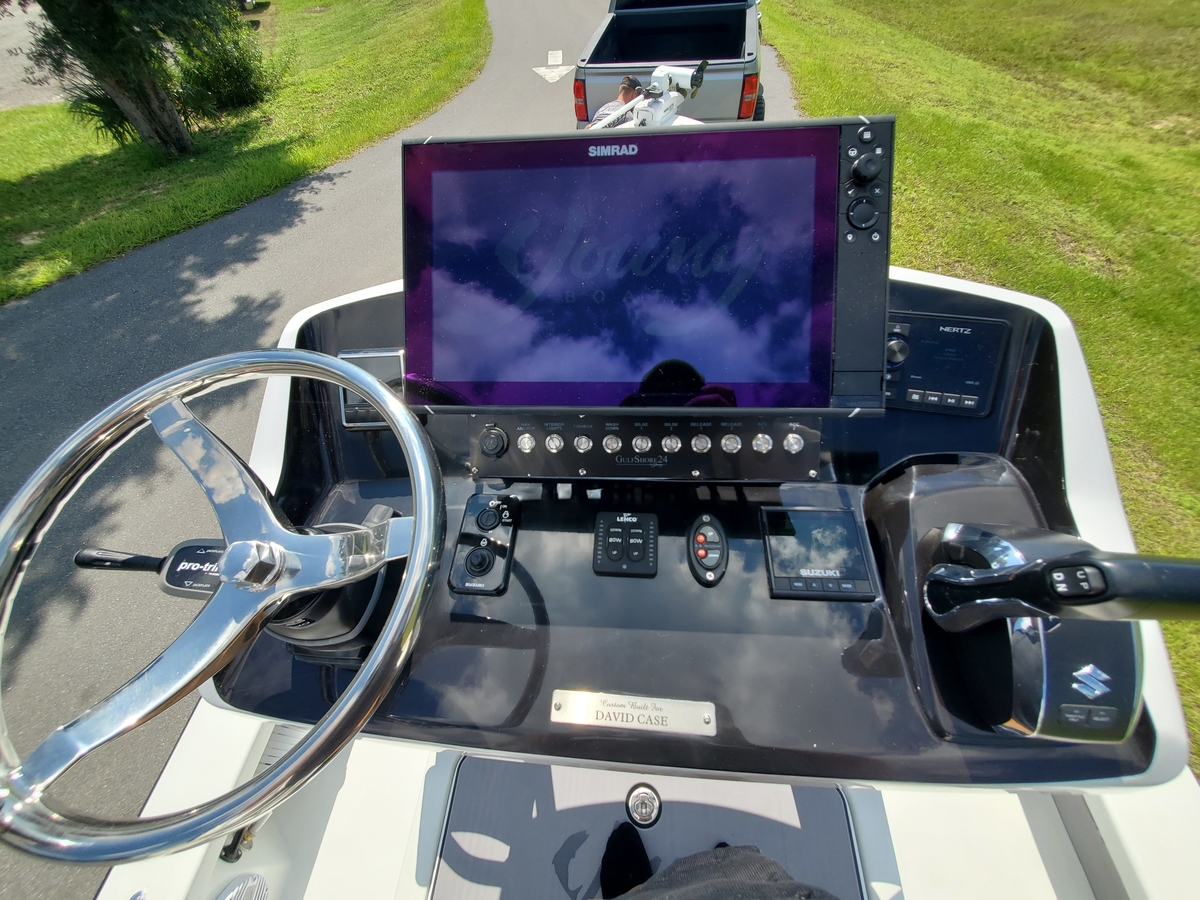

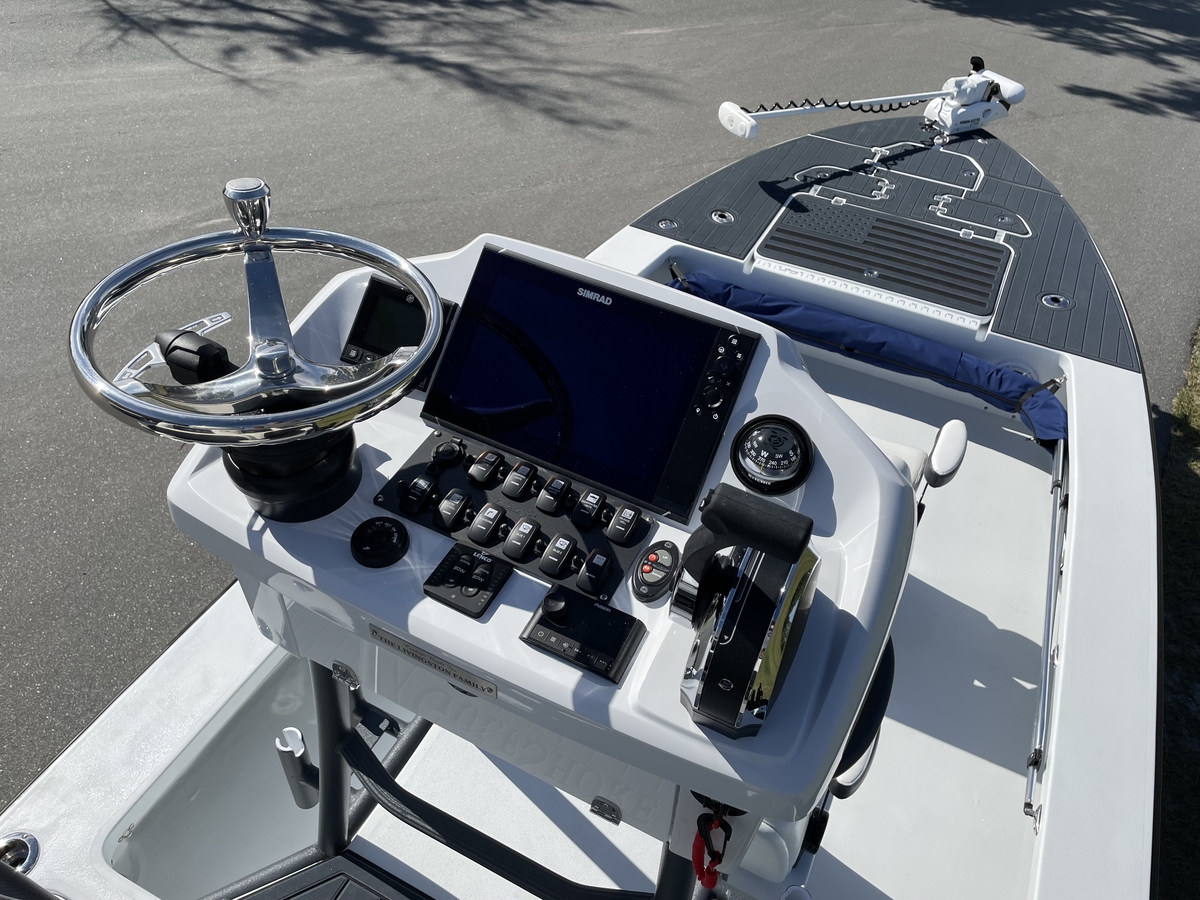

Helm Box

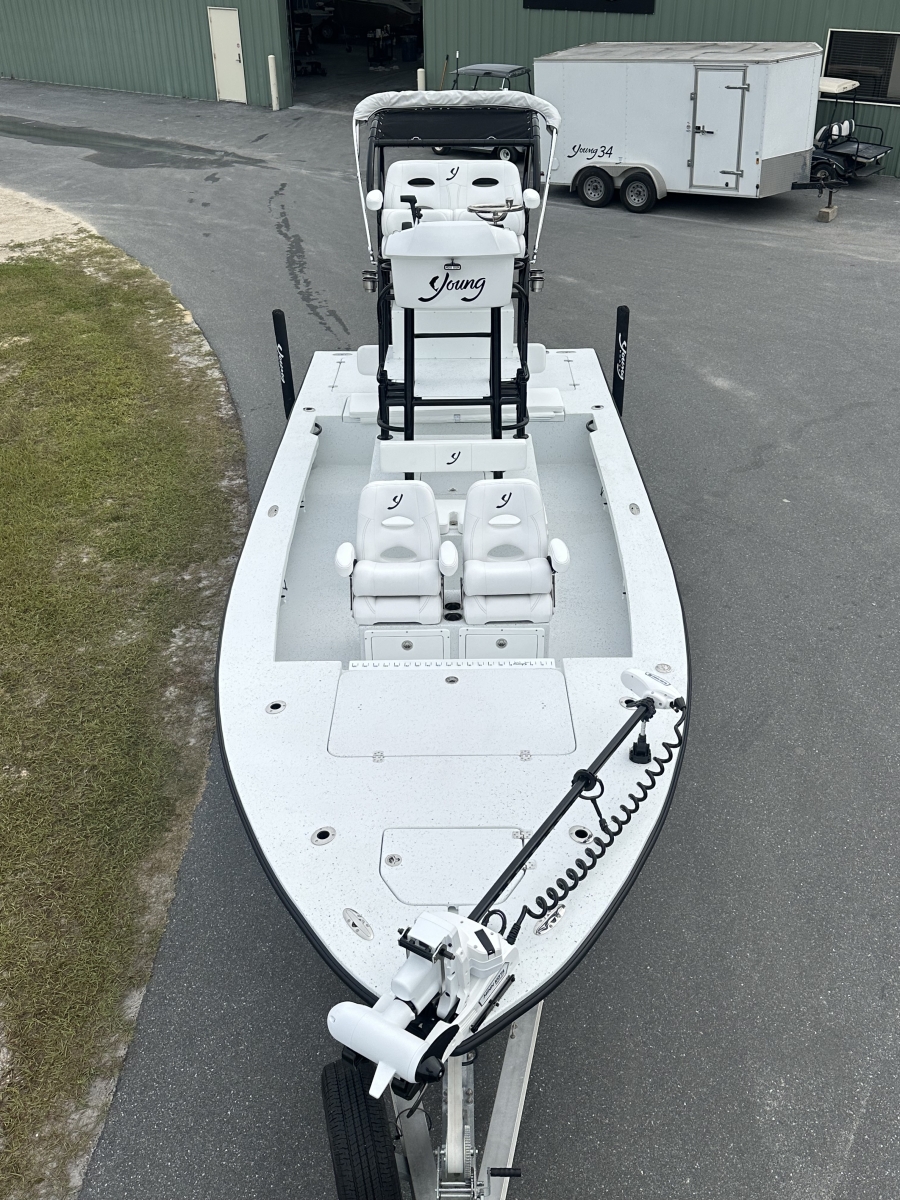

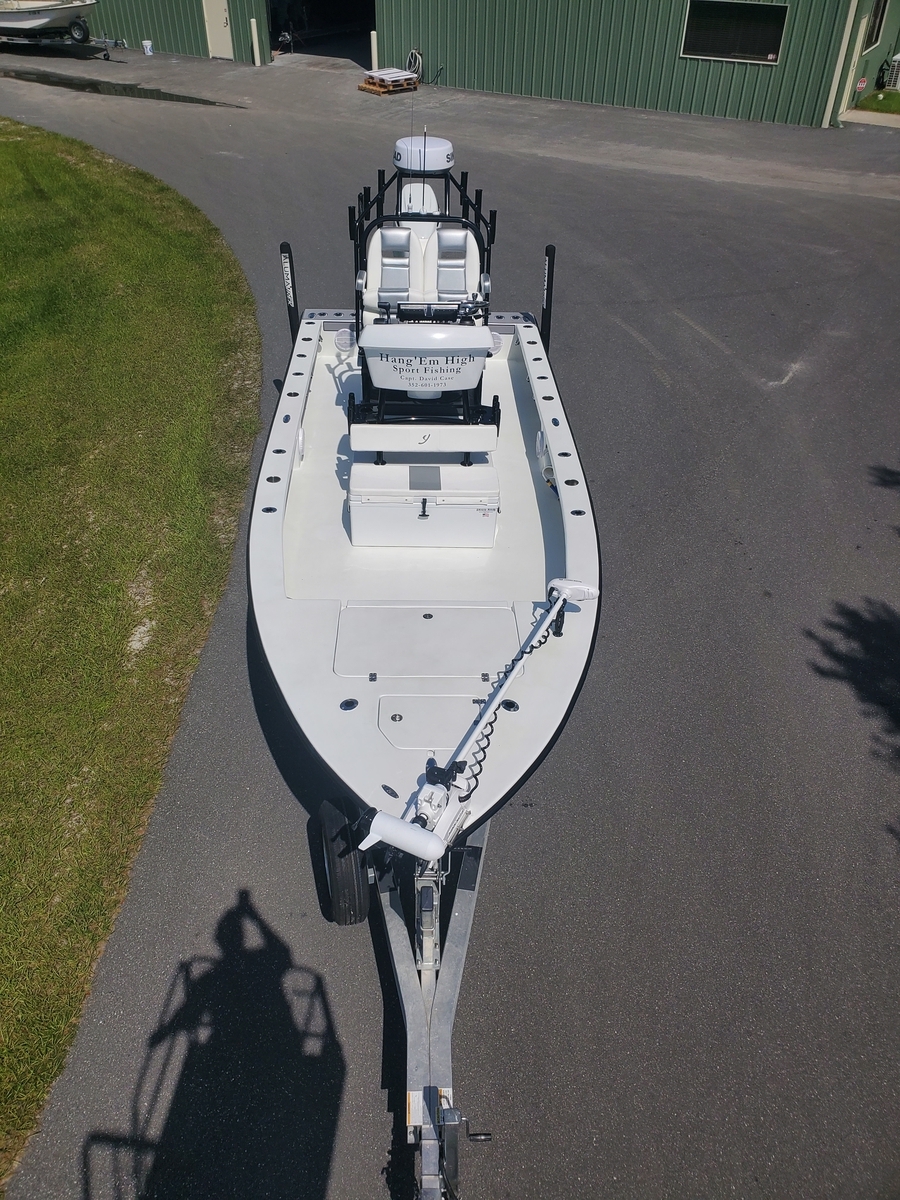

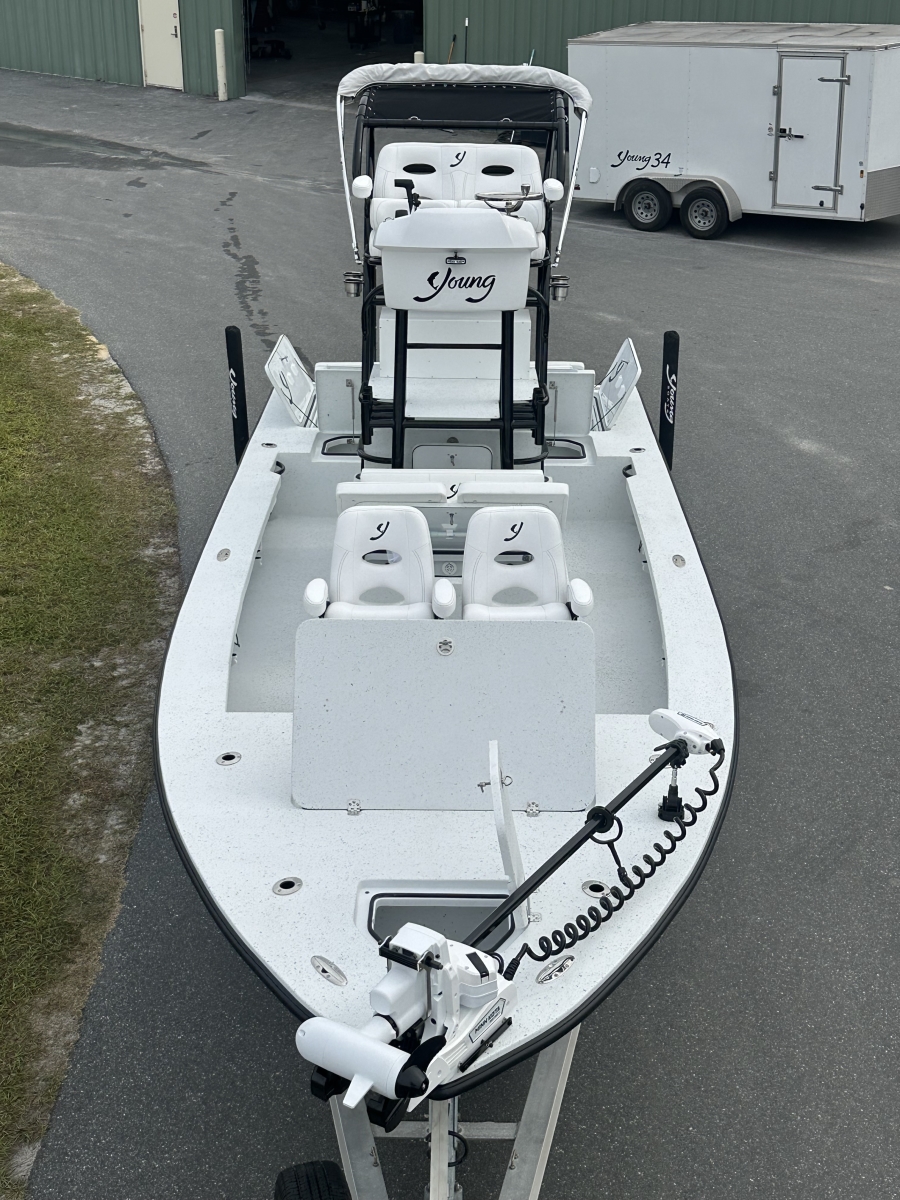

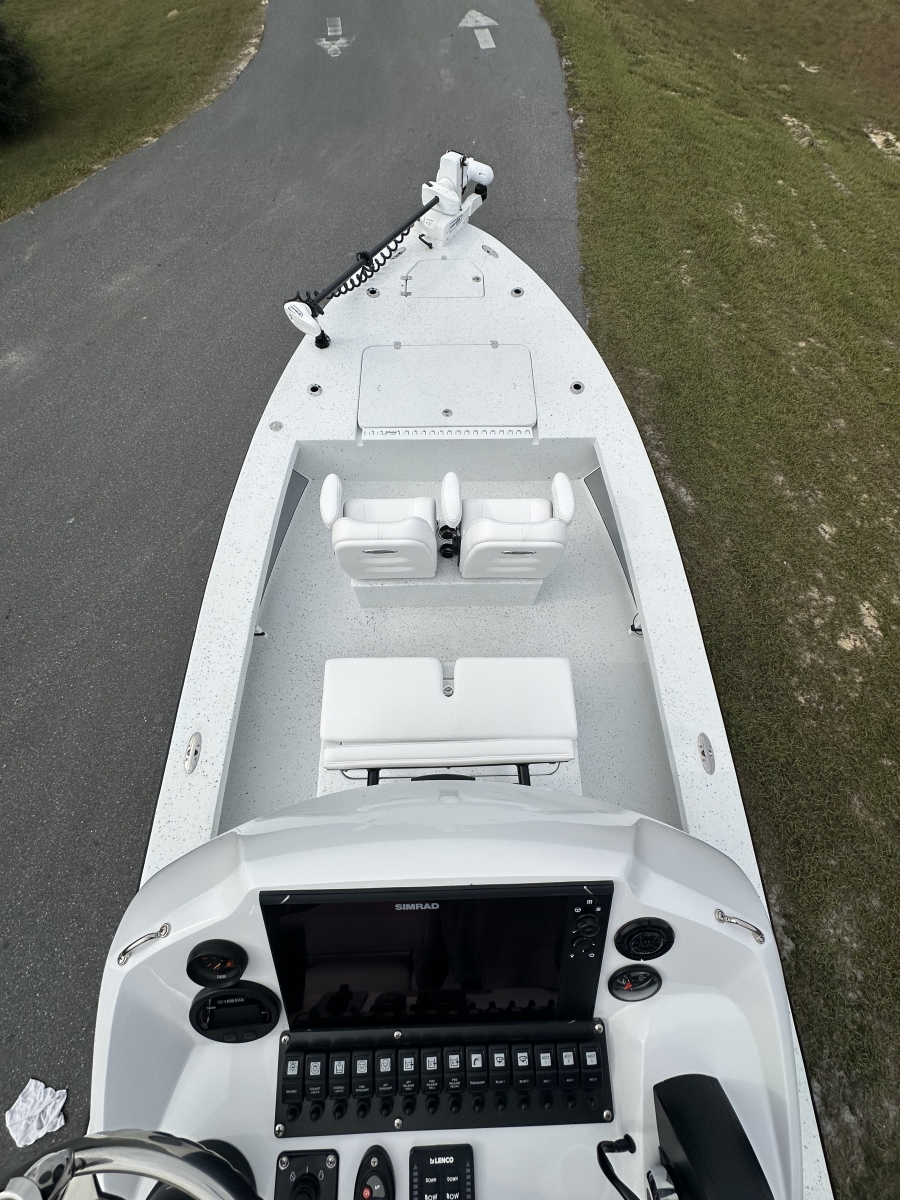

Front Aerial

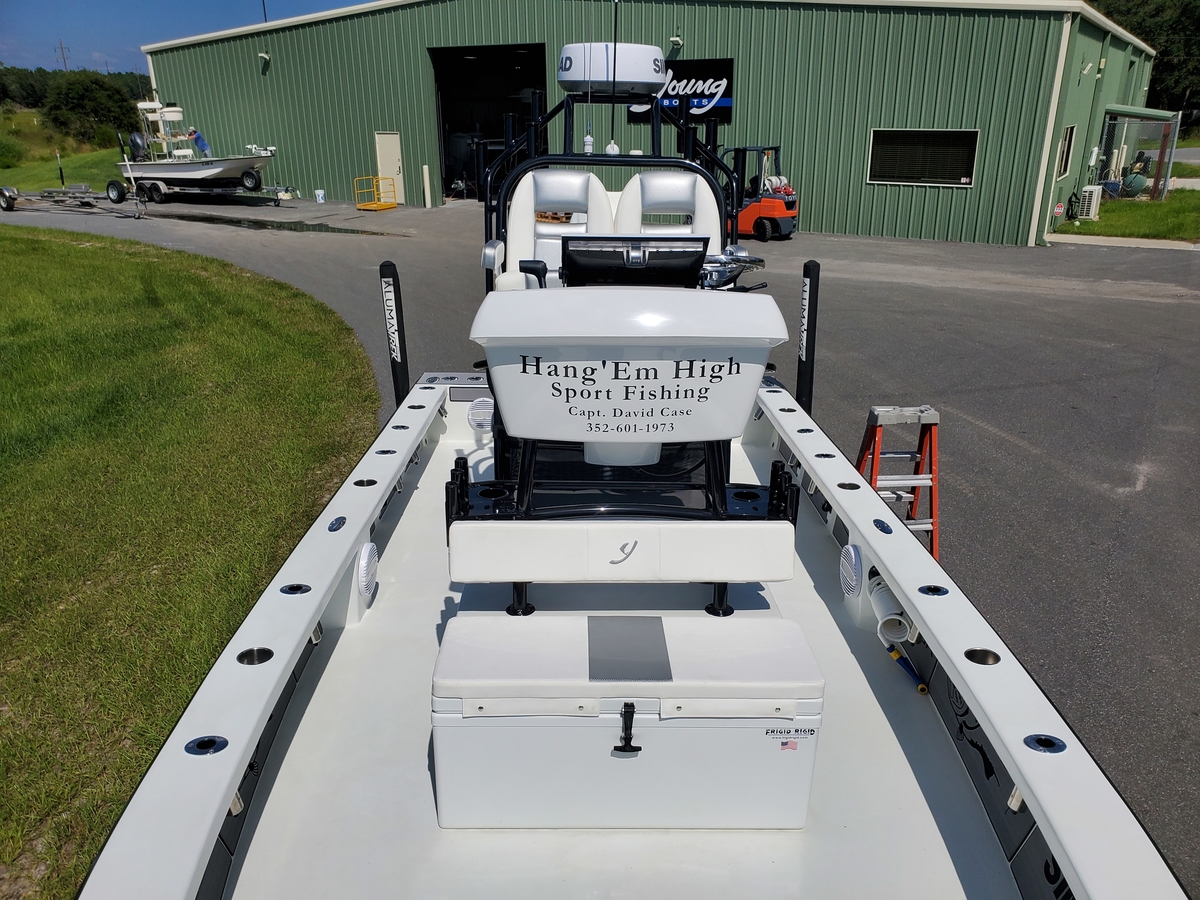

Cooler Seating

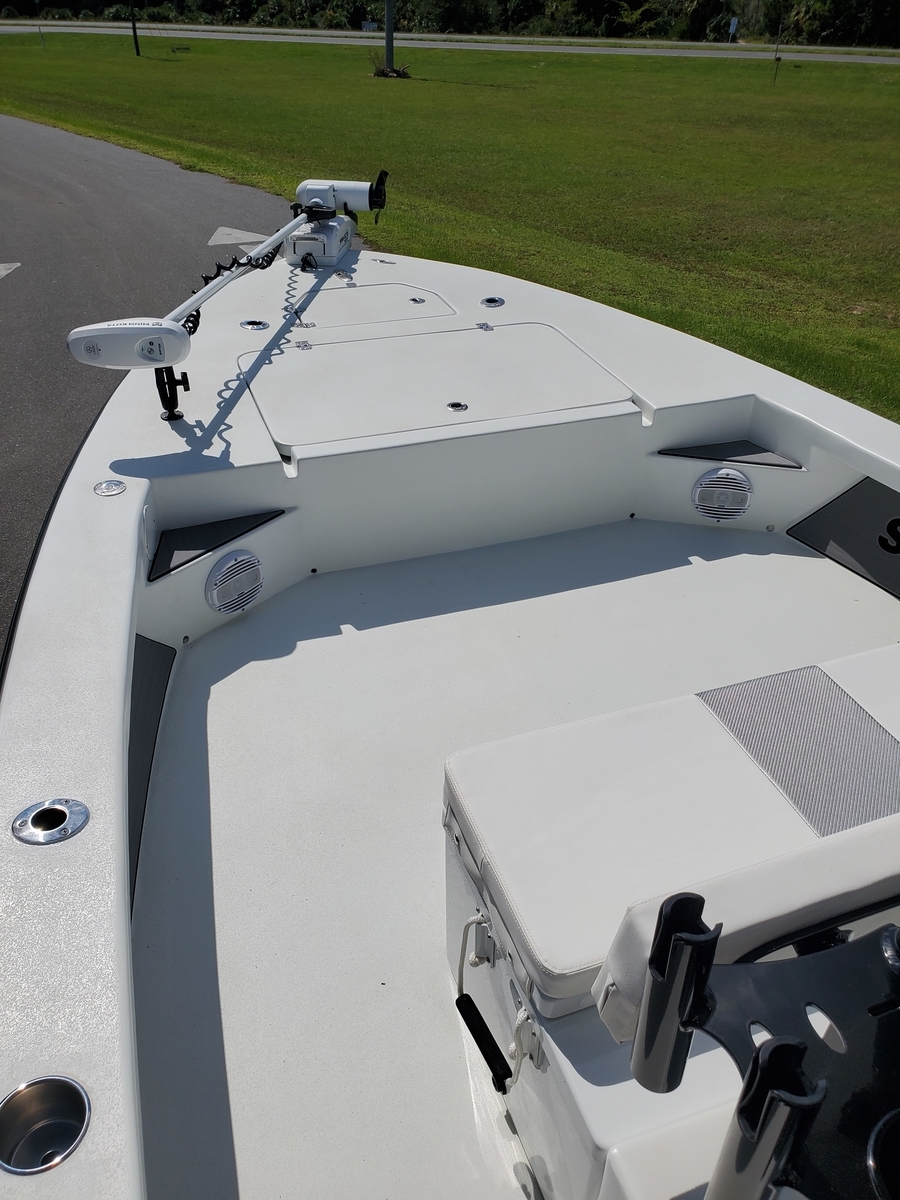

Cockpit To Front deck

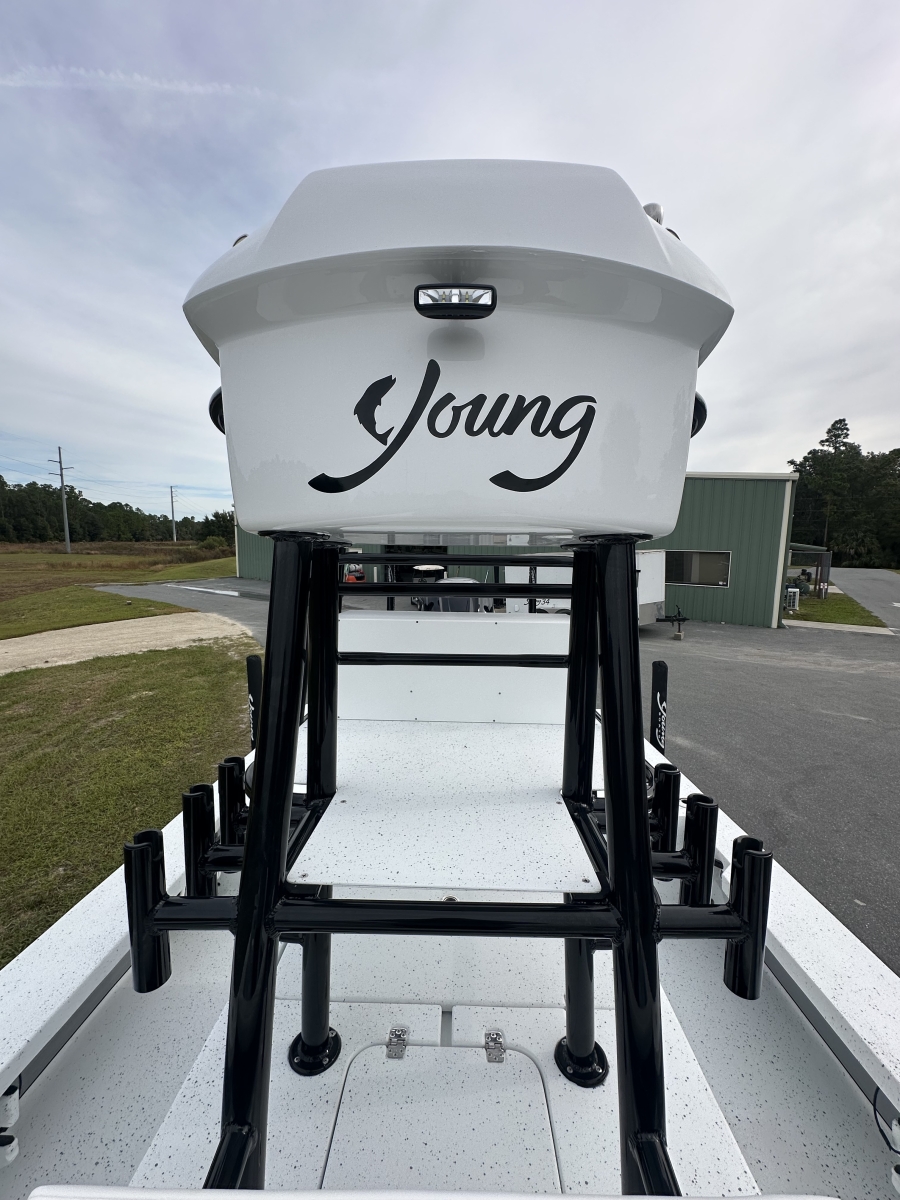

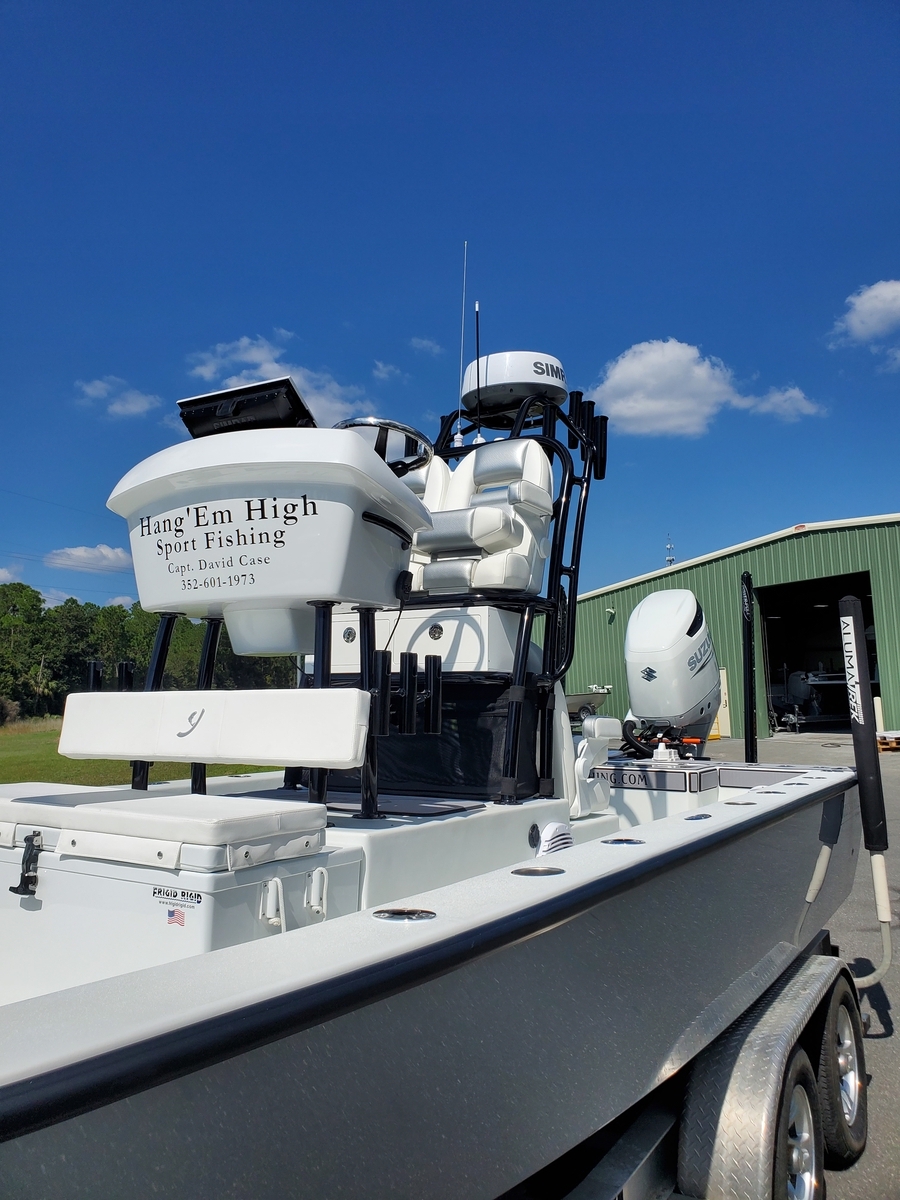

Center Elevated Helm

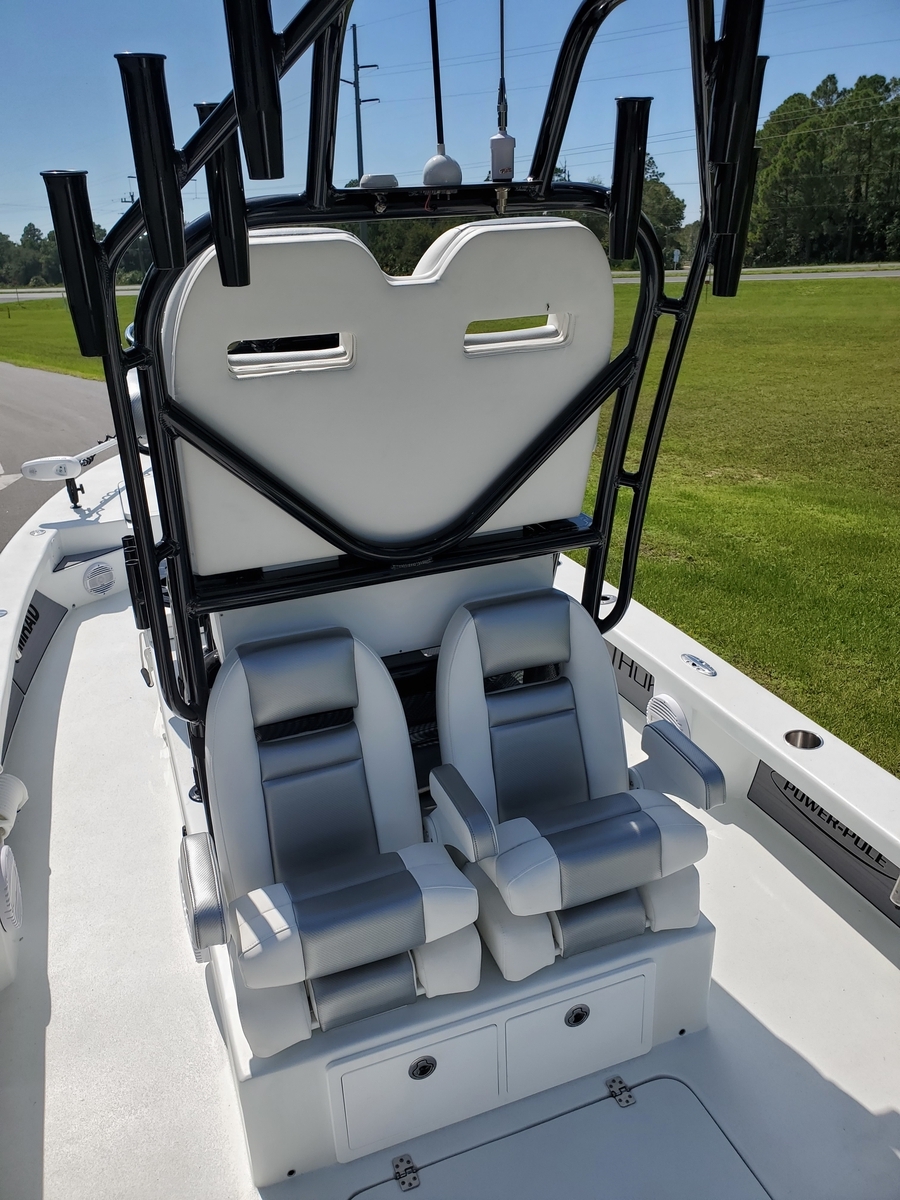

Aft Seating

Rear Elevated Helm - October 2021

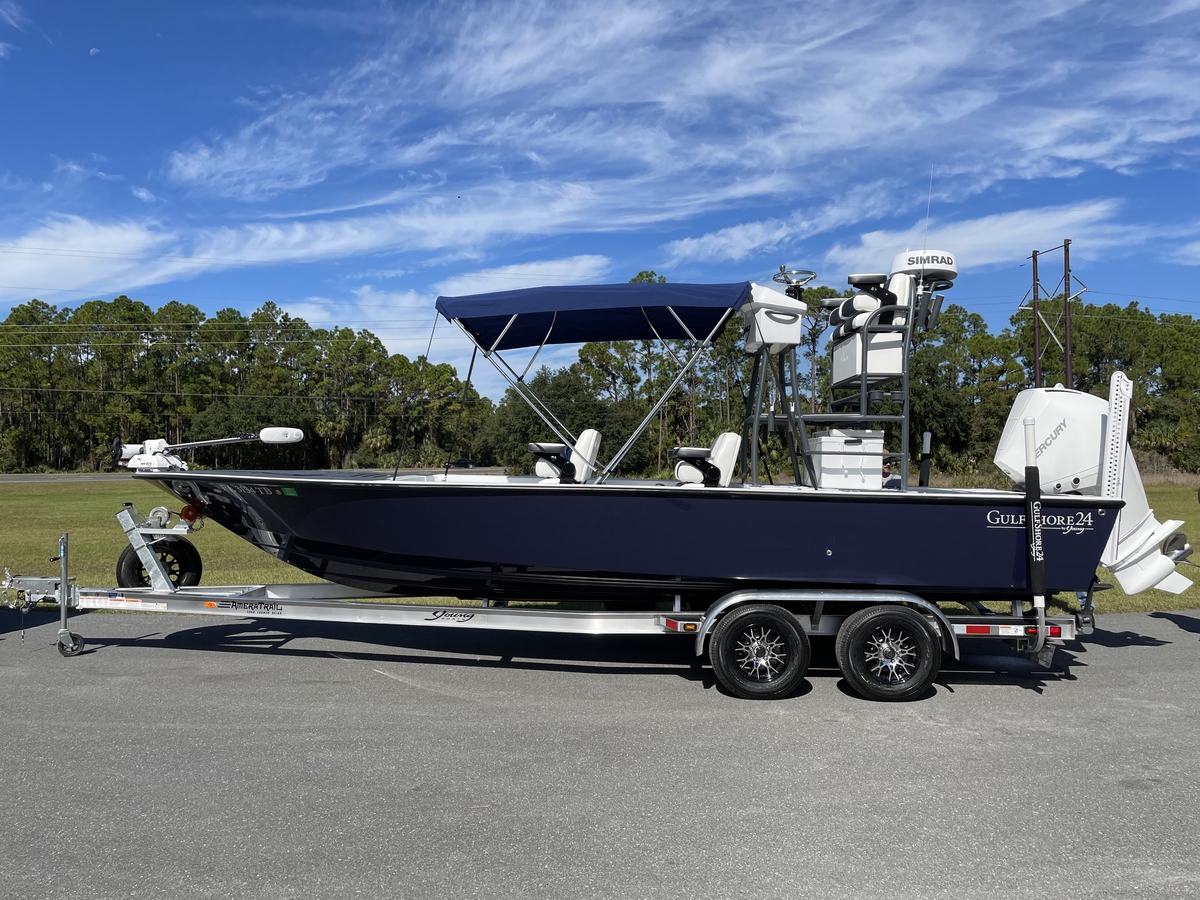

Bimini SideView

Side Aerial

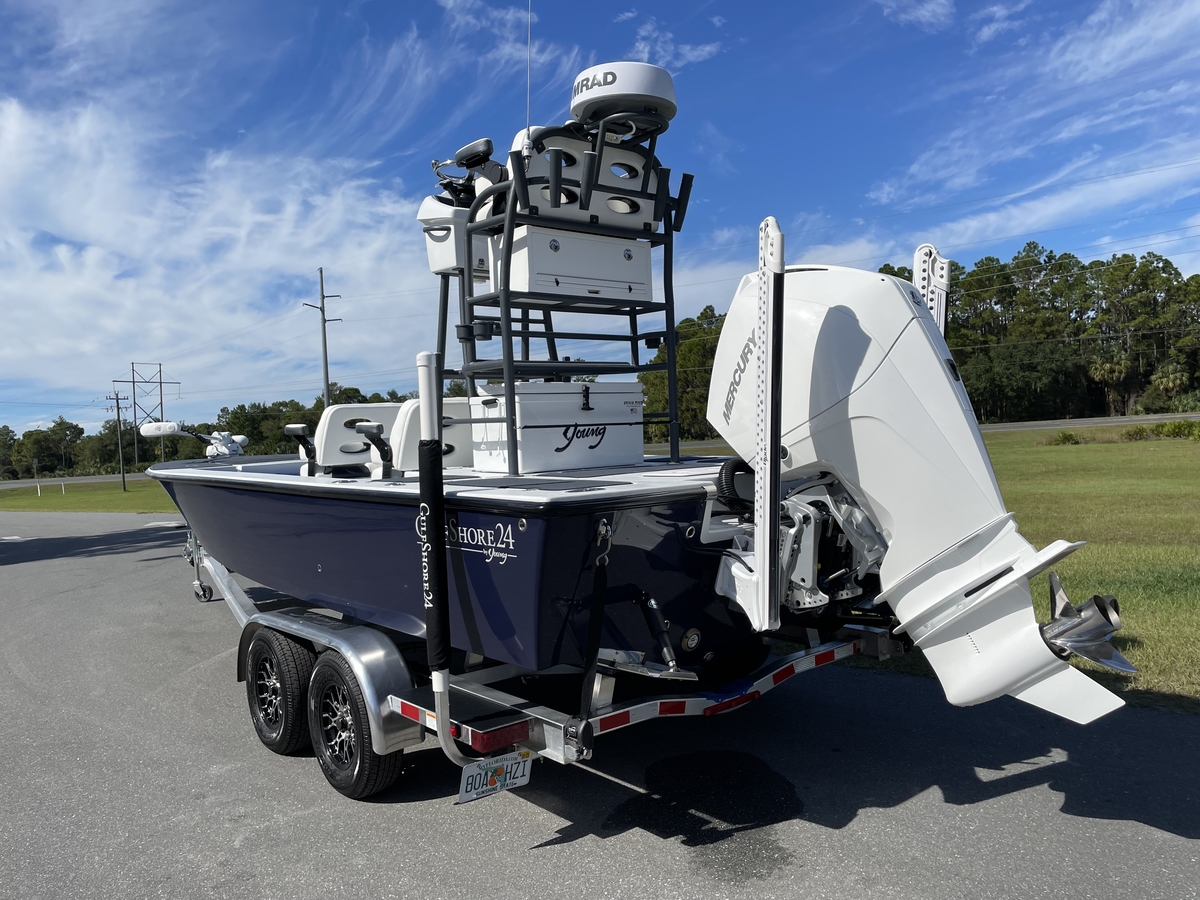

Rear View Trailer

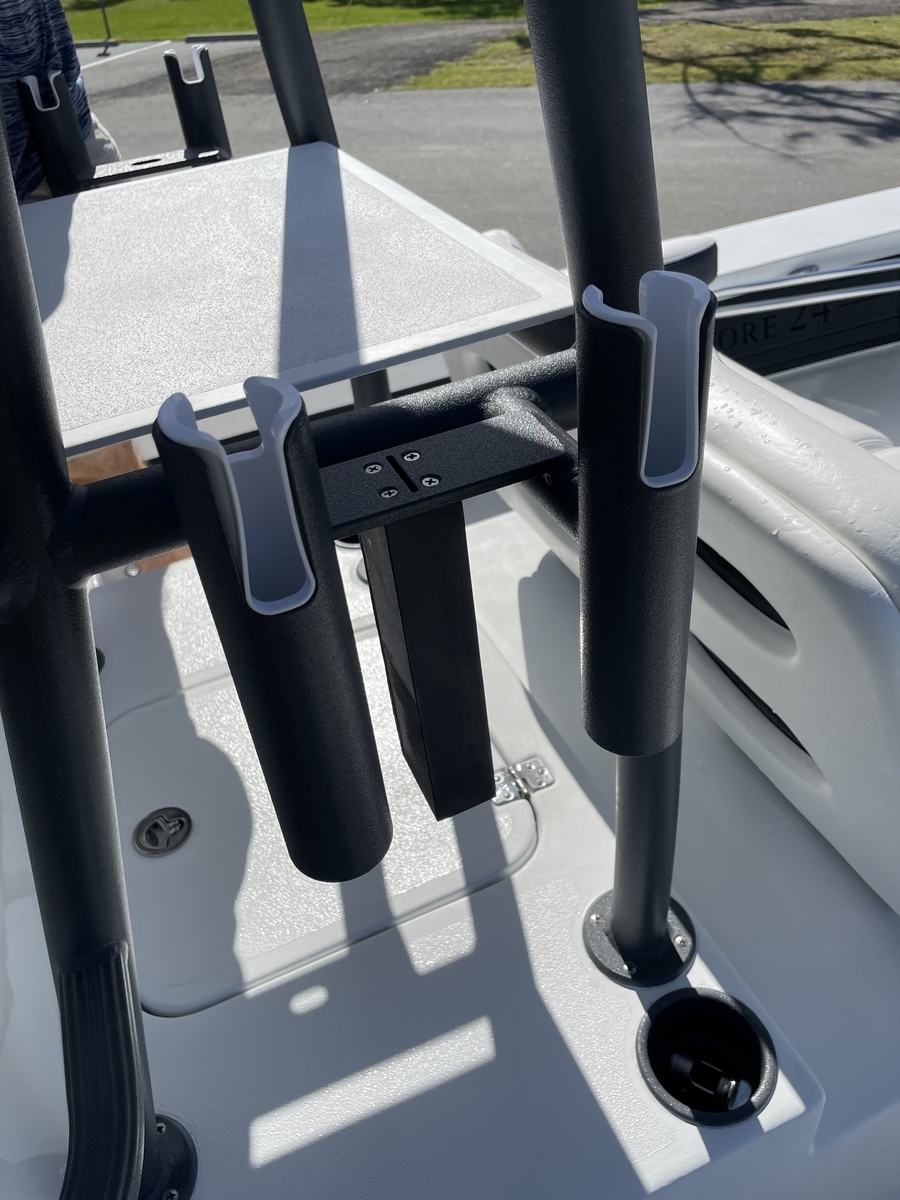

Tower Rod and Knife Combo

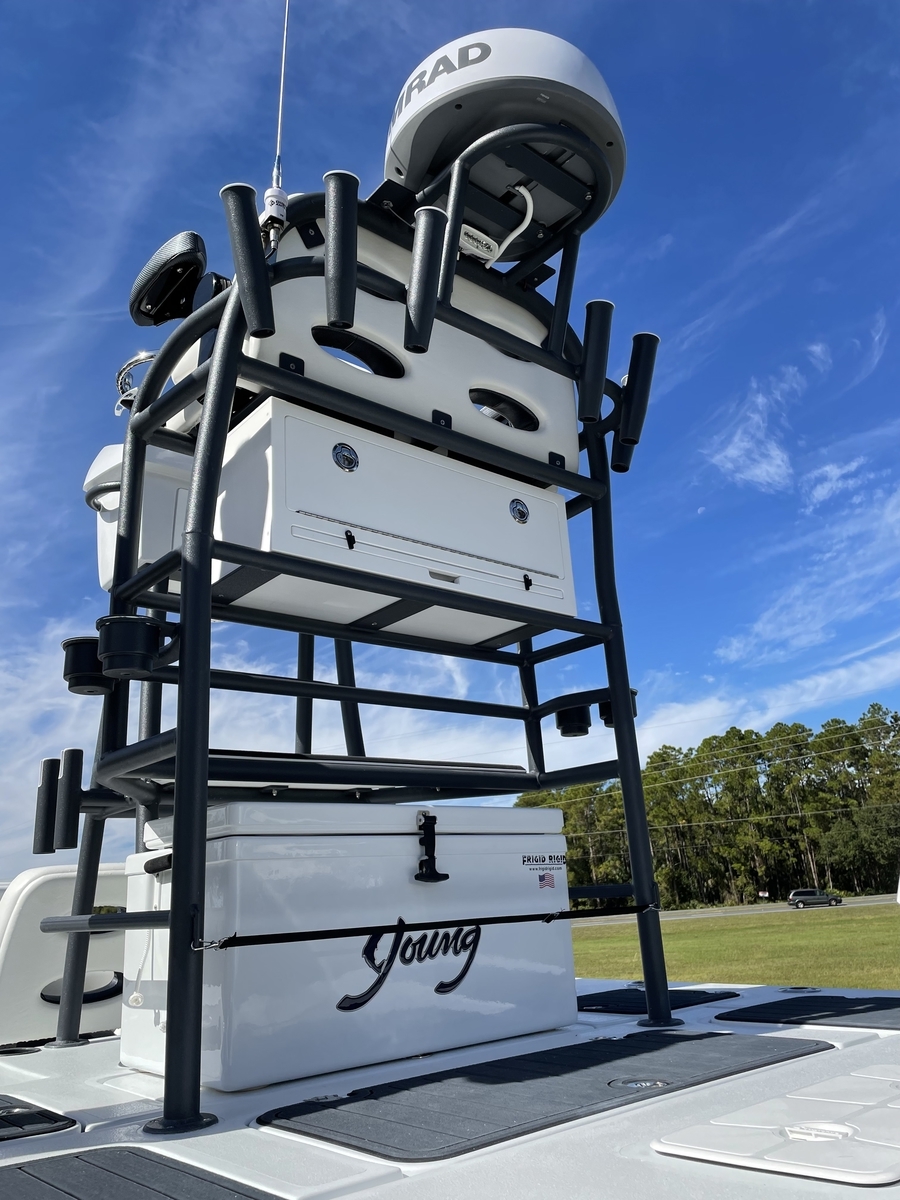

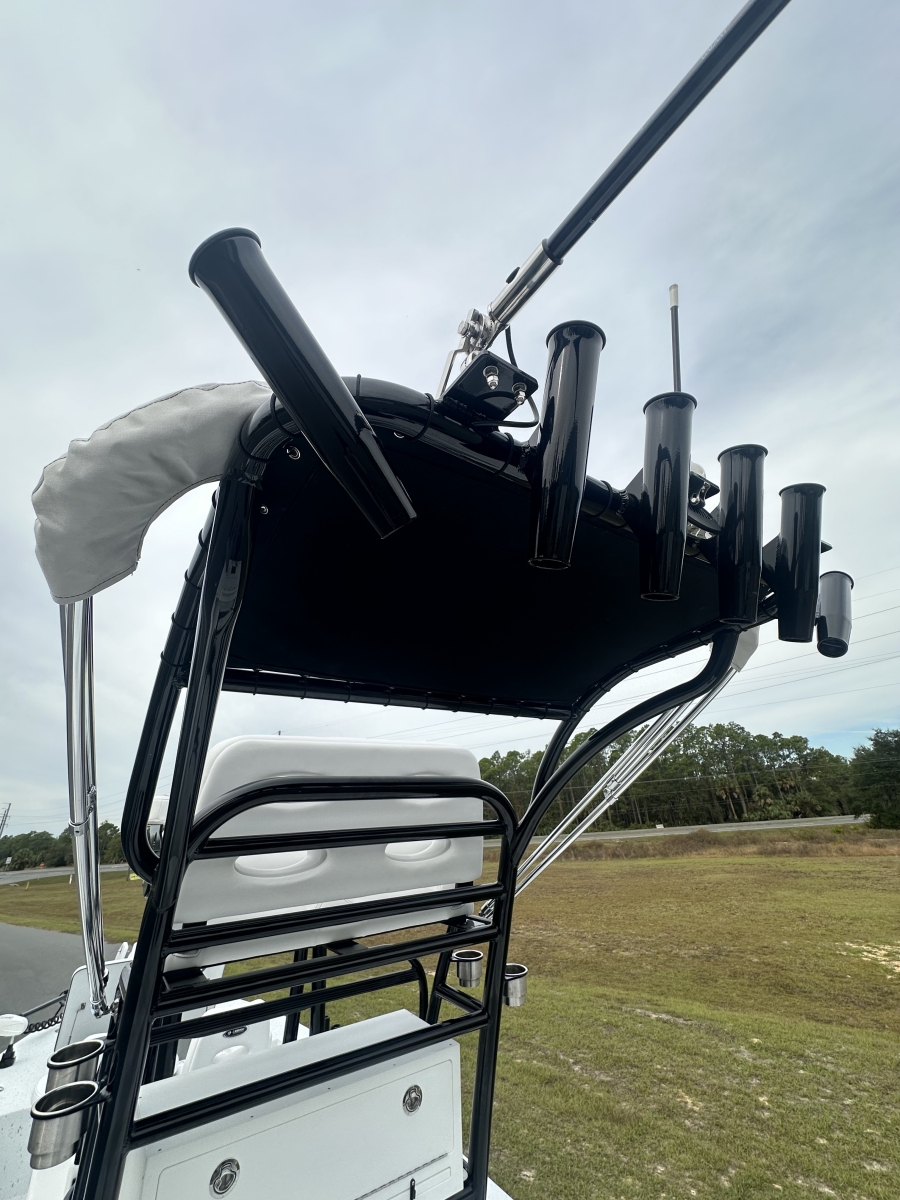

Tower Rear View

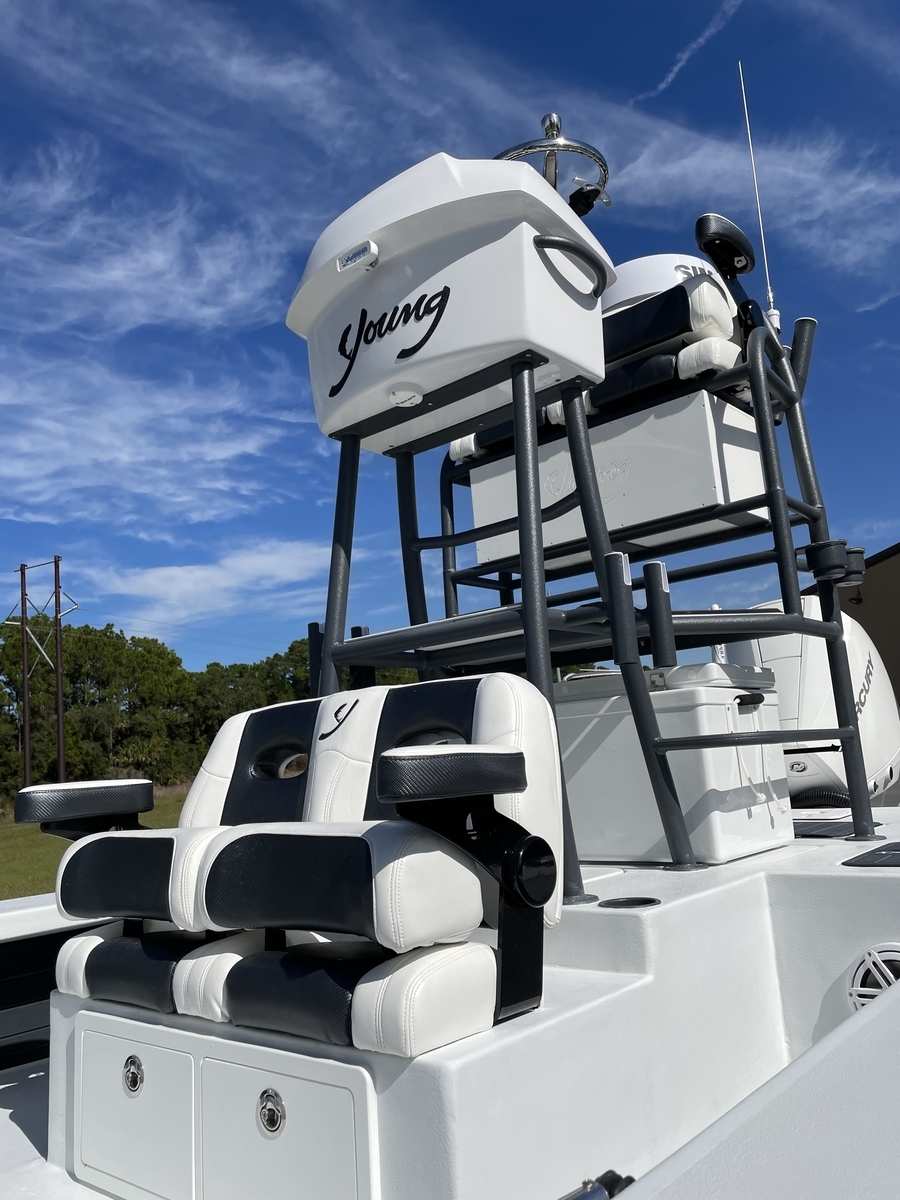

Tower Front View

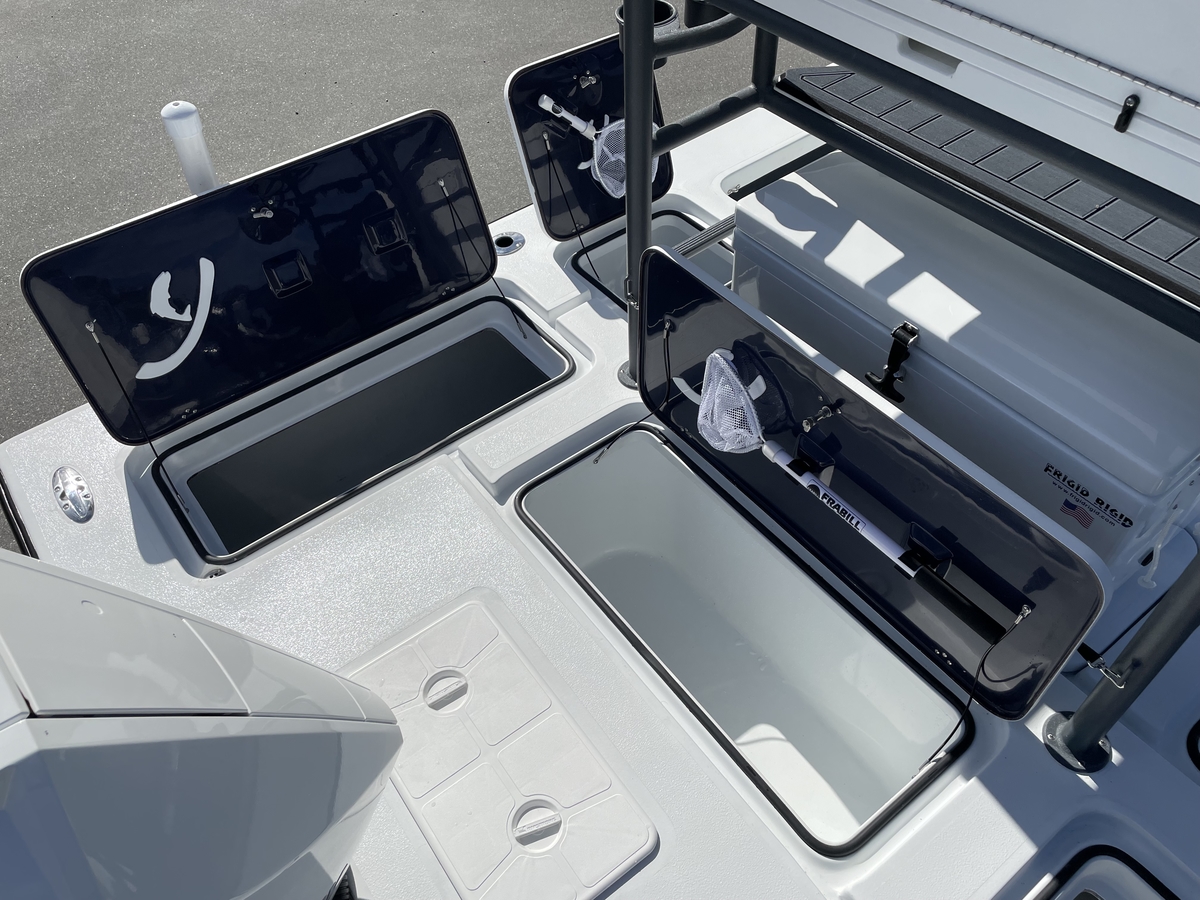

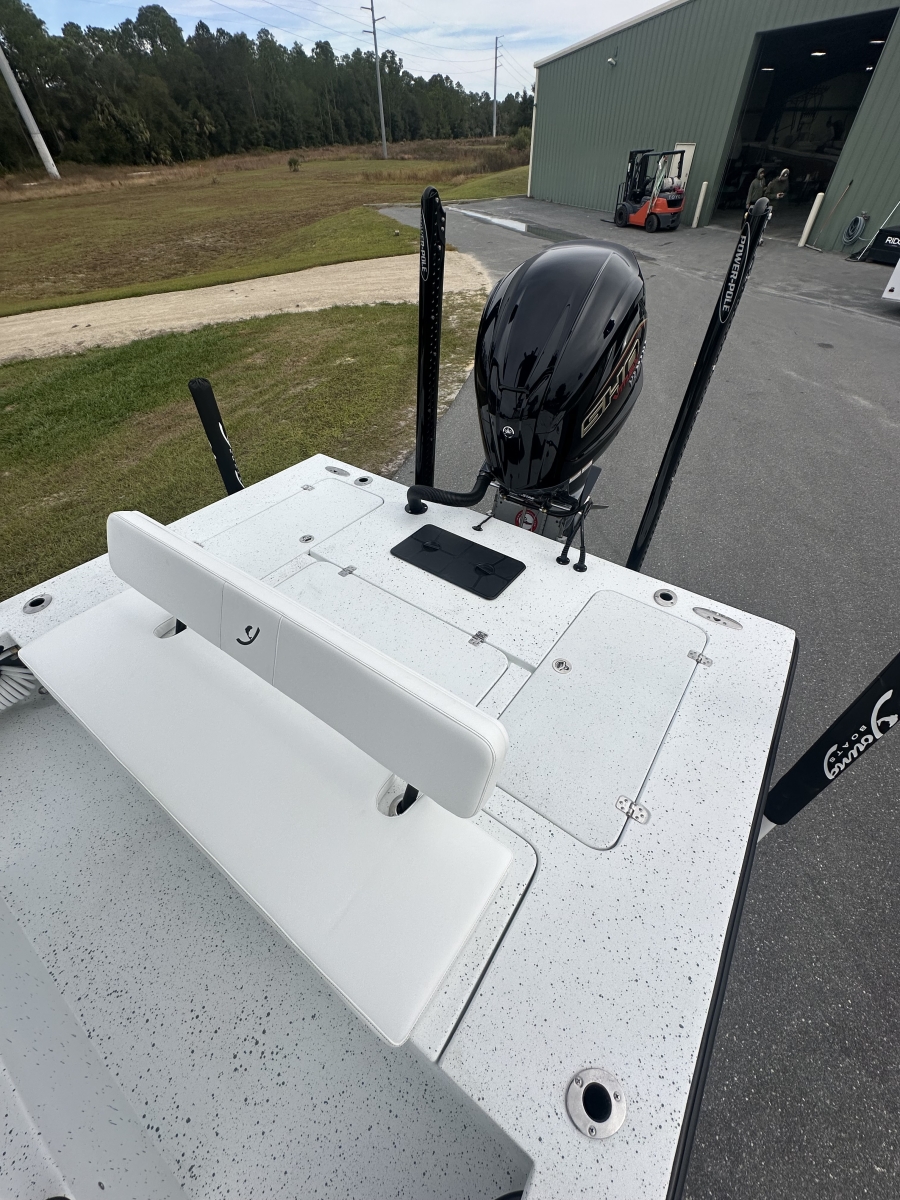

Rear Deck Hatches Open

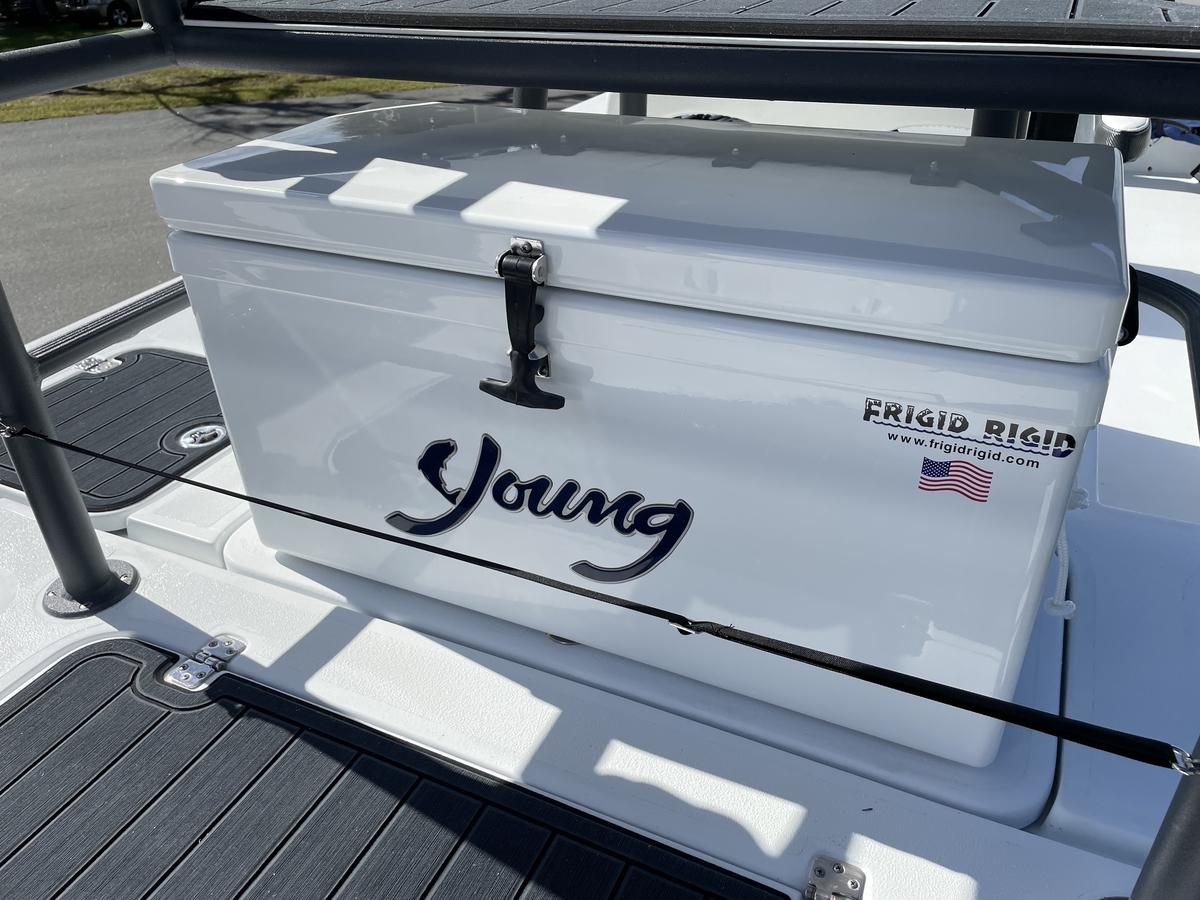

Rear Cooler

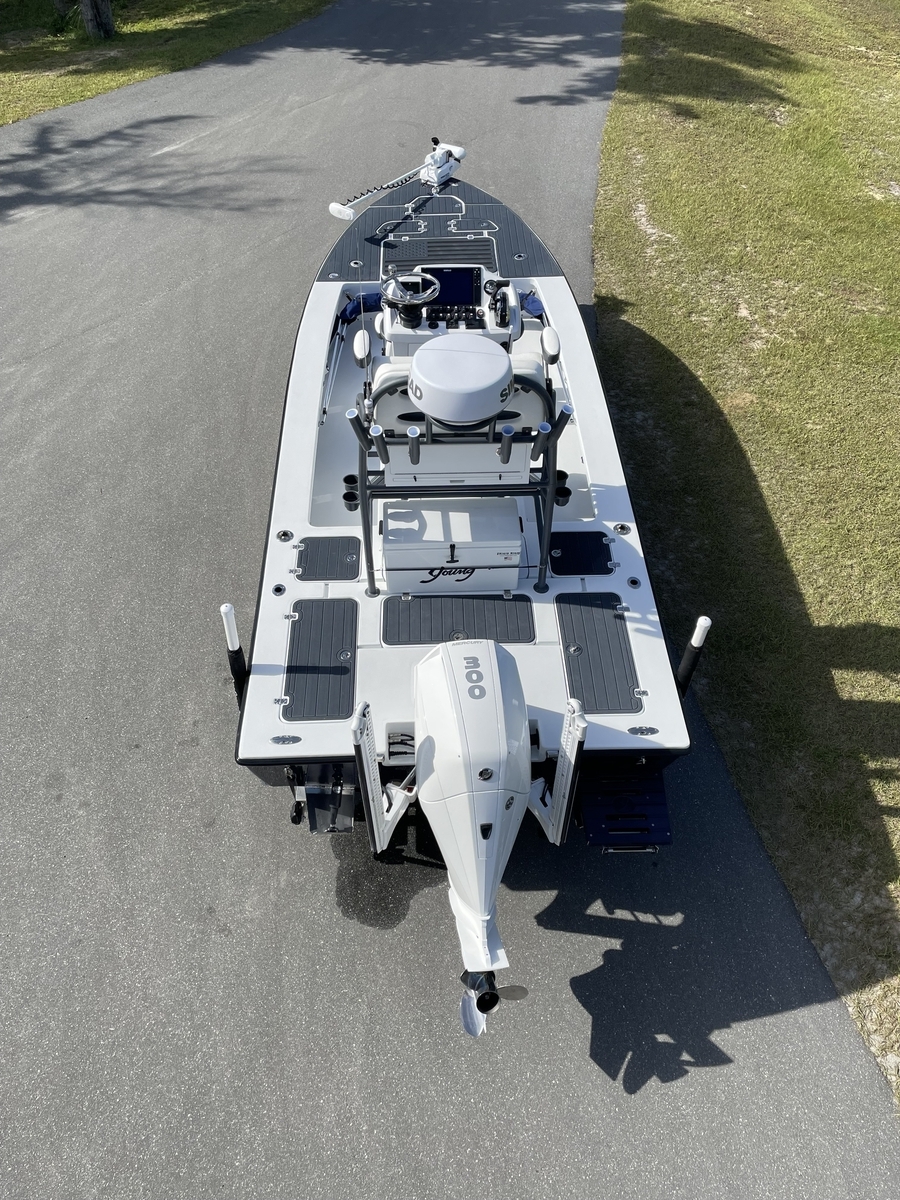

Rear Aerial

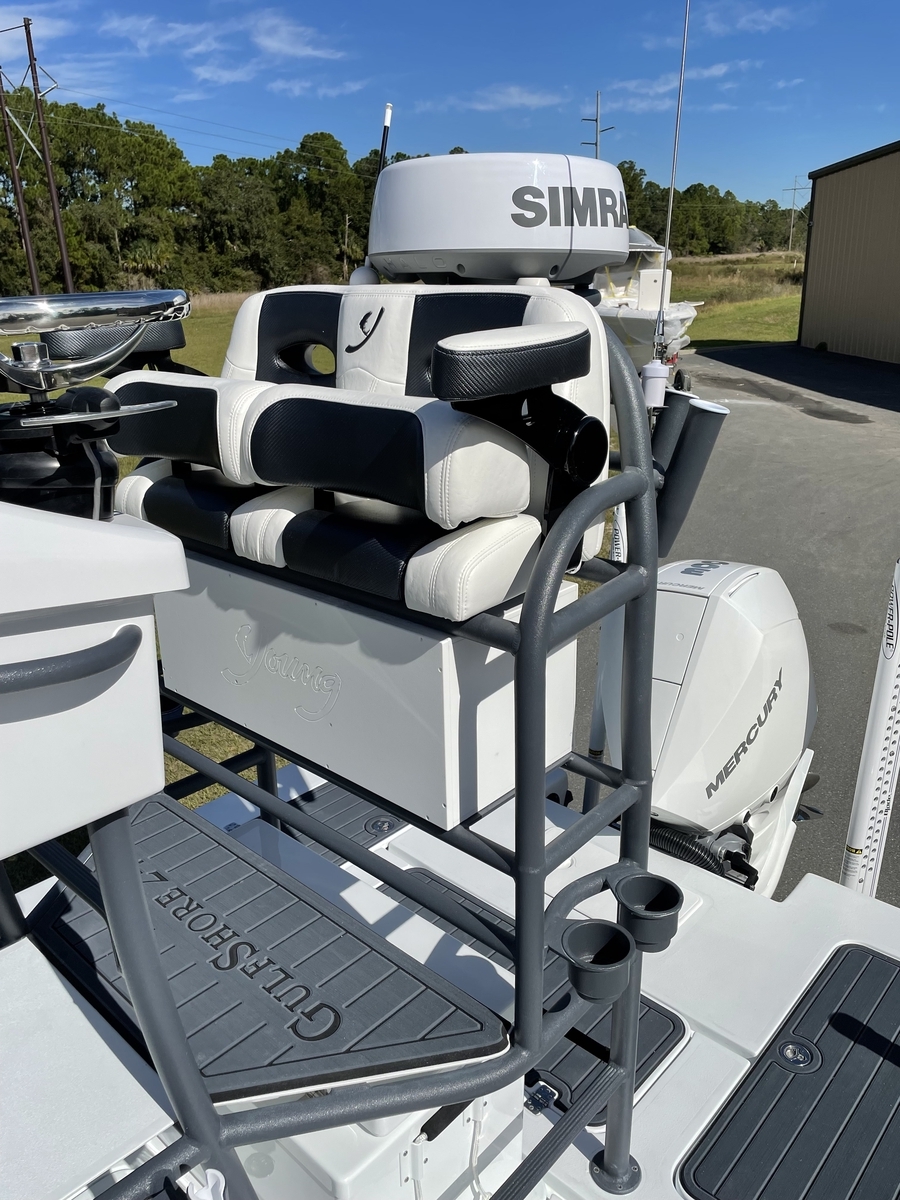

Helm Seating

Helm Box

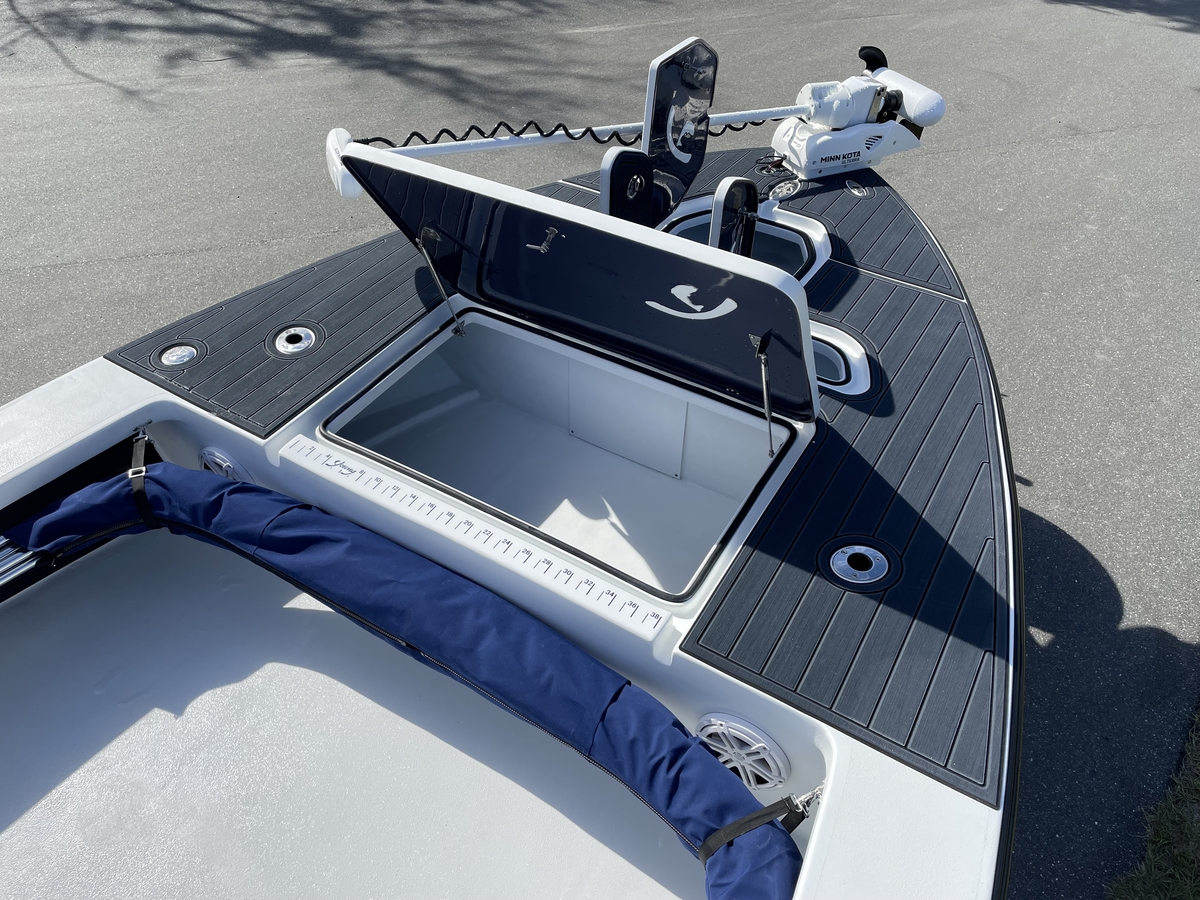

Front Deck Hatches Open

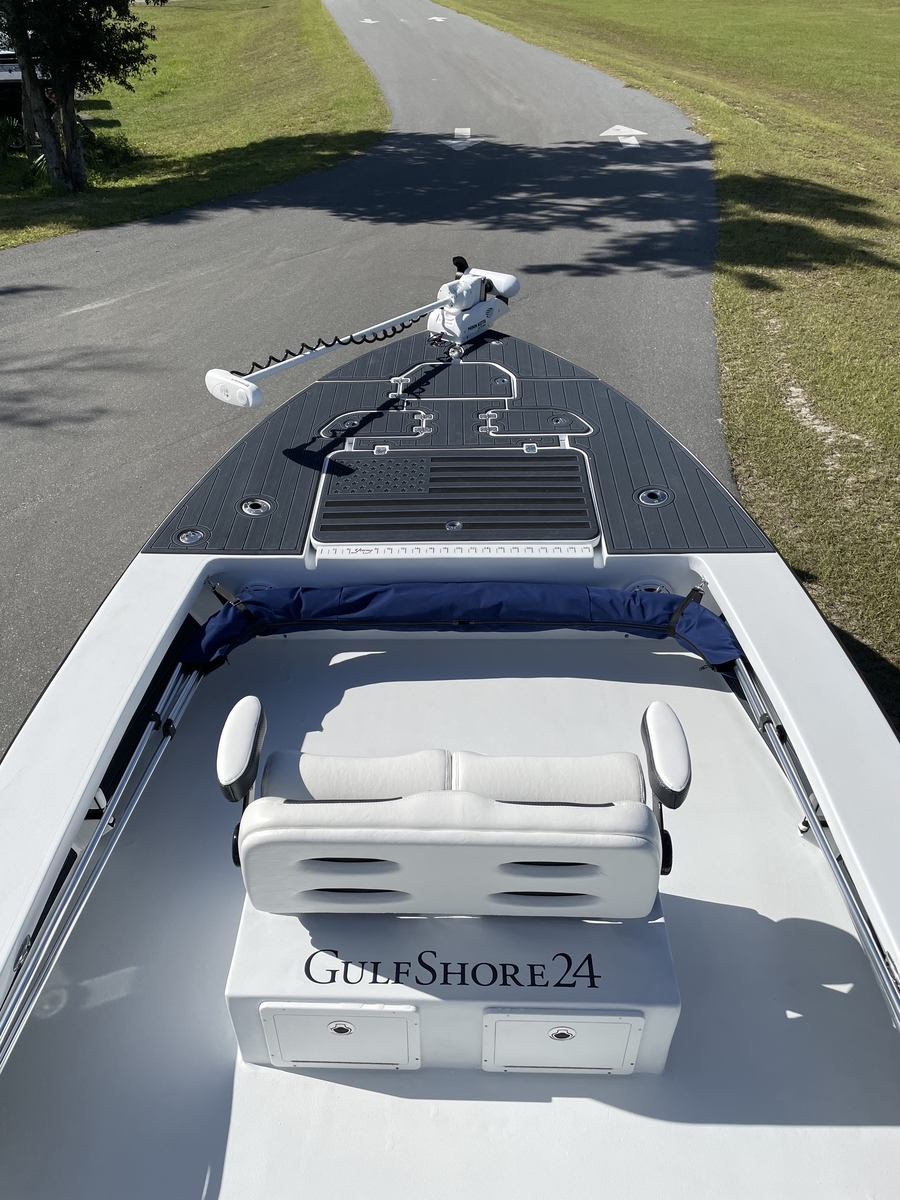

Front Deck

Front Aerial

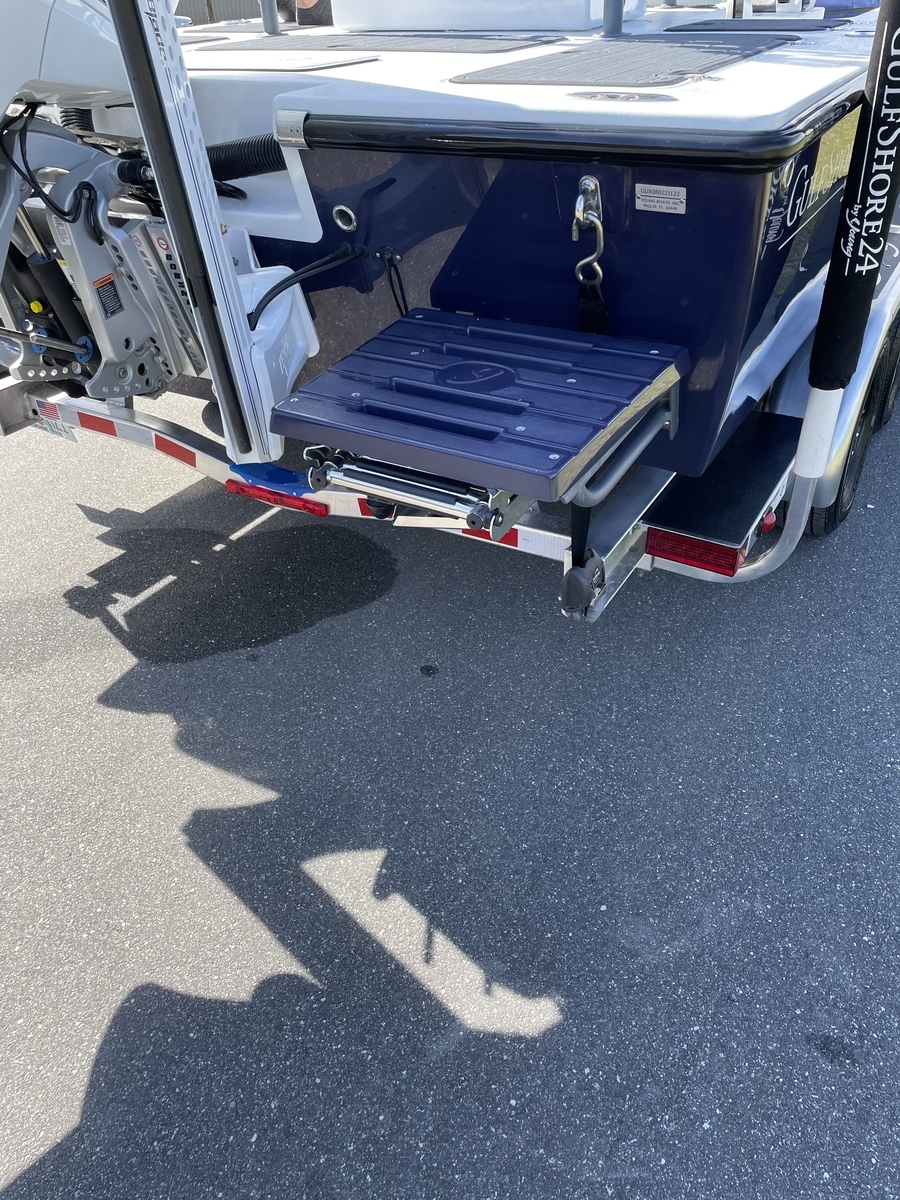

Dive Platform

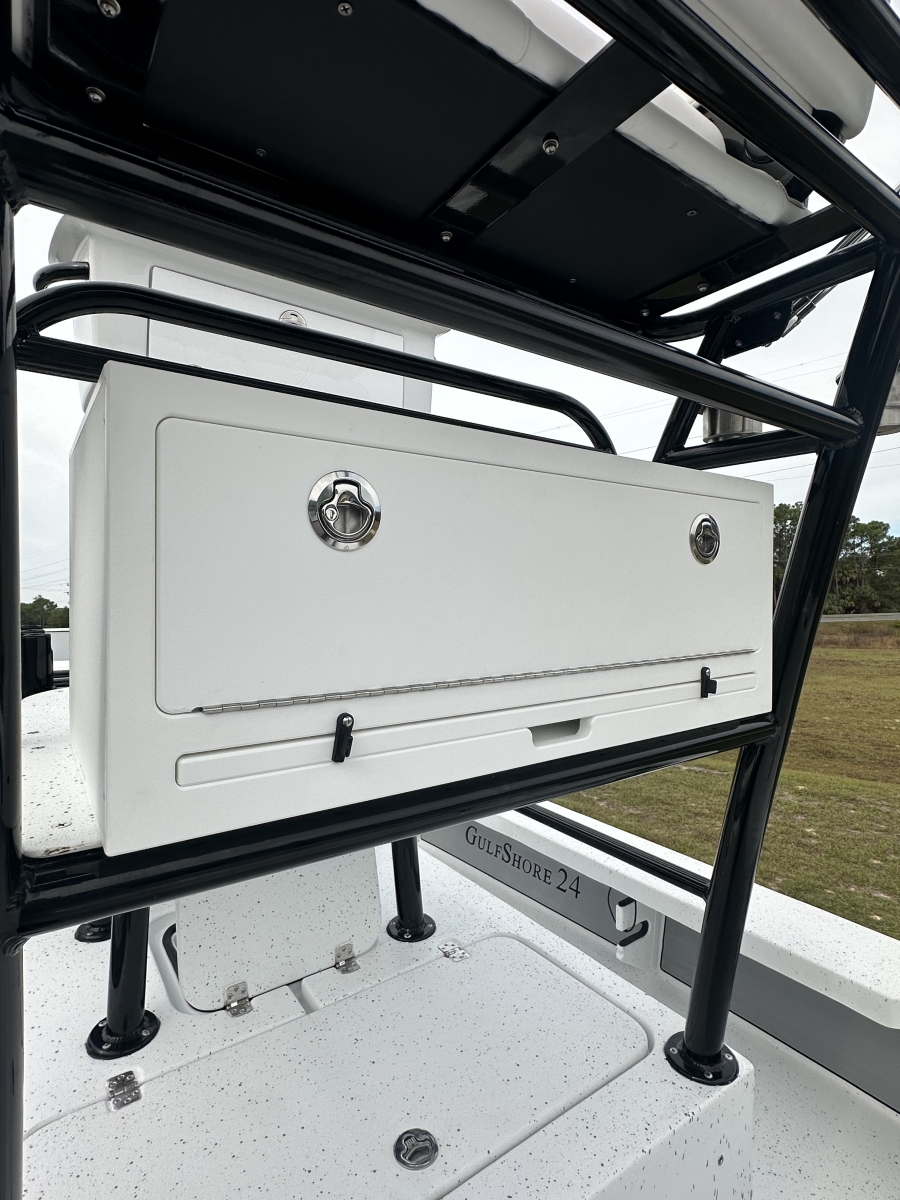

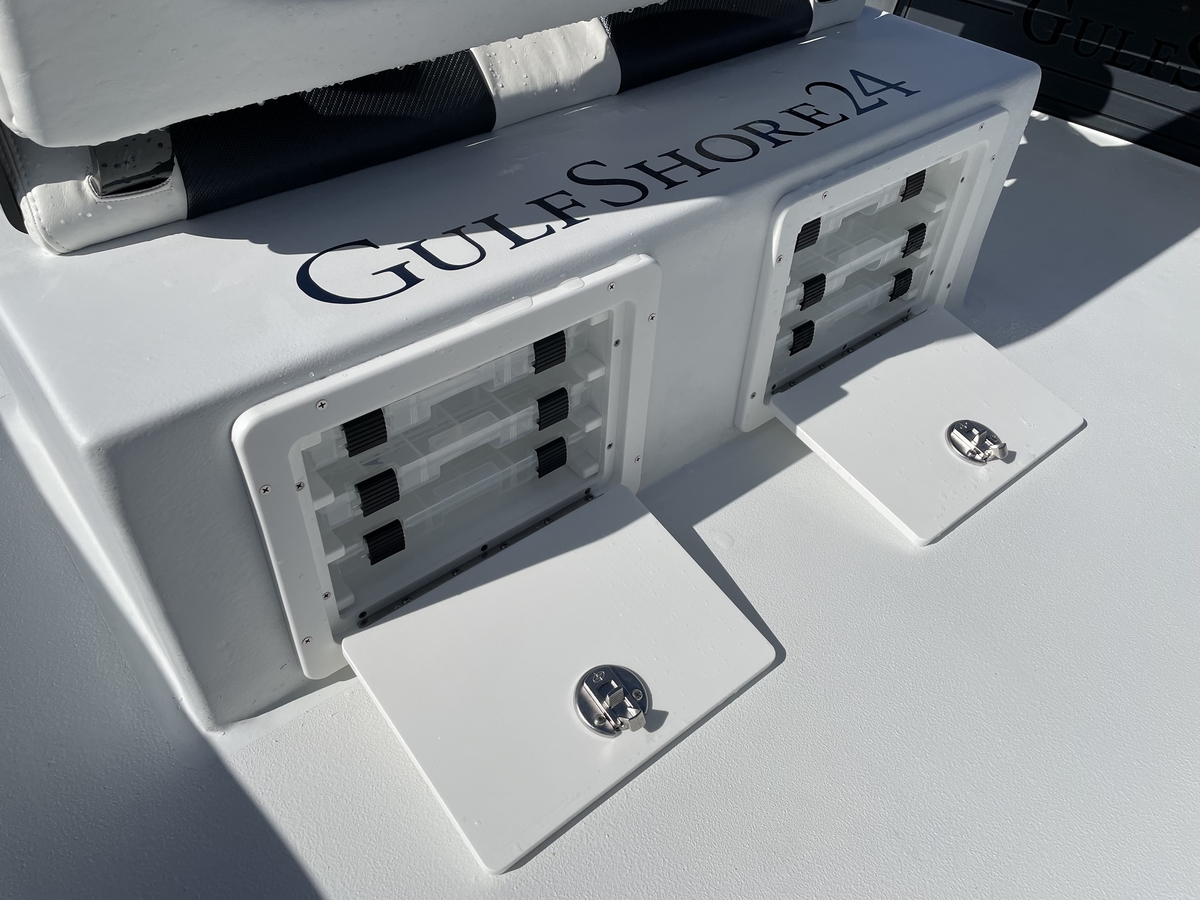

Cockpit Seats Tackle storage

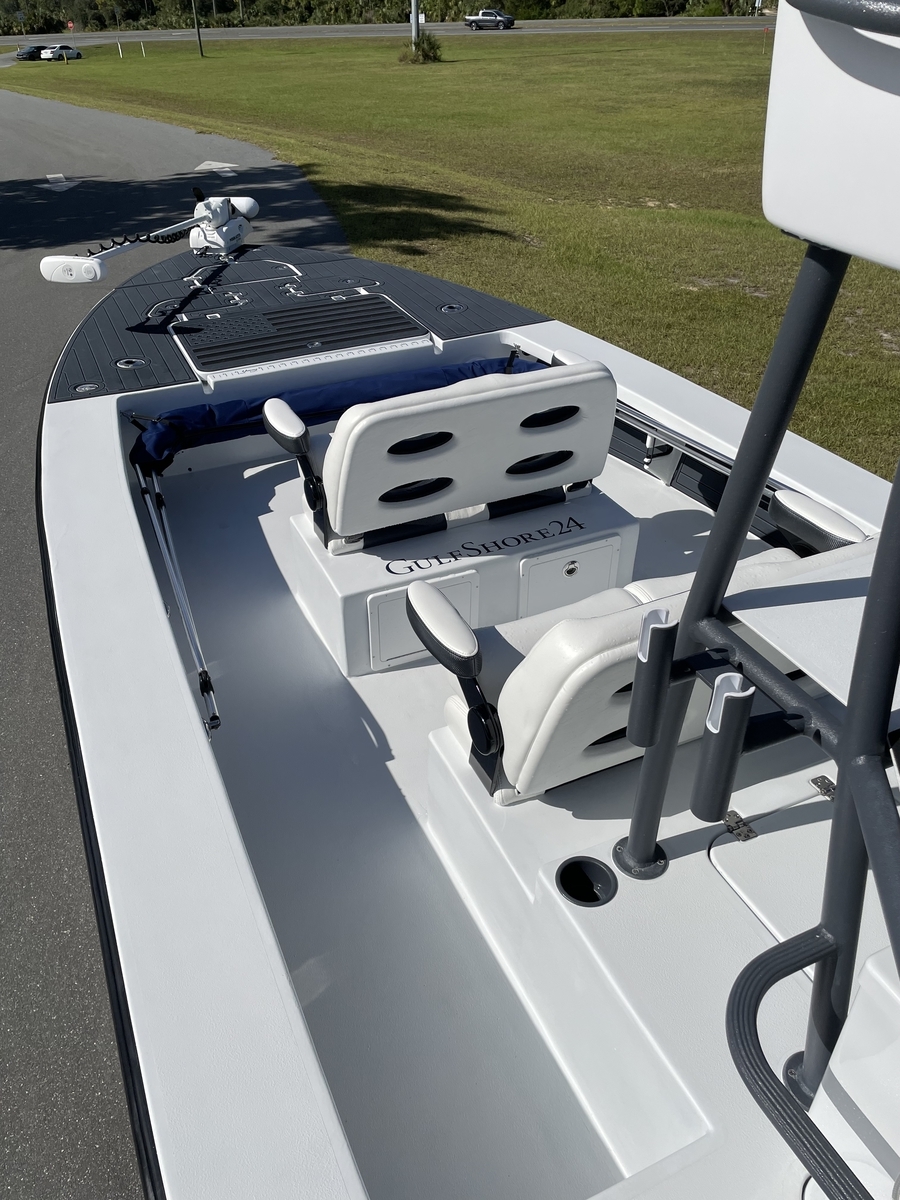

Cockpit Seats Rear View

Cockpit Seating

Captains Elevated Rear Helm - February 2024

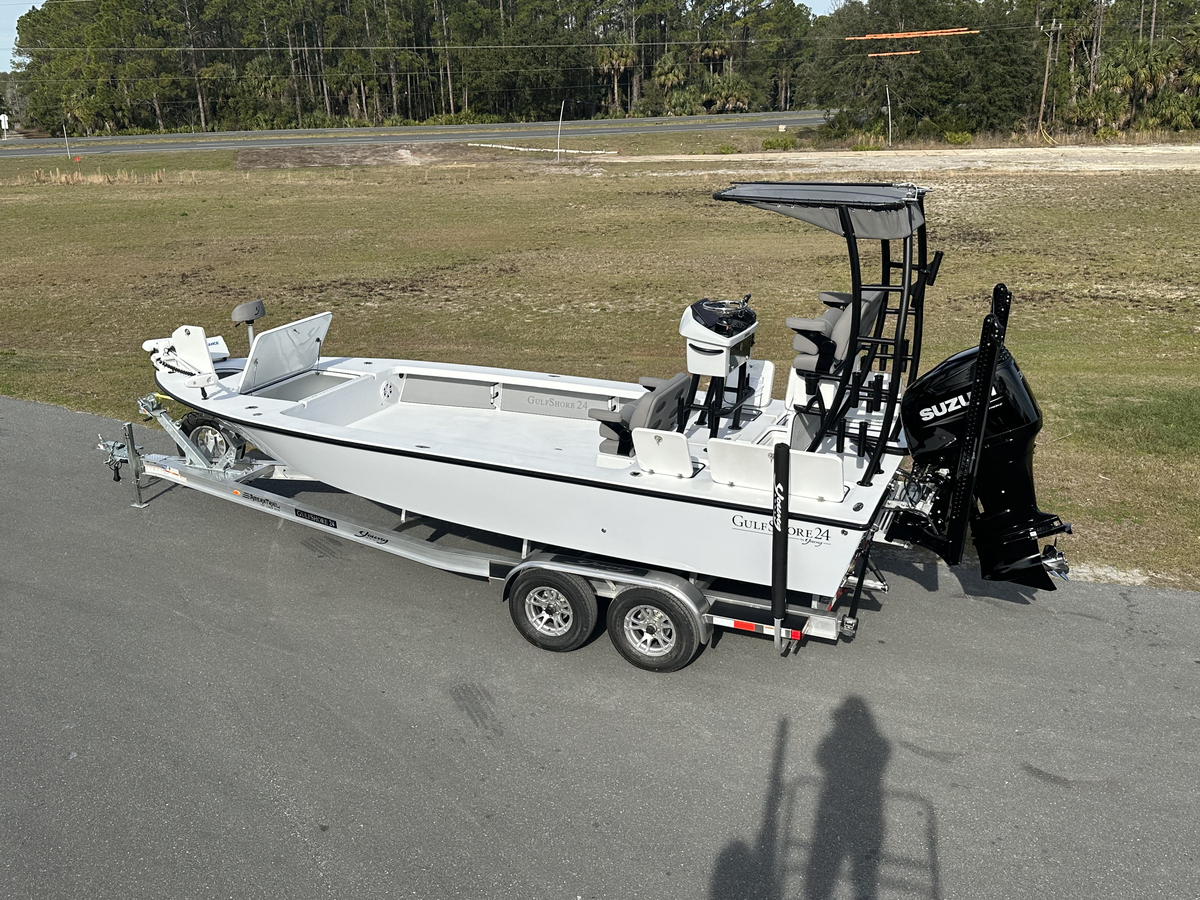

Side View Aerial

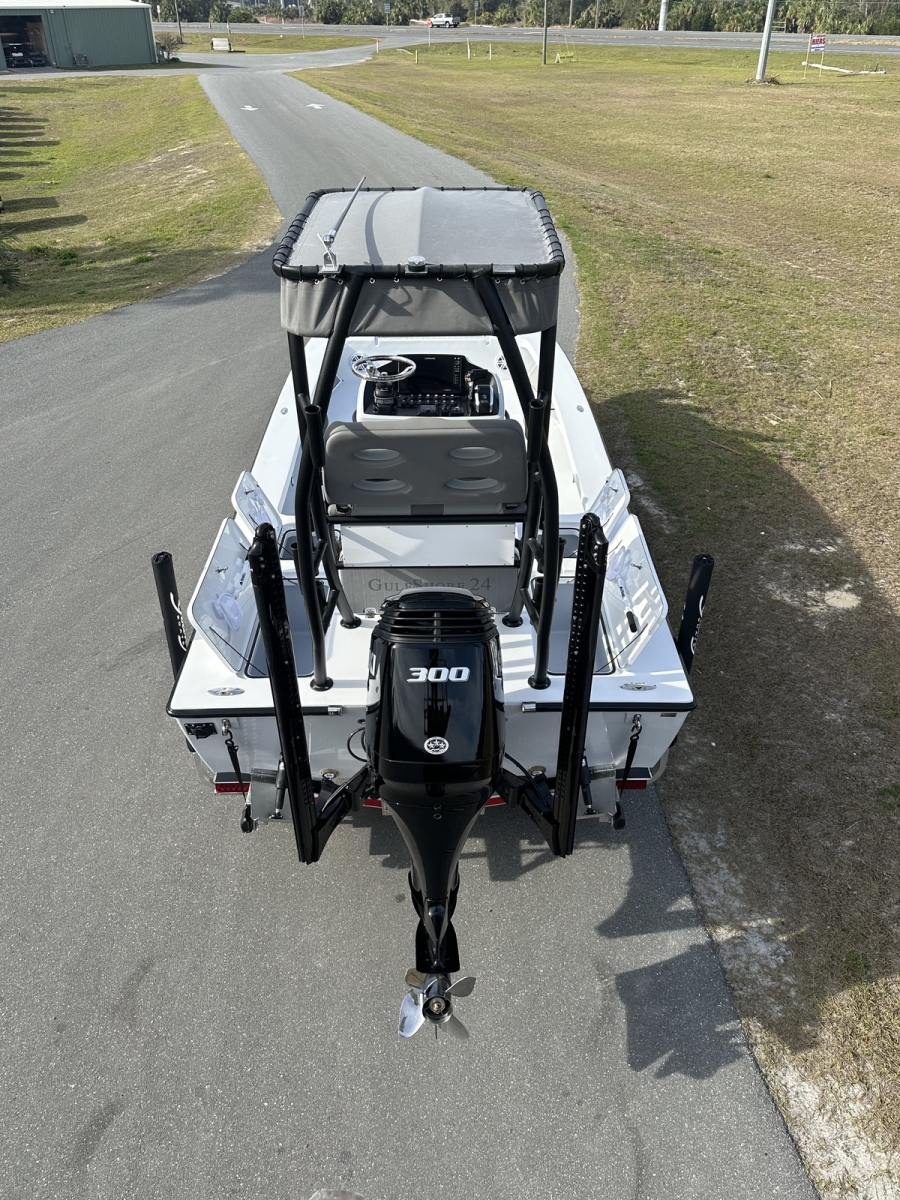

RearView Aerial

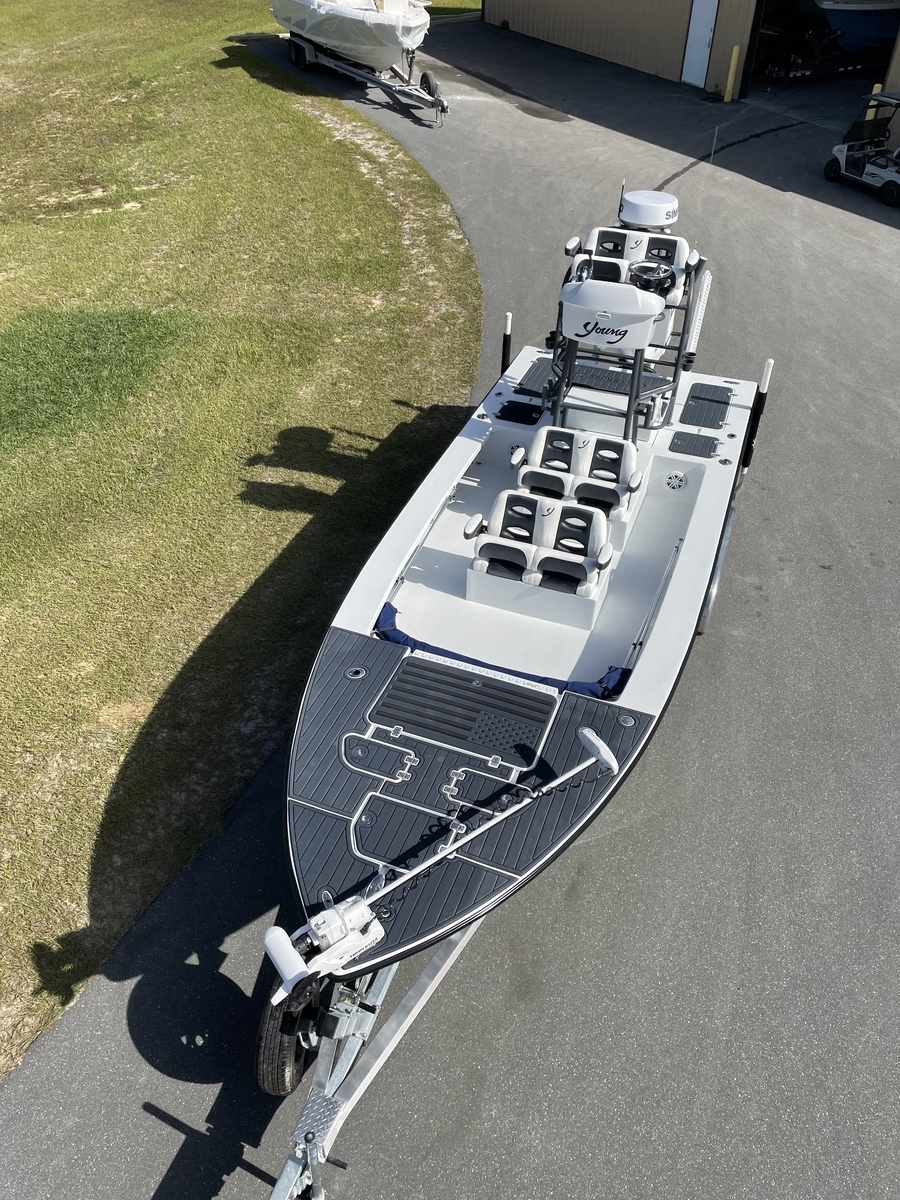

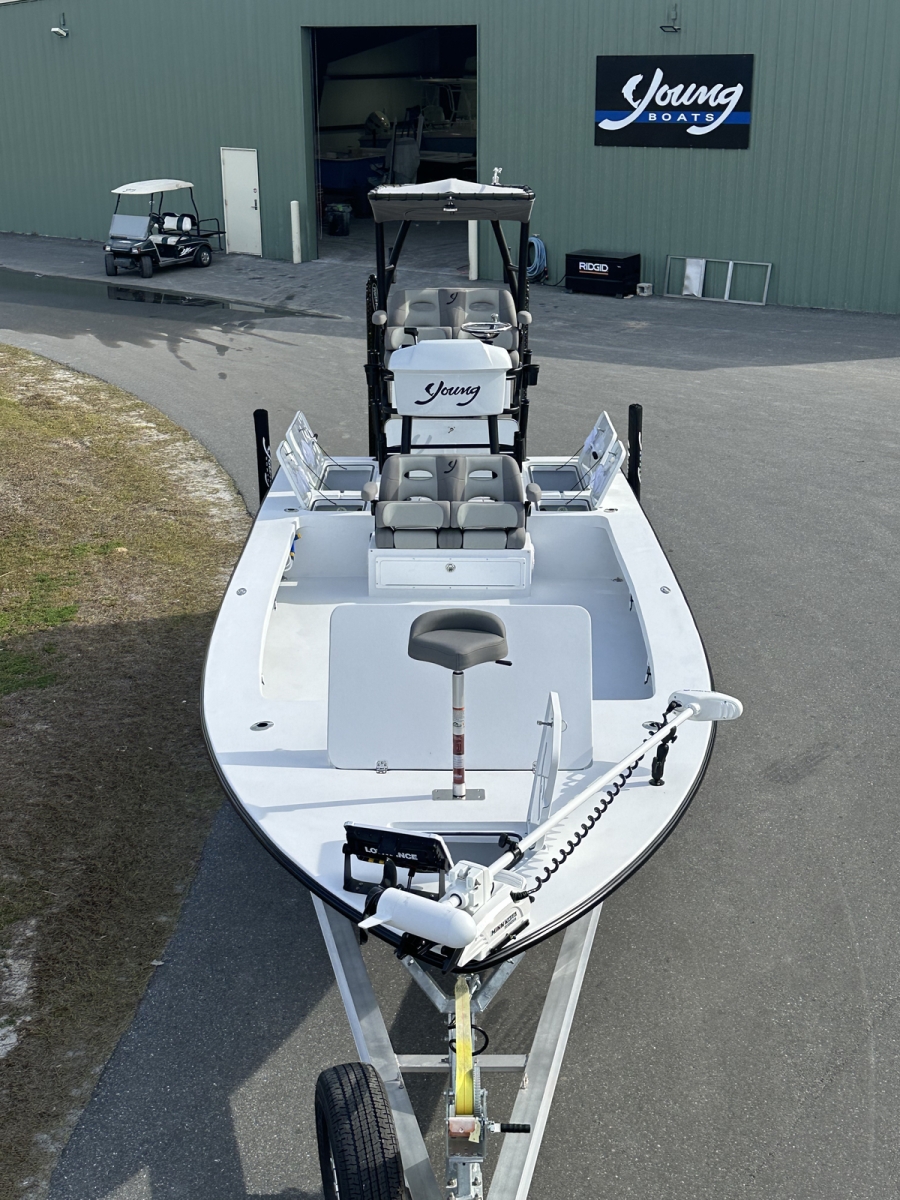

Front Aerial

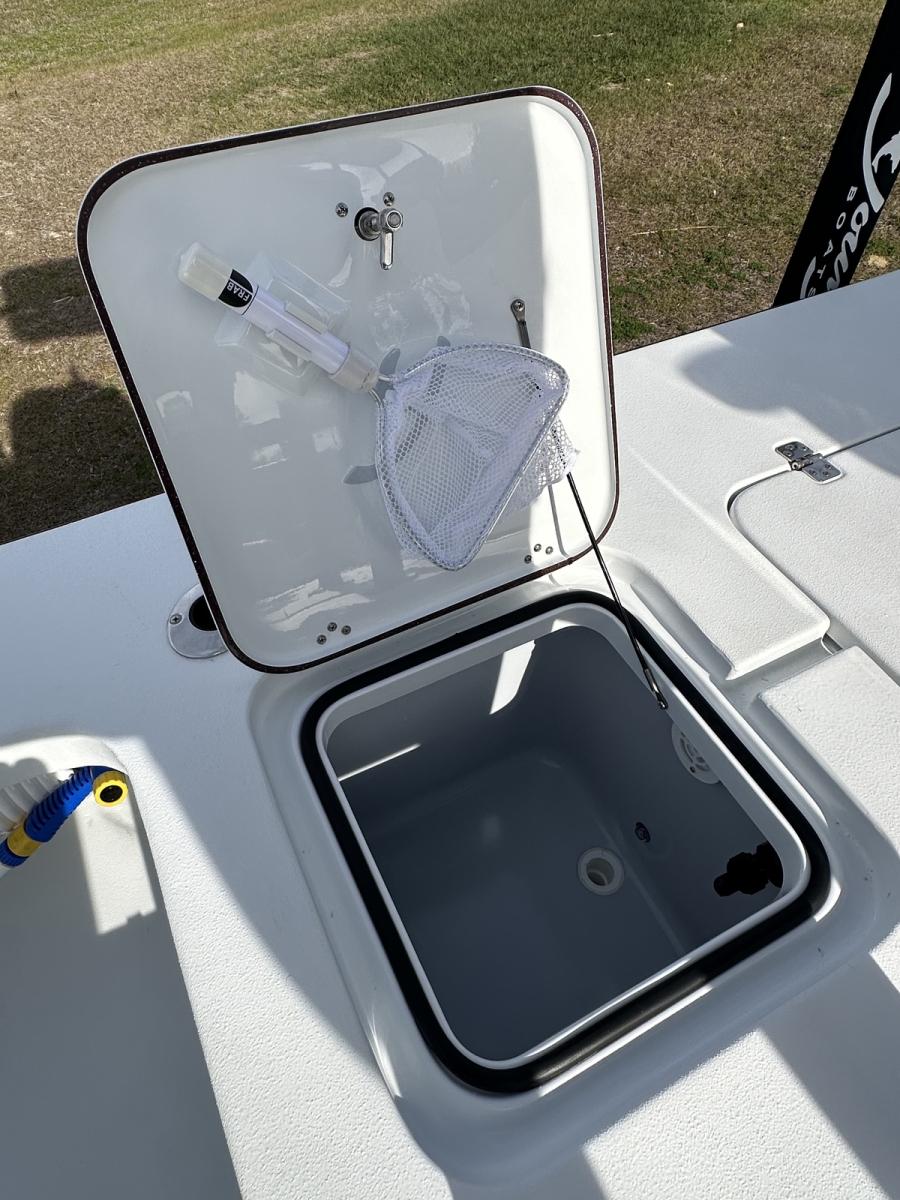

Baitwell Hatch Open

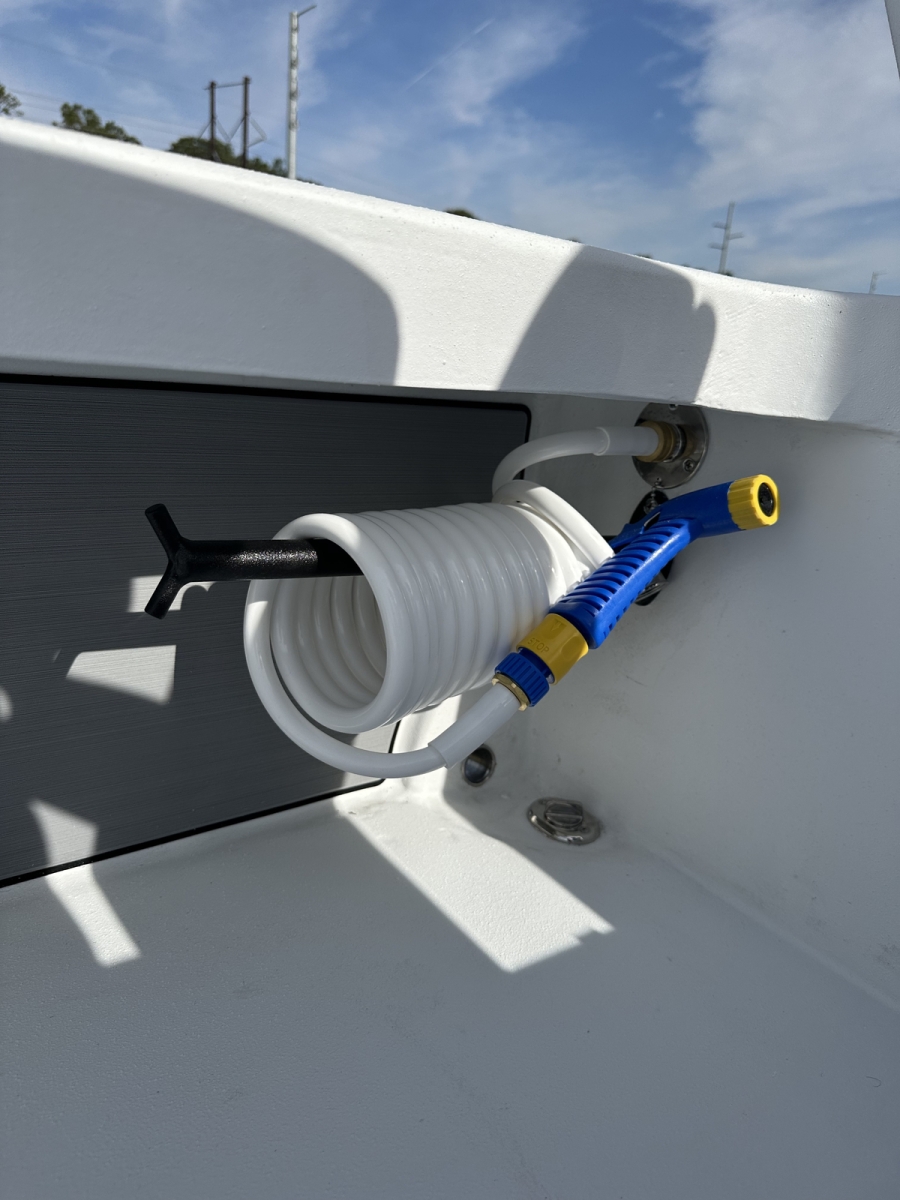

Washdown Holder

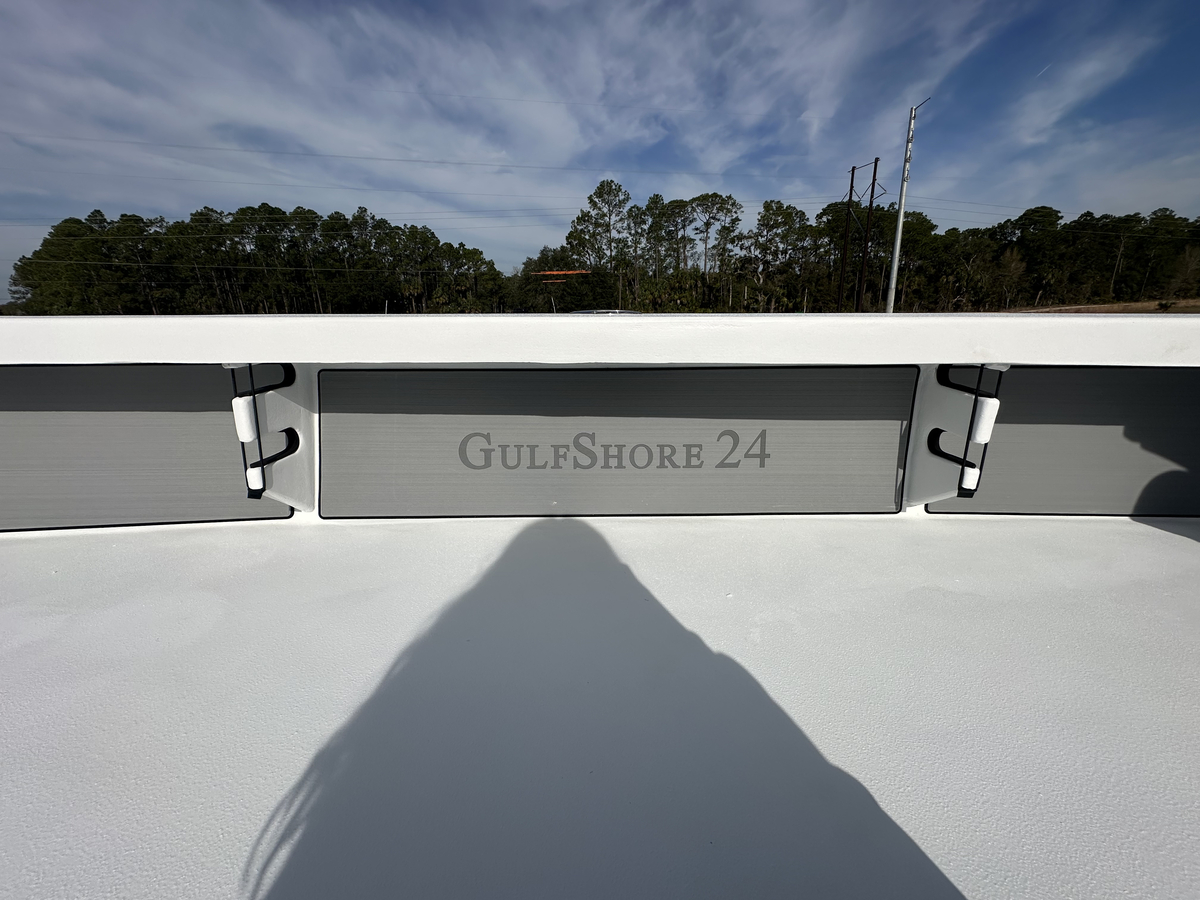

Undergunnel Rod Holder

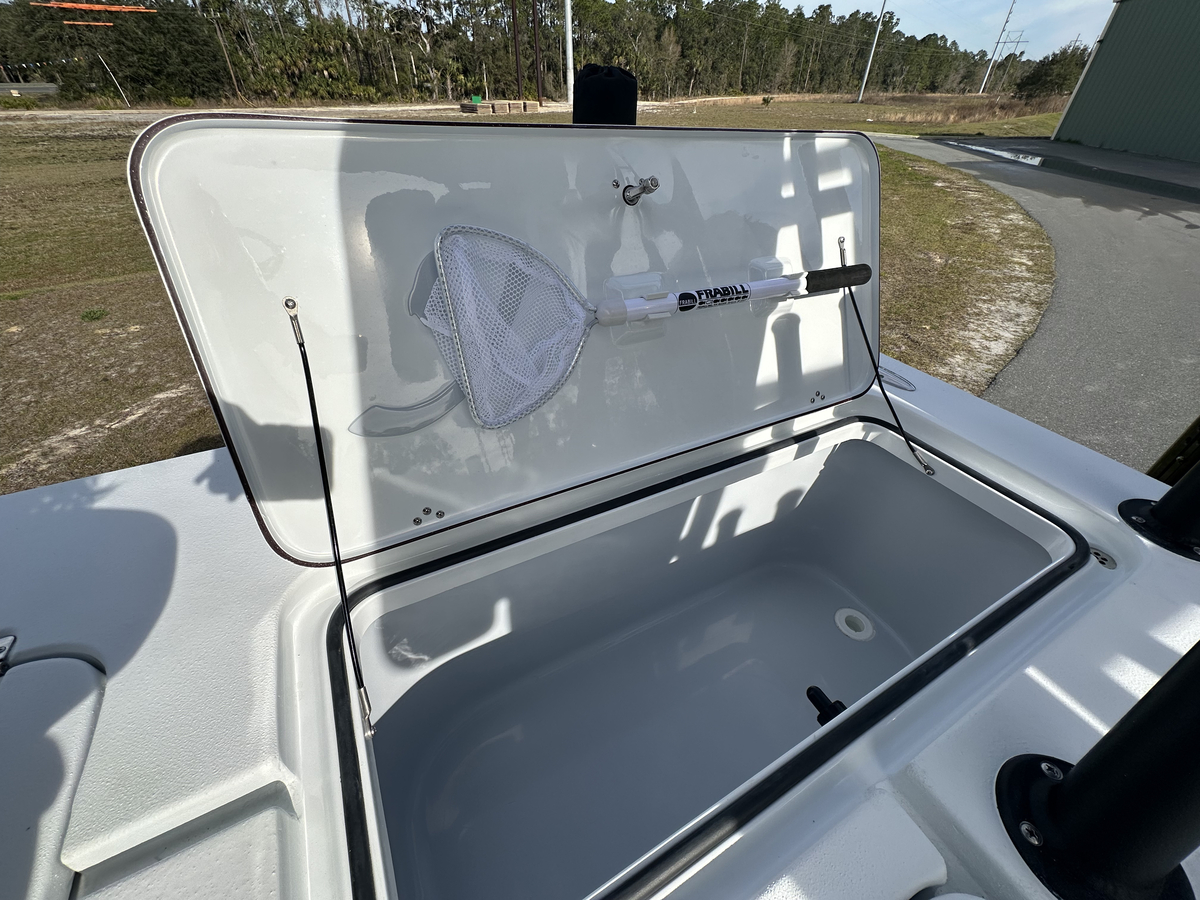

Rear Release Hatch Open

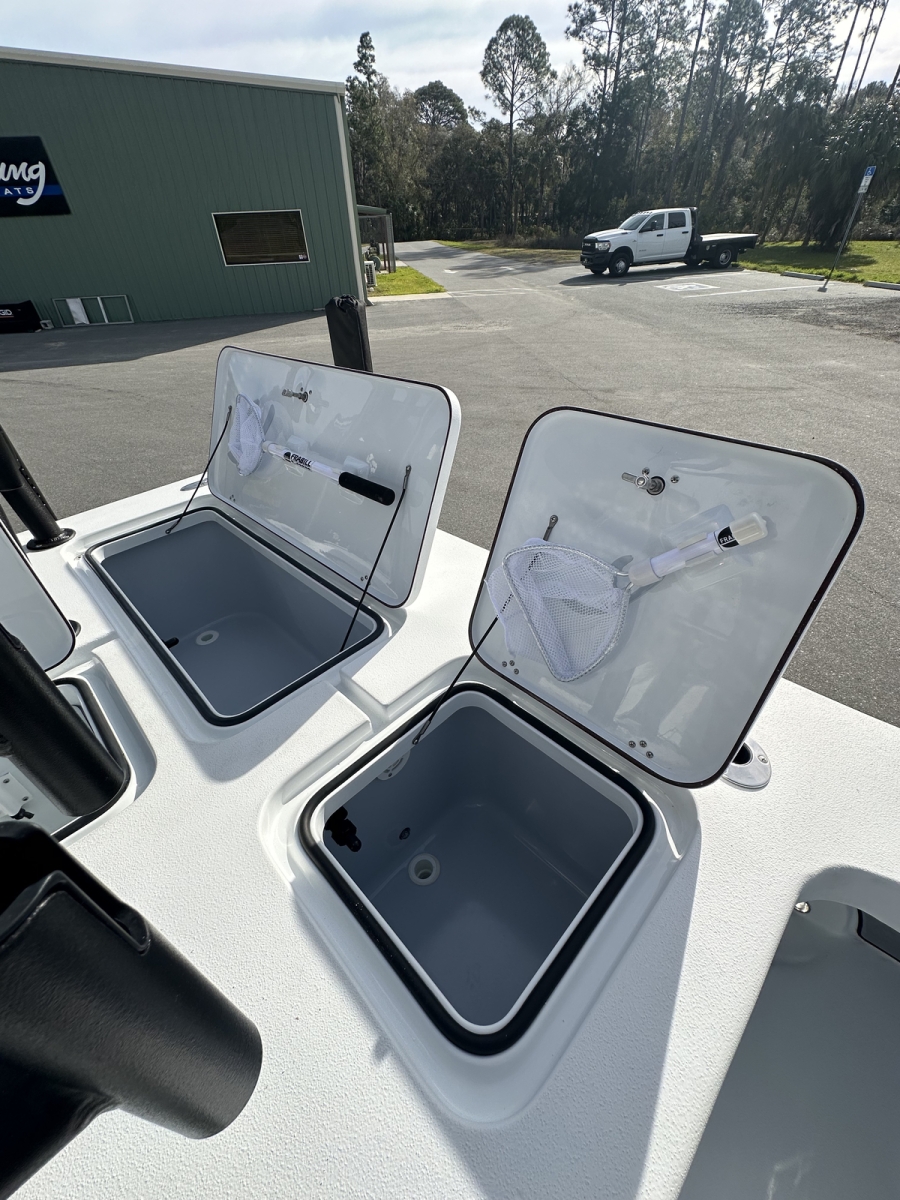

Rea Deck Hatches Open

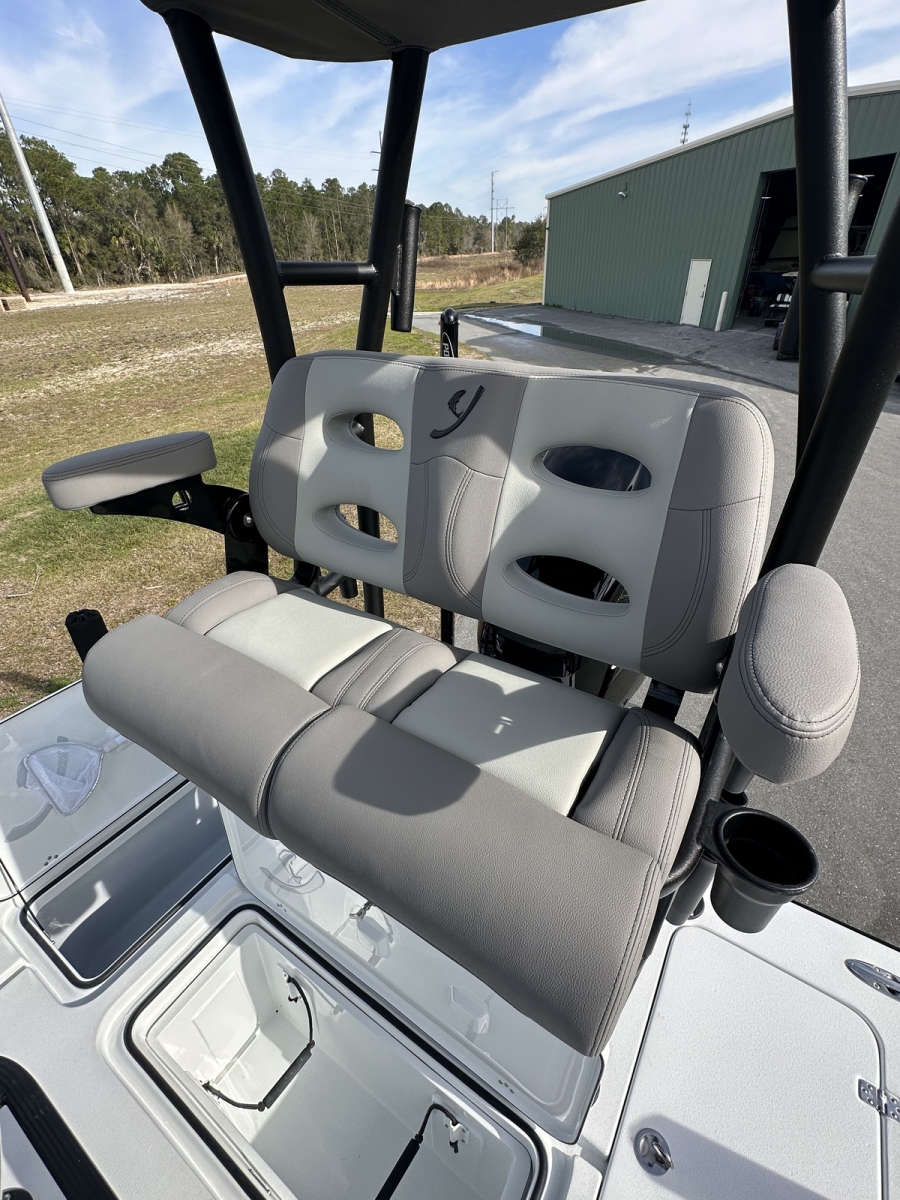

Helm Seating

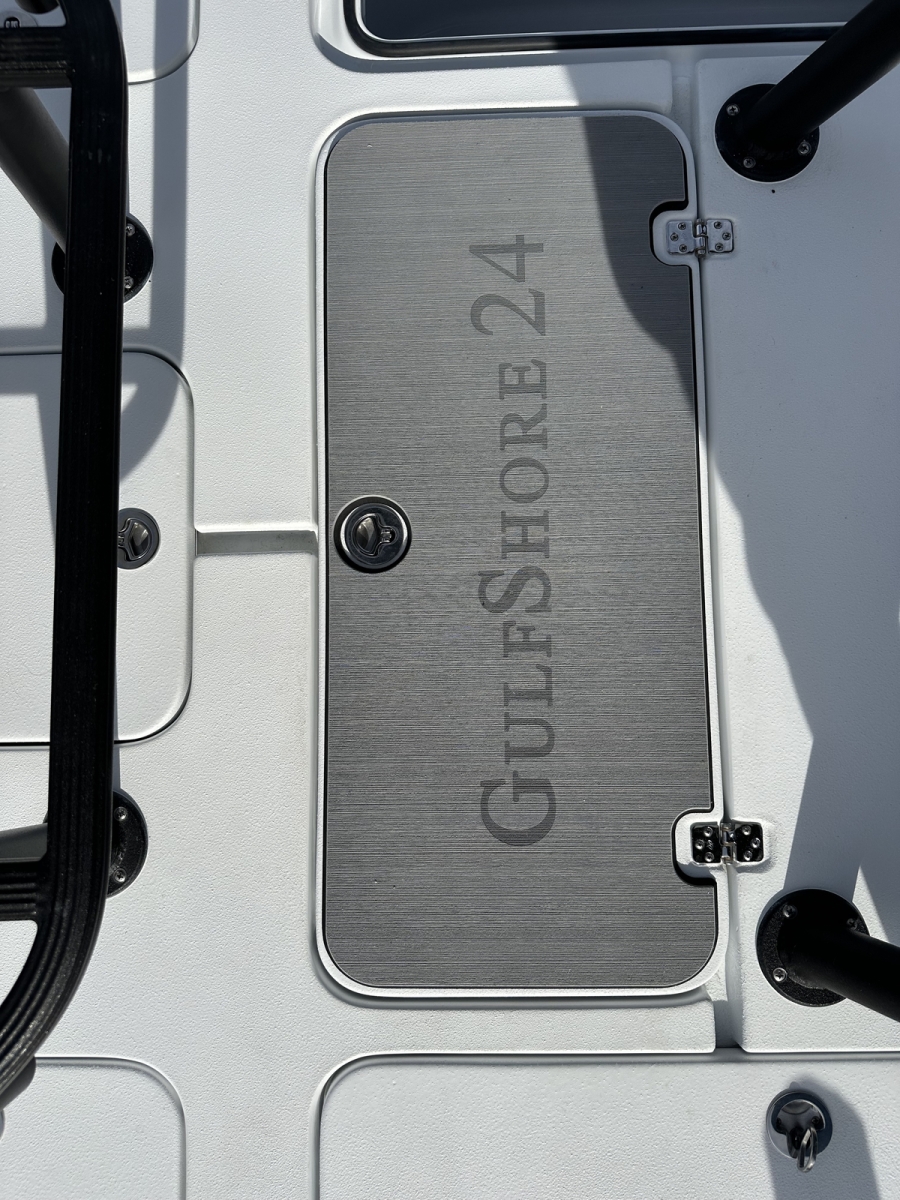

Helm Pad

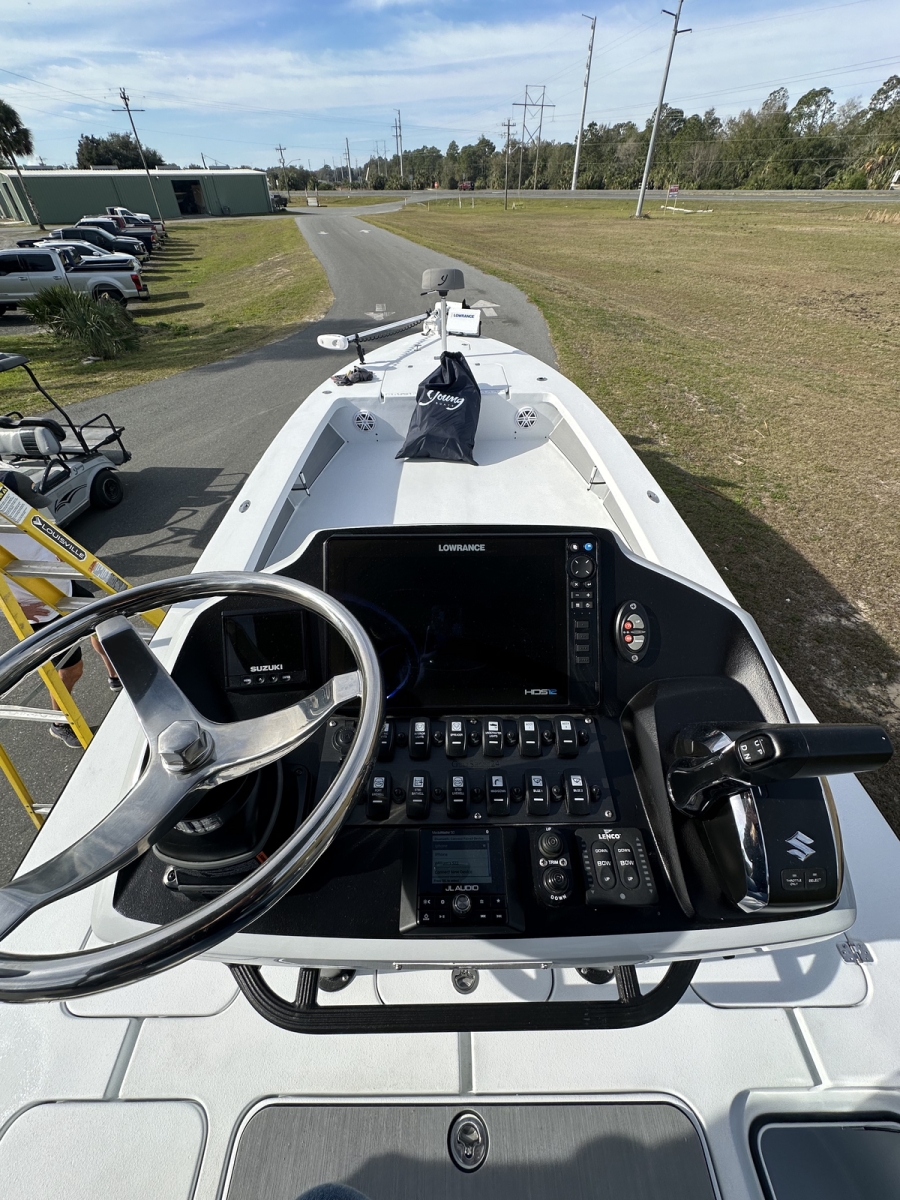

Helm Box

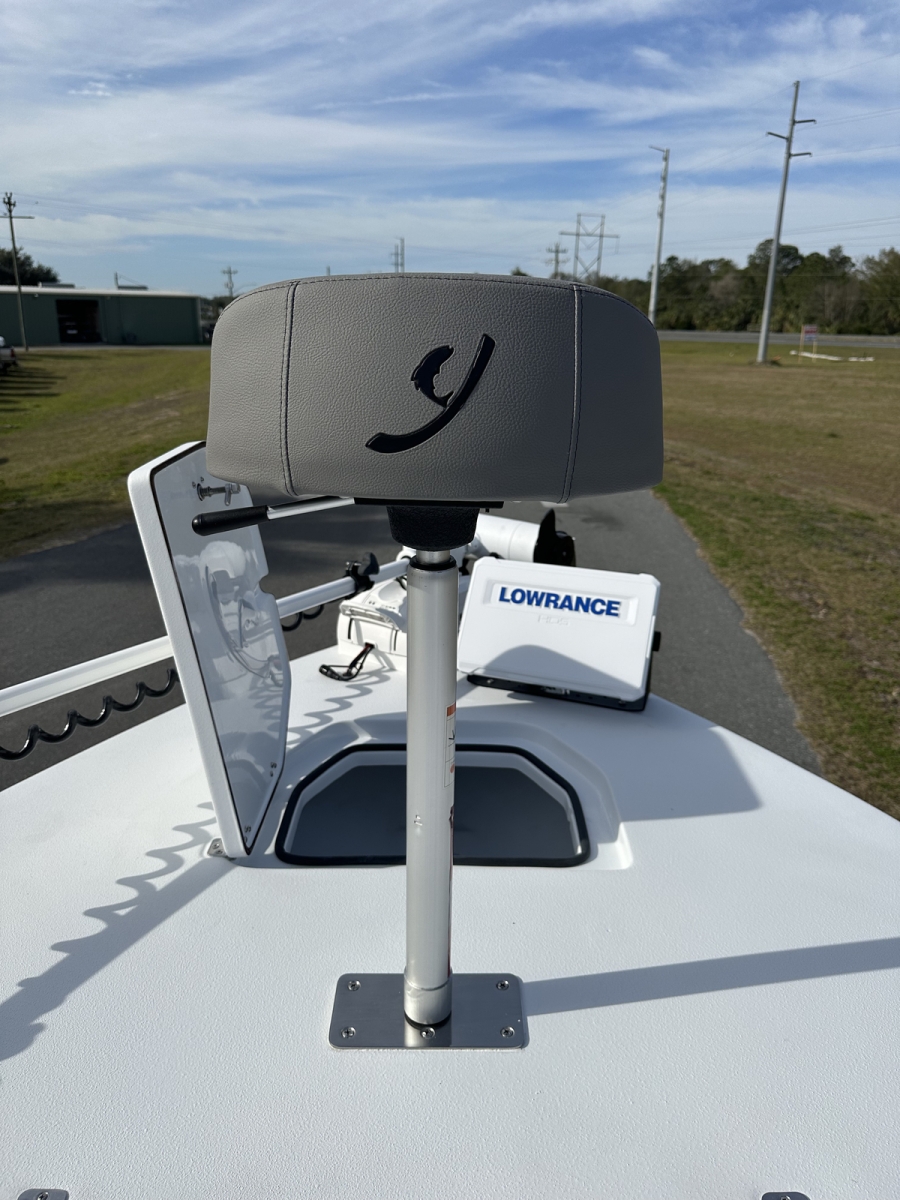

Front Deck Seat And Unit

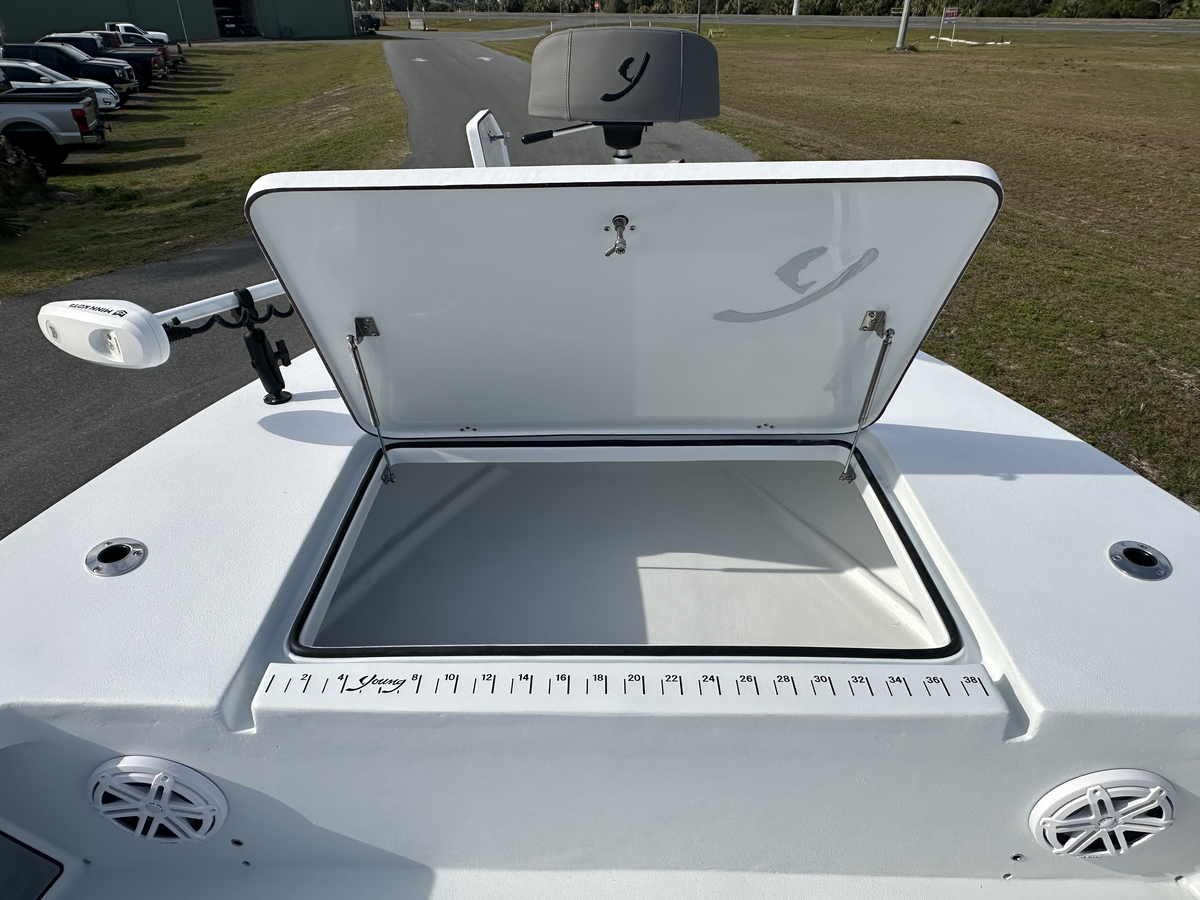

Front Deck Hatch Open

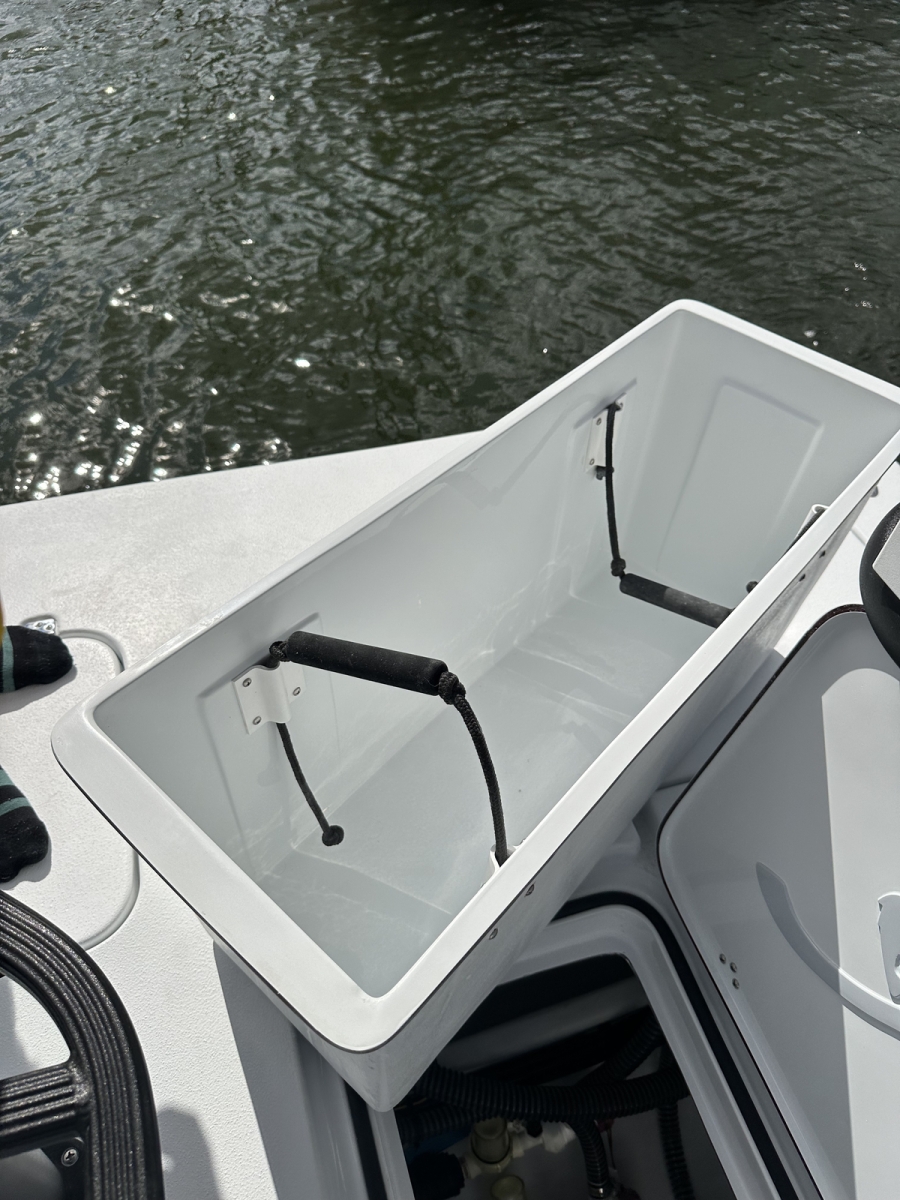

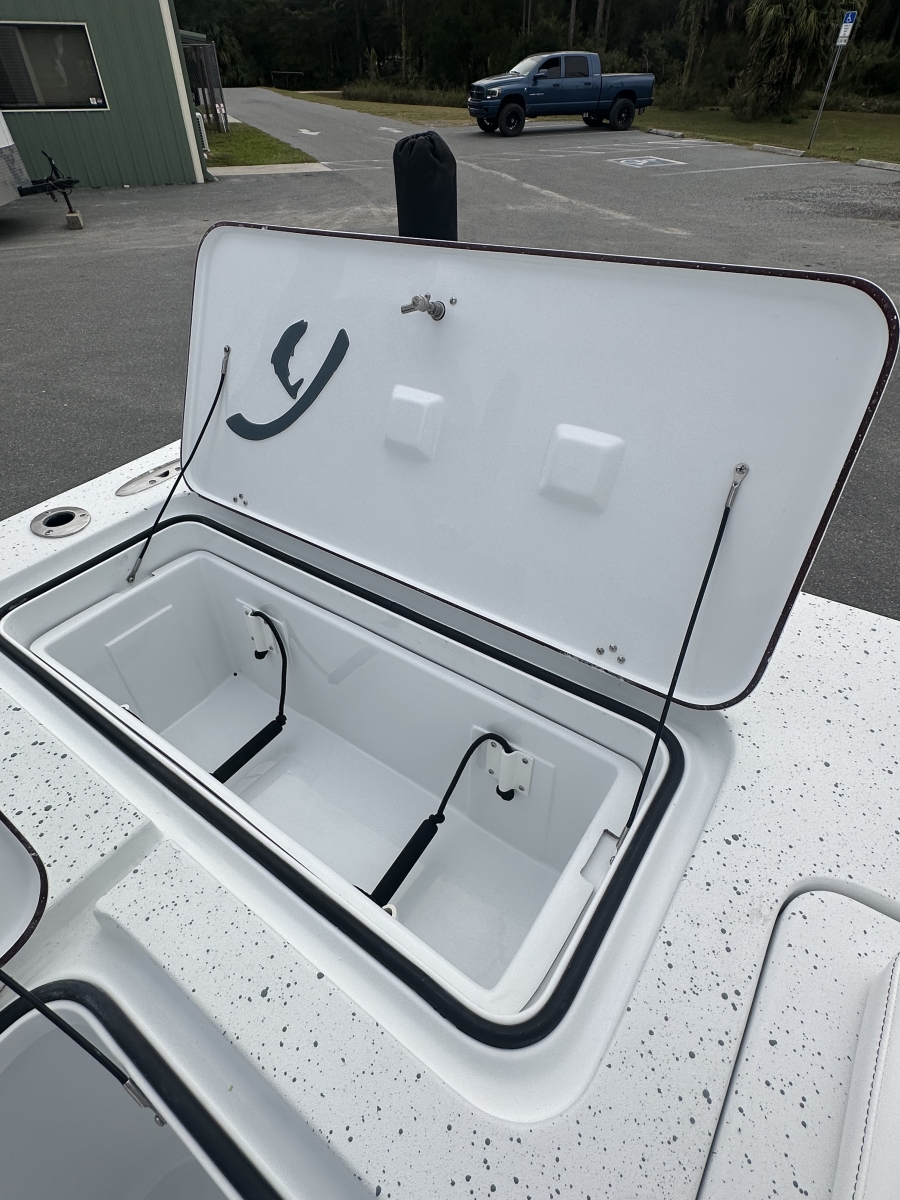

Drop In Tub

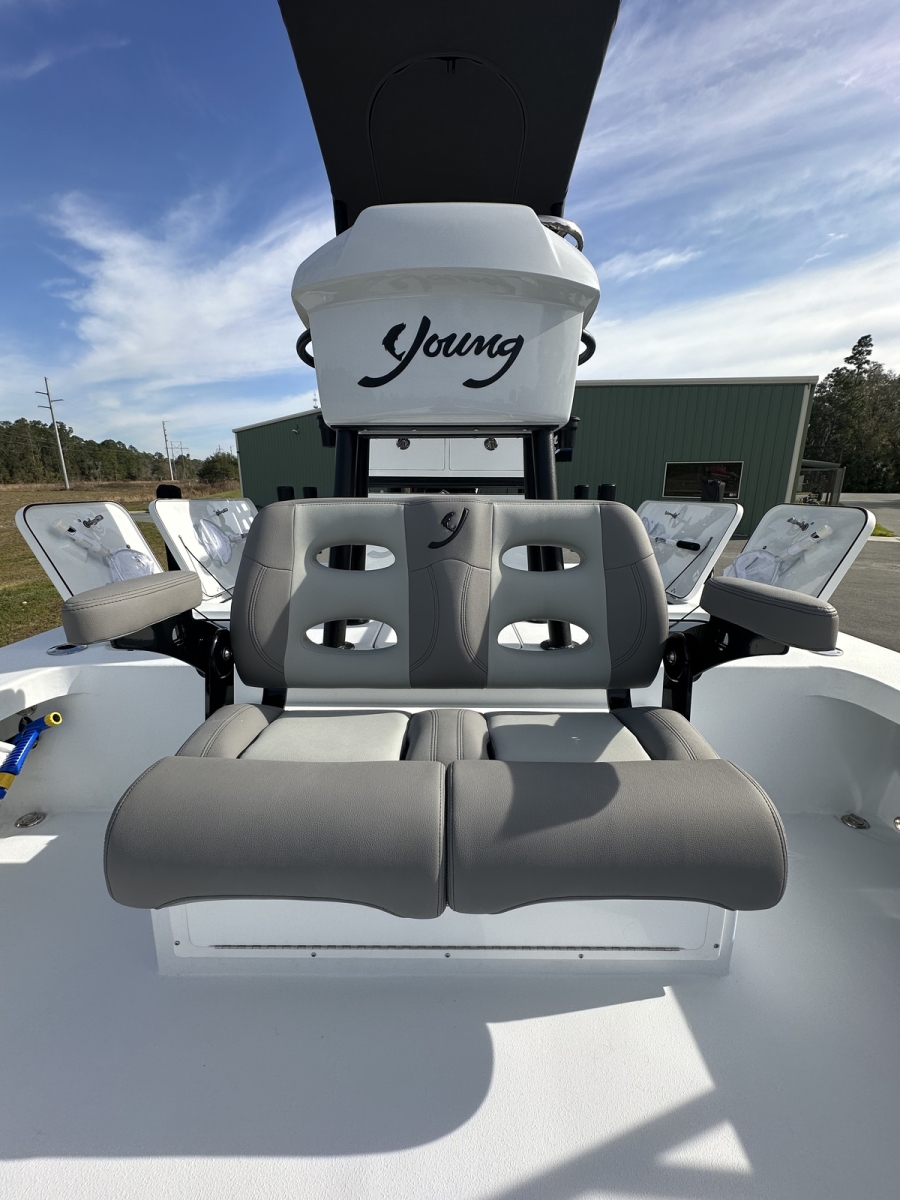

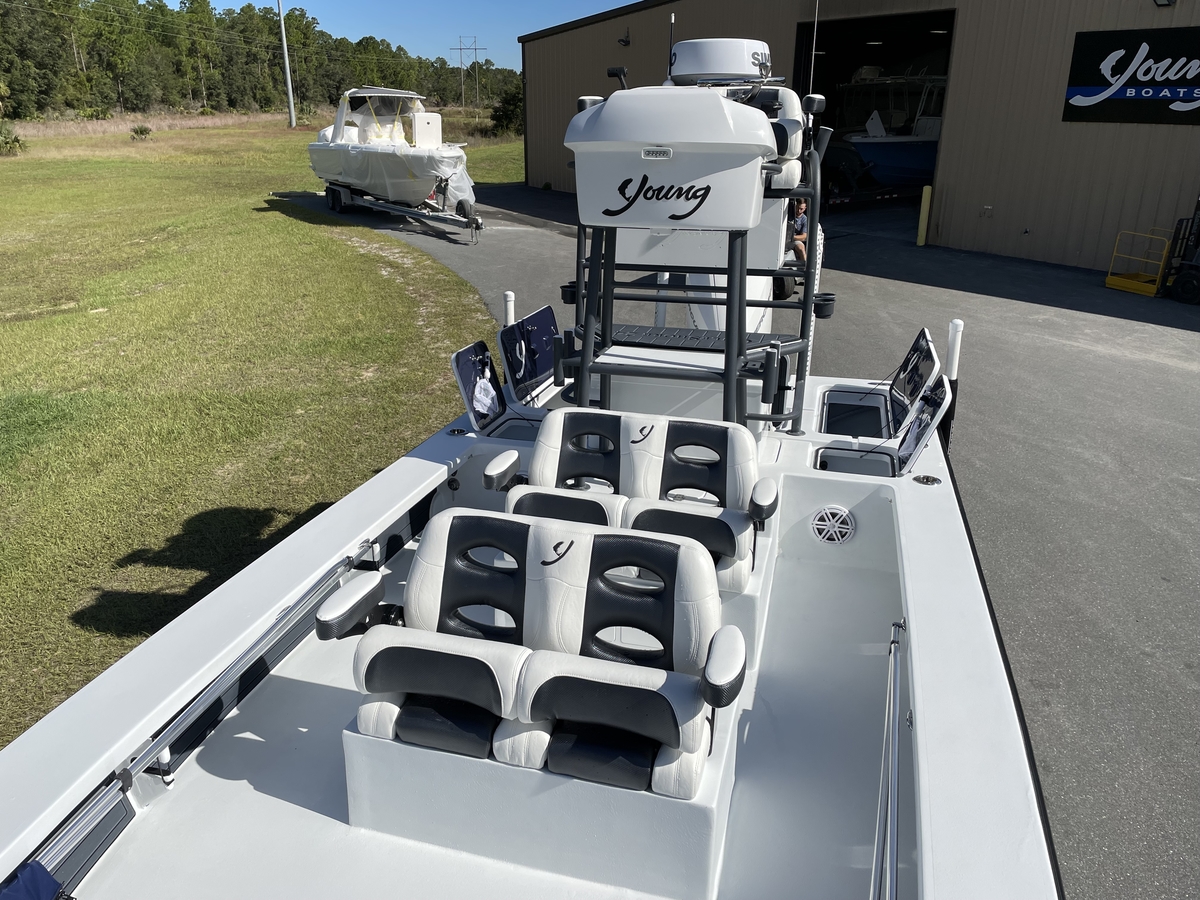

Cockpit Seating

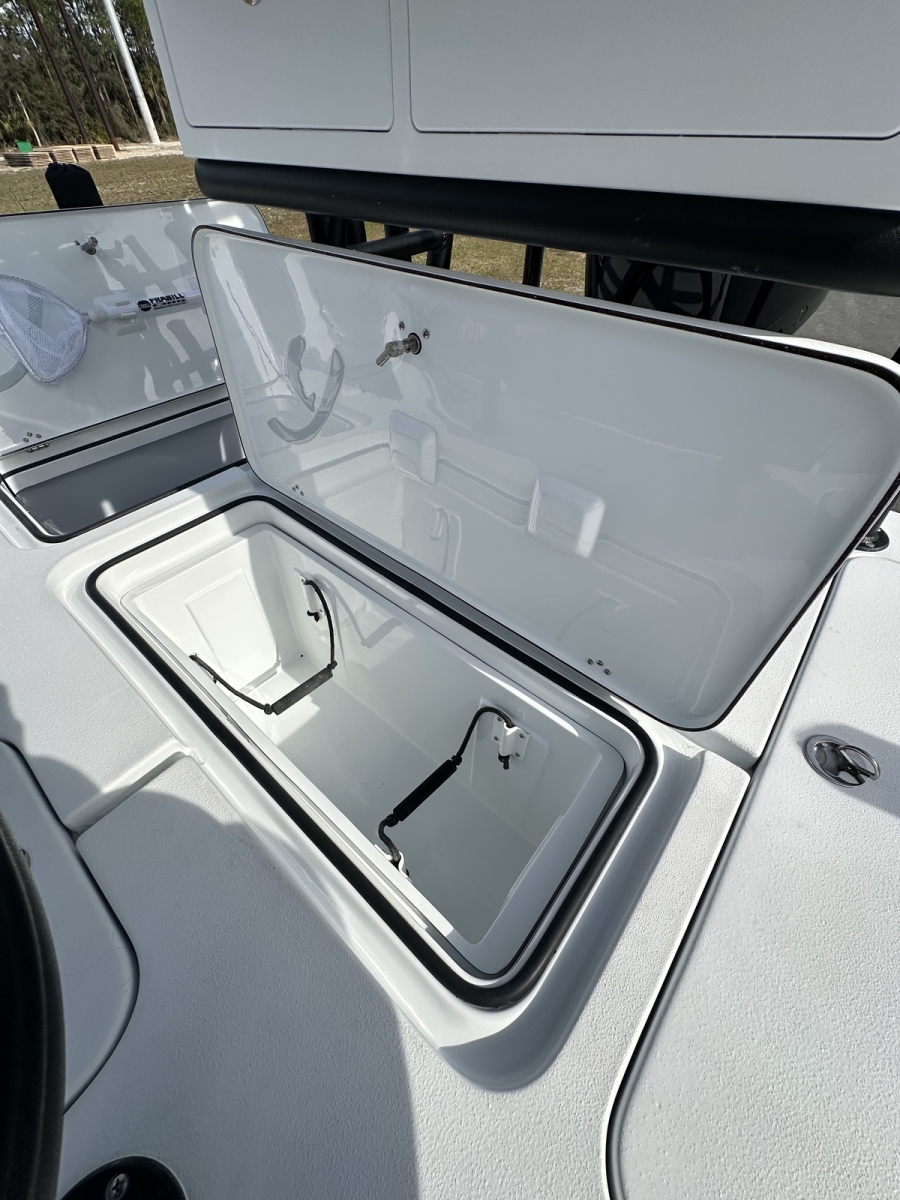

Bilge Access With Drop In Tub
