Built on our proven 20-foot hull, the GulfShore 20 features an optional specialized tunnel, a full transom, and lower-profile sides to deliver exceptional performance in extremely shallow water while maintaining impressive rough-water capabilities.

  • Starting Price $99,700
  • Length (at centerline) 20'
  • Beam 7'5"
  • Draft (loaded) 8"
  • Deadrise (at transom) 12°
  • Deadrise (at bow entry) 30°
  • Weight (w/o engine) 1,050 lbs.
  • Standard Fuel Capacity 40 Gallons
  • Recommended HP Range 115-175 HP
  • Gunwale Width 10'5"
  • Cockpit Depth (freeboard at aft cockpit) 12"
  • Cockpit Depth (freeboard at fwd cockpit) 13.5"
  • Cockpit Size 6'8" x 9'4"
Download Features & Options Pricing
  • Custom single-color hull, all composite, fully self-bailing; tunnel or non-tunnel
  • Three ss “pull-up” cleats (1 bow, 2 stern)
  • 1/2″ ss bow and transom lifting eyes
  • Two ss threaded garboard drains
  • All thru-hulls are titanium and ss and have composite ball valves
  • All compartments are plumbed overboard (no compartments drain into bilge)
  • All hatch opening have deep gutters with rubber gaskets for quietness and dryness
  • All empty chambers under cockpit floor are foam filled (closed cell)
  • Sea Dek under gunwale pads
  • Suzuki 150hp (digital throttle) (white or black)
  • Hydraulic tilt steering with SS knobbed steering wheel (with fingertip grip)
  • Hydraulic jack plate (6″ with turn signal style switch)
  • MinnKota Terrova 54″ 24V, 80lb, manual deploy, 2ea Group 27 batteries & 3-bank charger
  • 8ft Power-Pole Blade (transom mounted) (white or black)
  • Trim Tabs (9×12″, includes indicator switch)
  • 40 gal fuel tank with “Racor” fuel filter/water separator
  • One Group 27 cranking battery with heavy duty holding tray and Blue Sea battery switch
  • Two bilge pumps with automatic float switches
  • Live well pump (800gph) with intake filter, removable screen and composite ball valve
  • All wiring is marine tinned, and all connections have epoxy coated heat shrink connectors
  • Elevated composite console with powder coated aluminum tower (4 welded rod holders)
  • SIMRAD Electronics Package (includes 1ea NSS 9″ MFD, SS60 600W thru hull transducer, 2-1 active imaging transducer)
  • All navigation lights are LED Seating, Storage & Fishing Features
  • Powder coated poling platform with non-slip steps and two welded rod holders
  • Deluxe flip-bolster helm seat
  • Removable Cooler with Backrest (65qt. Cooler, backrest to elevated tower stand, includes matching seat and backrest cushion
  • Push pole holders (set of three, flush mount, flip-up)
  • Four ss flush mount rod holders (mounted on deck cap)
  • Under gunwale rod racks (holds 8 rods)
  • Custom integrated fish ruler
  • Raw water washdown (with ss outlet, coil hose, and quick disconnect)
  • One 37 gal release well/ live well & one 37 gal insulated cooler/fishbox
  • Armstrong removable watertight hatch for bilge access
Download Features & Options Pricing
  • Anchor Locker
  • Dry Storage
  • Rigging

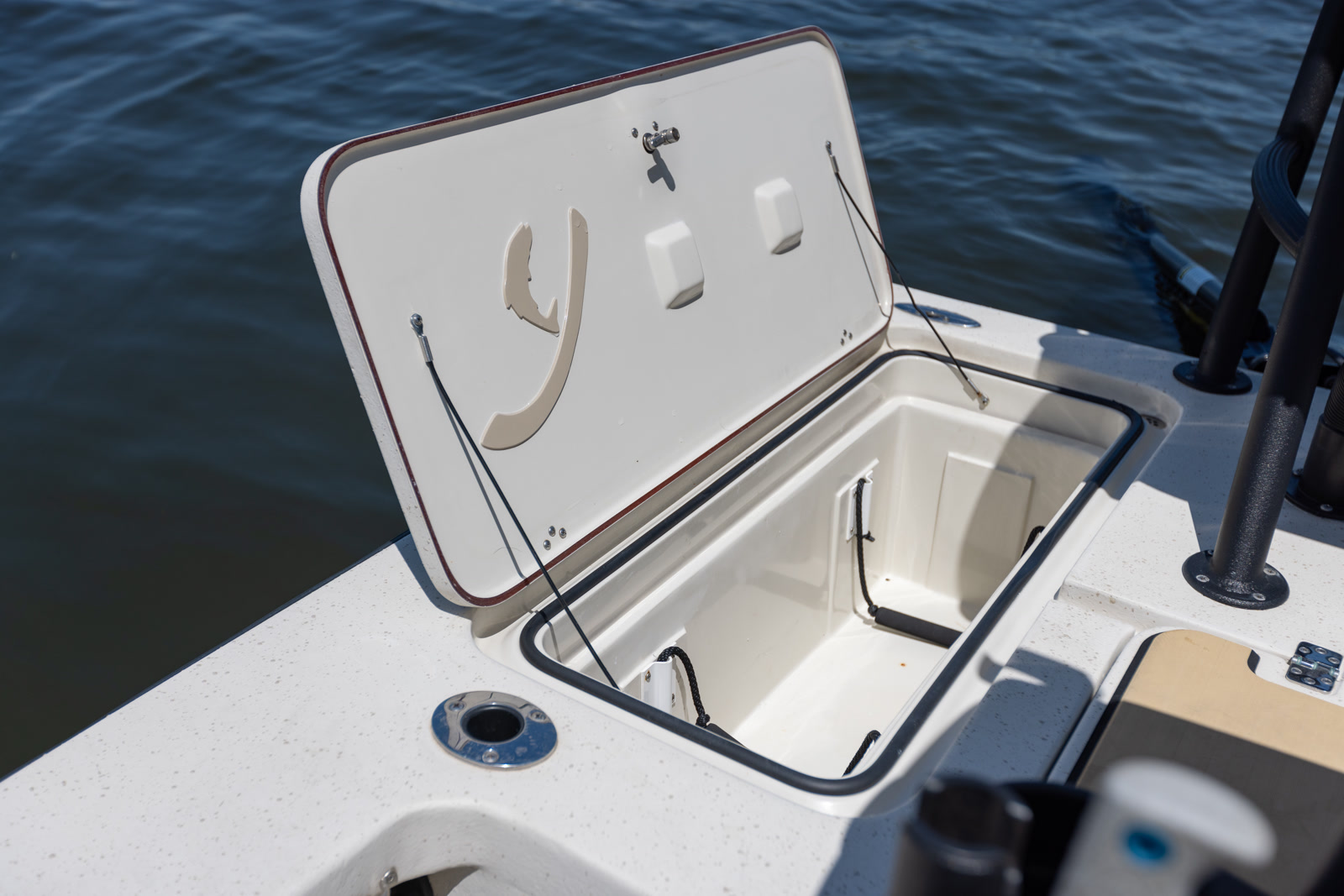

  • Insulated Fish Box
  • Cooler/Seating
  • Bilge Access
  • Release Well
  • Leaning Post
Download Features & Options Pricing

Key Features
and Highlights

Download Features & Options Pricing Download Brochure

Design

Purpose-built for shallow-water anglers; available with or without a tunnel and multiple layout options. Proven running surface that handles chop at high speeds with excellent balance.

Construction

All-composite modified-V hull (tunnel optional) with sprayed-on gelcoat non-skid finish. Self-bailing deck with wide customization range.

Water Capability

Excels in shallow flats yet handles inshore and moderate-to-heavy chop with confidence and a smooth, solid ride.

Download Features & Options Pricing Download Brochure

Additional Options & Upgrades

Engine Upgrades *The following are upgrades from the standard Suzuki 150hp (Digital throttle) (white or black)
  • Suzuki 175hp 4-stroke (Digital throttle)
  • Mercury 150hp Pro XS (Mechanical)
  • Mercury 175hp Pro XS (Mechanical)
  • Yamaha 150hp SHO (Mechanical)
  • Yamaha 175hp SHO (Mechanical)
  • Upgrade trim tabs to Lenco Pro Control Auto System
  • Jackplate indicator (NMEA 2000)
Trolling Motor Upgrades & Options *The standard trolling motor is the MinnKota Terrova 54" 24V, 80lb, Manual Deploy
  • Upgrade to MinnKota iPilot Terrova QUEST (brushless, 24V, 90lb, 60″, Manual Deploy)
  • Upgrade to MinnKota Rip Tide iPilot INSTINCT (brushless, 24V, 90lb, 60″, Auto Deploy)
  • Upgrade to Power-Pole MOVE (brushless, 24V 78lb, 52″ shaft, Manual Deploy)
  • Upgrade to SIMRAD RECON (24V, 54″ shaft, Manual Deploy)
  • Upgrade to GARMIN Force Kraken (24V, 48″ shaft, Manual Deploy)
Trailer
  • Aluminum Dual Axle Trailer (includes all ss hardware, ss hubs, spare tire assembly, step-on fenders custom fit “driver-on” bunks, and ss cad disc brakes)
  • Aluminum Wheels
  • Removable or Swing-Away Tongue
Electronics Package *The standard electronics package is the SIMRAD 1ea NSS 9" MFD, SS60 600W thru hull transducer, and 2-1 active imaging transducer
Marine Stereo Package (Includes Fusion head unit, 2ea JL Audio 7.7" speakers and all wiring and installation)
  • Upgrade – two additional JL Audio 7.7″ speakers
  • Upgrade – JL Audio 400/4 amp
  • Upgrade – to sub package: one JL Audio 10″ subwoofer with audio amplifier
SIMRAD Electronics Package Additions
  • Upgrade to SS75 thru hull CHIRP transducer
  • Upgrade to NSS 12″ MFD
  • SIMRAD WM-4 Sirius-XM Satellite Weather Module and Antenna
  • SIMRAD VHF RS40 with 4ft antenna
GARMIN Electronics Package Options
  • Upgrade to GARMIN Electronics Package (Includes 1ea 10″ 1042xsv MFD, B60 600W thru hull transducer, and Side and Downscan transducer. Includes all wiring and installation)
  • Upgrade to B75 thru hull CHIRP transducer
  • Upgrade to 12″ 8612xsv MFD
  • GARMIN GXM-54 Sirius-XM Satellite Weather Module and Antenna
  • GARMIN VHF 215 with 4ft antenna
Aluminum Fabrication *The standard aluminum is a powder-coated helm & poling platform with non-slip steps and two welded rod holders
  • Additional rod holder welded to tower frame (pair)
  • Cup holder welded to tower frame (pair)
  • Knife/plier/cup holder combo welded to tower frame (pair)
  • Removable casting platform (includes flush ss base and turnbuckle)
  • Removable casting seat (cushioned stool, Defender flush mount, turnbuckle, backing plate)
  • Defender flush mount only (includes flush base, removable eye, and backing plate)
Anchoring
  • Upgrade standard single 8ft Power Pole Blade to dual Power Pole 8ft (with one pump or dual pumps)
  • Upgrade to single 10′ Power Pole (with wireless remote)
  • Upgrade to dual 10ft Blades
  • Dual Power Pole Bracket (mount to side of jack plate)
Fishing & Rigging
  • Additional SS Rod Holders (flush mounted on deck cap) – $300 (pair)
  • Rod Holder/Cup Holder Combos – $500 (pair)
  • Gunnel cup holders – $200 (pair)
  • Dual drawer cabinet under leaning post
  • Single drawer unit under helm
Upholstery & Seating
  • Removable Pedestal Seat (choice of captain style or bicycle style) (includes flush mount ss base, adjustable cylinder, and matching upholstery)
  • Bench Seat with Removable Backrest (includes dry storage and removable bench cushion)
  • Composite seat pod with one Llebroc (includes two armrests) and dual drawer polymer tackle storage
Covers & Enclosures
  • Custom Full Boat Cover (choice of color)
  • Extended Sides (full boat cover)
  • Cockpit Bimini Top (choice of color, includes boot)
  • Helm Bimini Top (choice of color, includes boot)
  • Console Cover (choice of color, covers entire composite helm)
  • Combo Cover (choice of color, covers console, backrest, tower)
  • Life Jacket Storage
Lighting & Plumbing
  • Underwater Lights LED – Pair
  • Upgrade Underwater Lights to Spectrum
  • Cockpit Lights LED (set of 4)
  • Upgrade Cockpit Lights to Spectrum
  • Spreader Lights (high intensity, LED) – $500ea
  • Lumitec Razor Light Bar (low profile, curved 18″)
  • Recirculating Live Well Pump
  • Clear Acrylic Release Well Lid or Bait Well Lid (with etched logo)
Deck & Utility
  • Pull-Out Ladder (3-step)
  • Armstrong Dive Ladder (3-step removable)
  • Fly rod tubes (set of 4)
  • Helm Pad (Sea Dek)
  • 12V Accessory Outlet Mounted/Wired Inside Console
  • Upgrade Batteries to AGM – $270ea
  • Forward Corner Steps
  • Bulkhead tackle storage (includes 3 plano trays, flush mounted into bulkhead)
  • 20′ Fiberglass Push Pole
  • 21′ Carbon fiber Push Pole
  • Midship cleats (pair)
Download Features & Options Pricing Download Brochure

Just Delivered

Center Console
October 2025
Captains Elevated Helm
June 2025
Captains Elevated Helm
October 2022
Center Elevated Helm
August 2019
Center Console - October 2025

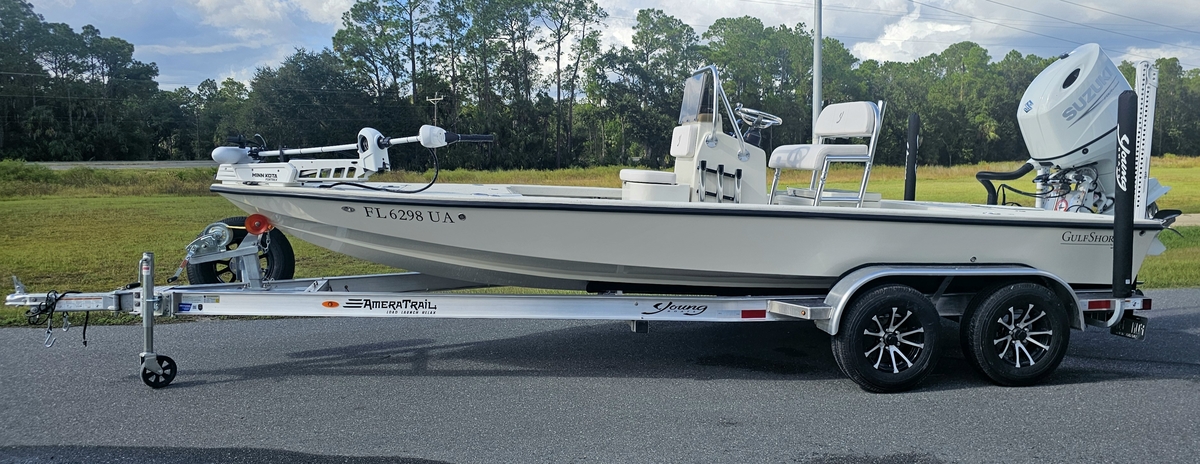

Side View

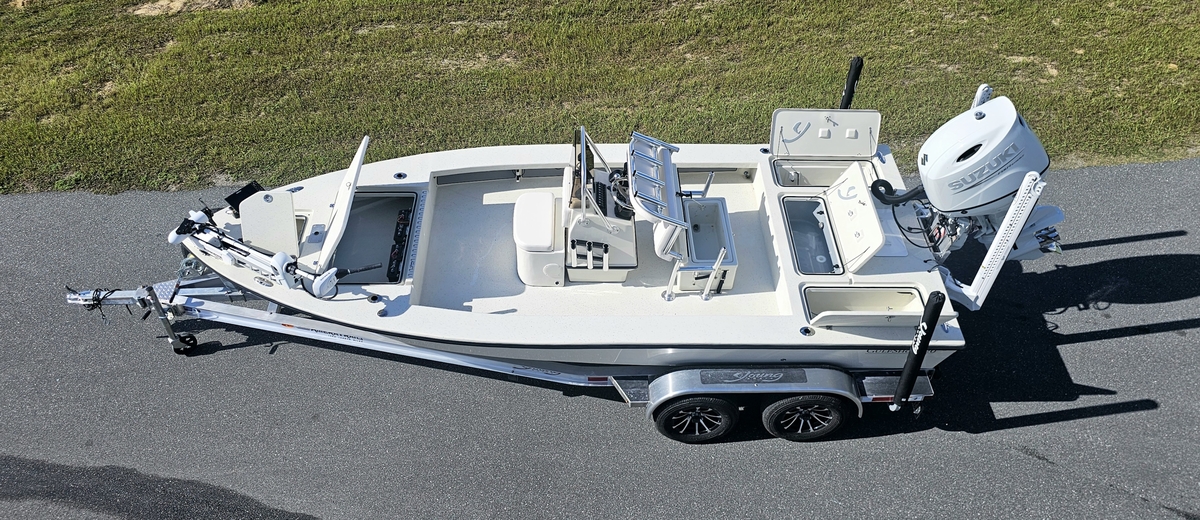

Arial Side View

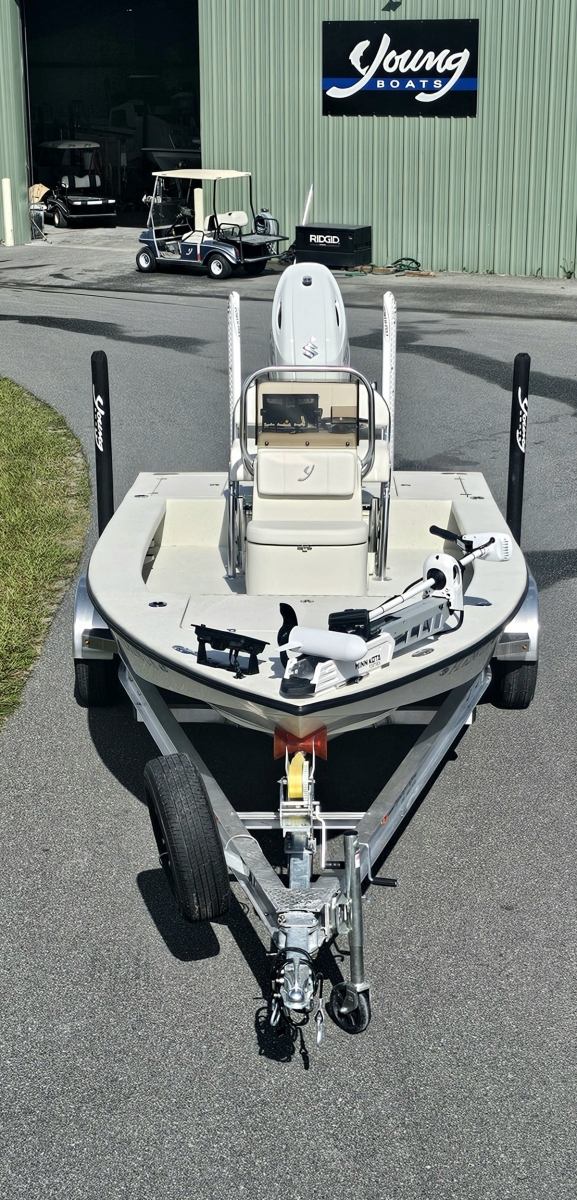

Front View

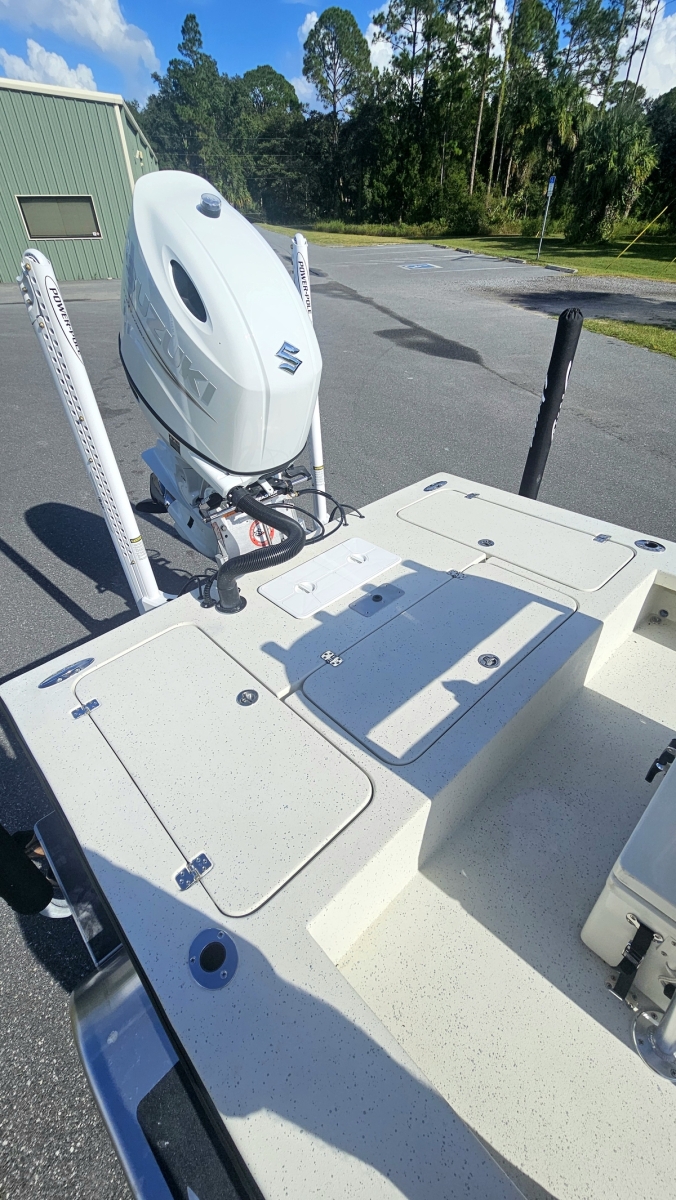

Rear deck

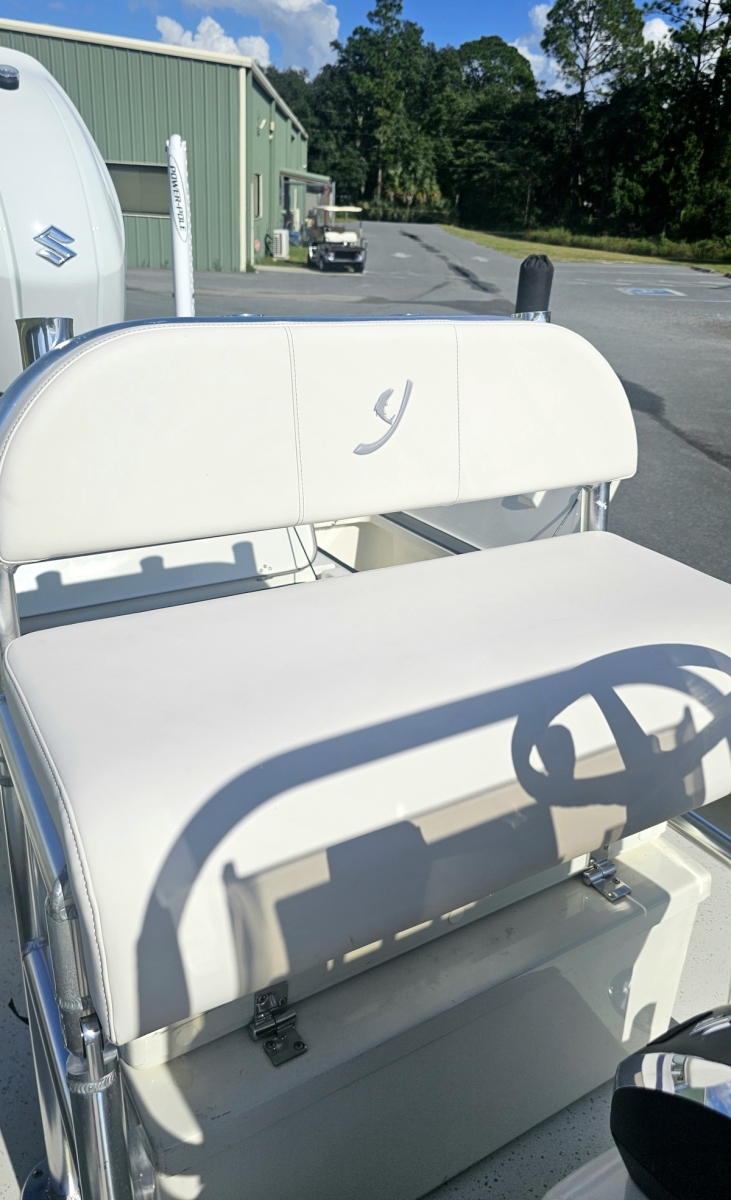

Helm seating

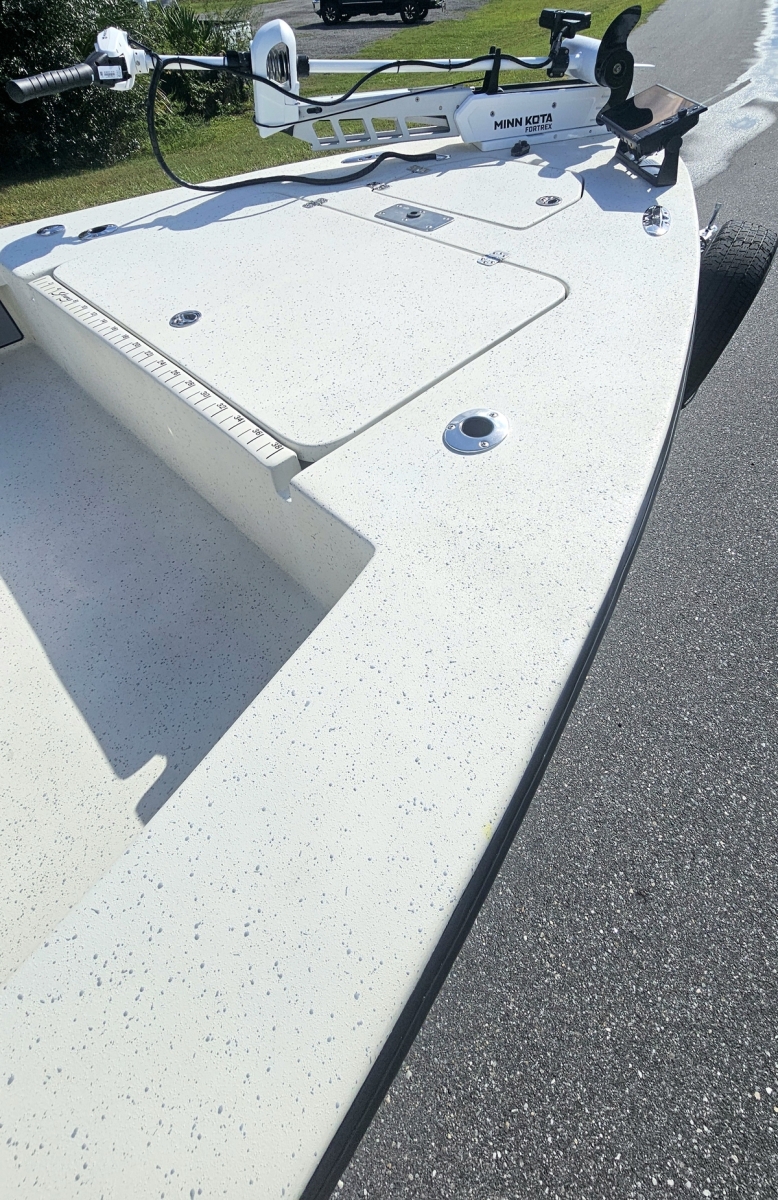

GS20_front deck

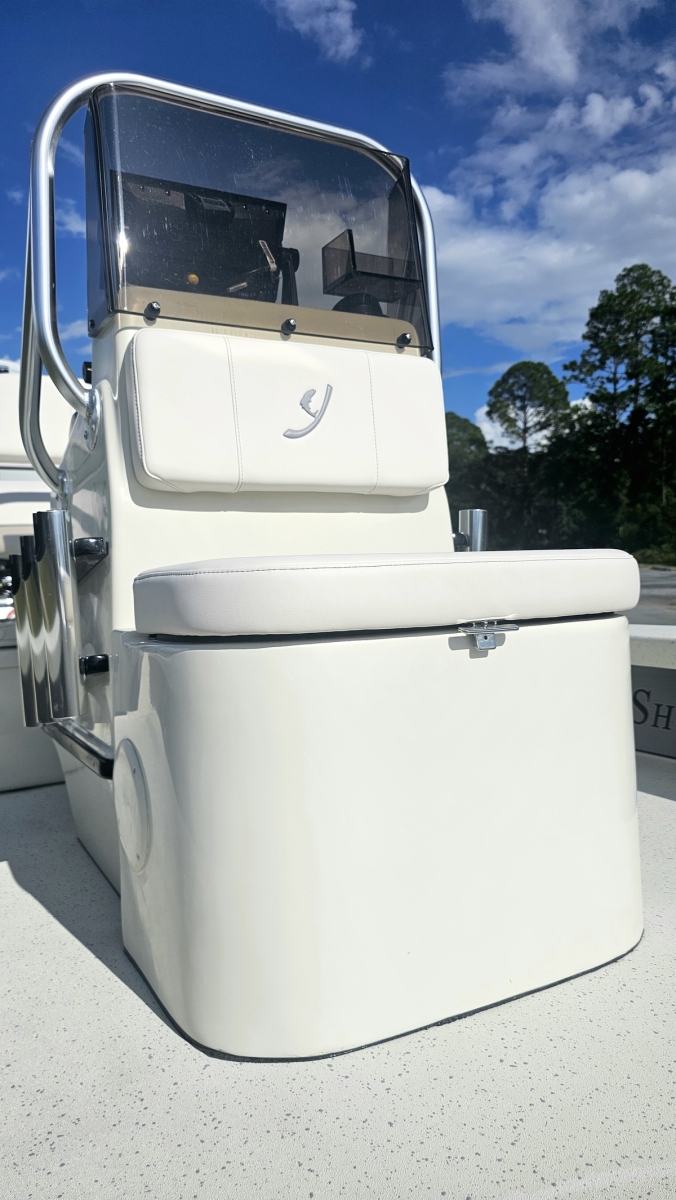

GS20_Console seating

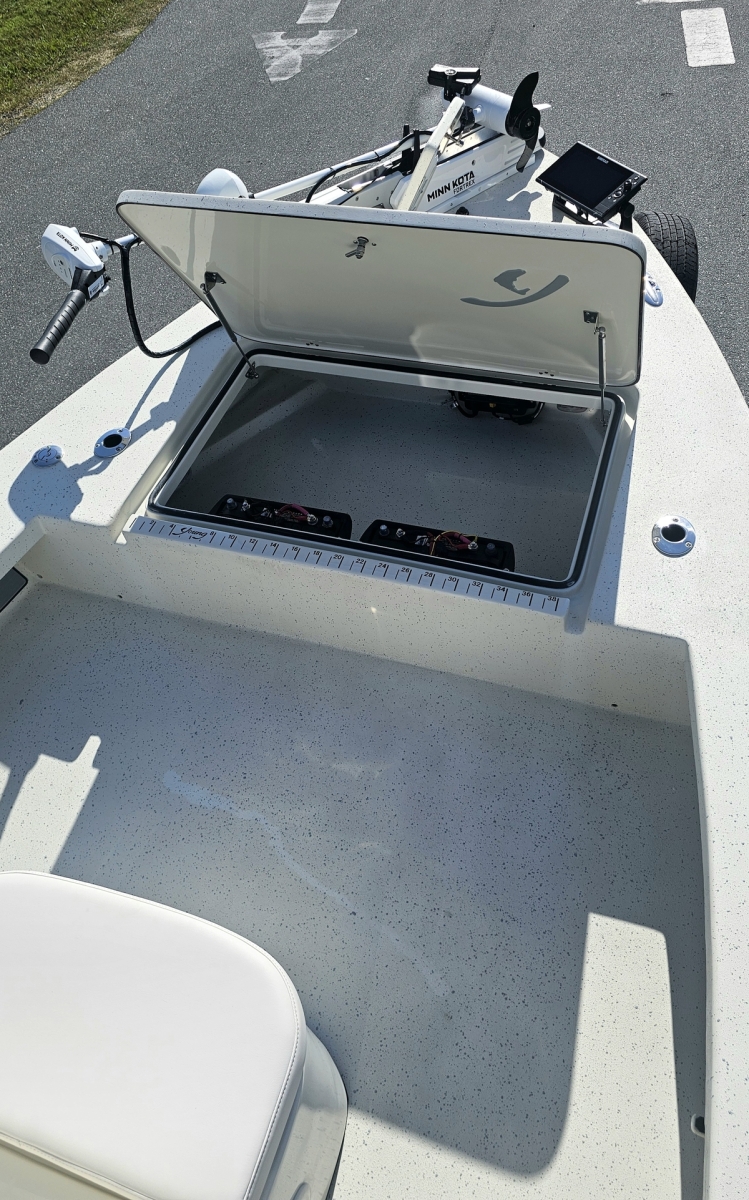

Fwd storage

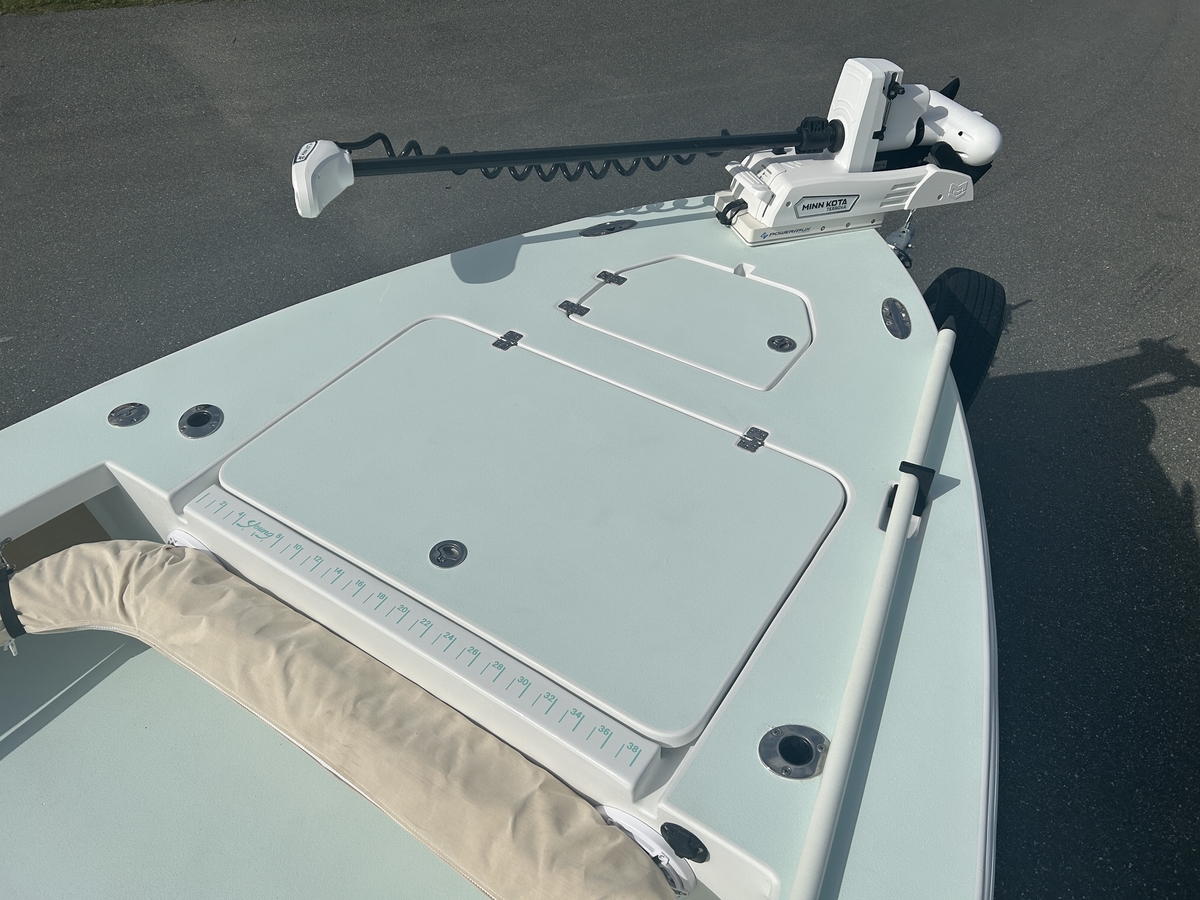

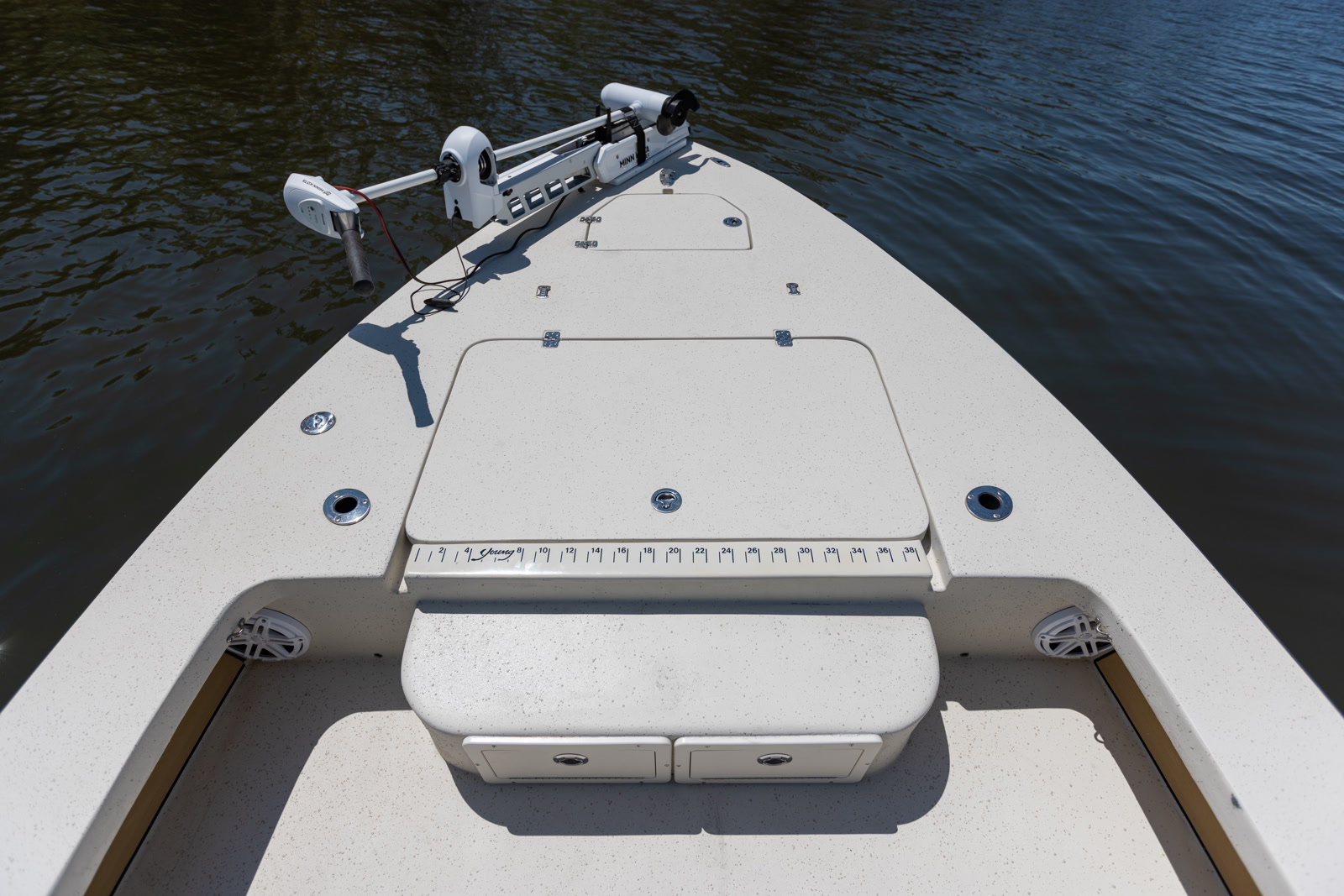

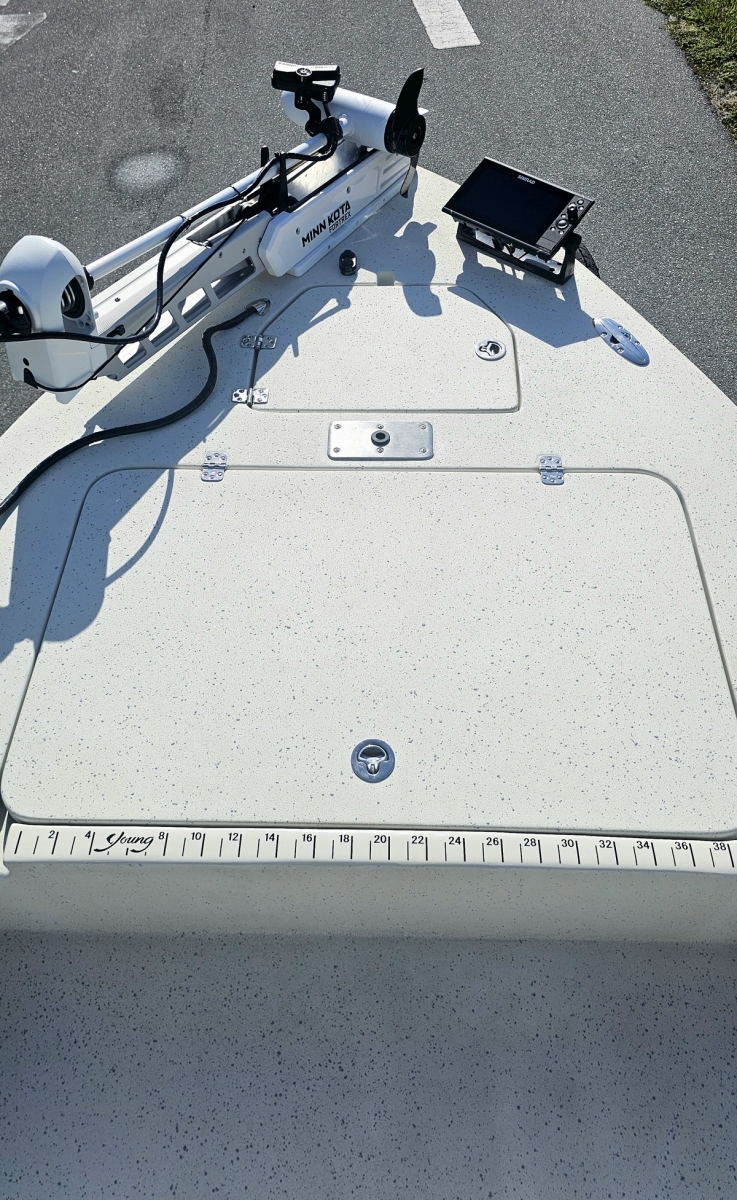

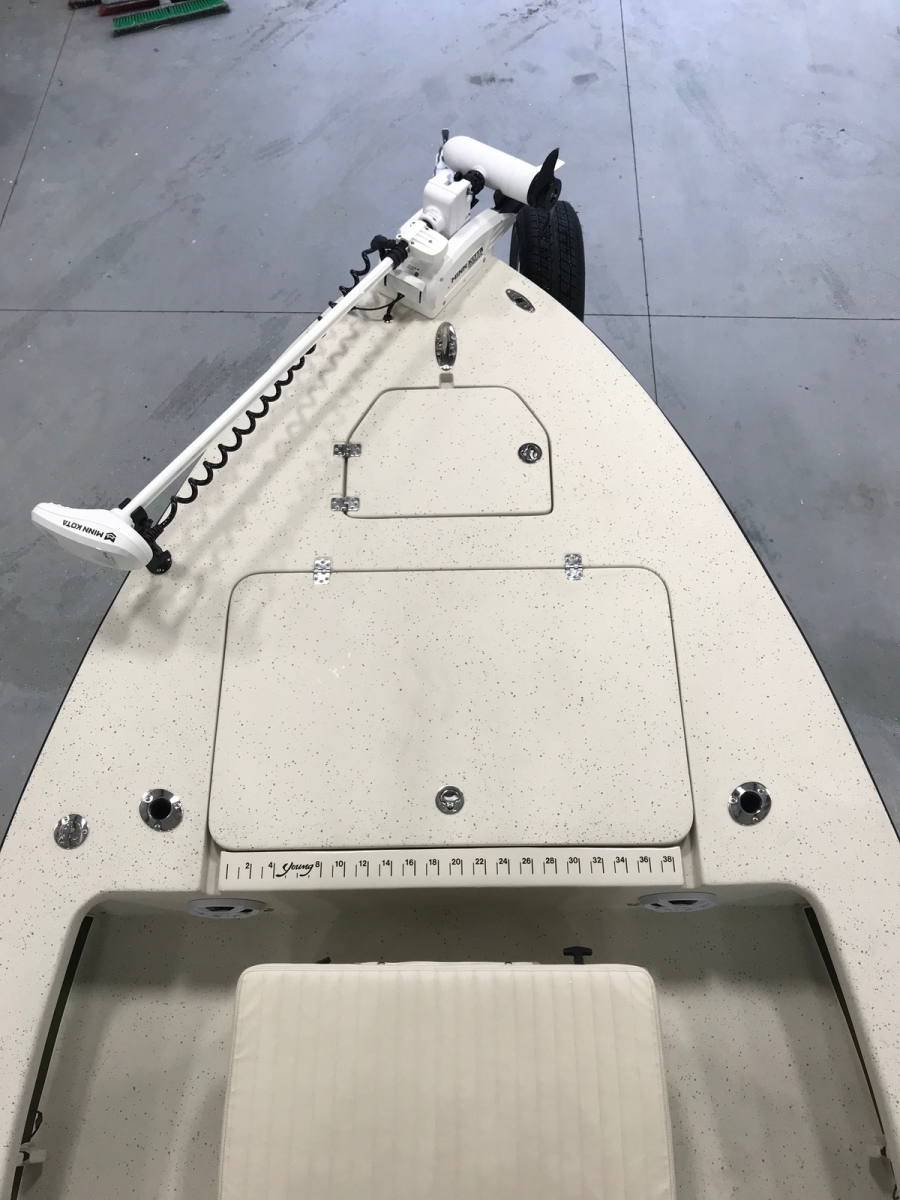

Front deck

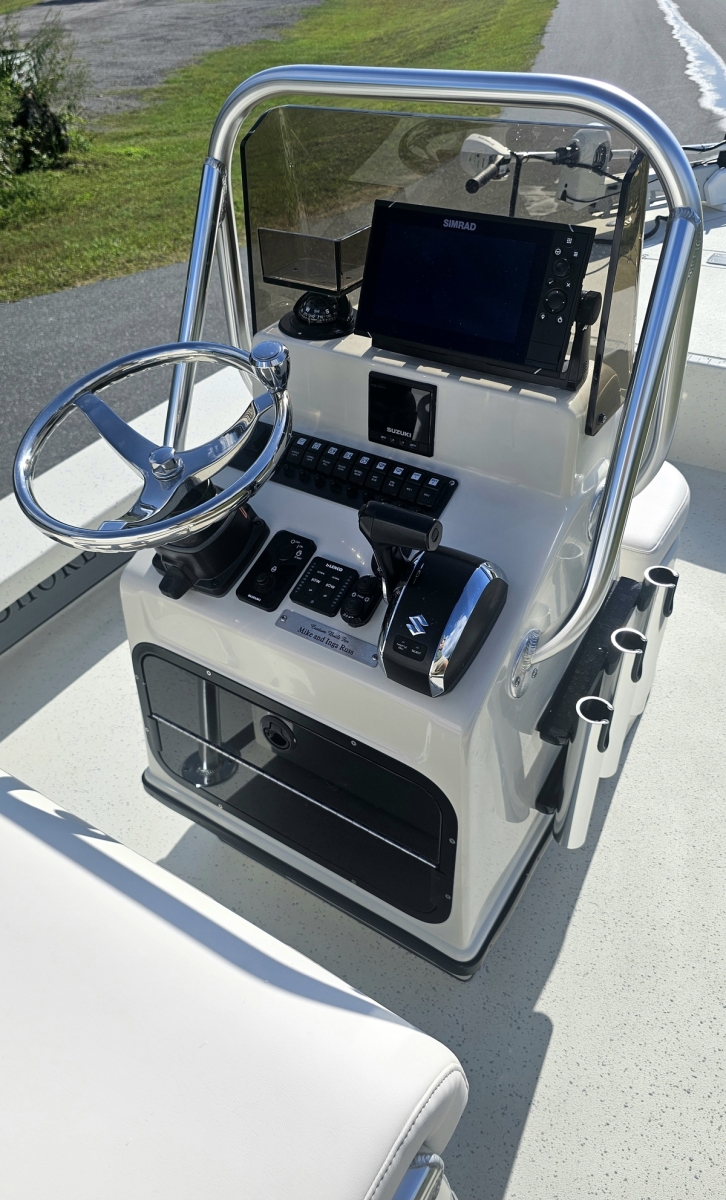

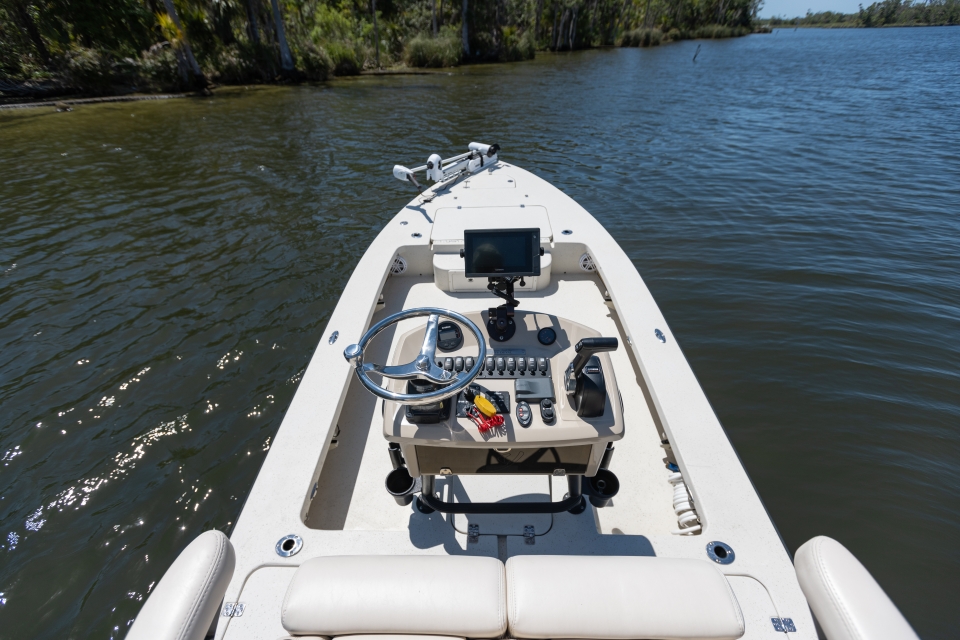

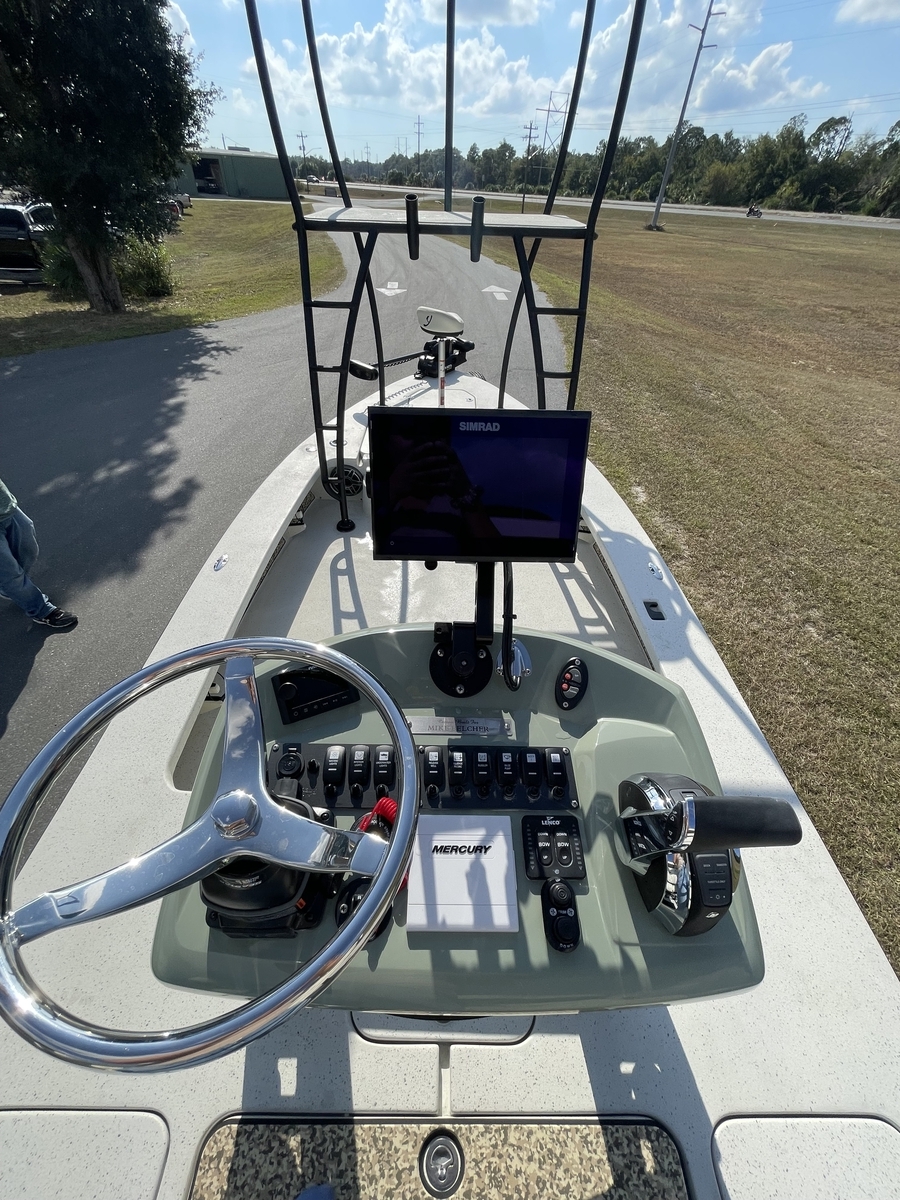

Console

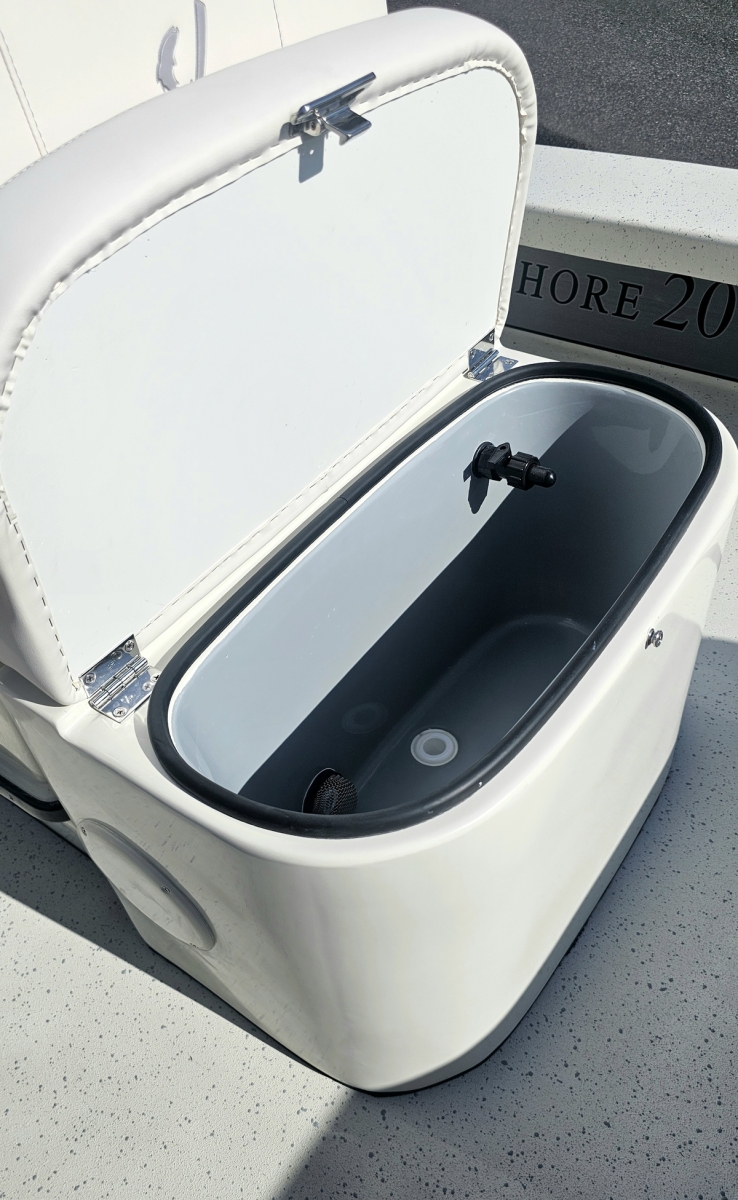

Center baitwell

Captains Elevated Helm - June 2025

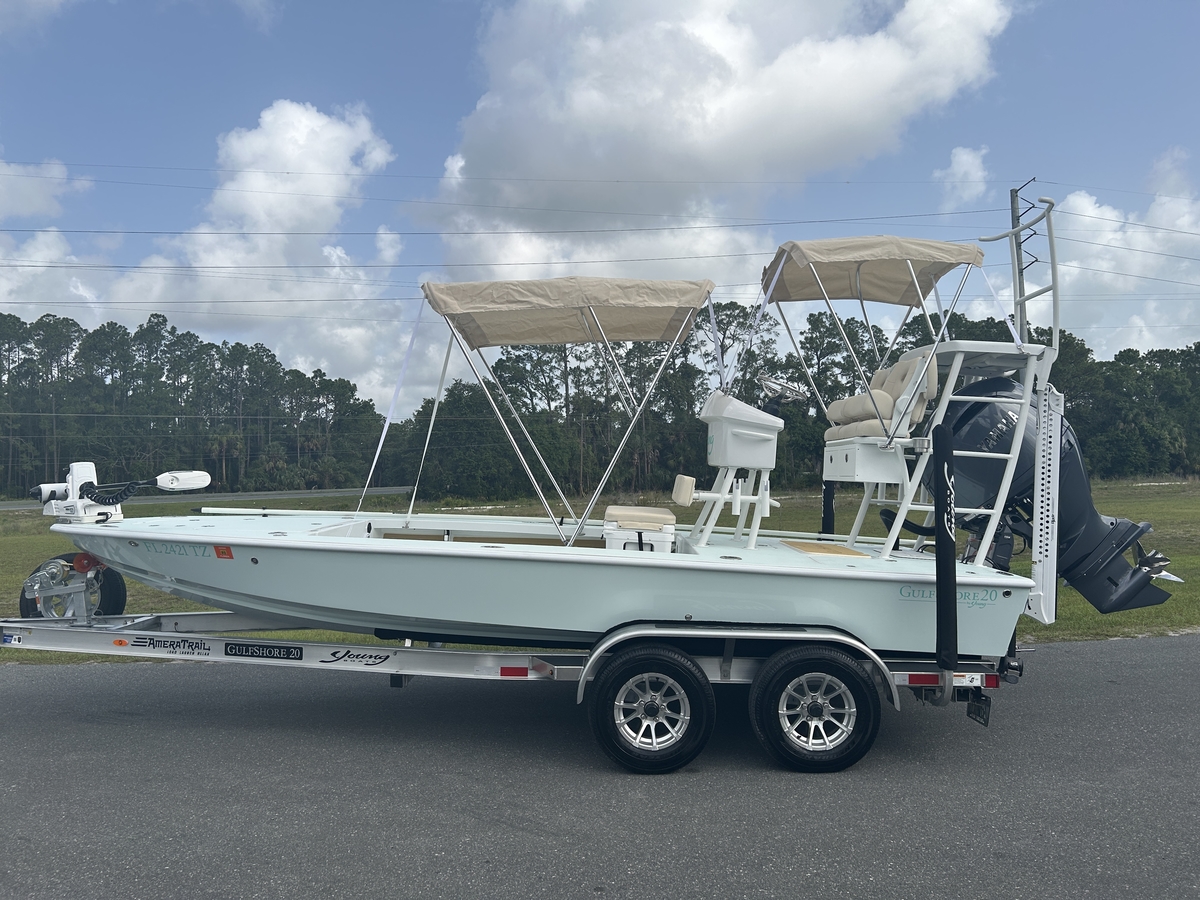

Biminis up

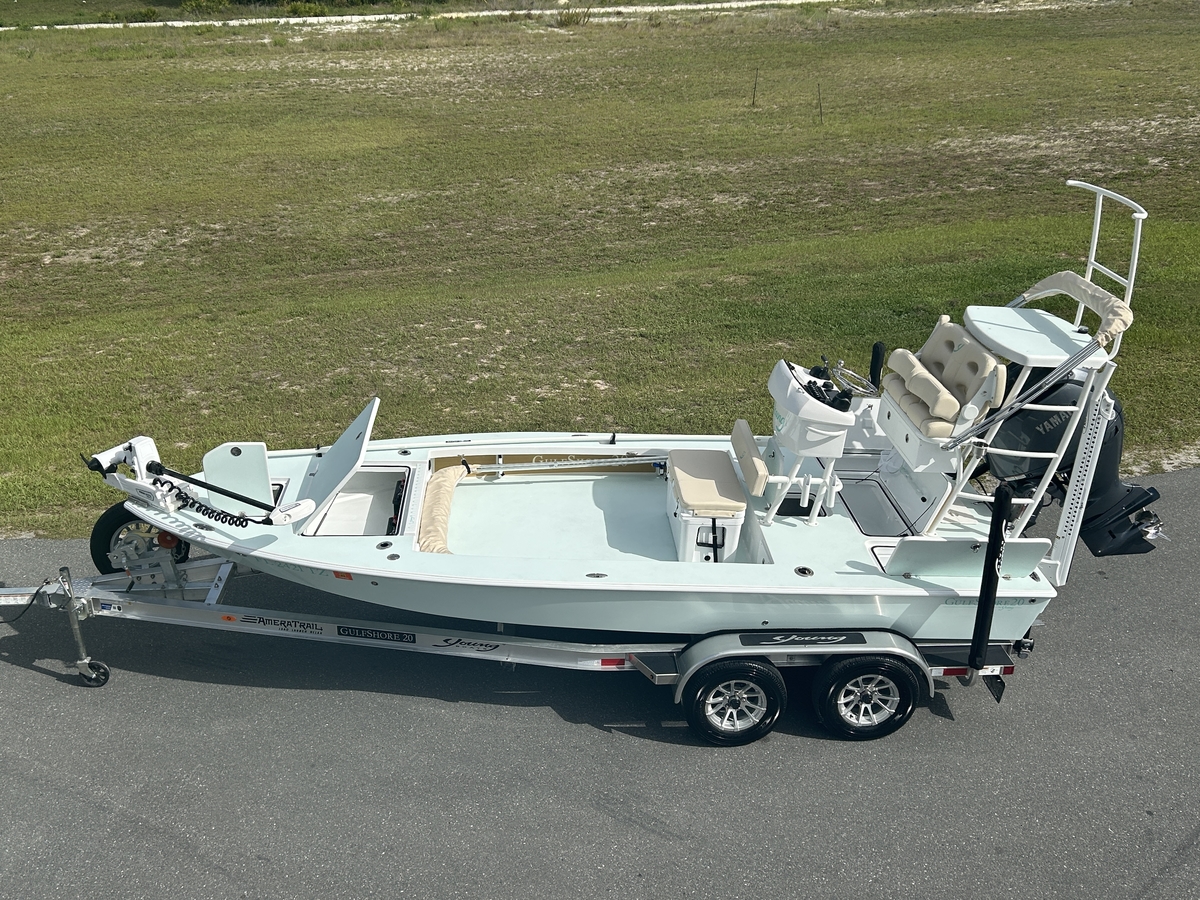

Port aerial

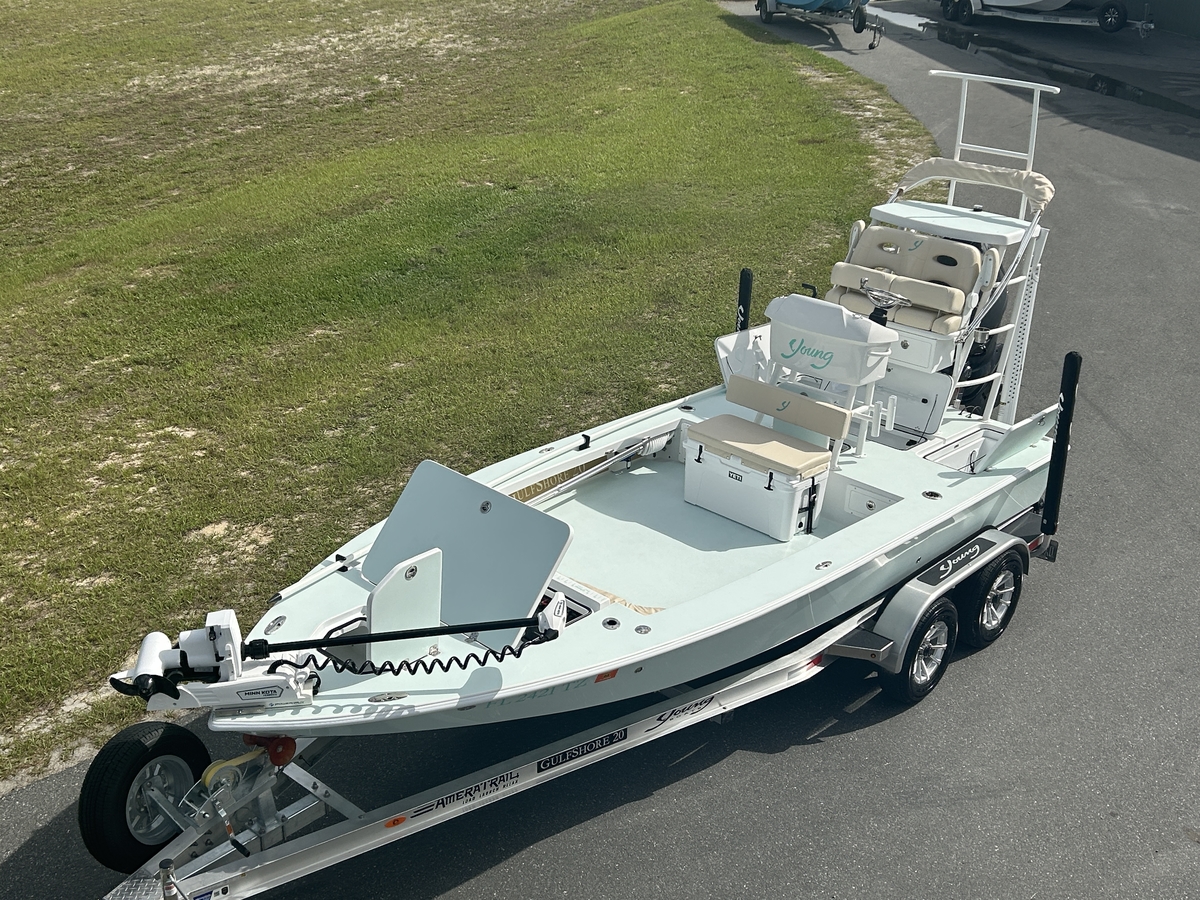

Port bow aerial

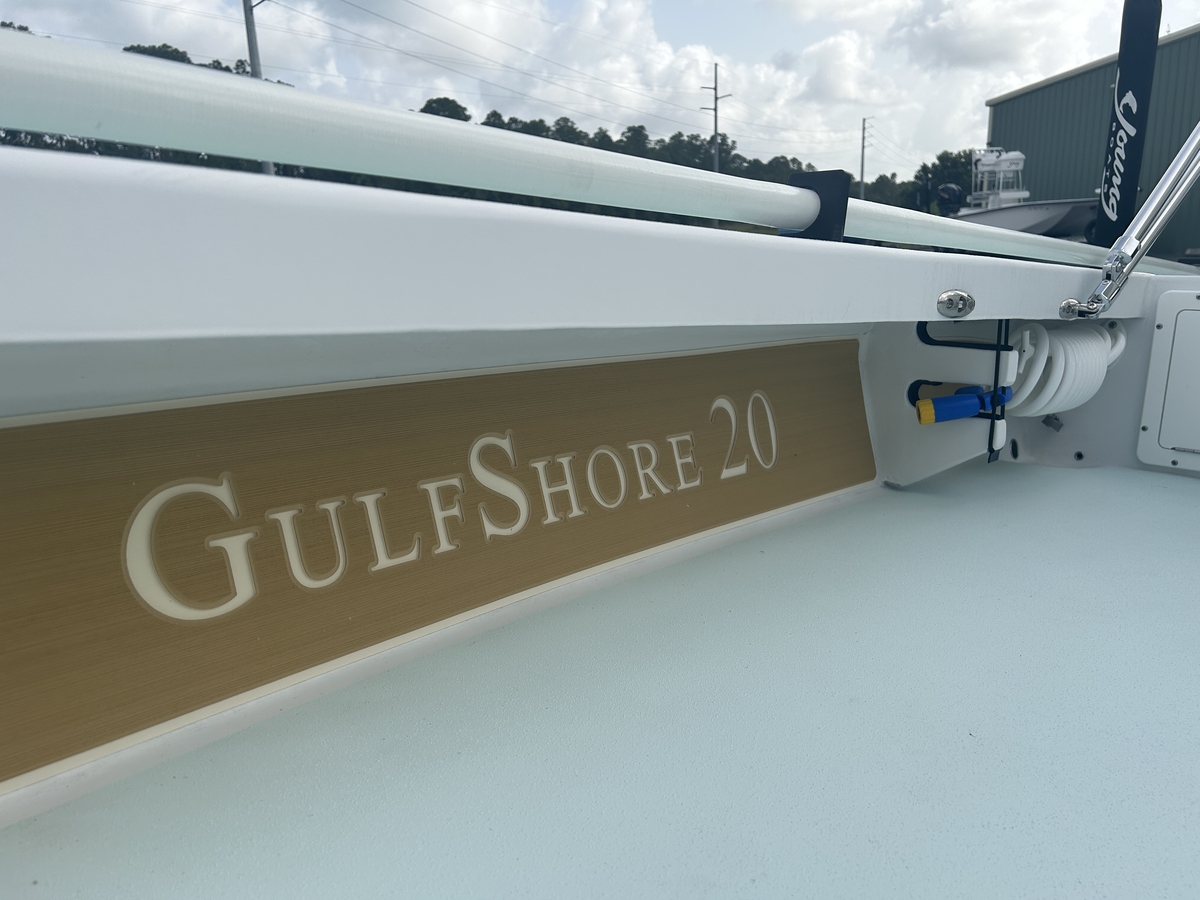

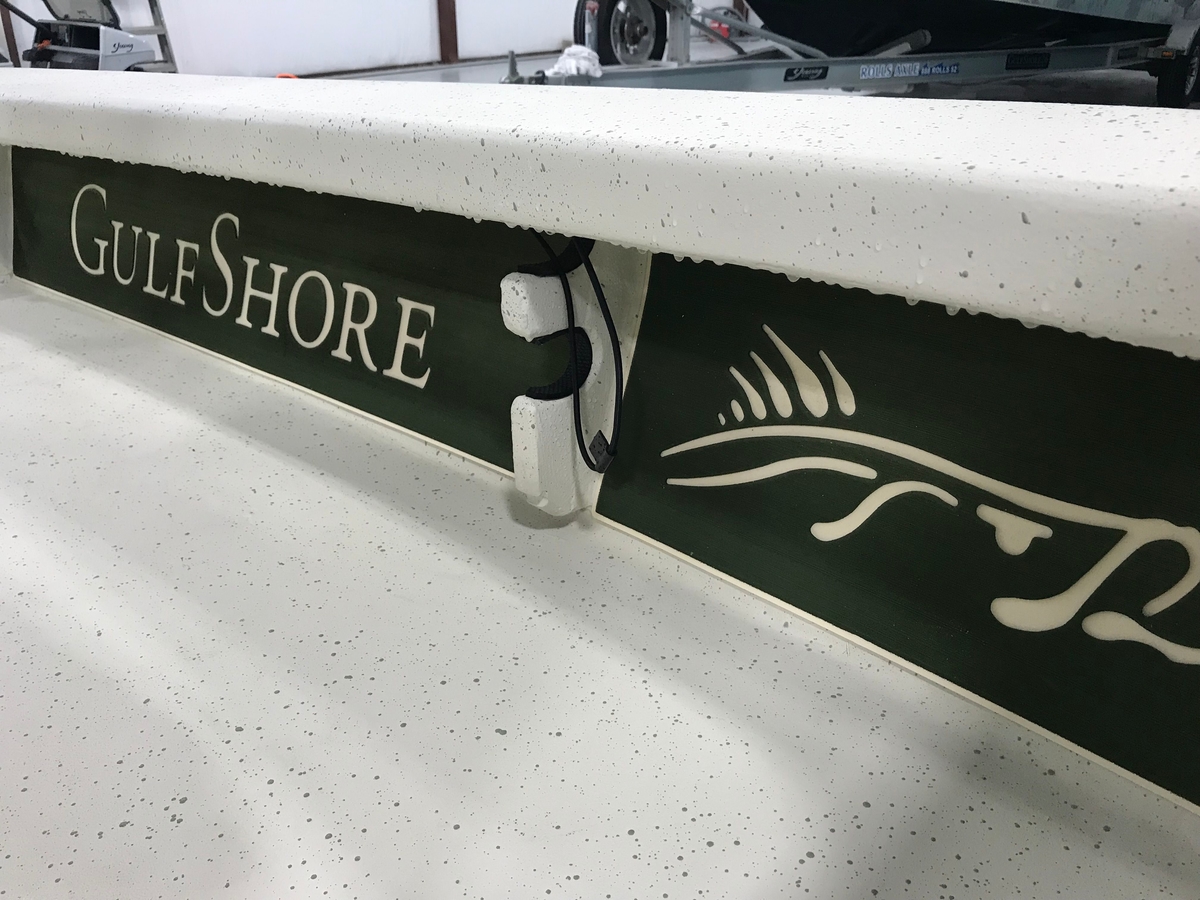

Under gunnel sea dek

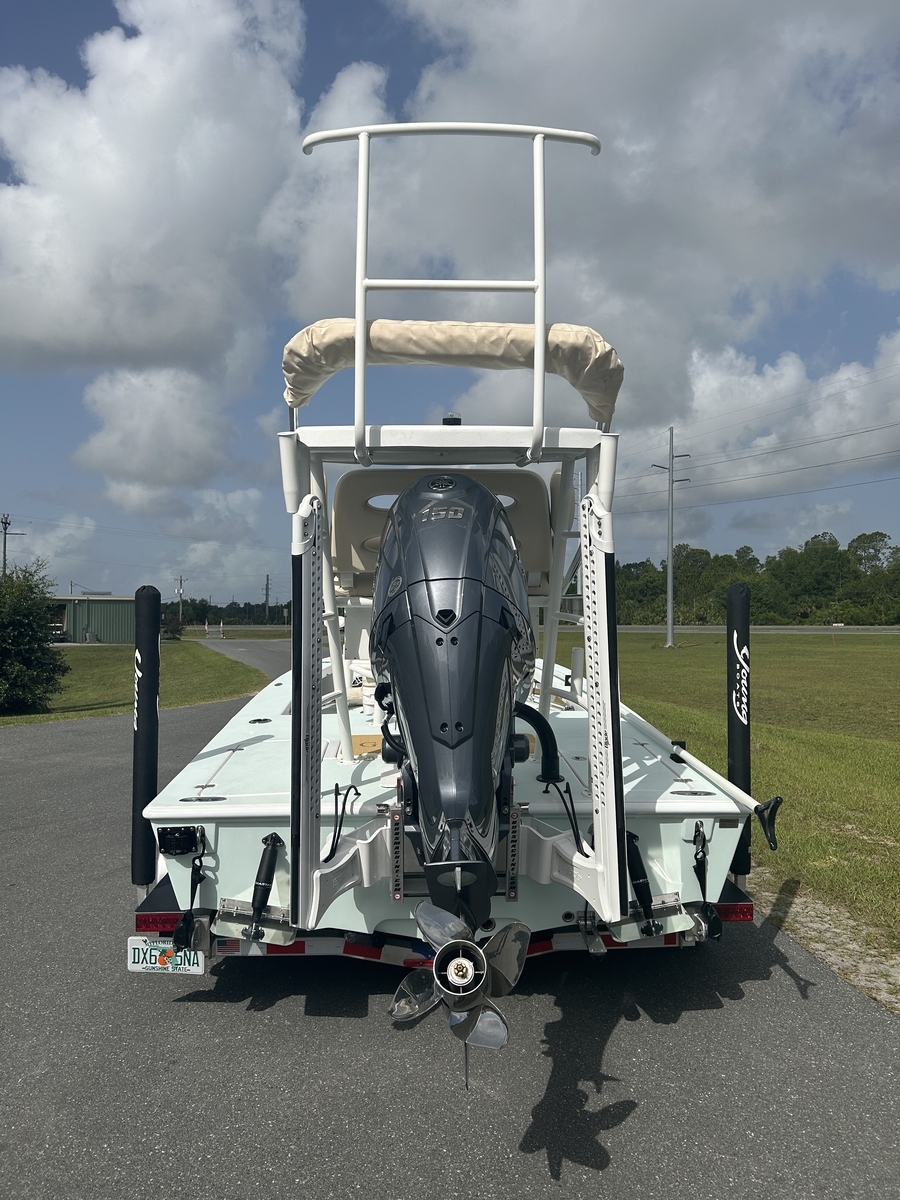

Transom view

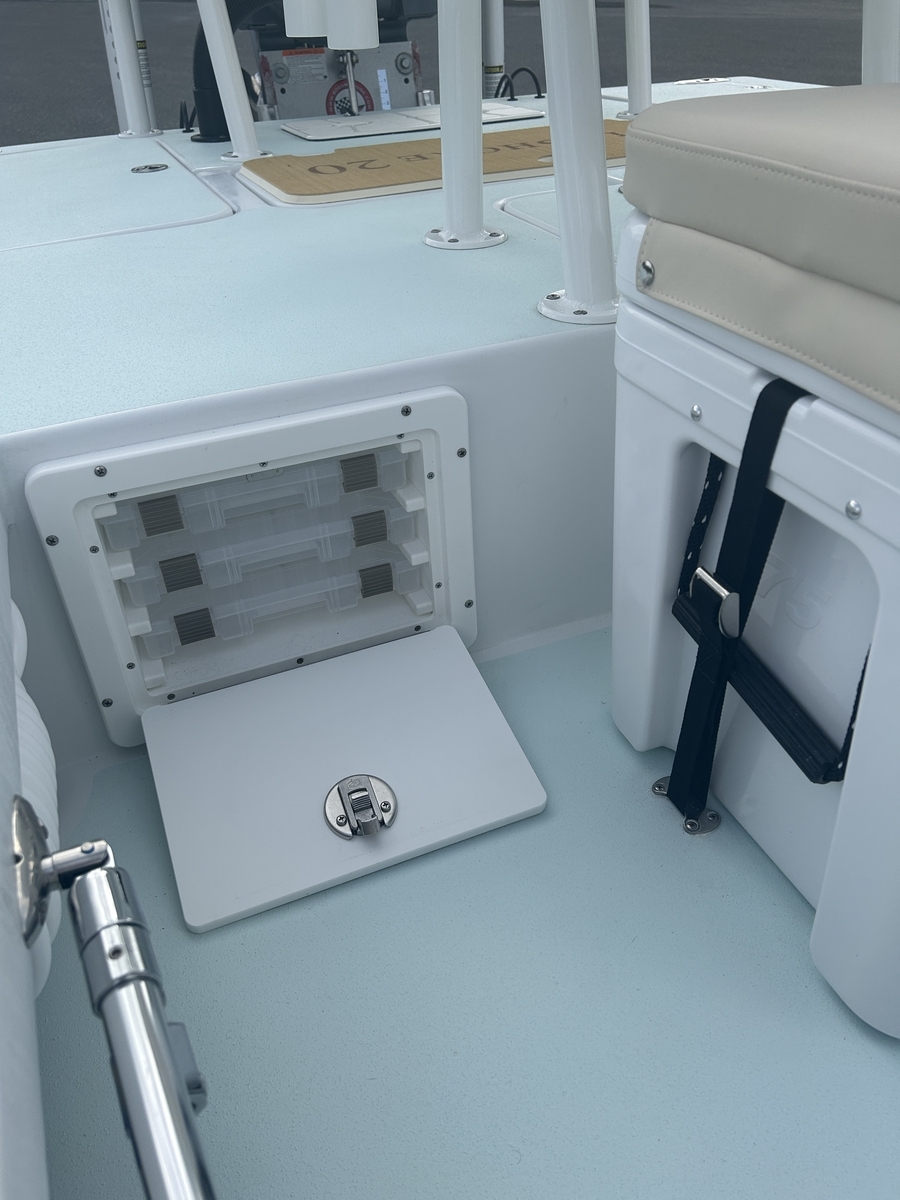

Starboard plano storage

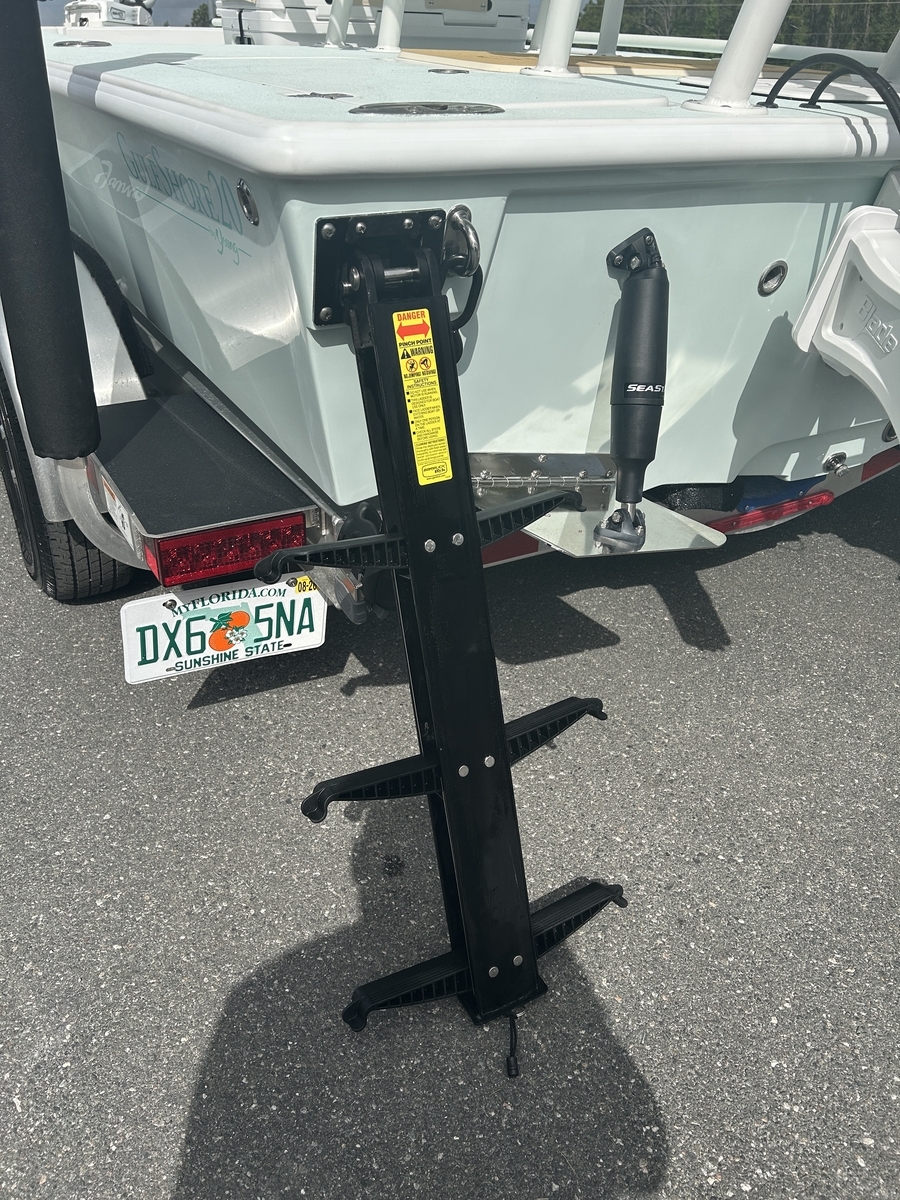

Pull out ladder

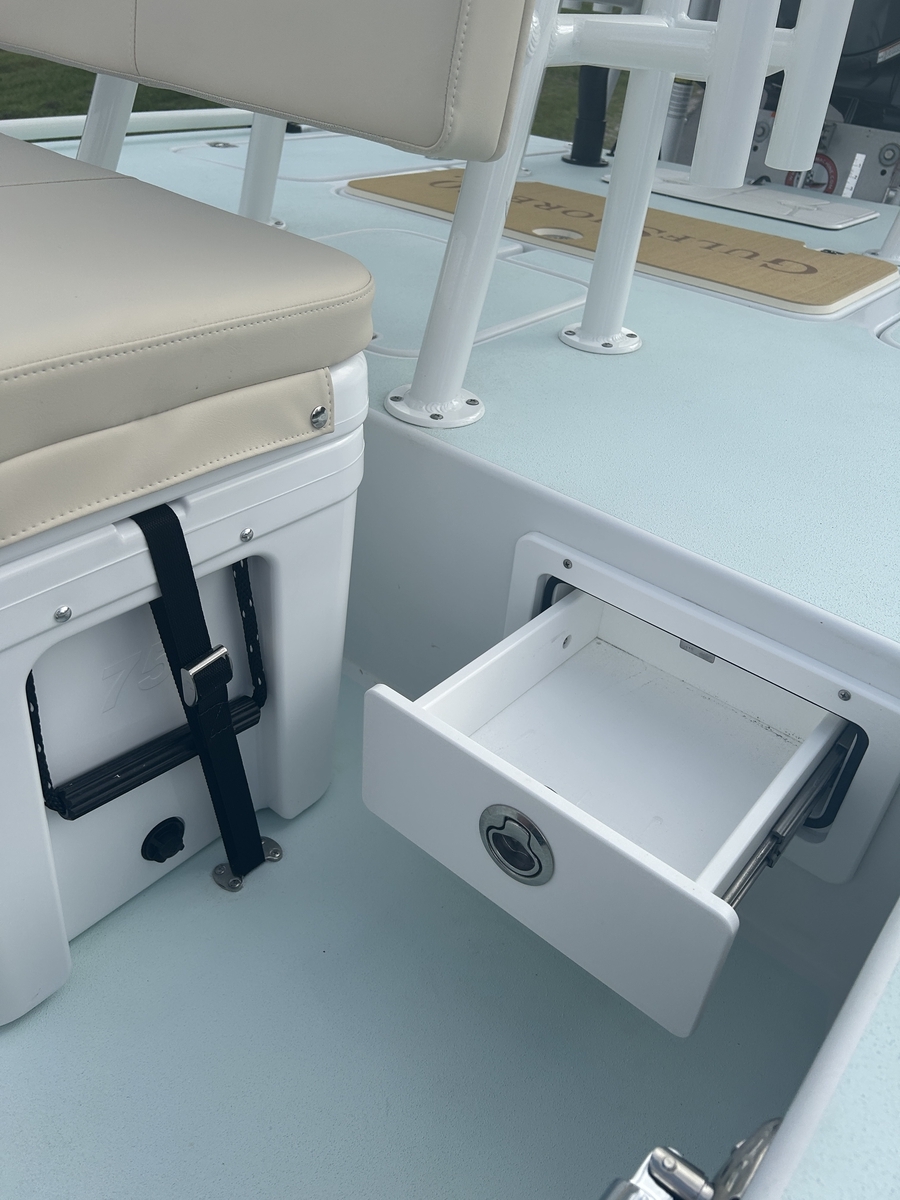

Port drawer

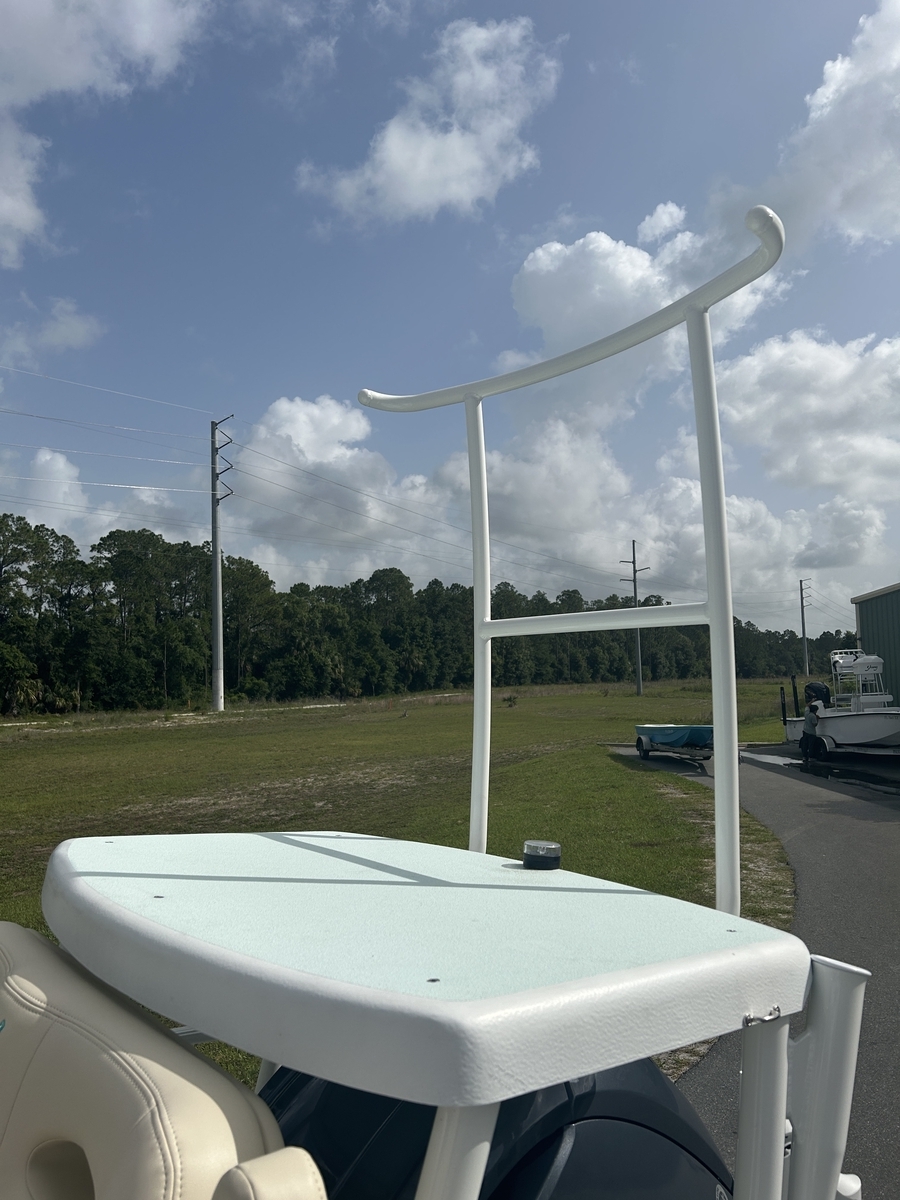

Poling platform

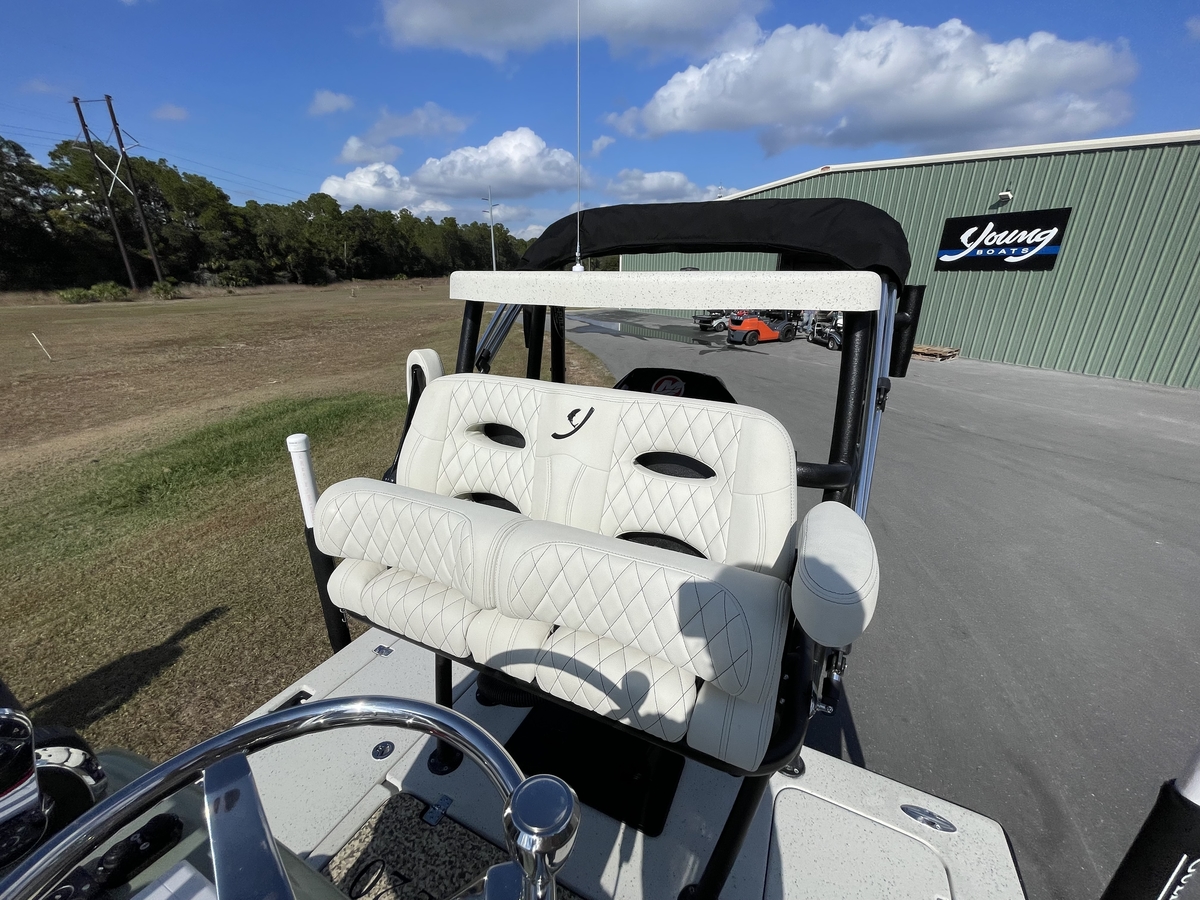

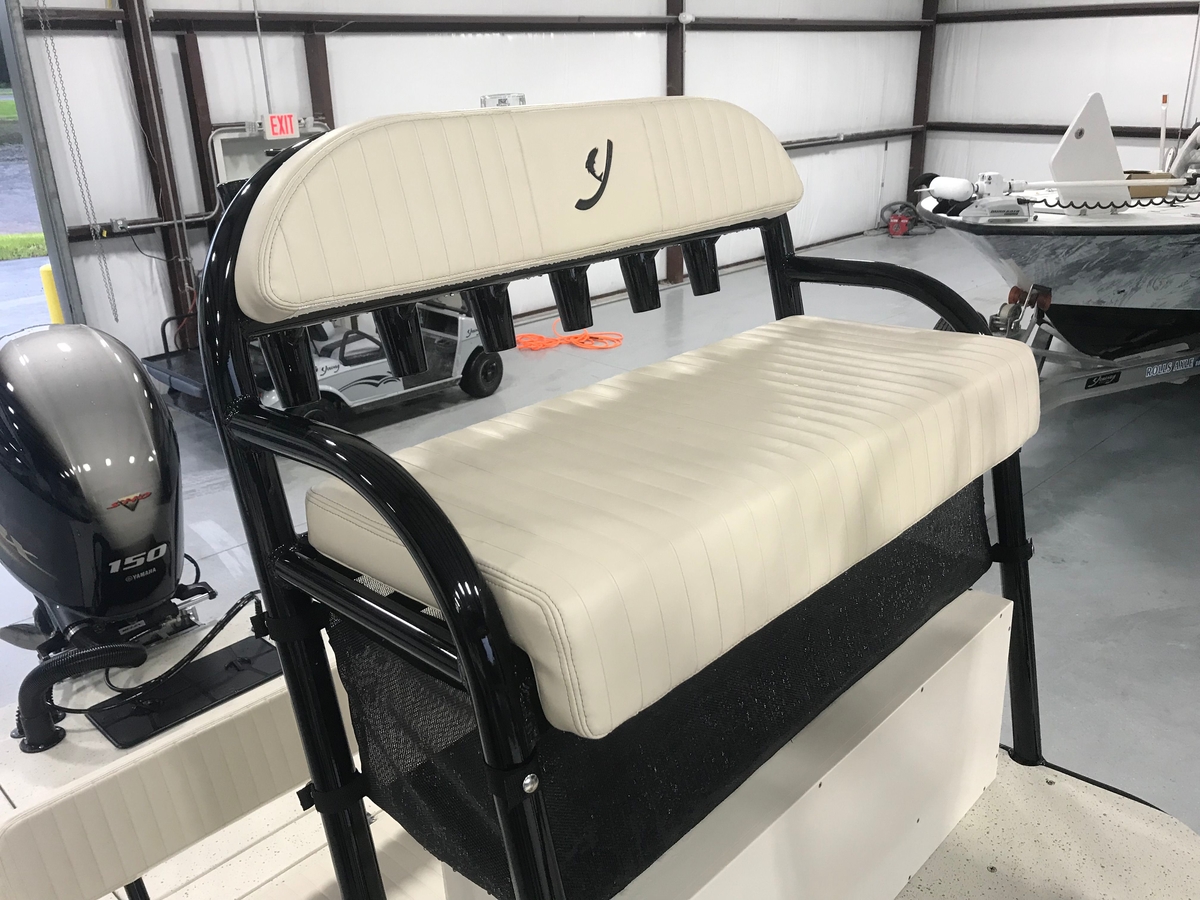

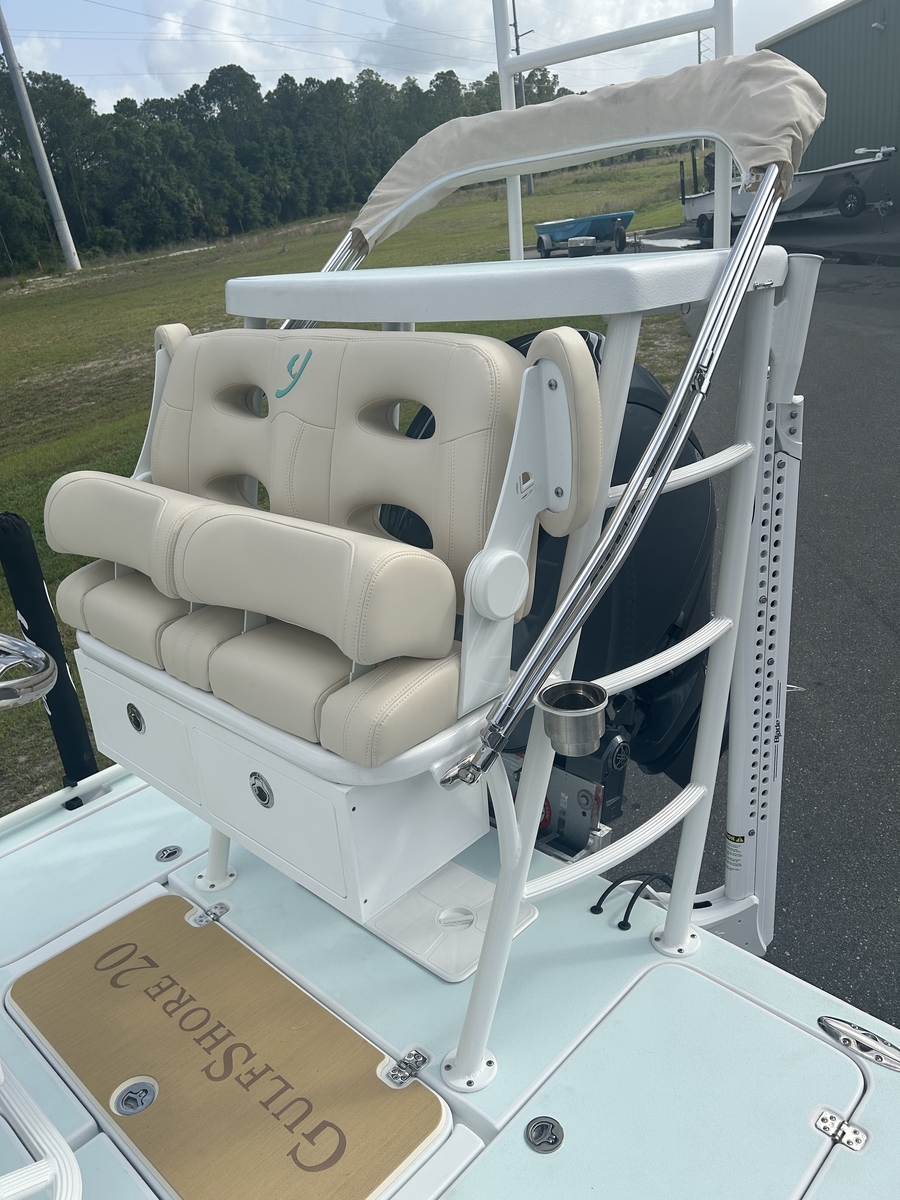

Helm seat

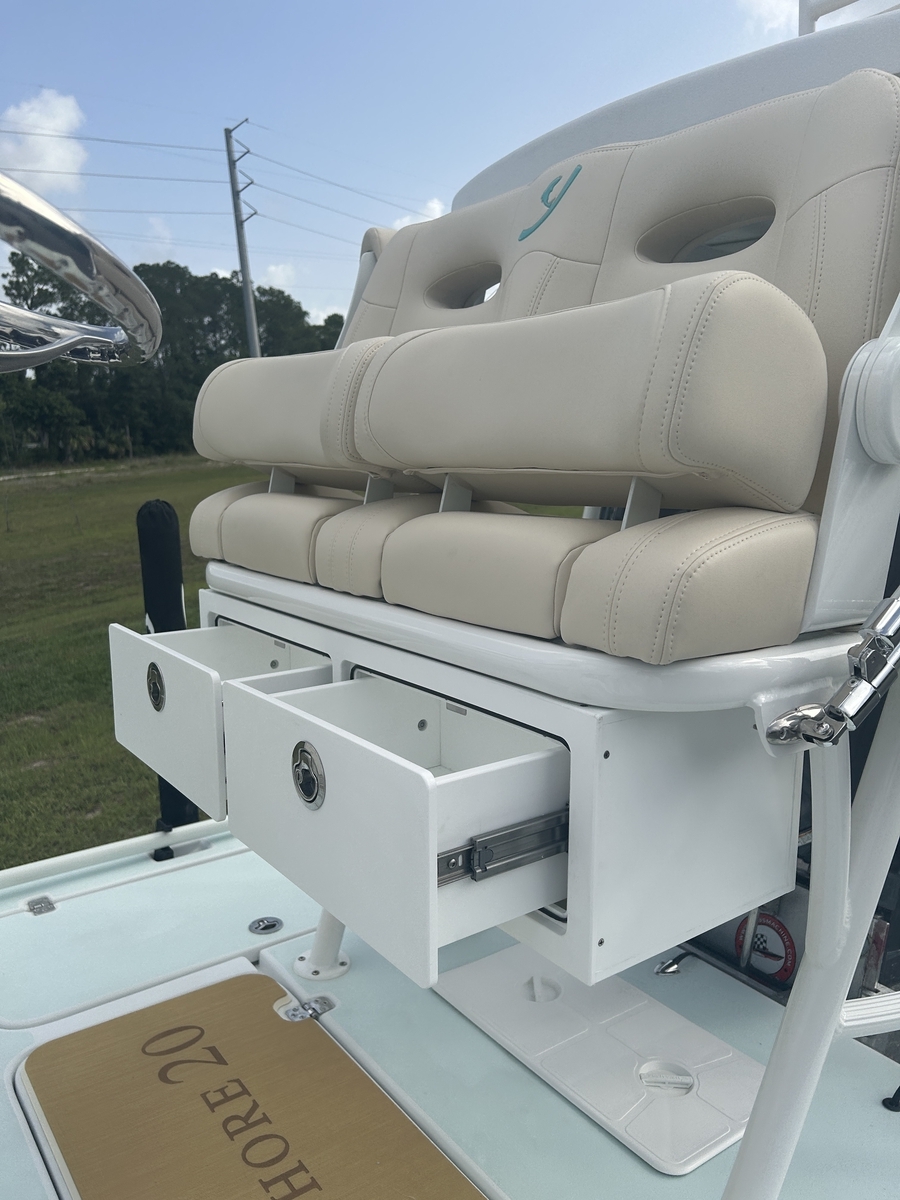

Helm seat storage

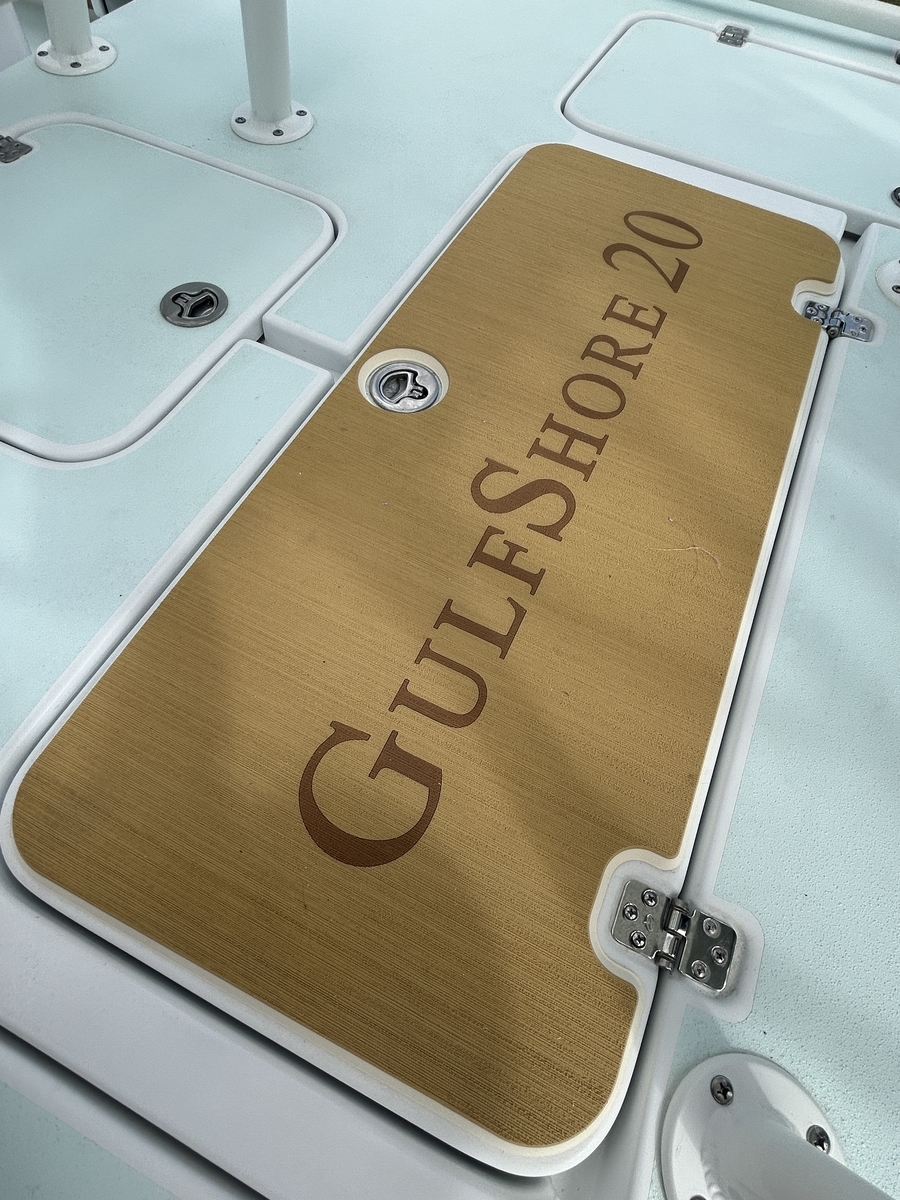

Helm pad

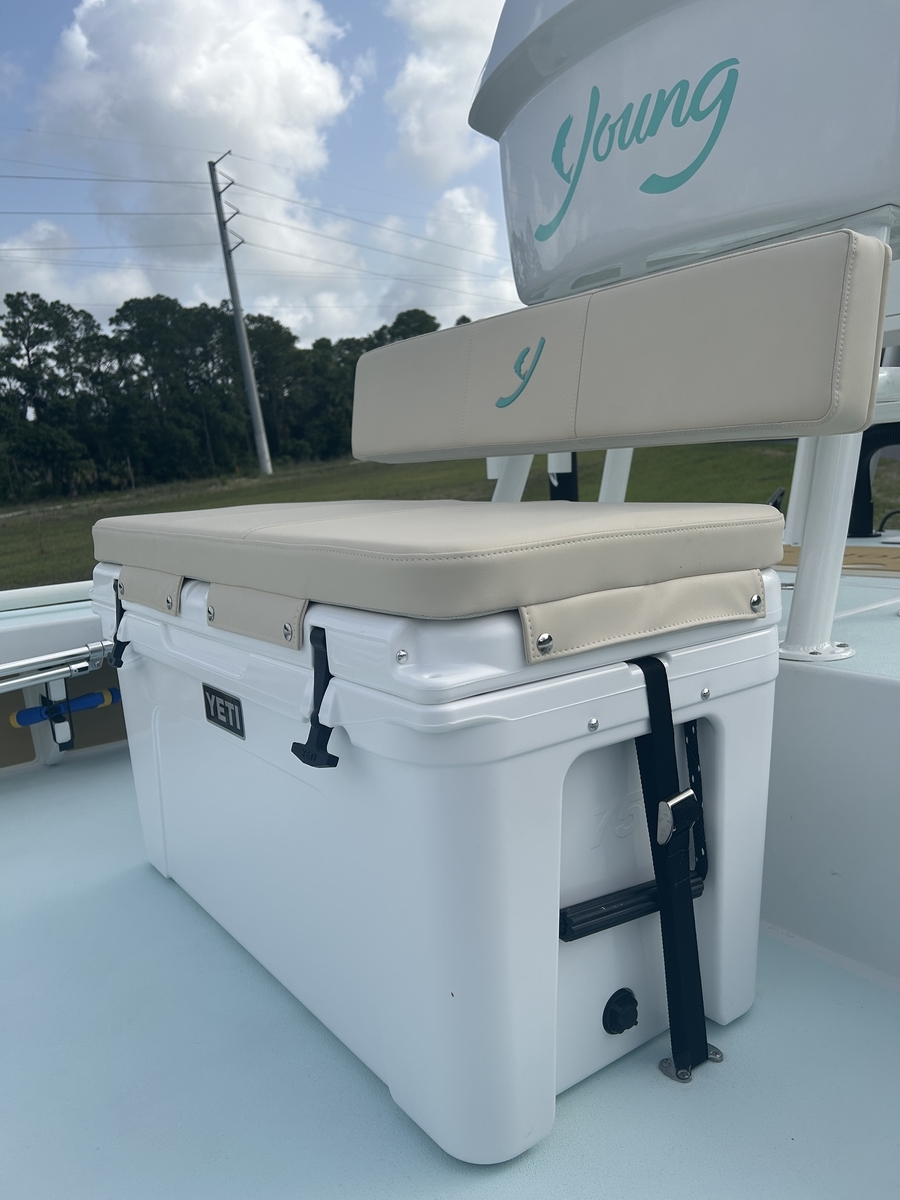

Cooler

Front deck

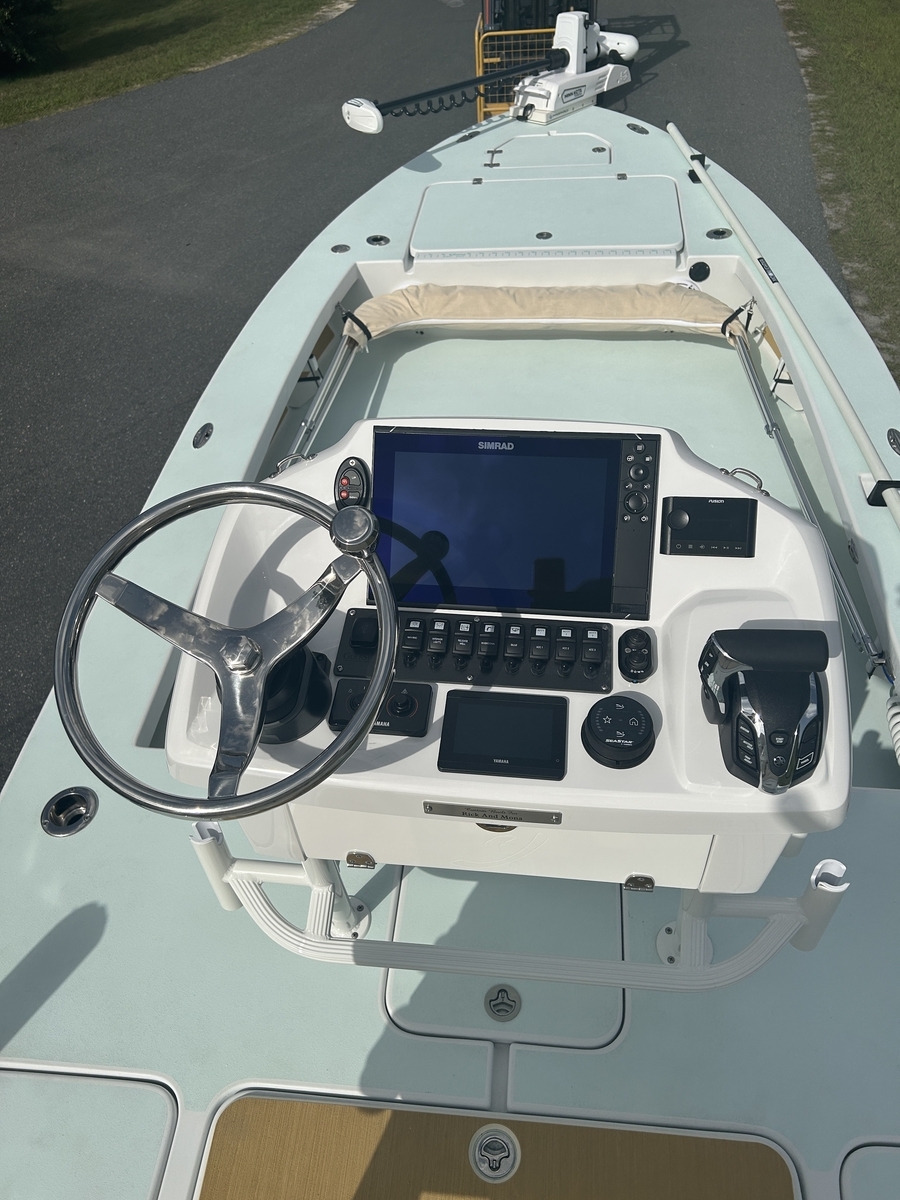

Console

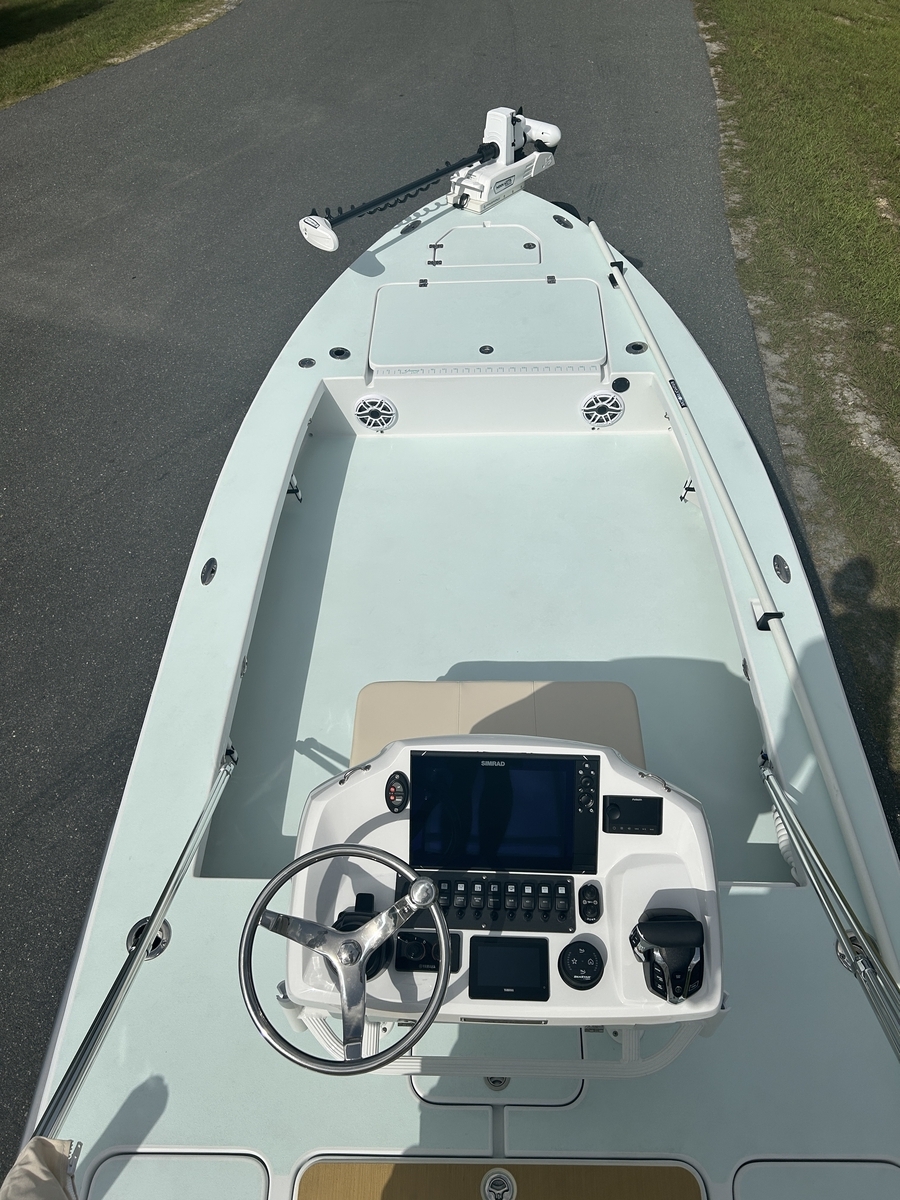

Cockpit

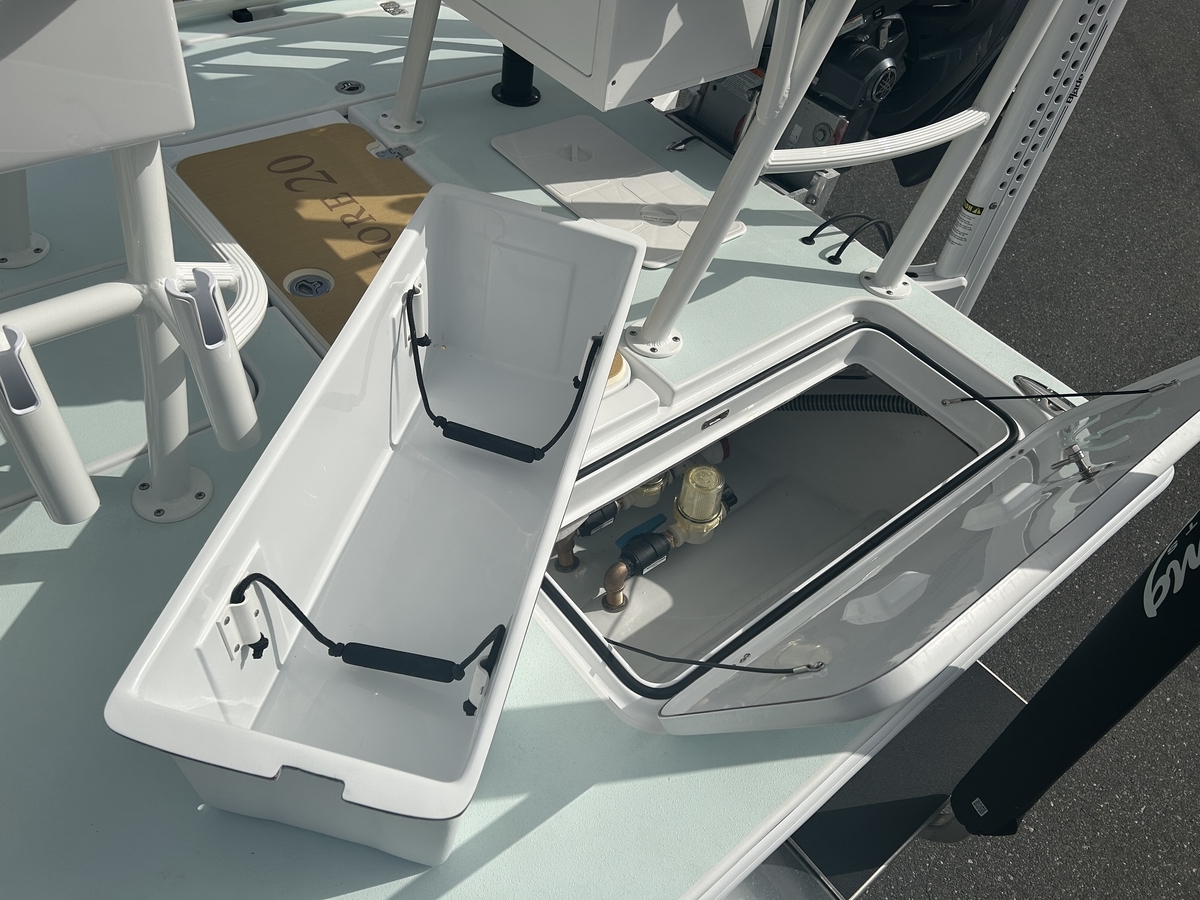

Bilge access

Captains Elevated Helm - October 2022

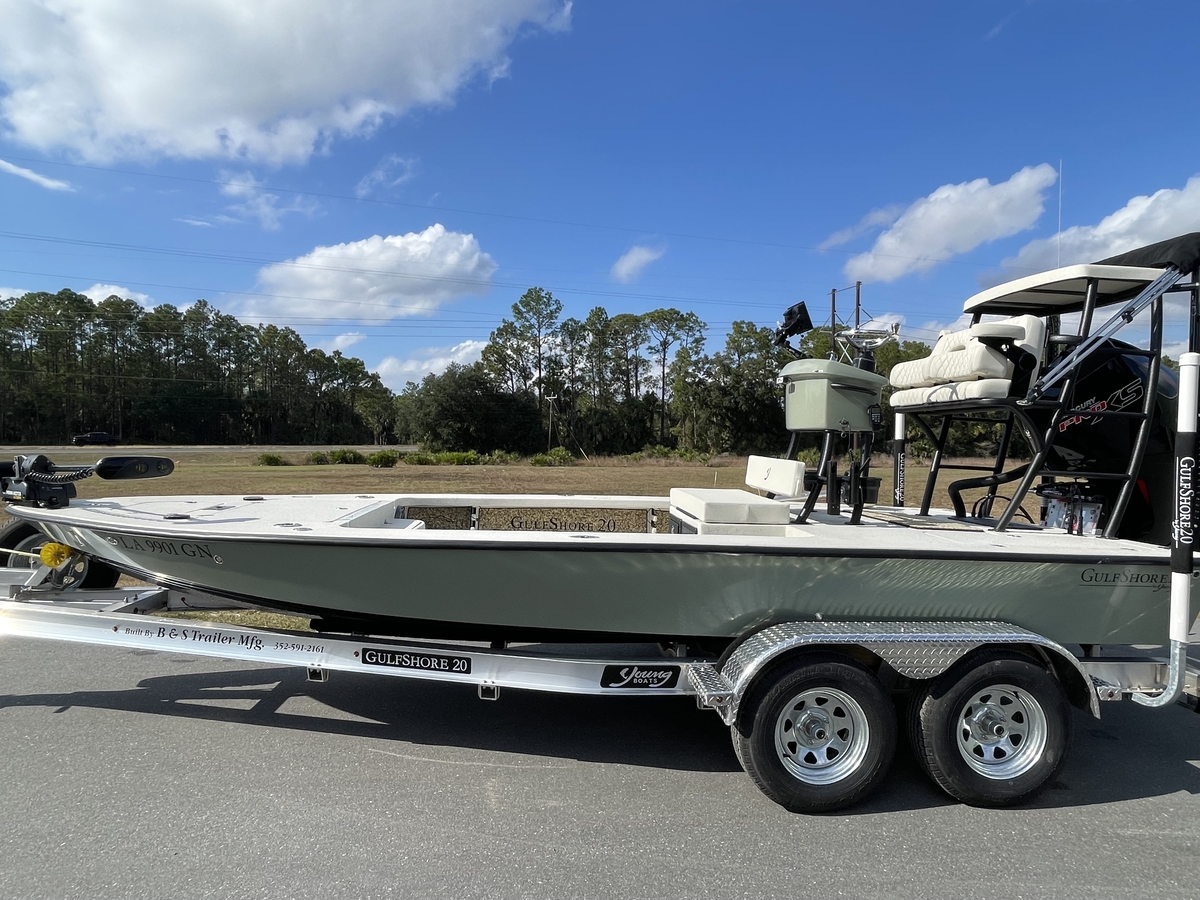

Port side profile

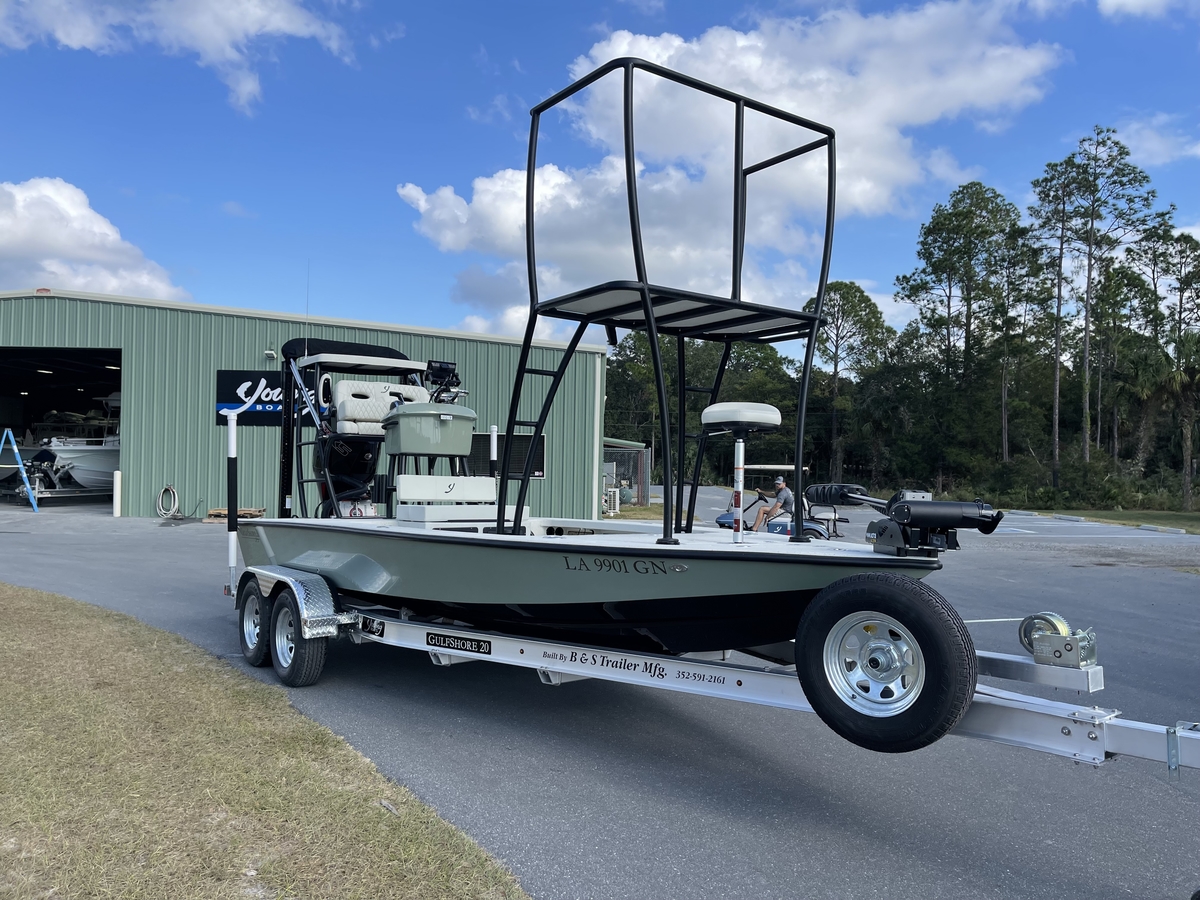

Starboard side profile

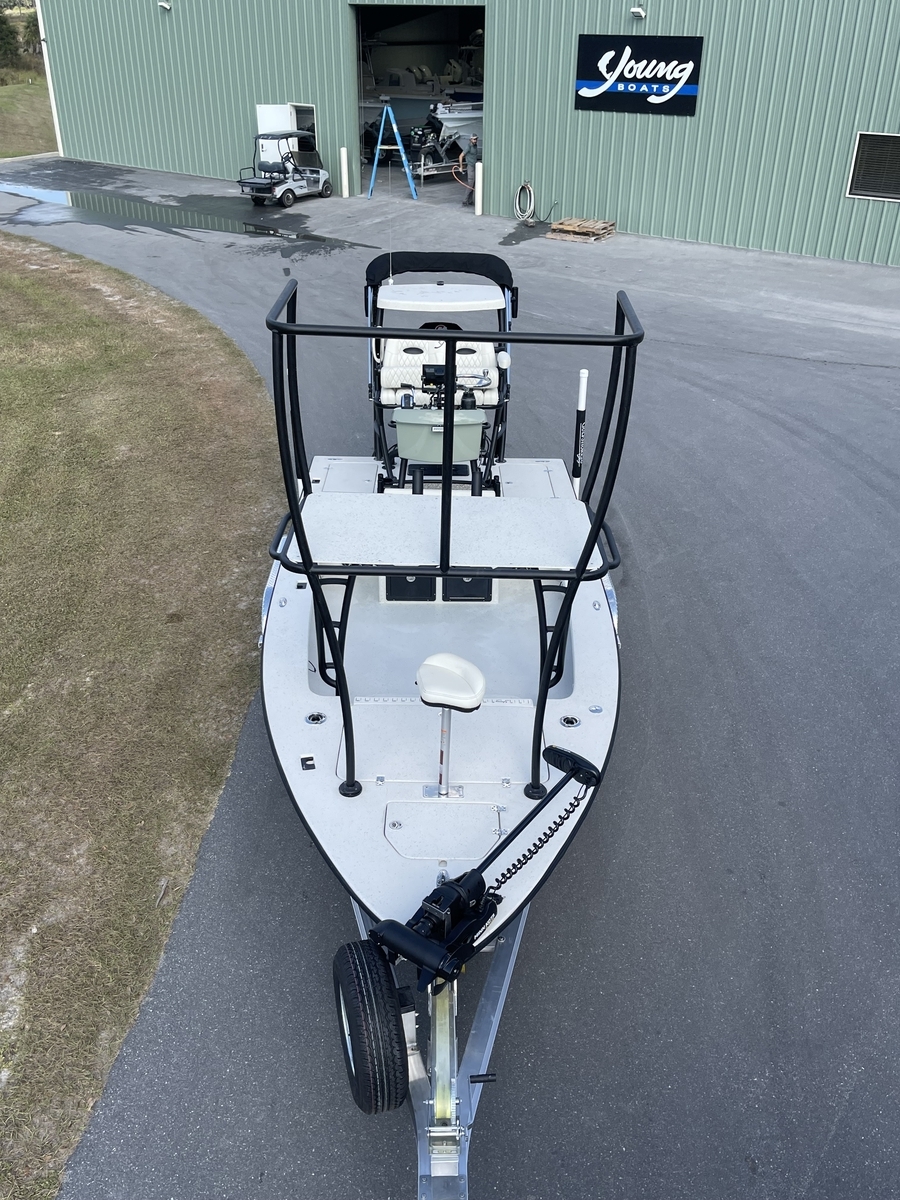

Casting platform

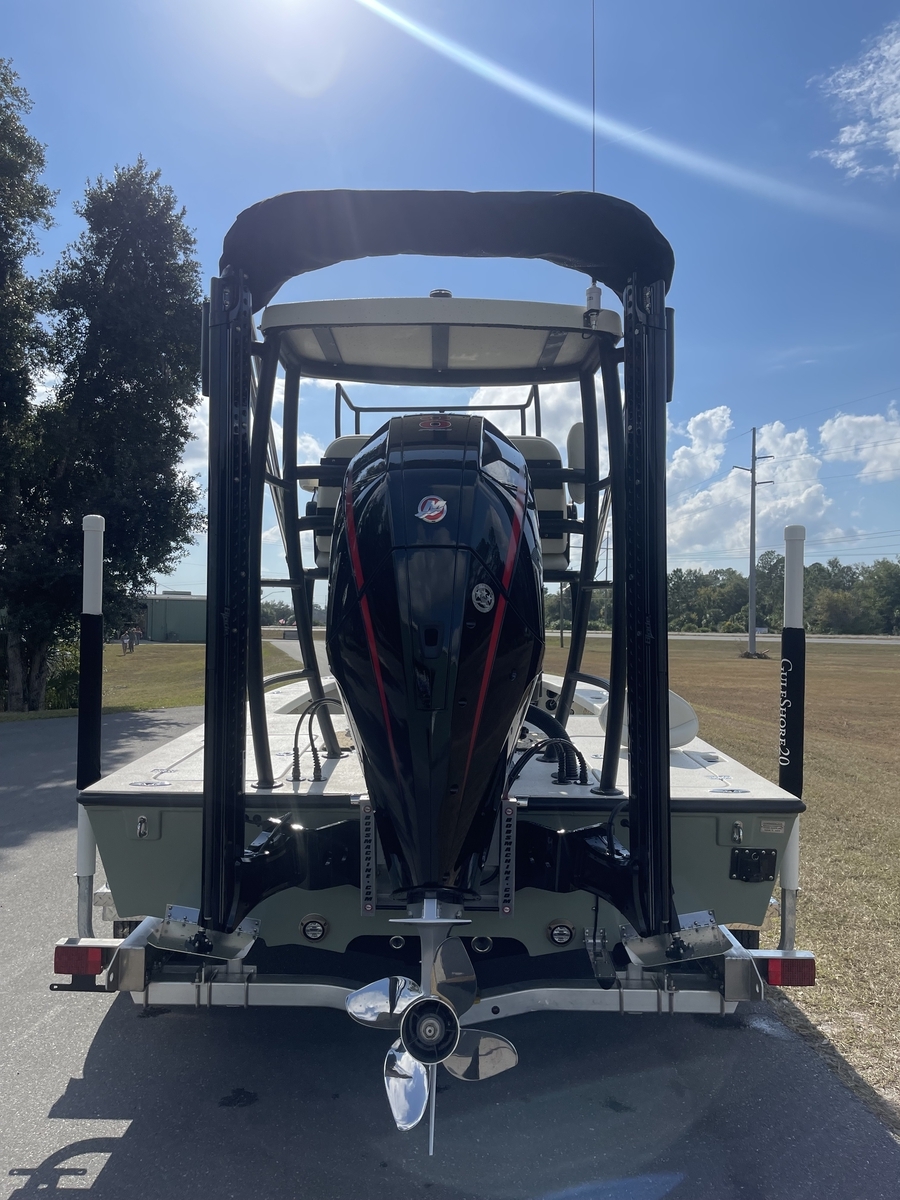

Transom view

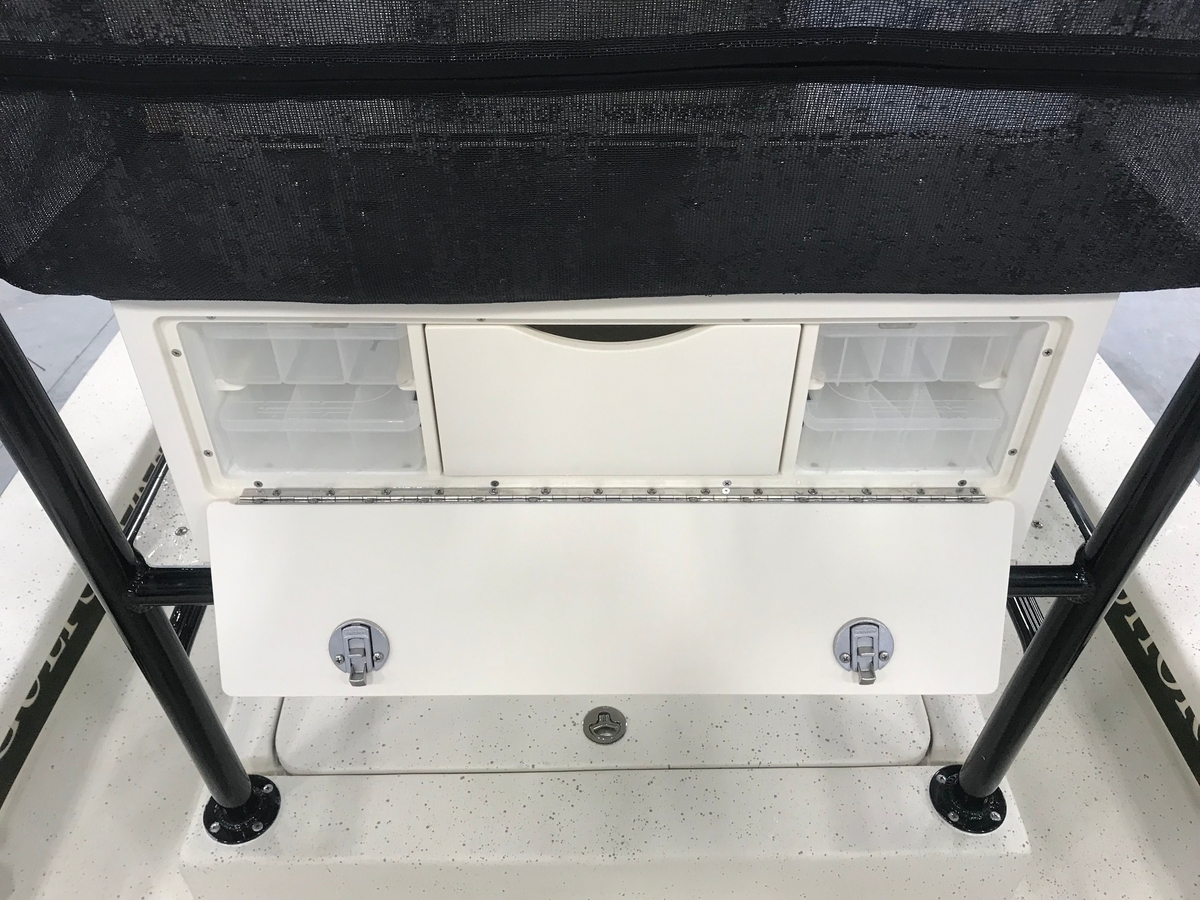

Tackle storage

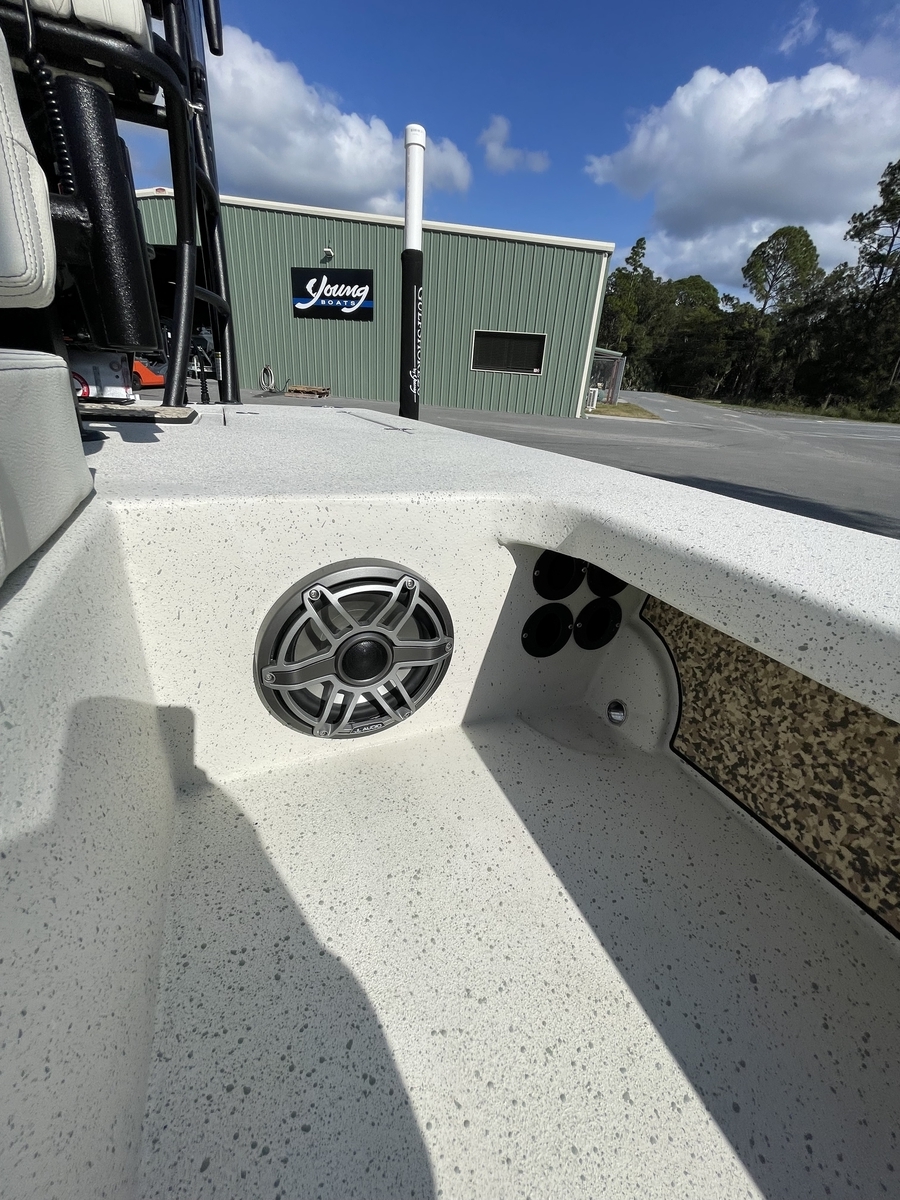

Rear speaker and flyrod tubes

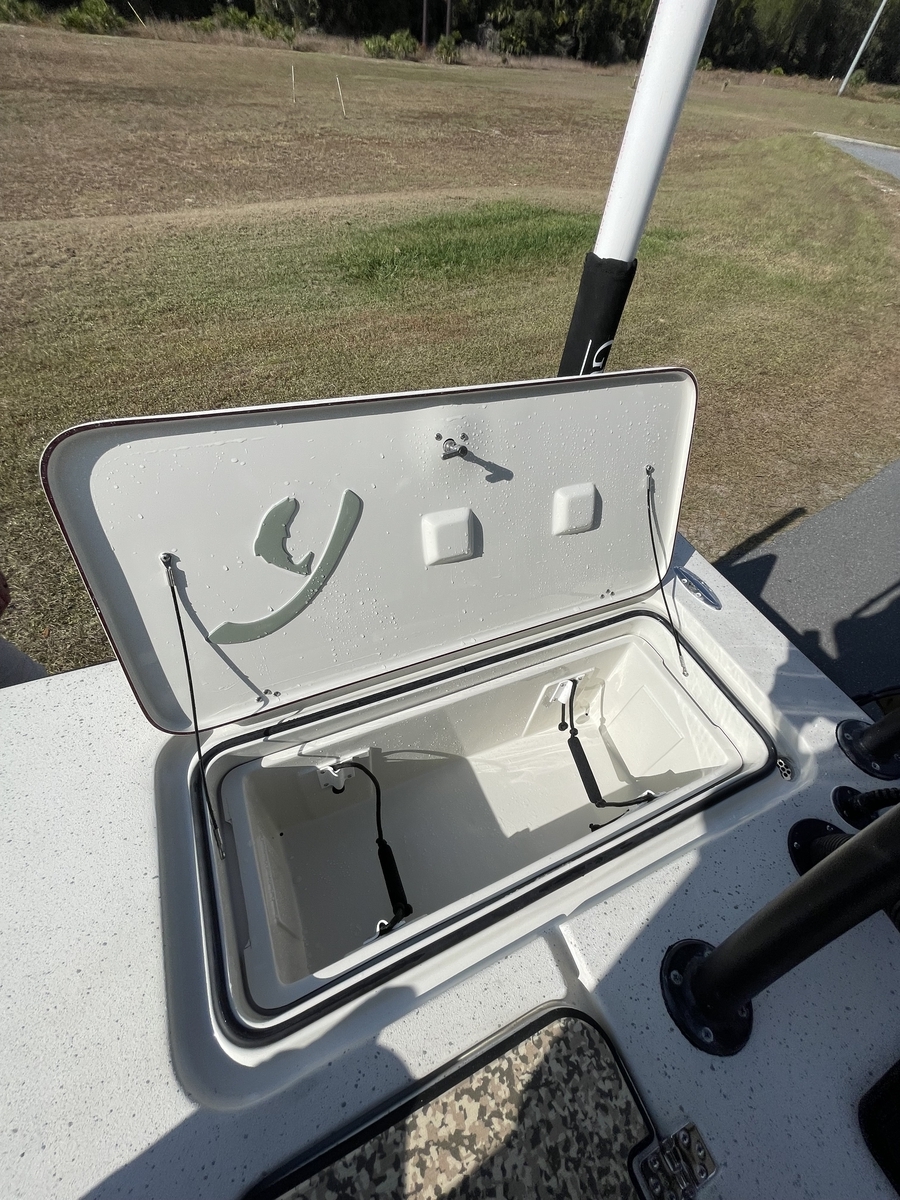

Pull out tub

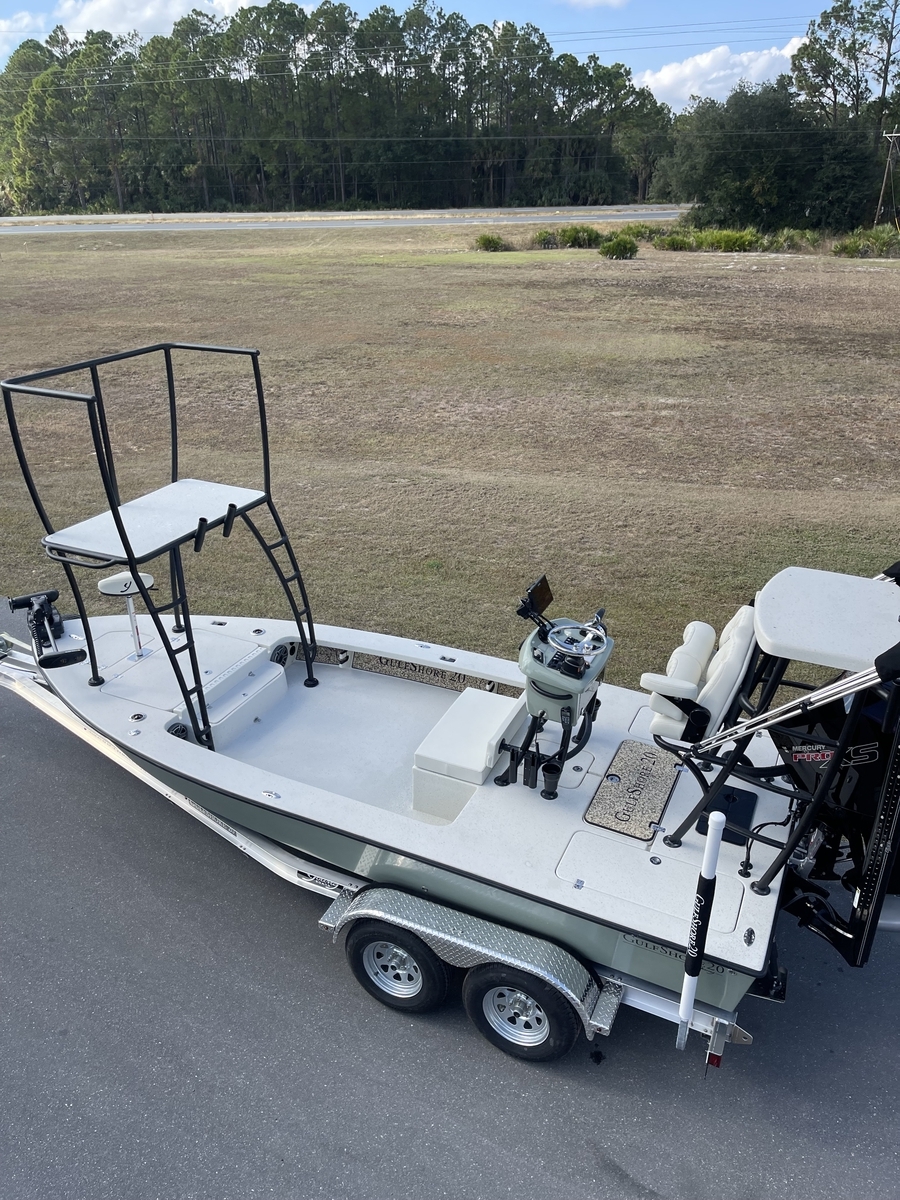

Port side aerial

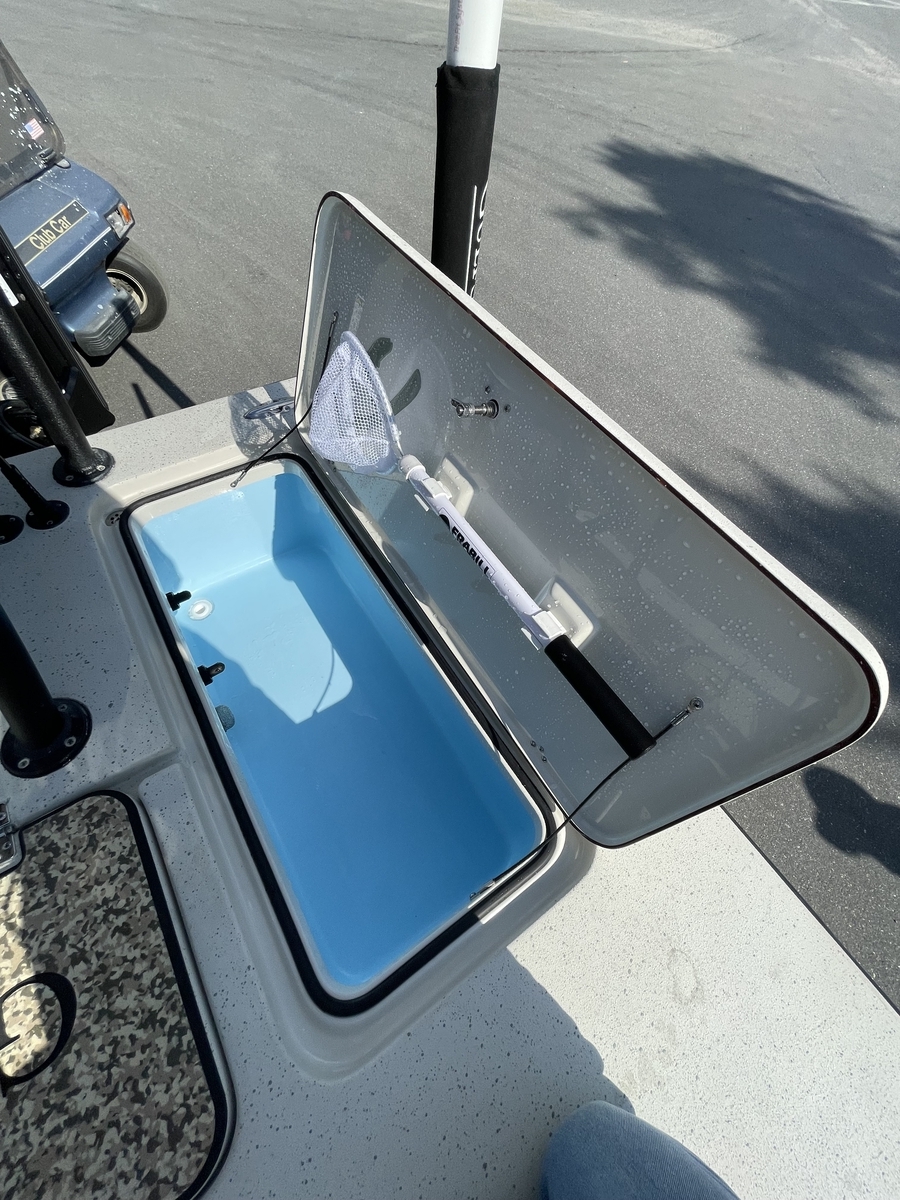

Port livewell

Helm seat

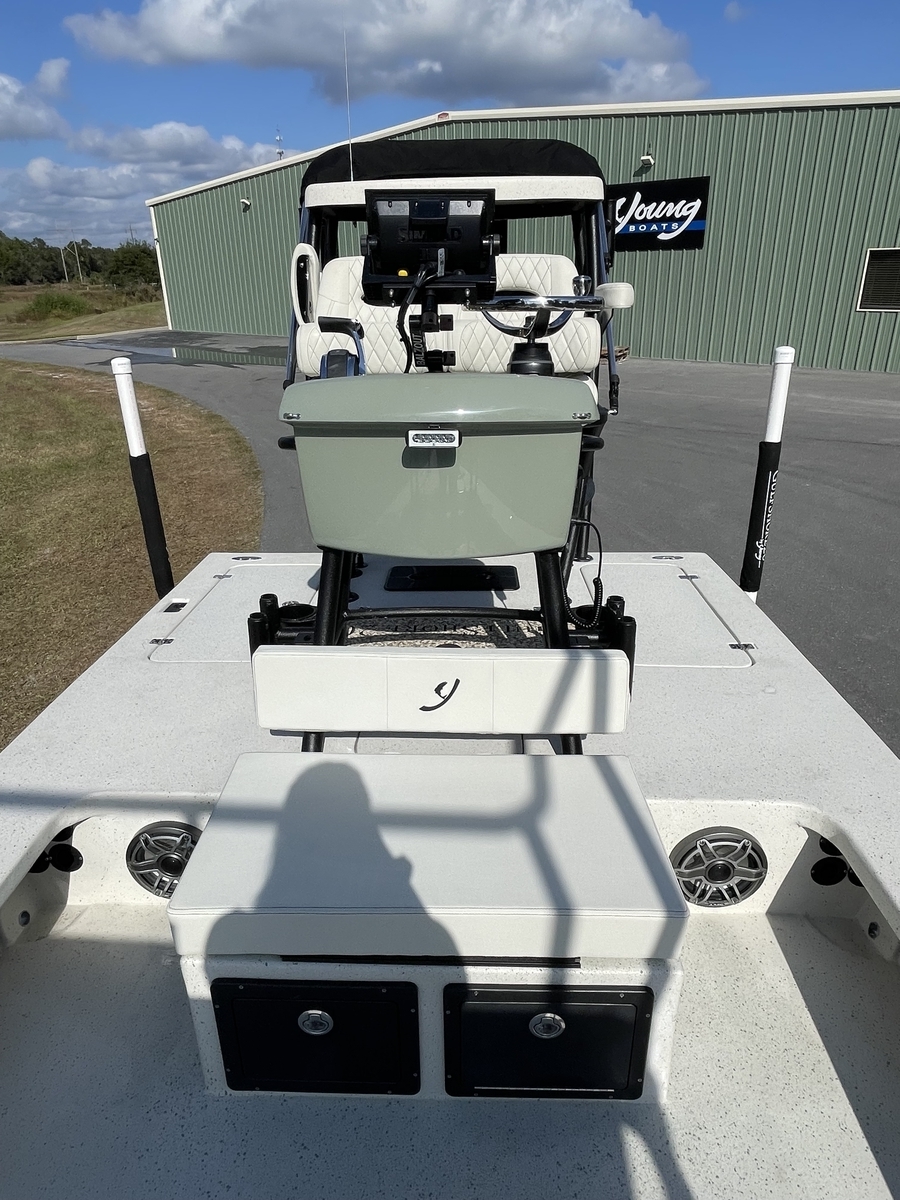

Front seating

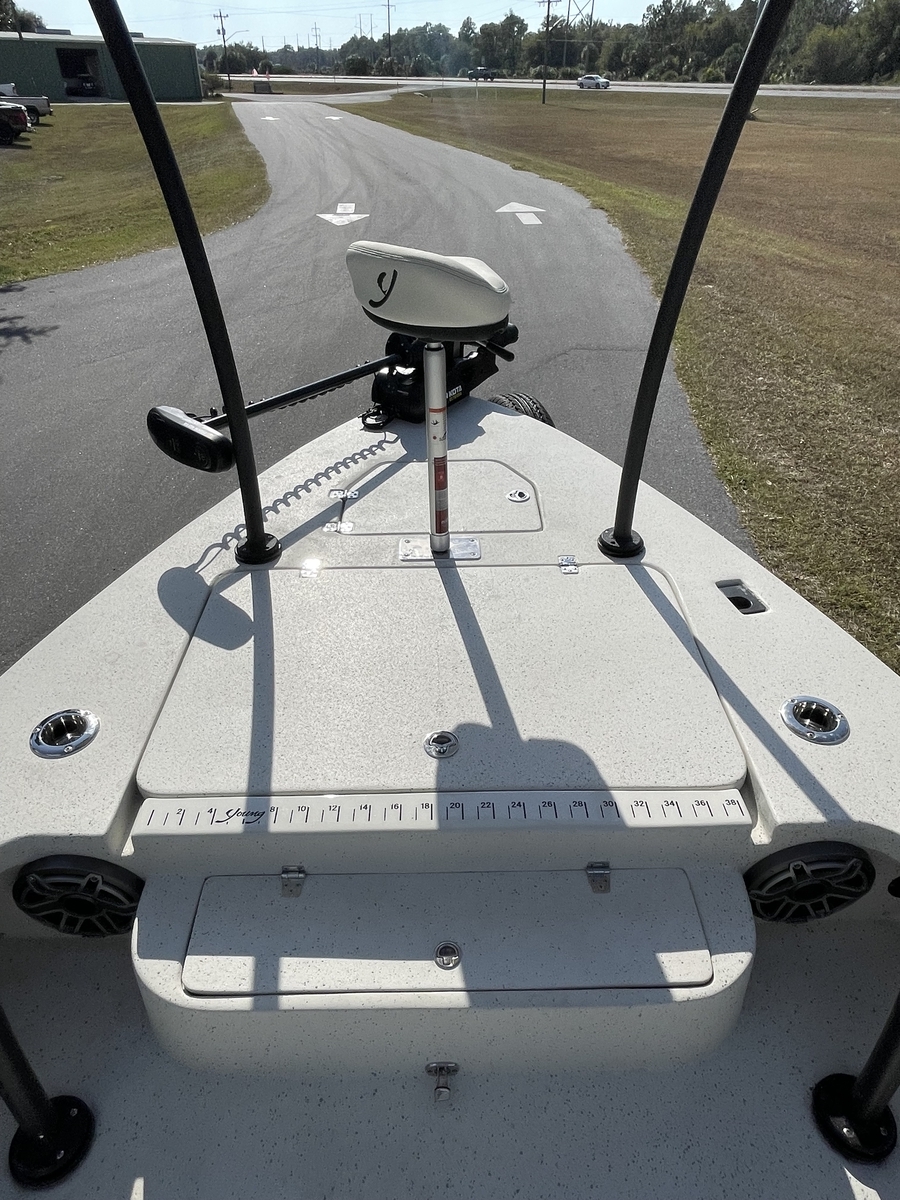

Front deck

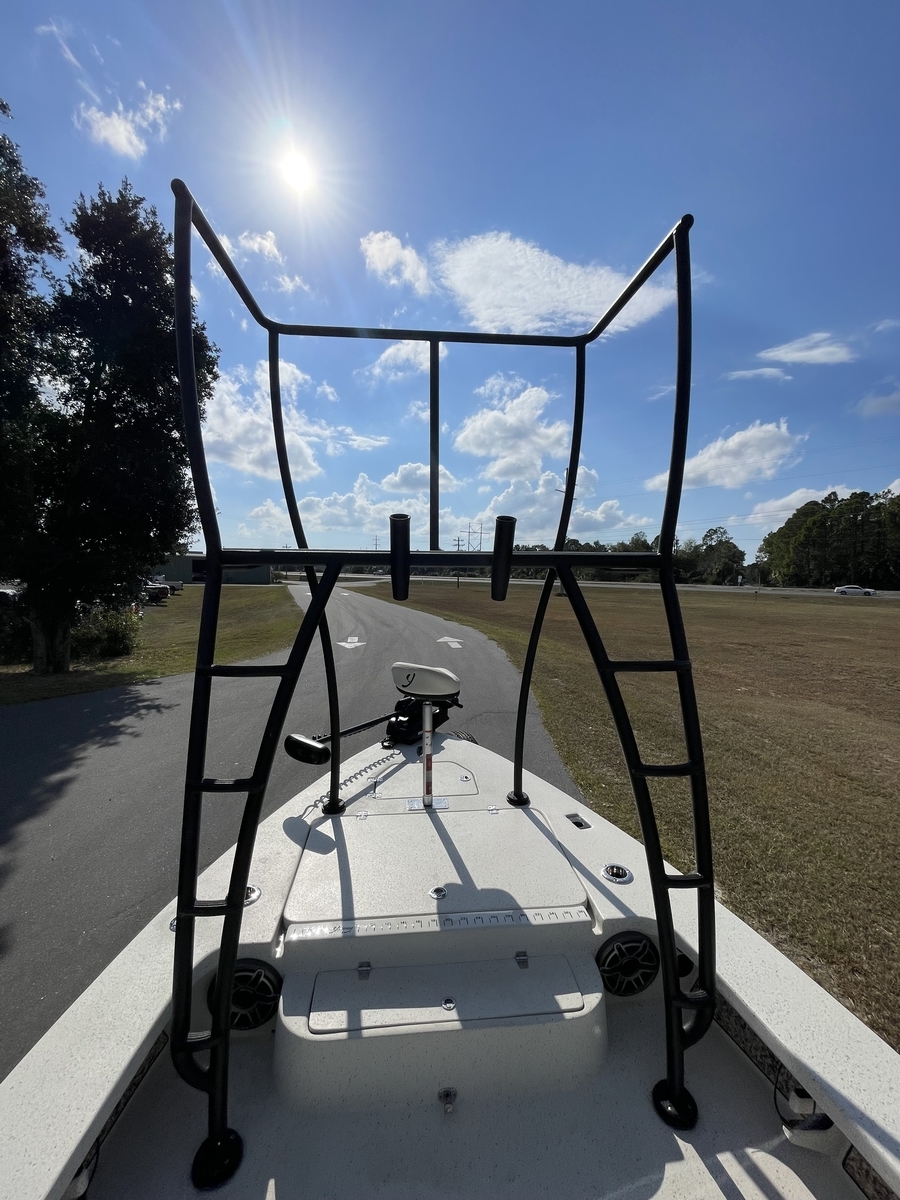

Front casting platform

Console

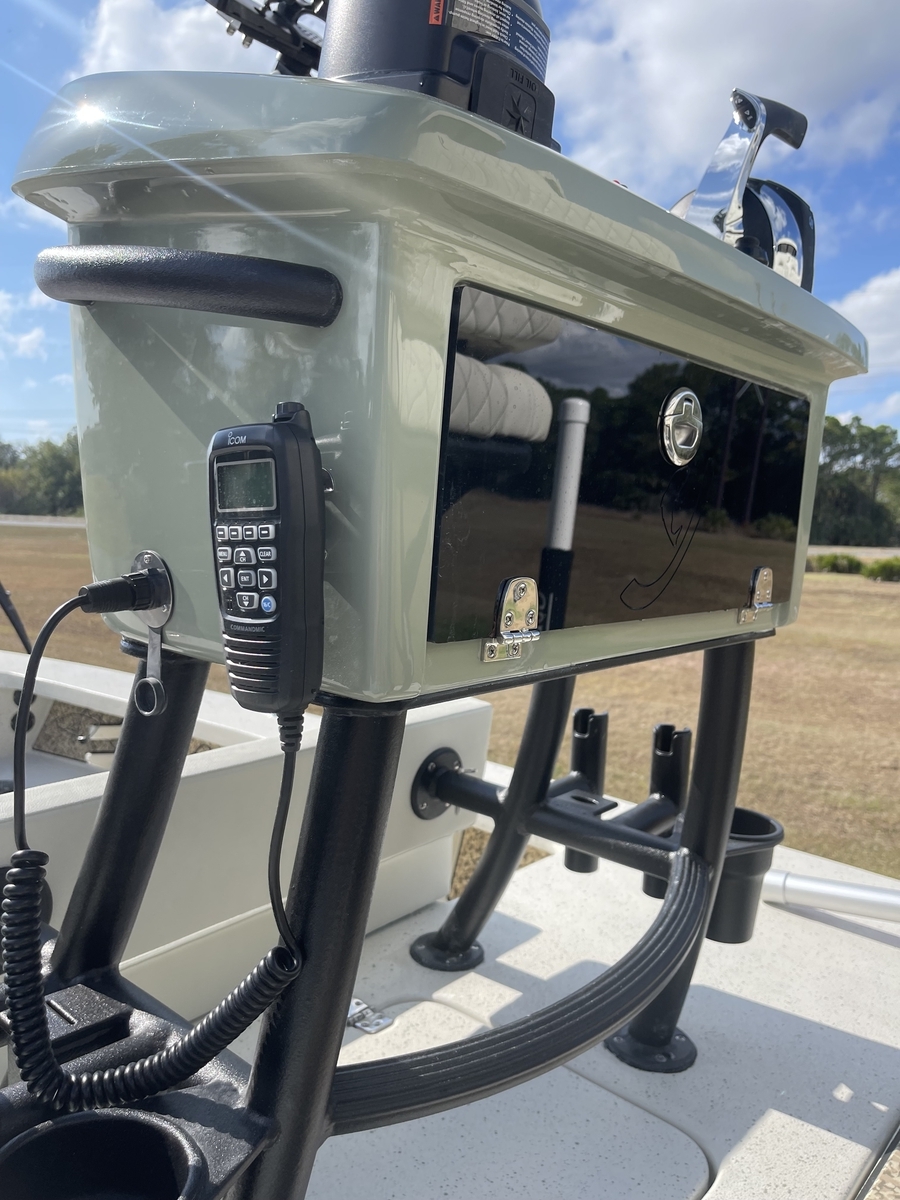

Console access

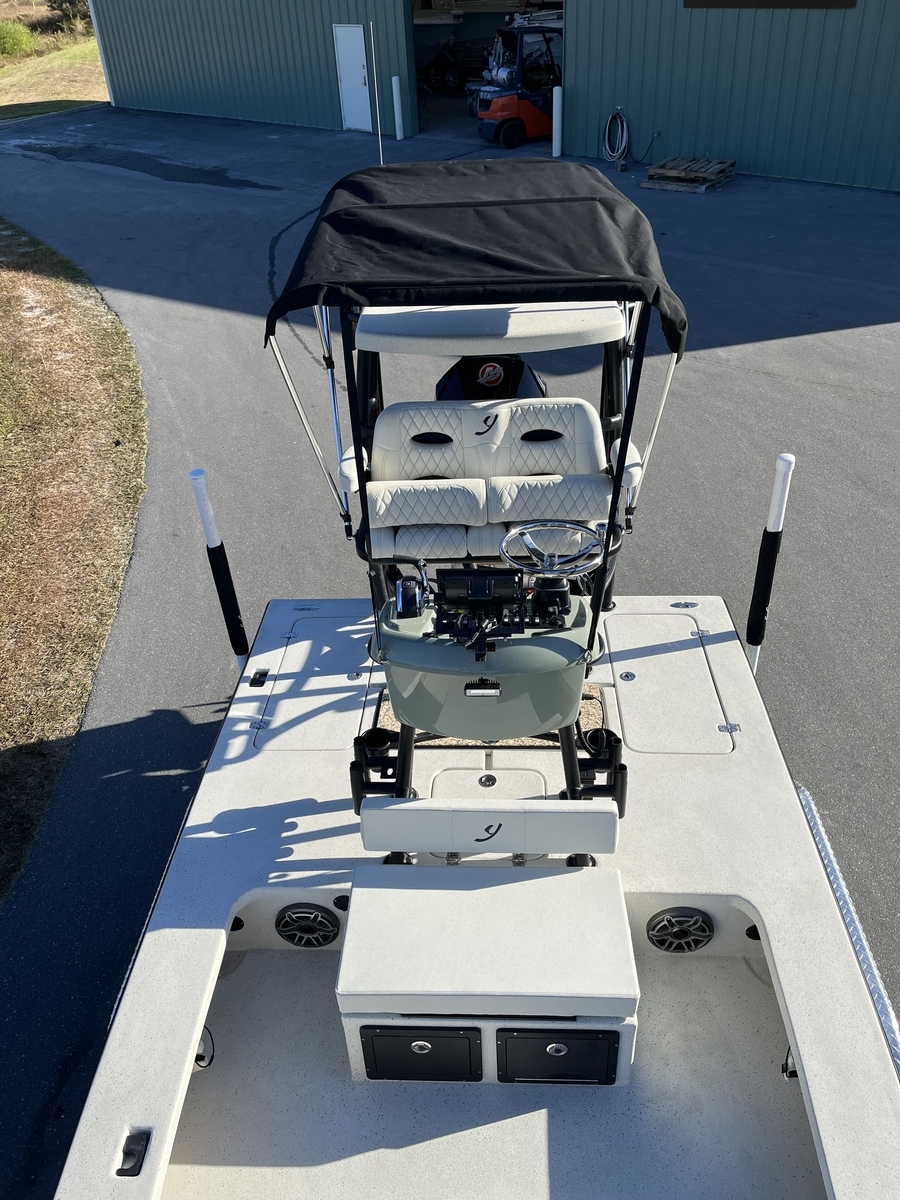

Console aerial

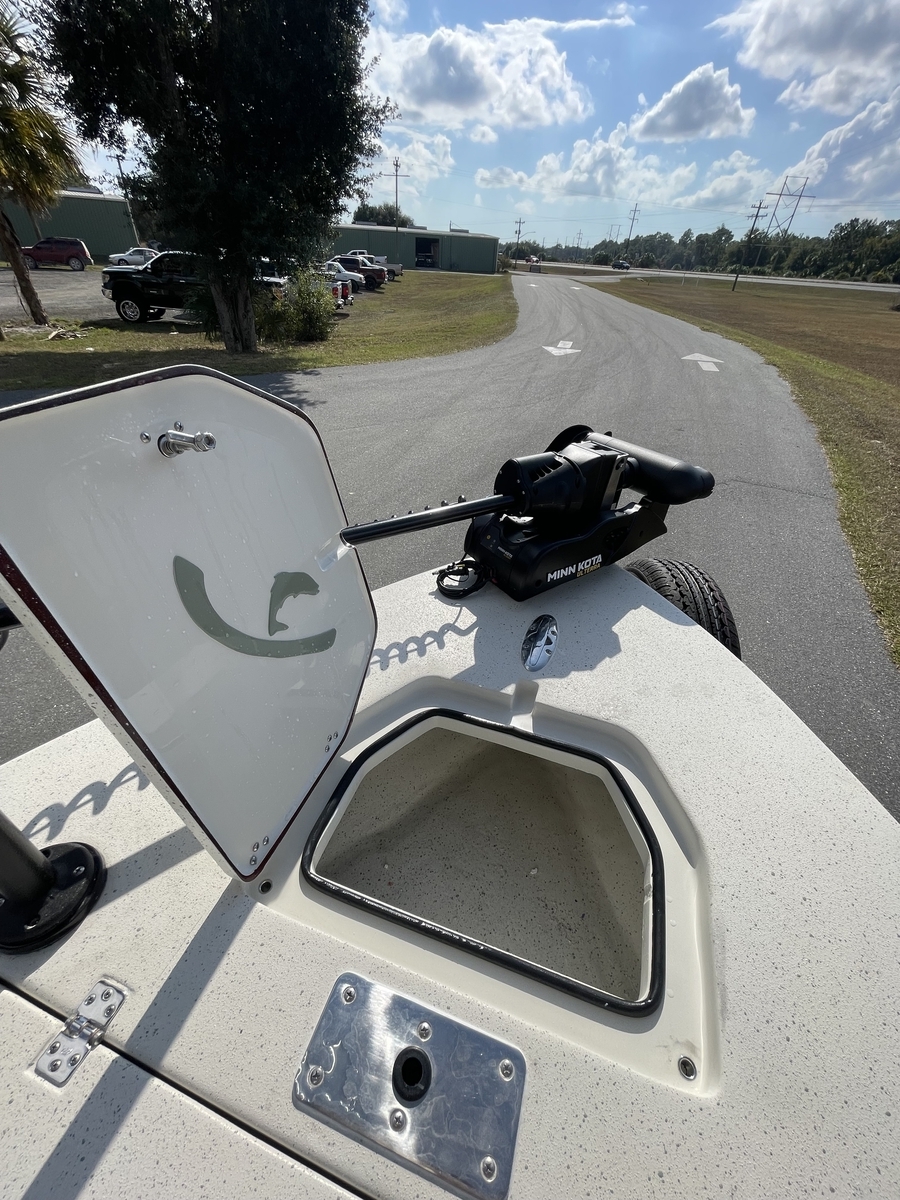

Anchor locker

Center Elevated Helm - August 2019

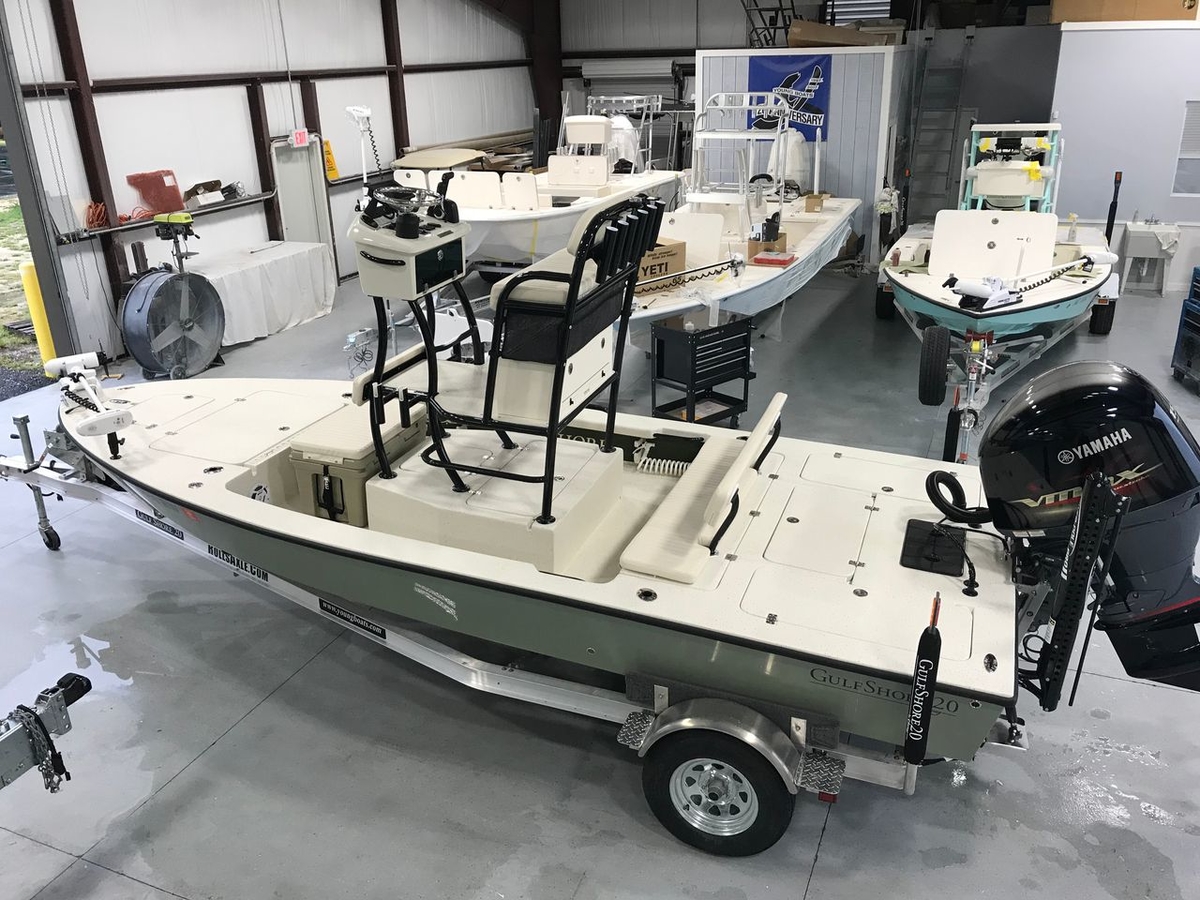

Side arial

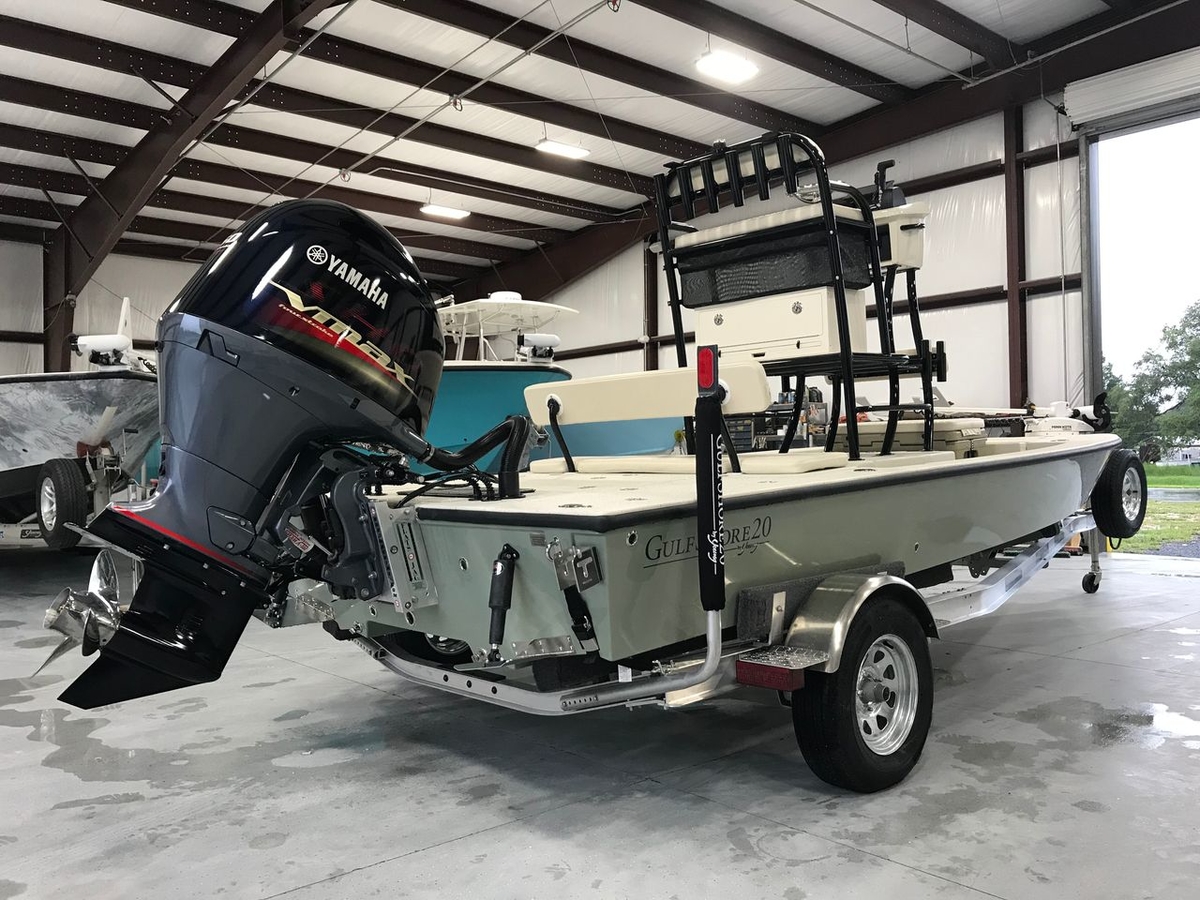

Starboard aft profile

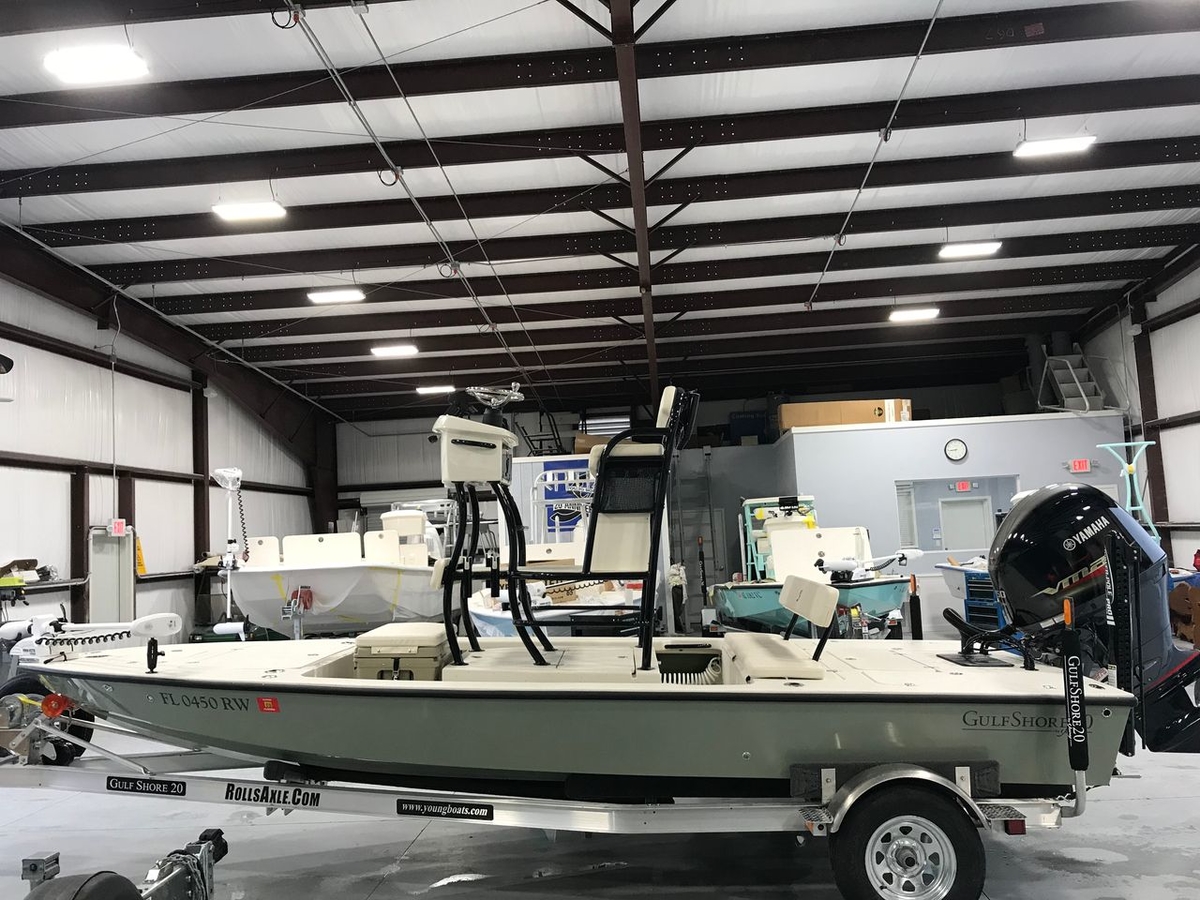

Side profile

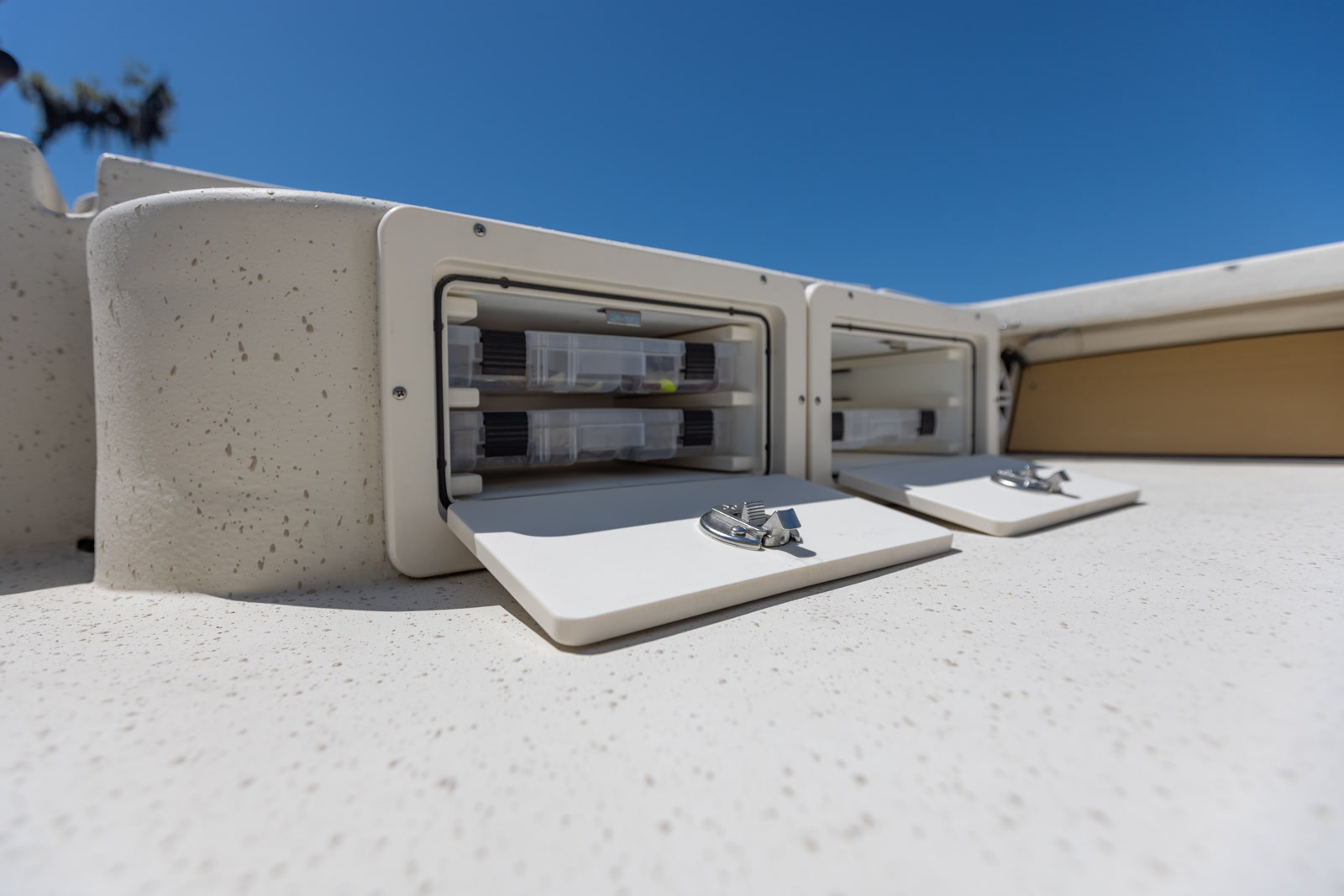

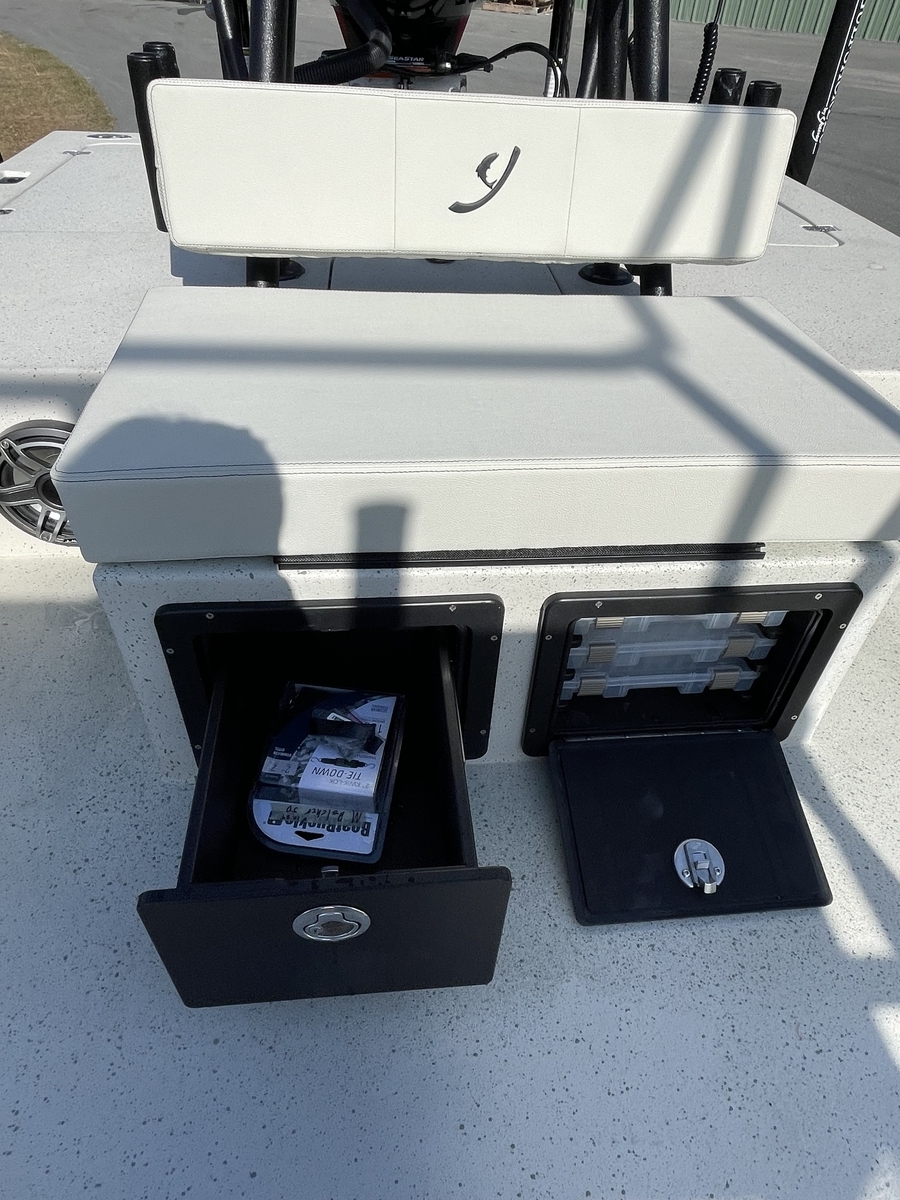

Tackle storage

Under gunnel sea dek

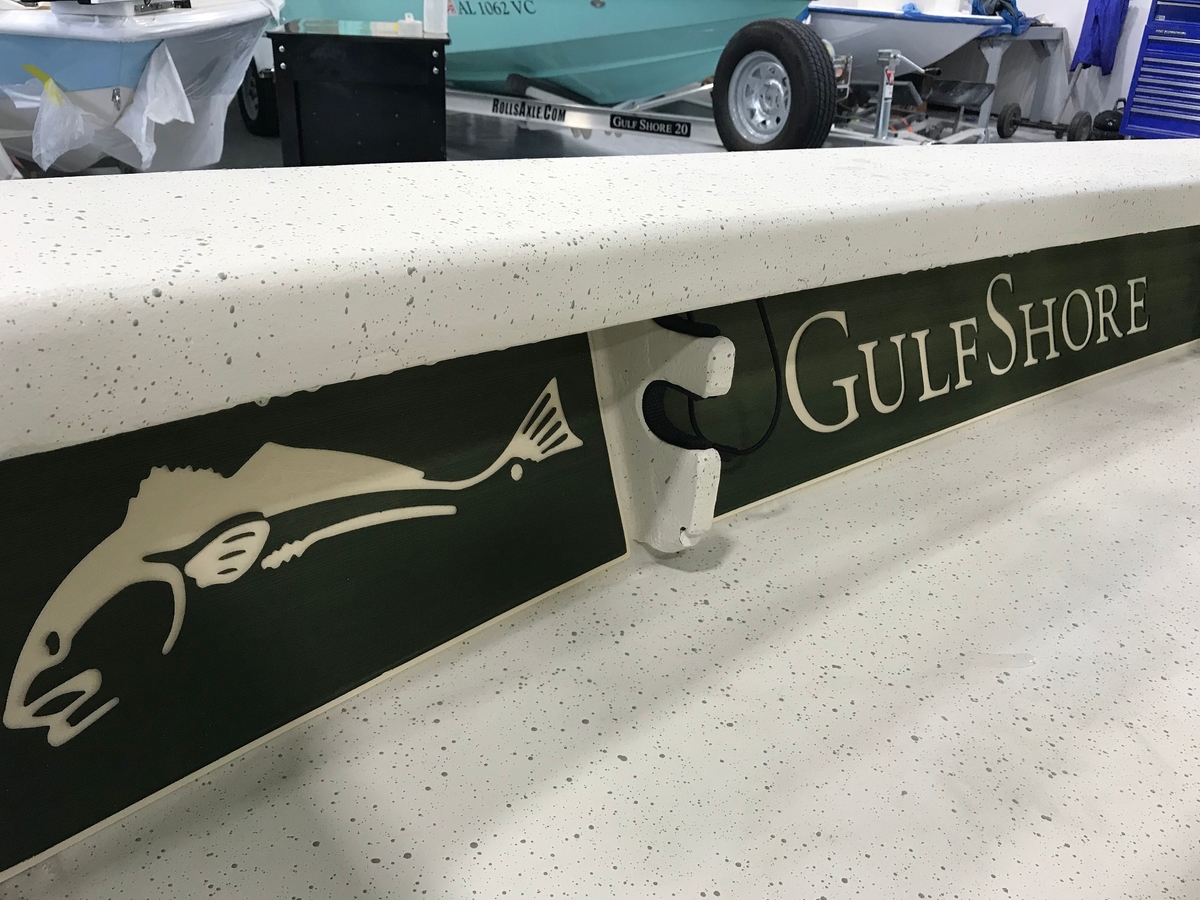

Redfish sea dek

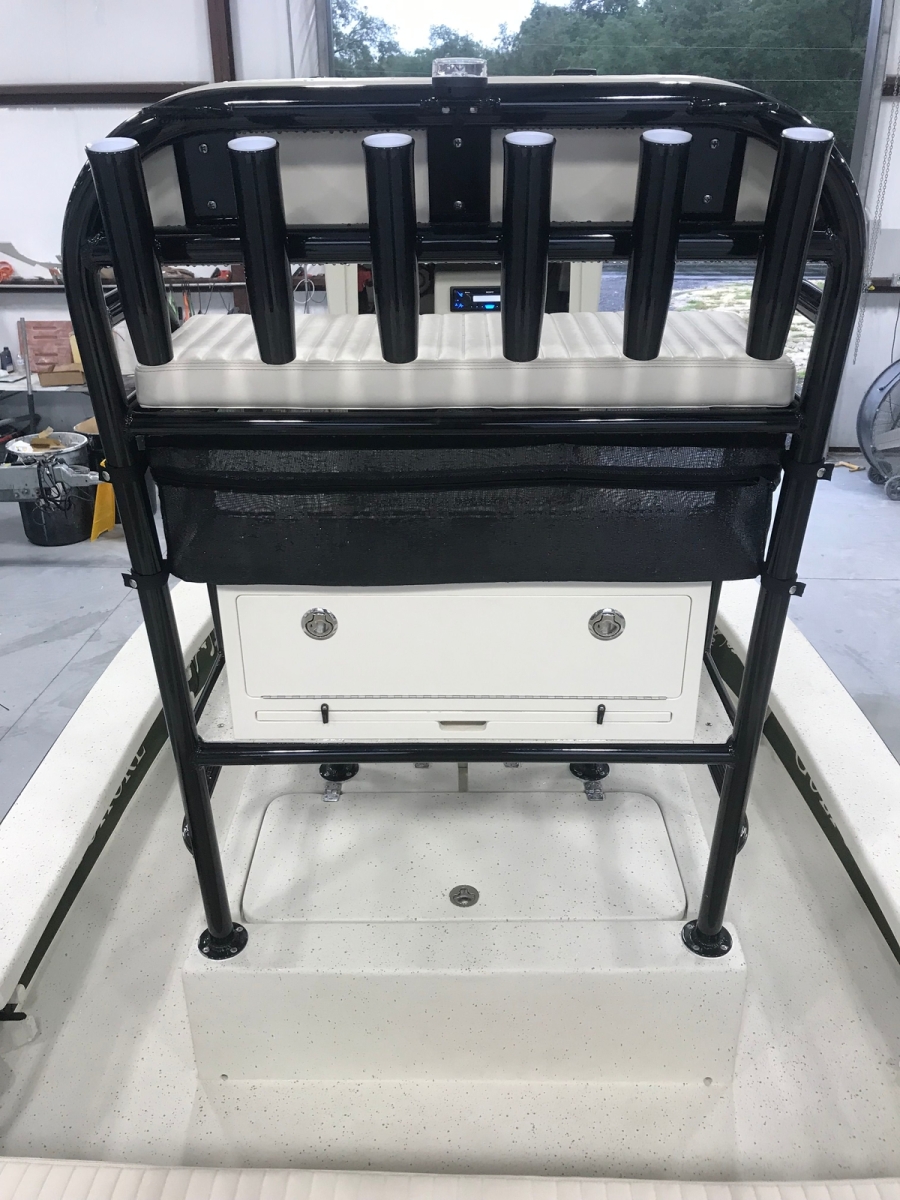

Rear tower

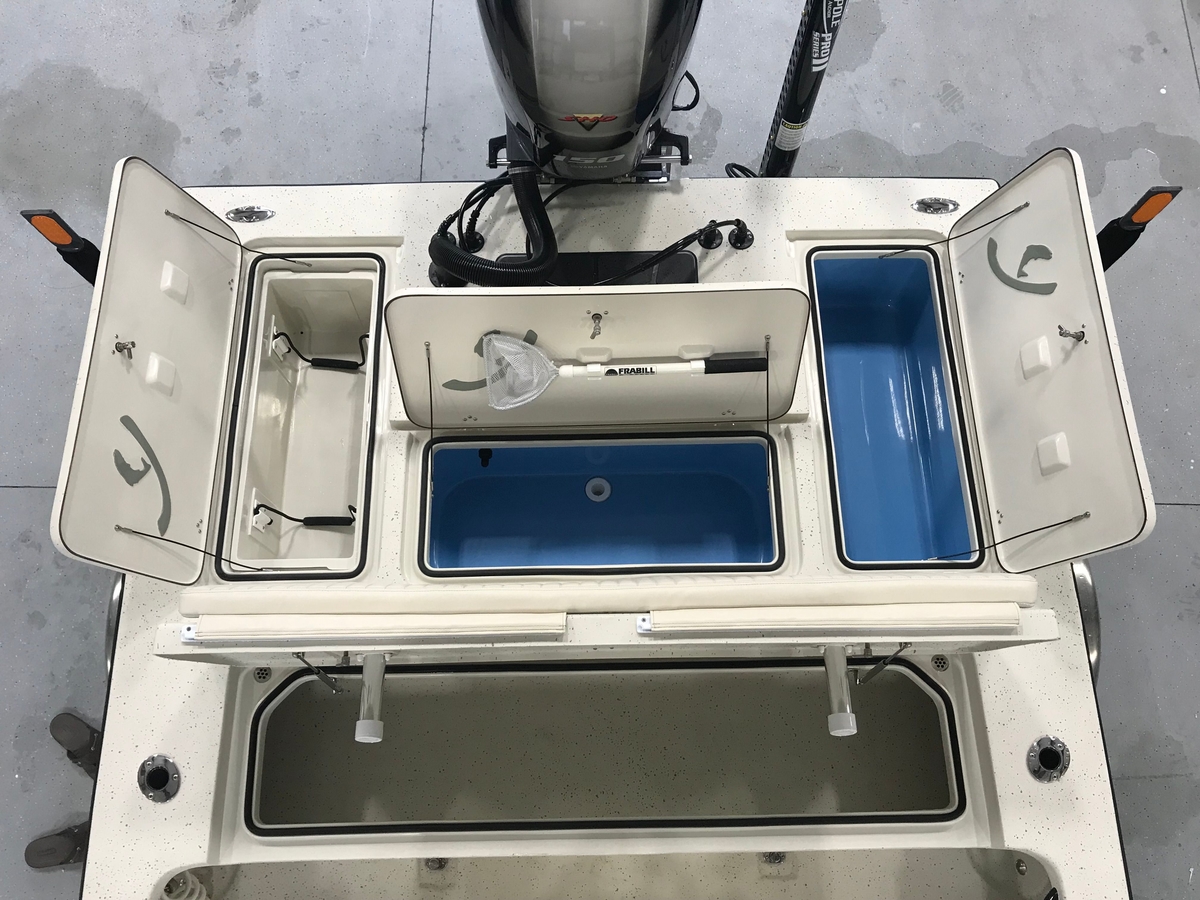

Rear hatches open

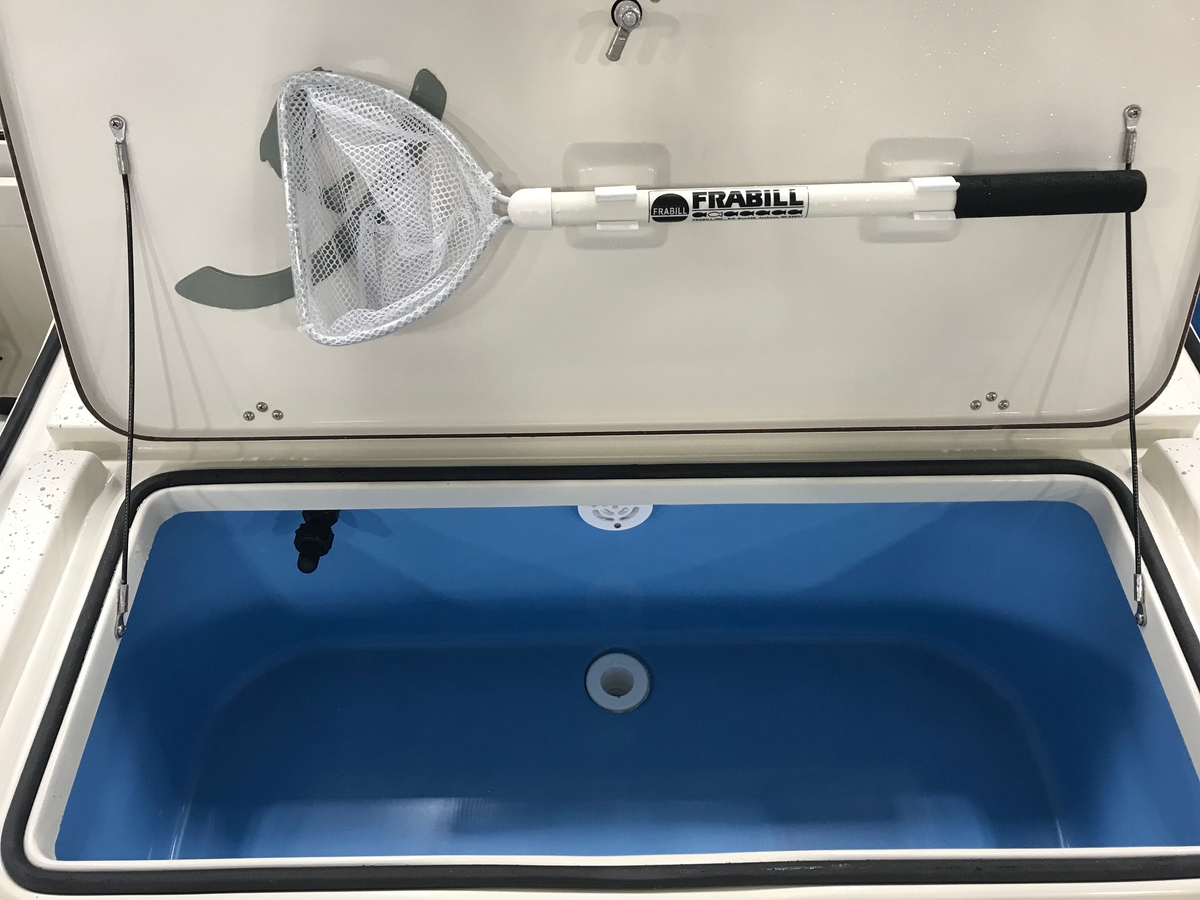

Livewell

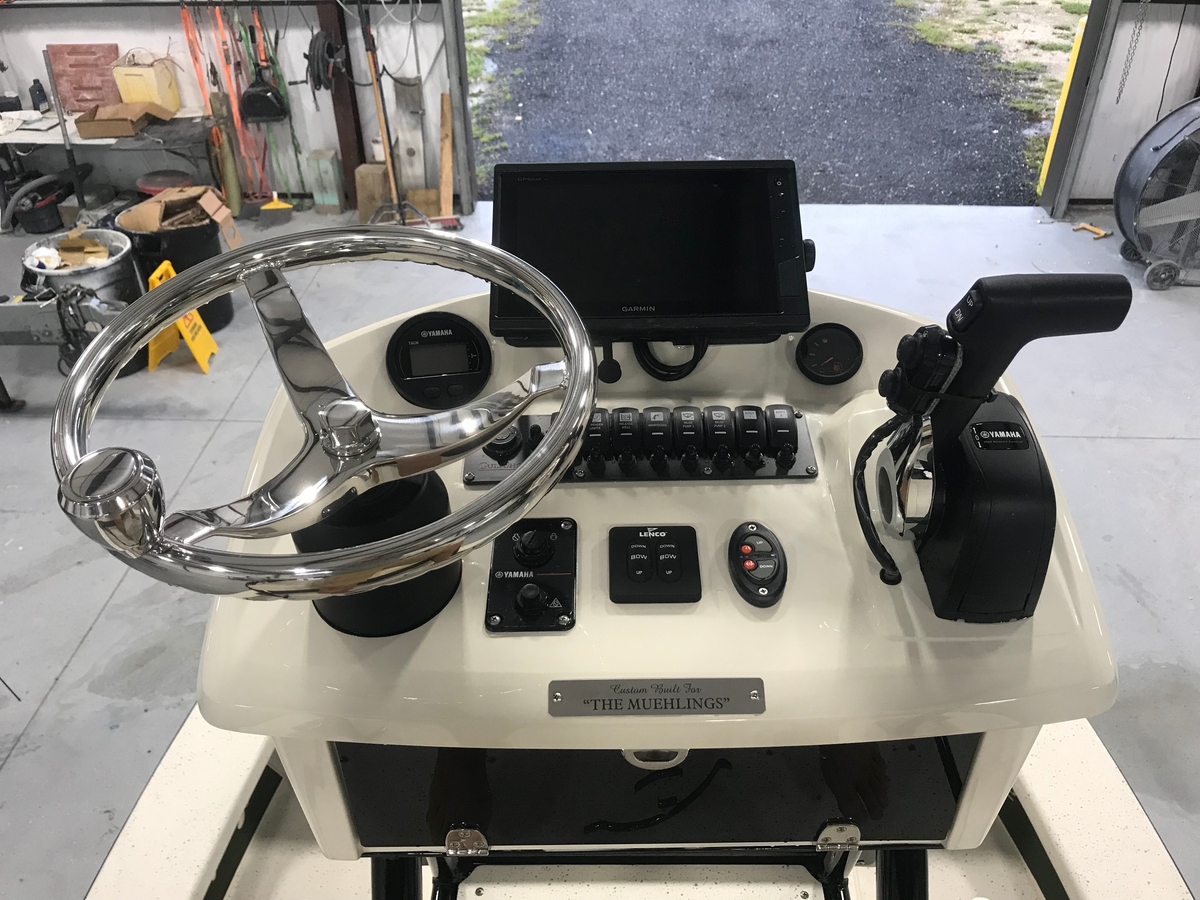

Helm

Helm seat

Front deck

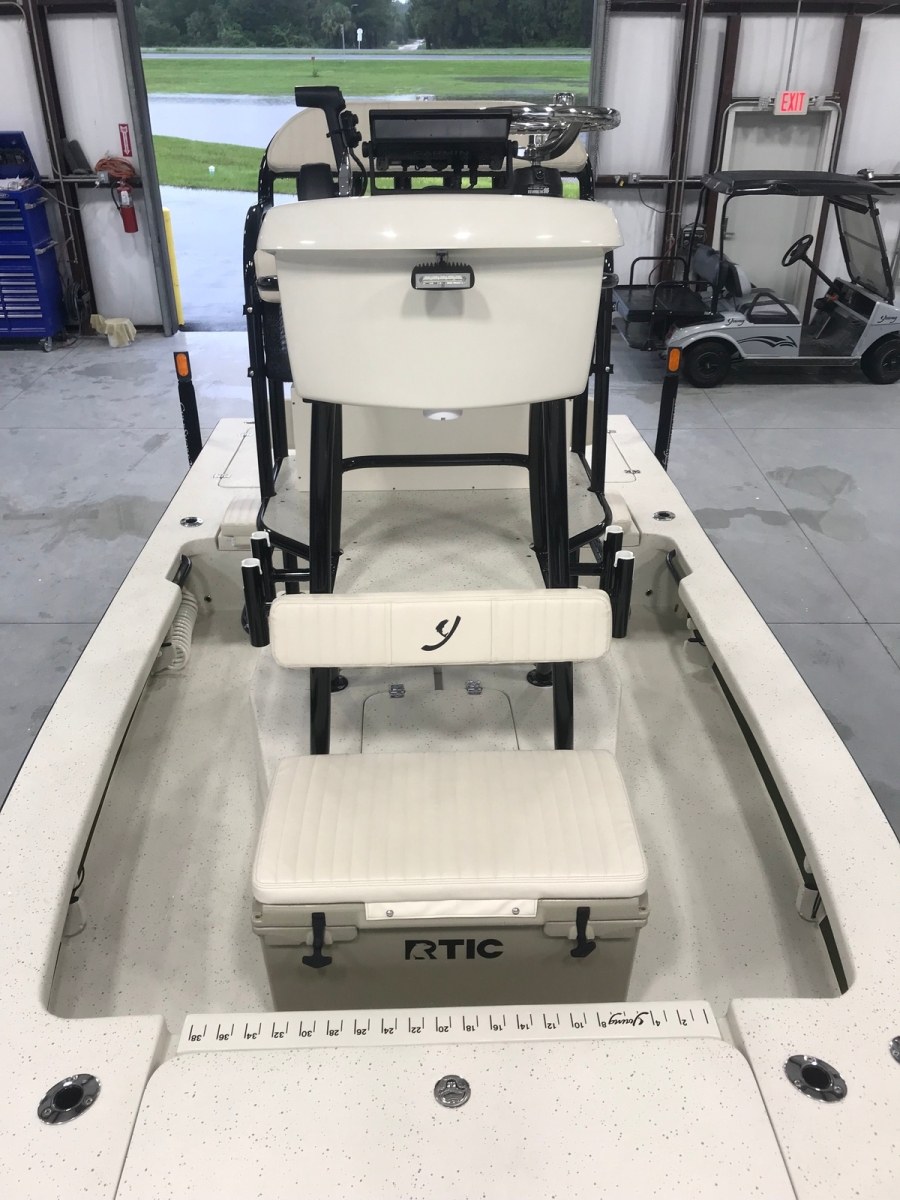

Front cooler seating
